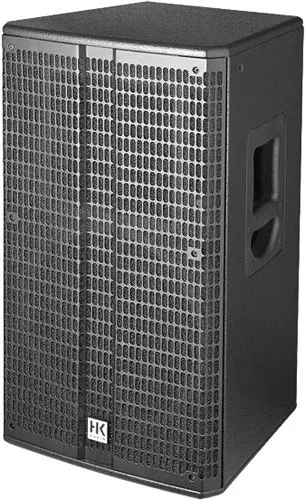

HK Audio Linear 5 112 F

This 12″/1″ fullrange mid/ high unit delivers the most powerful bass performance in its class and features an asymmetrical horn (60º – 90º x 55º) with an optimized coverage pattern. It also comes with a switchable EQ enabling the cab to be deployed as a standalone fullrange unit and in stereo pairs, as well as a mid/ high unit when combined with a Linear subwoofer.

Application: Mid/High unit, Stand Alone System

Powerhandling(Continuous): 500 Watt (2000W Peak)

12″ Speaker with 2,5″ voice coil

1″ Driver with 1,75″ voice coil

134 dB Max SPL Peak @ 10% THD (halfspace)

Asymmetrical horn (60°-90° x 55°), rotatable

Rugged hybrid (birch multiplex /MDF) housing

EQ switch (Flat / Contour)

Power-handling nominal (RMS): 500 W

Power-handling, program: 1000 W

Power-handling, peak: 2000 W

Nominal impedance: 8 ohms

Max SPL: 128 dB half space (@10% THD)

Max SPL peak: 134 dB half space (@10% THD)

Sensitivity 1W/1m: 104 dB half space

Frequency response +/- 3 dB: 70 Hz - 18 kHz

Frequency response -10 dB: 60 Hz - 19 kHz

Protection: PTC circuit

Low/Mid Speaker: 1x 12" with 2.5" voice coil

HF Driver: 1" with 1.75" voice coil

Horn characteristics: 60°- 90° (asymm.) x 55° CD horn, rotatable

Crossover frequency: 1.7 kHz, 12 dB/oct.

Connections: 2x Speakon NL4

Equalizer: EQ switch Flat/Contour

Pole mount: DuoTilt 3/7

Rigging points: 3x M8

Handles: 2, integrated

Enclosure: Hybrid (birch multiplex / MDF)

Grille: 2 mm metal grille backed with black acoustic foam

Finish: Acrylic enamel, black

Optional accessories: Protective cover

Dimensions (WxHxD): 37 x 67 x 36.5 cm

Weight: 23.3 kg
