HK Audio Elements MK2 Smart Base

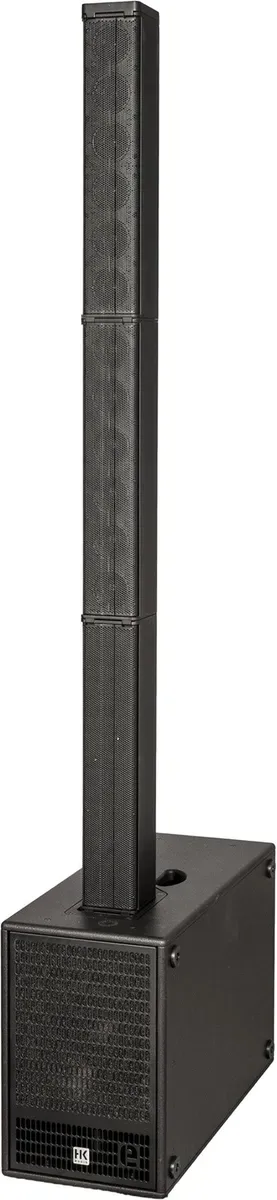

The HK Audio ELEMENTS MK2 Smart Base is a complete modular column PA system designed for compact setups and quick installation. It combines two ELEMENTS MK2 635 mid/high columns, one ELEMENTS MK2 SPACER and one ELEMENTS MK2 110 Sub A active subwoofer with integrated DSP.

The 110 Sub A features a 10-inch woofer, 900 W RMS amplification and a maximum SPL of 123 dB. Its RJ45 network input and output provide network connectivity, while the modular column design delivers controlled sound dispersion in a compact format.

The ELEMENTS MK2 system automatically detects the number of connected mid/high modules and applies DSP compensation to the midrange response. HK Audio's modular design allows the system to be expanded with up to three mid/high modules and two subwoofers, depending on the configuration.

The system uses dedicated E-Connect connections and is designed for straightforward assembly. It can also be extended with the LINEAR 5 MK2 115 Sub A subwoofer, particularly for compatible cardioid configurations. The ELEMENTS MK2 platform is compatible with HK Audio LINEAR 5 MK2 and LINEAR 9 systems.

Features
Complete Modular Column PA System
2 × ELEMENTS MK2 635 Mid/High Columns
1 × ELEMENTS MK2 SPACER
1 × ELEMENTS MK2 110 Sub A Active Subwoofer
10-Inch Woofer With 900 W RMS Amplification
Integrated DSP
Maximum SPL Of 123 dB For The Subwoofer
Automatic Detection Of Connected Mid/High Modules
Automatic DSP Midrange Compensation
Modular Line Array Dispersion Principle
Expandable With Up To 3 Mid/High Modules And 2 Subwoofers
Compatible With HK Audio LINEAR 5 MK2 And LINEAR 9 Systems
Tool-Free Modular System Connections

System Contents
2 × ELEMENTS MK2 635 Mid/High Column
1 × ELEMENTS MK2 SPACER
1 × ELEMENTS MK2 110 Sub A Active Subwoofer

Specifications – ELEMENTS MK2 110 Sub A
Type: Active Subwoofer With DSP
Woofer: 1 × 10-Inch
Amplifier Power: 900 W RMS
Peak Amplifier Power: 1800 W
Maximum SPL: 123 dB
Frequency Response (-6 dB): 52 Hz To Crossover Frequency
Frequency Response (-10 dB): 49 Hz To Crossover Frequency
Network Connections: RJ45 Input And Output
Dimensions (W × H × D): 32.8 × 67.3 × 48.6 cm
Weight: 28.5 kg

Specifications – ELEMENTS MK2 635
Type: Passive Full-Range Column Loudspeaker
Enclosure Principle: Sealed
Mid/High Drivers: 6 × 3.25-Inch
Waveguides: 6 × Phase Plugs
Peak Power Handling: 250 W
Nominal Impedance: 12 Ohms
Maximum Peak SPL: 132 dB
Crossover Frequency: 175 Hz
Frequency Response (-6 dB): 170 Hz–18 kHz
Frequency Response (-10 dB): 145 Hz–20 kHz
Dispersion (-9 dB): 90° Horizontal × 5° Vertical
Connections: 1 × E-Connect MK2 Input, 1 × Parallel E-Connect MK2 Output
Enclosure: Aluminium, Black Powder-Coated
Front Grille: Corrosion-Treated Steel
Dimensions: 11.2 × 56 × 15.1 cm
Weight: 7.3 kg Per Column

Specifications – ELEMENTS MK2 SPACER
Input: 1 × E-Connect
Parallel Output: 1 × E-Connect
Enclosure: Aluminium, Black Powder-Coated
Dimensions: 11.2 × 56 × 15.1 cm
