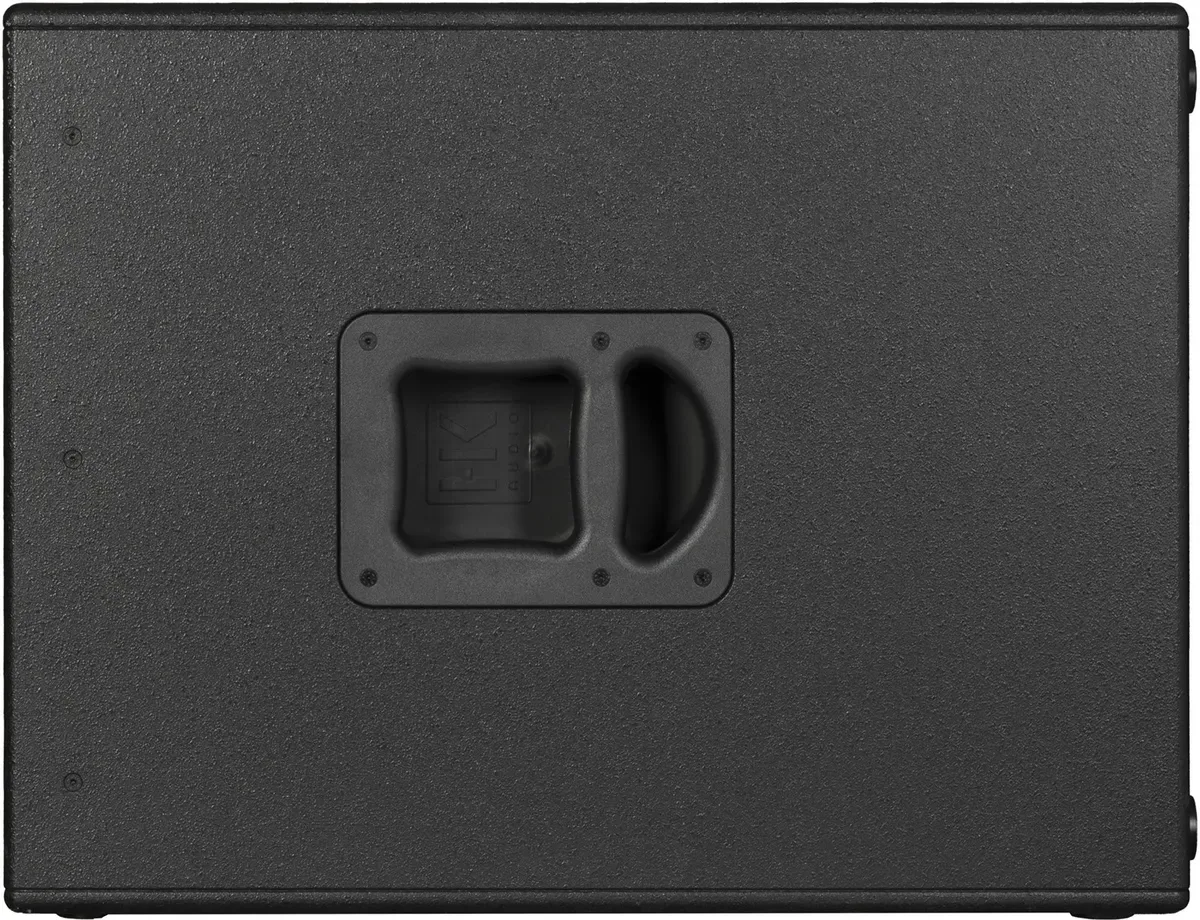

HK Audio Elements MK2 115 Sub A

The HK Audio ELEMENTS MK2 115 Sub A is an active 15-inch subwoofer designed to deliver deep, powerful bass in professional sound reinforcement systems. With 1500 W RMS amplification, integrated DSP, and network connectivity, it forms the foundation of the ELEMENTS MK2 Big Base column PA system.

The modular ELEMENTS MK2 system combines the 115 Sub A or 110 Sub A active subwoofer with ELEMENTS MK2 635 column modules and SPACER elements. Depending on the application, configurations can include up to three mid/high-frequency modules and two subwoofers, allowing the system to be scaled to different sound reinforcement requirements.

Automatic detection identifies the number of connected mid/high-frequency modules and adjusts the midrange response to match the system configuration. HK Audio SnapLock provides tool-free mechanical and audio connections, making setup and reconfiguration straightforward.

The subwoofer features RJ45 network input and output for system connectivity. It can also be combined with the LINEAR 5 MK2 115 Sub A as a low-frequency extension. Cardioid configurations are possible when used with compatible subwoofers.

Features
Active 15-Inch Subwoofer
1500 W RMS Amplifier Power
3000 W Peak Amplifier Power
Integrated DSP
RJ45 Network Input And Output
Designed As The Base Of The ELEMENTS MK2 Big Base System
Modular And Scalable Column PA Configuration
Automatic Detection Of Connected Mid/High-Frequency Modules
Automatic Midrange Response Compensation
Tool-Free HK Audio SnapLock Connections
Compatible With LINEAR 5 MK2 115 Sub A For Low-Frequency Extension
Cardioid Configurations With Compatible Subwoofers

Specifications
Type: Active Subwoofer With DSP
Woofer: 1 × 15-Inch
Amplifier Power: 1500 W RMS
Peak Amplifier Power: 3000 W
Maximum SPL: 128 dB
Frequency Response (-6 dB): 38 Hz To Crossover Frequency
Frequency Response (-10 dB): 35 Hz To Crossover Frequency
Network Connections: RJ45 Input And Output

Dimensions & Weight
Dimensions (W × H × D): 47.8 × 68.1 × 53.1 cm
Weight: 39.4 kg
