Harrison Audio Mix Strip 32C

Experience the iconic sound of the Harrison 32Classic console in a compact, high-performance channel strip. The Harrison Mix Strip 32C combines vintage analog warmth with modern hybrid workflow features, delivering studio-grade quality for recording, mixing, and producing. From its renowned EQ and filters to its transformer-coupled mic preamp, this rack-mounted powerhouse is designed to elevate your audio projects.

Harness the Sound of Legends – The Harrison Mix Strip 32C
The Harrison Mix Strip 32C encapsulates the legendary sonic characteristics of Harrison’s flagship 32Classic console, trusted by top artists like Michael Jackson, Fleetwood Mac, and Led Zeppelin. This 19-inch rack-format channel strip offers a premium Jensen transformer-coupled mic preamp, silky 4-band parametric EQ, and characterful LP/HP filters to shape your sound with precision and musicality.

Perfect for hybrid workflows, the integrated mix bus allows you to cascade multiple units, creating a seamless recording or mixing system. With versatile input options, balanced insert points, and direct pre/post-fader outputs, the Mix Strip 32C is as flexible as it is powerful, fitting effortlessly into any studio setup.

Key Features

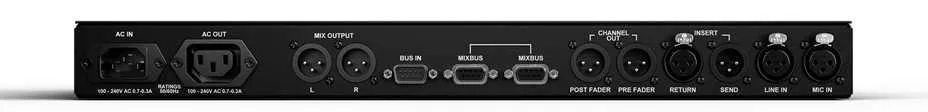

Flexible Input Section: Rear panel with dedicated Mic and Line XLR inputs, and front panel with selectable Instrument/Hi-Z and Mic combo-XLR input.
Transformer-Coupled Preamp: Legendary Jensen JT-MB-CPCA transformer with 70 dB of clean gain, offering warm low end, open mids, and smooth highs.
32Classic Equalizer: Iconic 4-band parametric EQ with proportional Q design, and resonant Low Pass and High Pass filters with a 12 dB/octave slope.
Hybrid Workflow Features: Integrated stereo mix bus for cascading multiple units with 0 dB fader bypass for unity gain recording.
Insert Point: Balanced insert for integrating external processors into the signal path.
Channel Outputs: Pre and post-fader direct outputs for maximum flexibility.
Expandable Sidecar Setup: Combine multiple units to create a versatile sidecar system for drums, instruments, or mix buses.

Technical Specifications
Mic Preamp:
Gain Range: -20 dB to 70 dB.
Input Impedance: 5.8K O (1.3K O with pad).
Maximum Input Level: +4 dBu (no pad), +24 dBu (with pad).
Frequency Response: 20 Hz–20 kHz ± 0.25 dB.
EIN: < -129 dBu.
Line Level Input:
Input Impedance: 10K O.
Trim Range: ±9.5 dB.
Maximum Input Level: +24 dBu.
Line Level Outputs:
Maximum Output Level: +24 dBu.
Output Impedance: 30 O.
THD:
Mic Pre (50 dB Gain): < 0.01%.
Line Input to Stereo Mix Output: < 0.01%.
