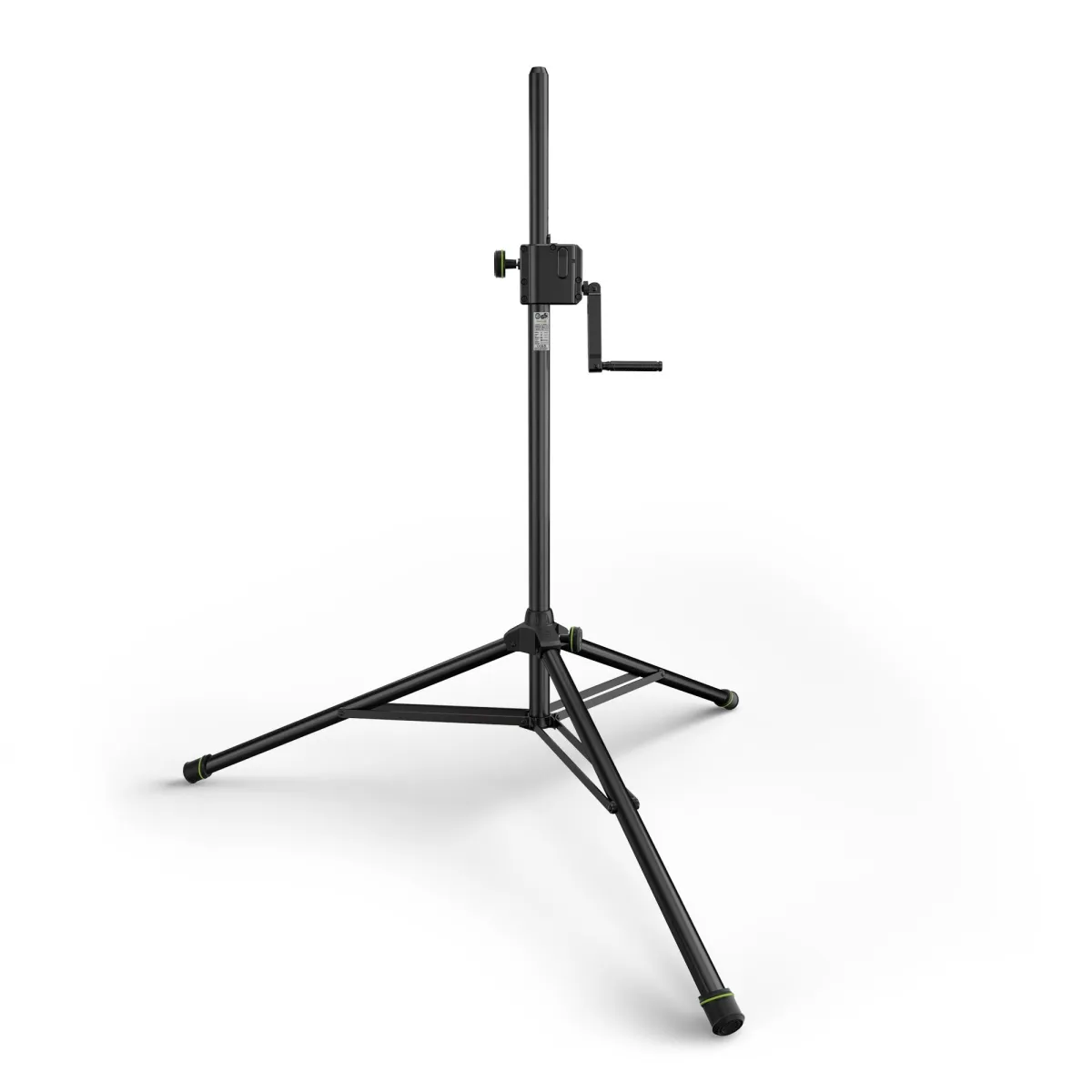

Gravity SP 5322 B

Wind-up speaker stand with automatic lock pin mechanism

This professional speaker stand features a convenient wind-up mechanism for effortless raising and lowering of speakers or lighting trusses. The retractable crank provides smooth operation and a clean design, while the automatic lock pin with push button and locking screw ensures secure height adjustment and prevents unintended movement.

The sturdy steel construction includes a tripod base with double support struts for excellent stability. An integrated M10 thread in the 35 mm extension tube also allows the stand to be used as a lighting stand.

Features

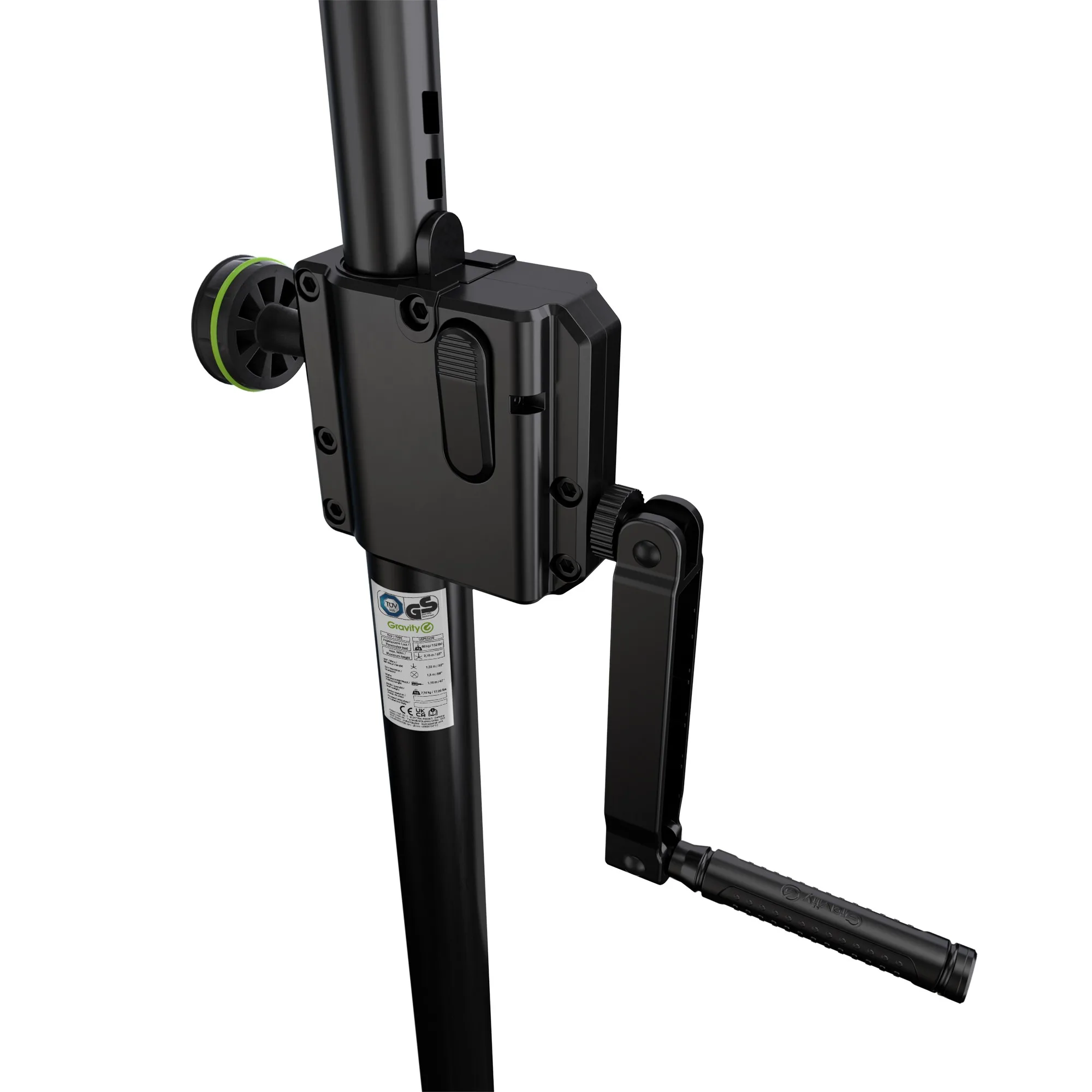

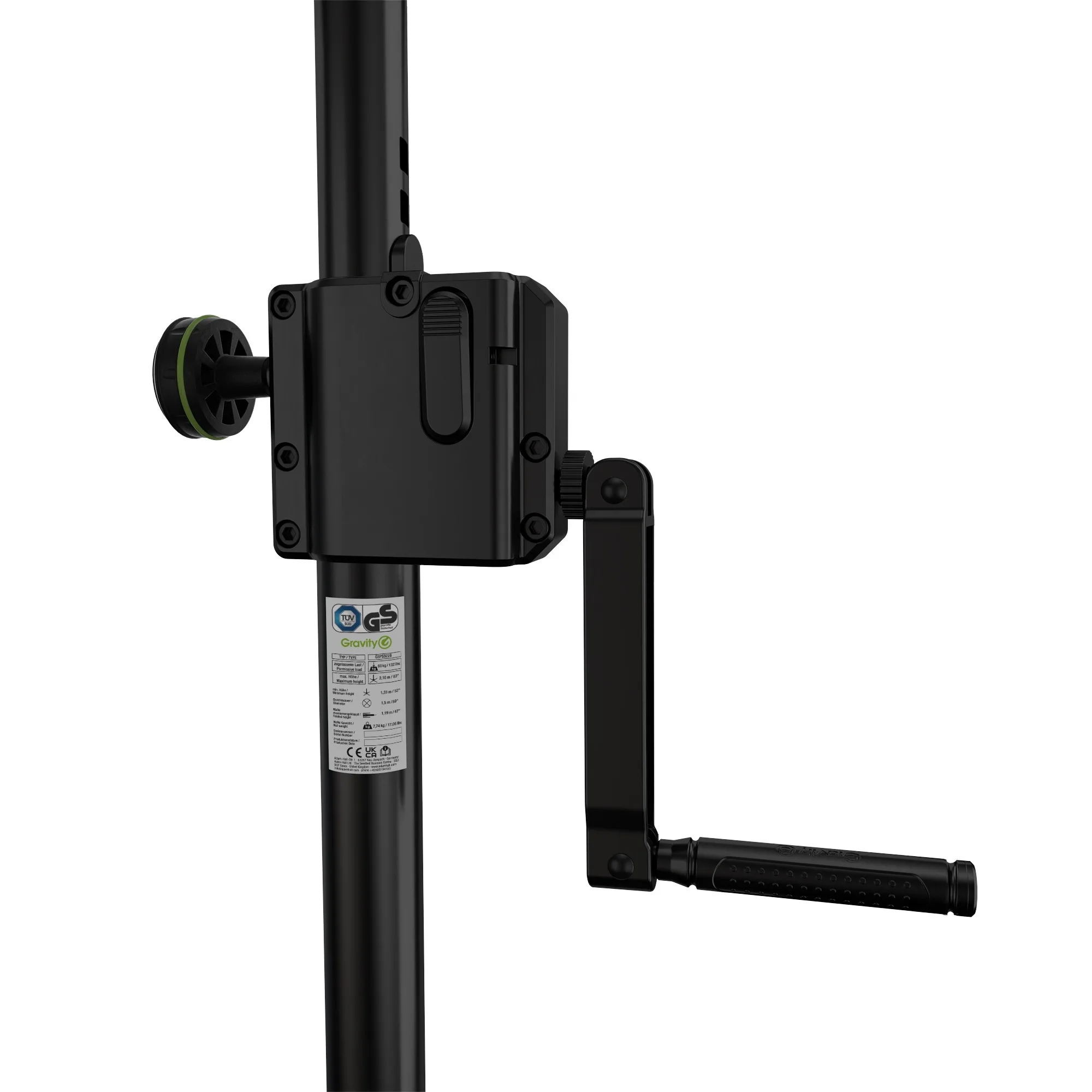

Wind-up mechanism for easy height adjustment
Retractable crank
Automatic lock pin with push button
Locking screw for additional safety

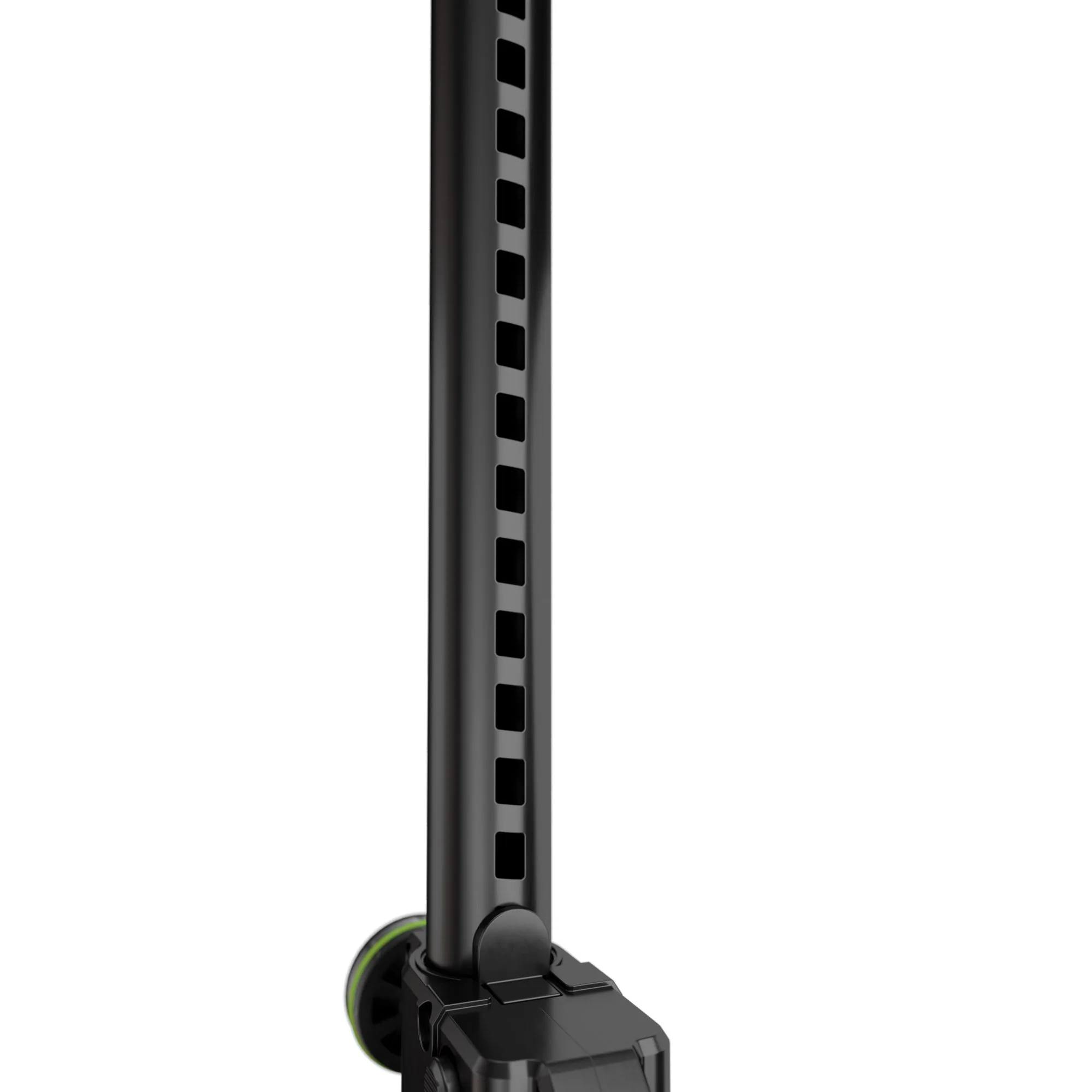

35 mm mounting
Integrated M10 thread for lighting applications

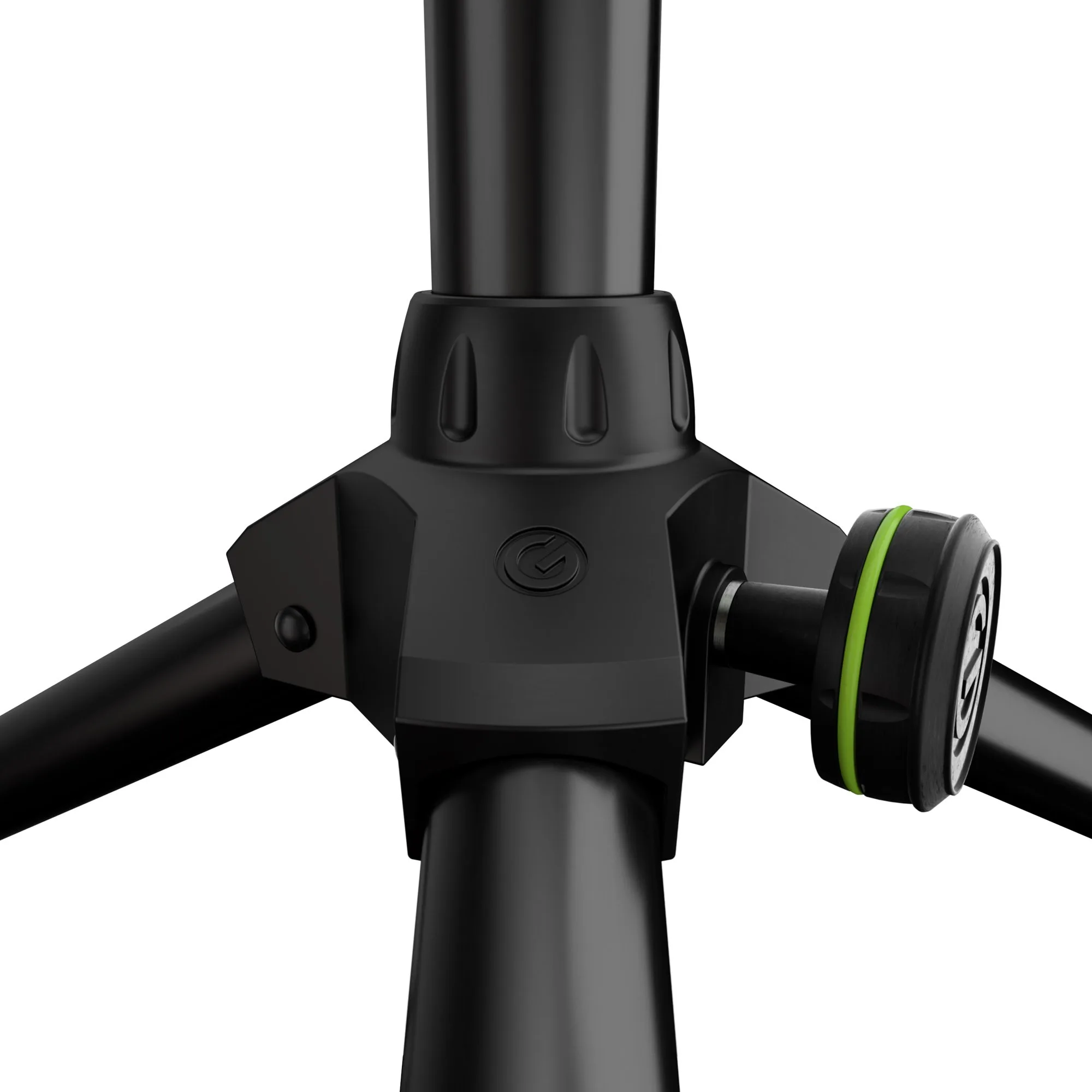

Tripod base with double struts
Cast zinc foot suspension
Powder-coated finish

Specifications
Height adjustment: Crank with push button and locking screw
Height adjustment range: 1330–2100 mm
Maximum load: 60 kg
Mounting: 35 mm, M10
Material: Plastic, steel, zinc alloy
Finish: Powder coated
Color: Black
Footprint (Ø): 1500 mm
Gravity® rings: 5 × 30 mm
Black ring set included

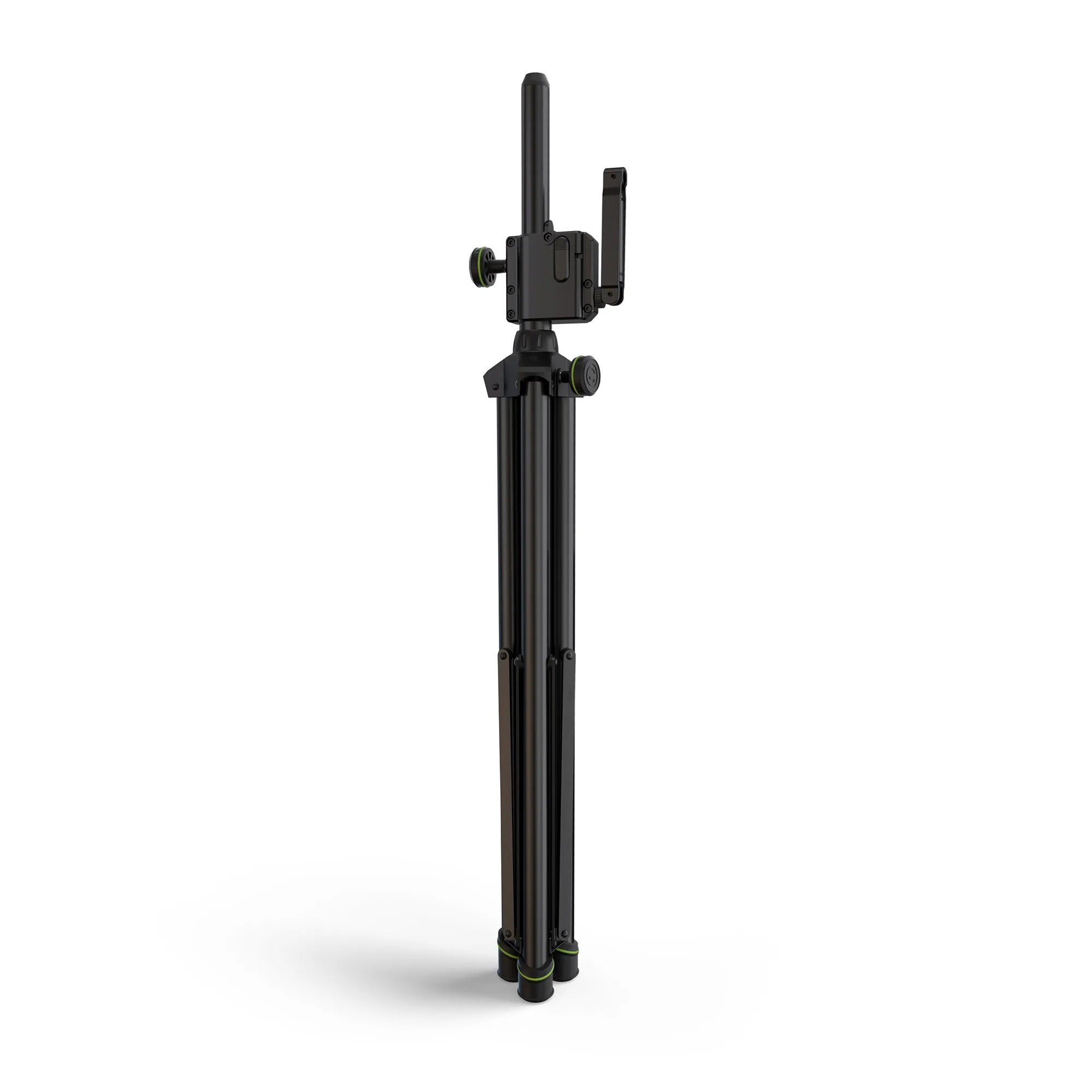

Transport dimensions
Width: 160 mm
Height: 1190 mm
Depth: 170 mm

Dimensions and weight
Width: 160–1600 mm
Height: 1330–2100 mm
Depth: 170–1600 mm
Weight: 7.74 kg
