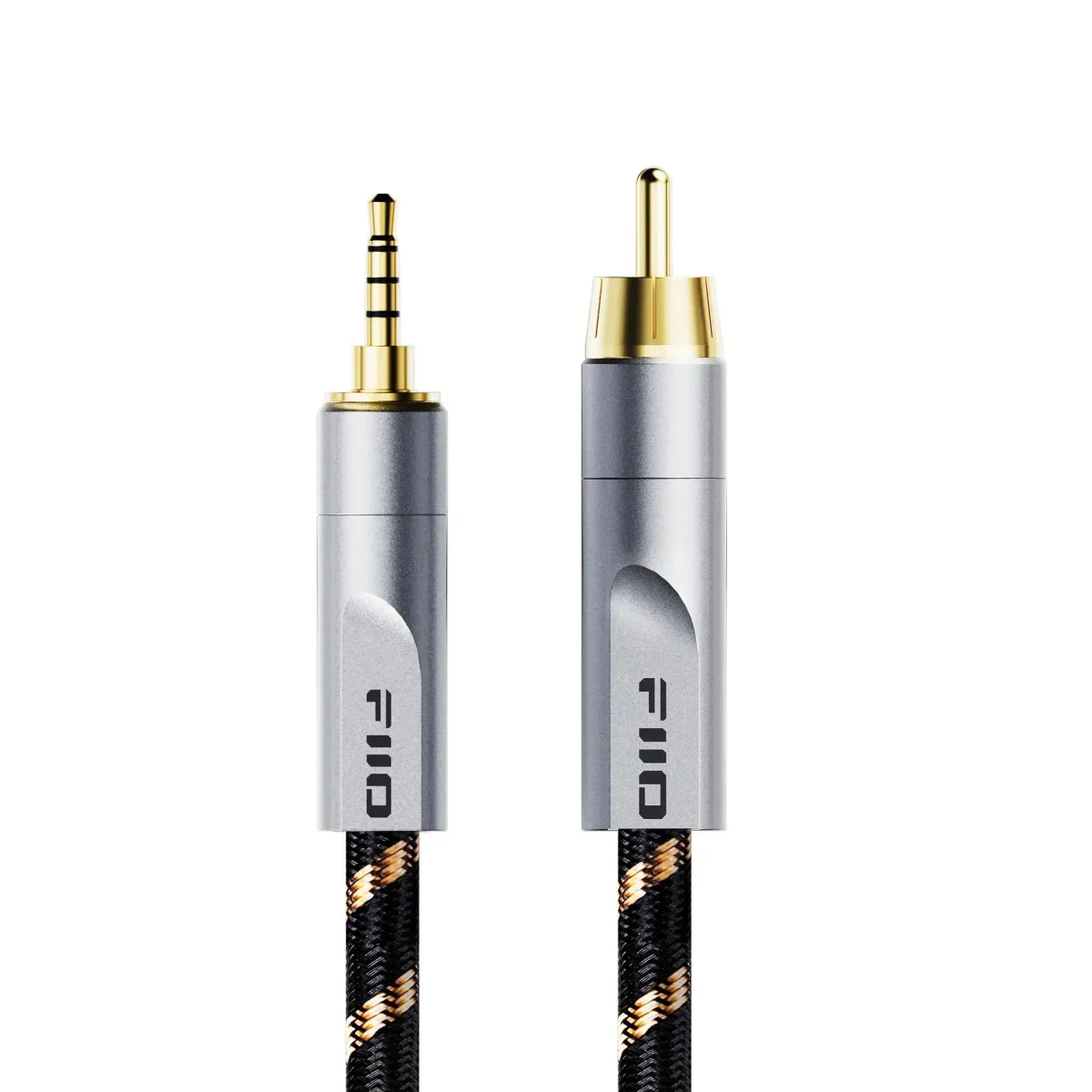

FiiO LL-RCA1M 3.5mm > RCA Coaxial

The FiiO LL-RCA1 is a 3.5 mm to RCA digital audio coaxial cable designed for connecting compatible portable sources and digital audio devices to equipment with an RCA coaxial input. It is available in two lengths: 20 cm (LL-RCA1S) and 80 cm (LL-RCA1M).

The cable uses 164 strands of high-purity silver-plated copper wire together with 128 strands of braided bare copper. The internal conductor assembly is enclosed by graphene-coated aluminum foil shielding to help reduce electromagnetic interference during digital audio transmission.

The connectors feature CNC-machined full aluminum alloy housings with gold-plated plugs. The 3.5 mm connector uses a 4-conductor TRRS design, while an elastic PVC inner sheath provides additional support and flexibility for the internal wires.

A reinforced mesh outer sheath provides resistance to abrasion and everyday wear. The cable has undergone laboratory testing including 5,000 plug-unplug cycles, salt-spray corrosion testing, tensile and bending stress testing, compression testing and high- and low-temperature exposure testing.

Each cable is supplied with a silica gel pack. The LL-RCA1 is compatible with FiiO DM13 and JM21 as well as other devices featuring a 3.5 mm coaxial digital output and equipment with an RCA coaxial input.

Features
3.5 mm To RCA Digital Coaxial Cable
164-Strand Silver-Plated Copper Conductor
128-Strand Braided Bare Copper
Graphene-Coated Aluminum Foil Shielding
CNC-Machined Aluminum Alloy Connector Housings
Gold-Plated Plugs
4-Conductor TRRS 3.5 mm Plug
Reinforced Mesh Outer Sheath
Available In 20 cm And 80 cm Lengths

Compatibility
FiiO DM13
FiiO JM21
Devices With 3.5 mm Coaxial Digital Output And RCA Coaxial Input

In The Box
1 × FiiO LL-RCA1 Cable
1 × Silica Gel Pack

Specifications
Cable Type: Digital Audio Coaxial
Connectors: 3.5 mm TRRS To RCA
Primary Conductor: 164 Strands Silver-Plated Copper
Secondary Conductor: 128 Strands Braided Bare Copper
Shielding: Graphene-Coated Aluminum Foil
Available Lengths: 20 cm, 80 cm
