FBT Vertus CS 1000

The Vertus CS 1000 is a complete line array system in a compact format that combines a subwoofer with an amplifier and a passive satellite speaker powered by the subwoofer. The built-in amplifier in the subwoofer delivers 600W RMS to the subwoofer and 400W RMS to the satellite, providing a maximum sound pressure level of 129 dB SPL. The system is modular and can be easily expanded for more power by connecting two systems together, which increases the SPL by 6 dB and coverage to 40° vertically.

Features and specifications:

2-way speaker system with subwoofer and passive satellite speaker
Subwoofer with a 12“ (320mm) long-throw bass driver with a 2.5” (64mm) voice coil
The satellite speaker is equipped with six full-range 3" (70mm) neodymium drivers
Frequency response: 40 Hz – 20 kHz
Maximum SPL: 129 dB, continuous and peak
Dispersion: 110° horizontally and 30° vertically (can be extended to 40° vertically in a dual configuration)
Input connectors: XLR and Neutrik SPEAKON for satellite
Onboard Class-D, switch-mode amplifier: 600W RMS + 400W RMS (LF/HF)
Built-in DSP with eight presets for various applications
Adjustable volume between -4.5 / +5 dB in 8 steps
Control panel with master volume, preset, satellite volume, HPF, and status LED
Modular design for configuring two systems for increased power and coverage
Birch plywood subwoofer with aluminum handles and rubber inserts, M20 mounting points, and adjustable stand mounting solution

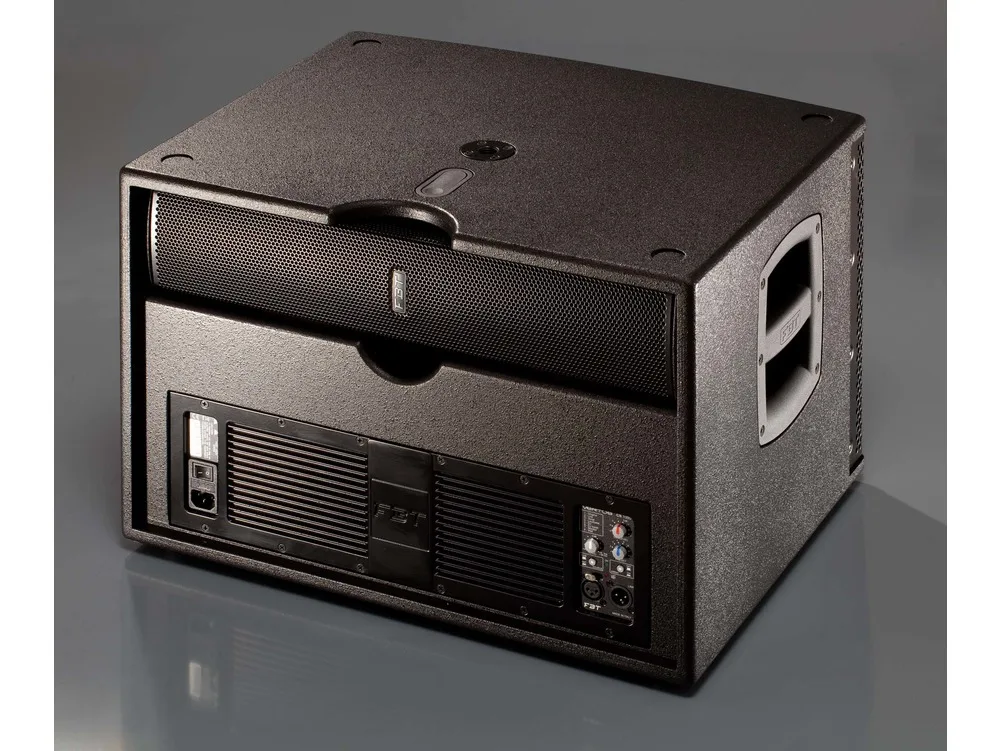

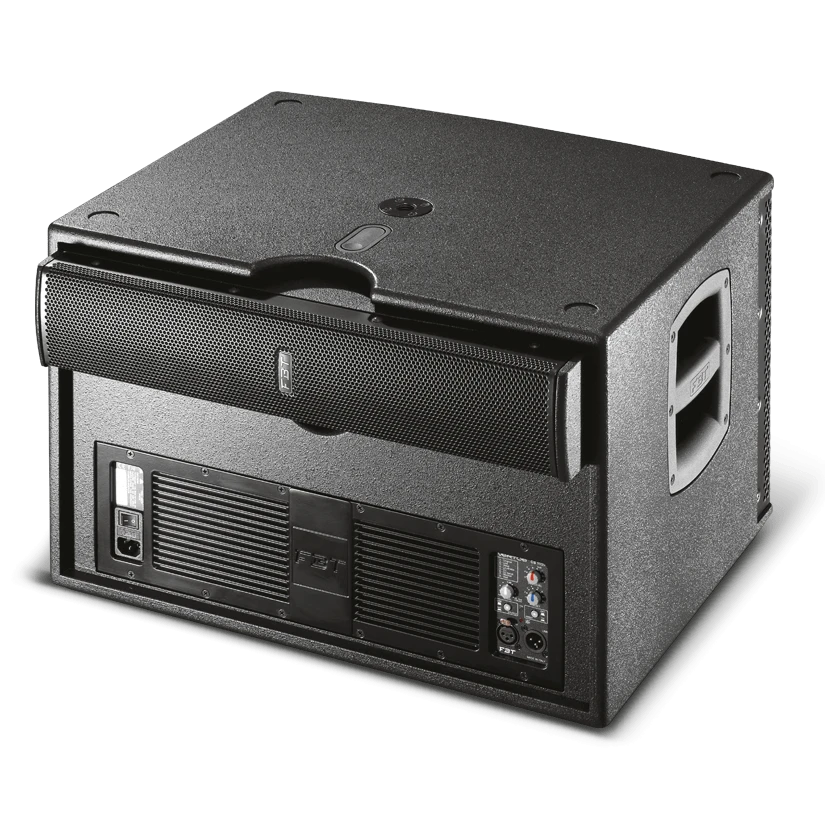

The satellite and pole are fully integrated into the subwoofer cabinet, with a locking system for easy transport
The pole is divisible into three sections with continuous vertical adjustment for precise aiming
Easy to transport with handles and dimensions of 565 x 373 x 450 mm for the subwoofer, weight 30 kg
Power supply: 640 VA with built-in 5-meter IEC cable
Expandable to a total power output of 8,000 W peak (with four units, two per side)

The Vertus CS 1000 is a powerful, lightweight, and easy-to-use system suitable for both live performances and fixed installations, offering high sound quality and flexible coverage.
