FBT Ventis 115A

Ventis 115A – Powerful active speaker for live performance, studio, and installation

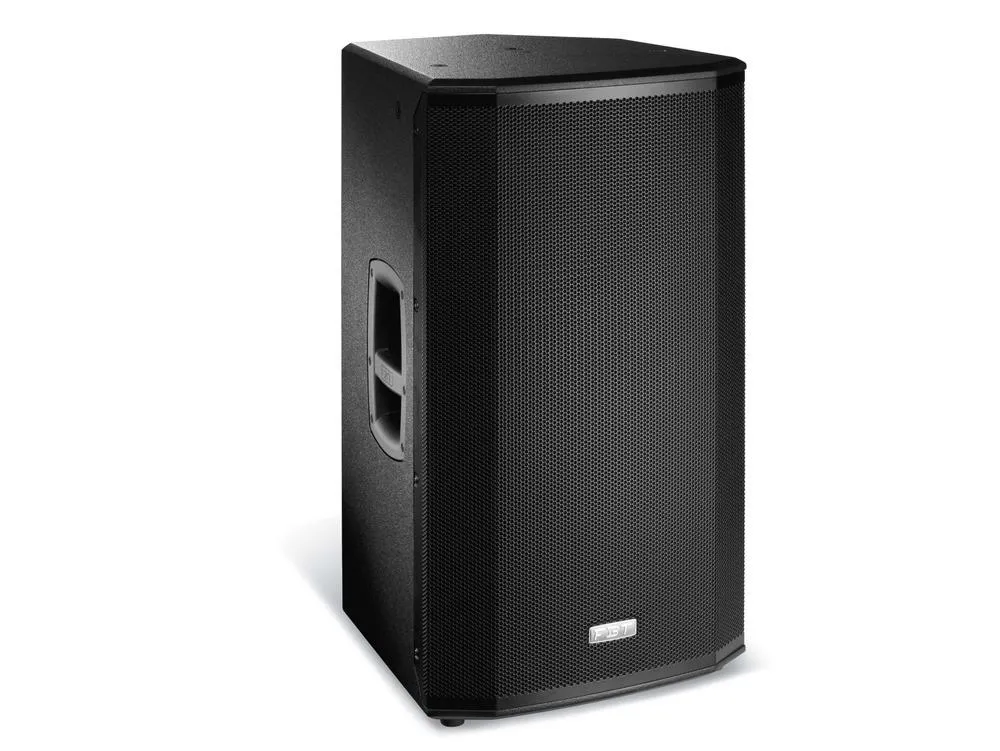

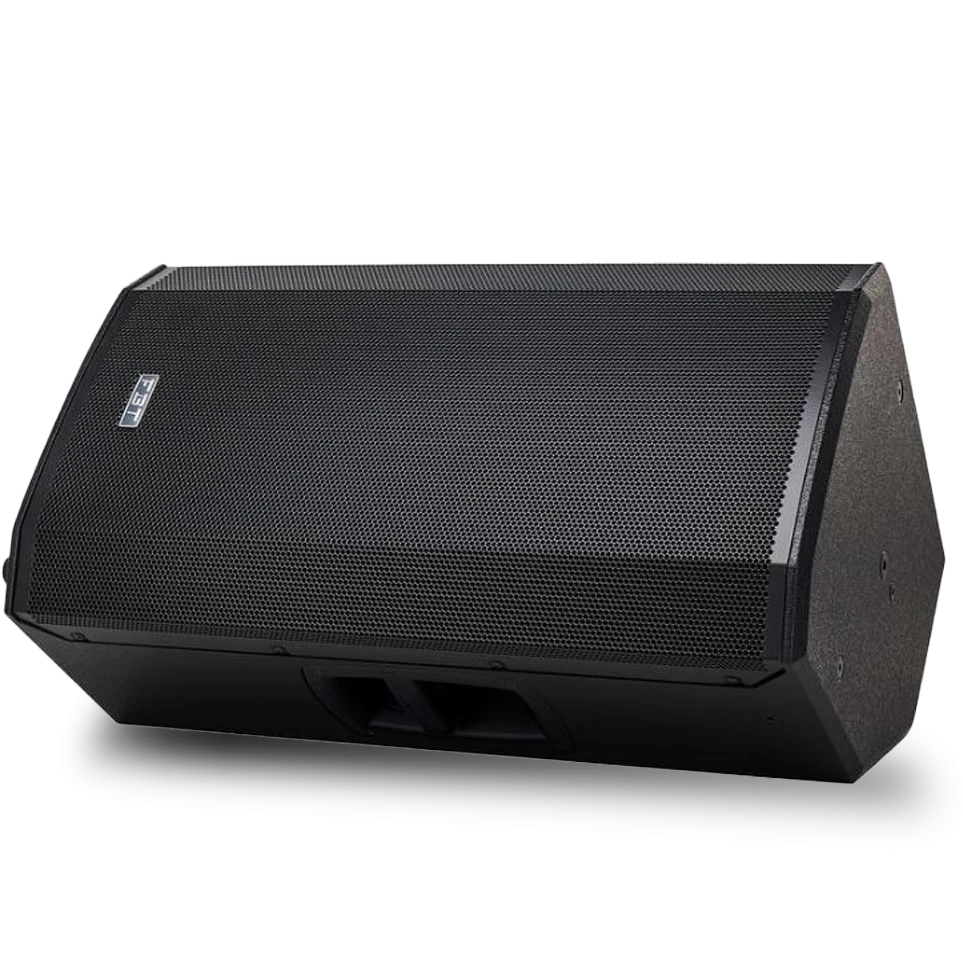

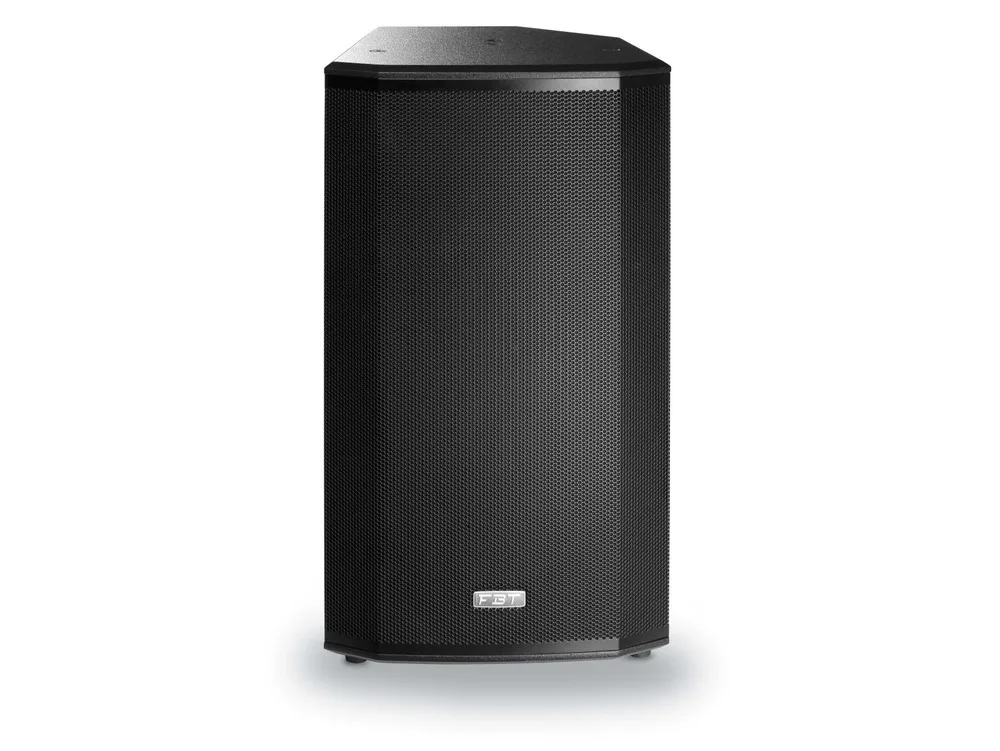

The Ventis 115A is a versatile active speaker suitable for both portable use and fixed installation. It is equipped with a 15-inch woofer and a 1-inch exit 1.7-inch VC compression driver, delivering powerful sound and high sound pressure levels. The built-in DSP processor with LCD display and amplifier module delivers 700W + 200W, providing a maximum SPL of 133dB.

Construction and Design

2-way bi-amplified design with bass reflex.
15 mm Baltic birch plywood cabinet with a durable finish and internal bracing.
Rotatable horn with constant directivity of 80°H x 50°V.
Dimensions: 427 x 765 x 420 mm.
Weight: 25 kg.
Equipped with a 35 mm pole mount for easy setup.
6 M10 mounting points for suspension, as well as wall-mounting brackets and a top-hat socket for stands.

Features and Specifications

Power: 700W RMS LF and 200W RMS HF in Class D and Class H/AB, respectively.
Digital Signal Processor with graphic display and rotatable horn.
15“ LF woofer with 64mm (2.5”) voice coil, manufactured for FBT.
1“ exit throat B&C HF compression driver with 44mm (1.7”) voice coil.
Frequency response: 42Hz to 20kHz (-6dB).

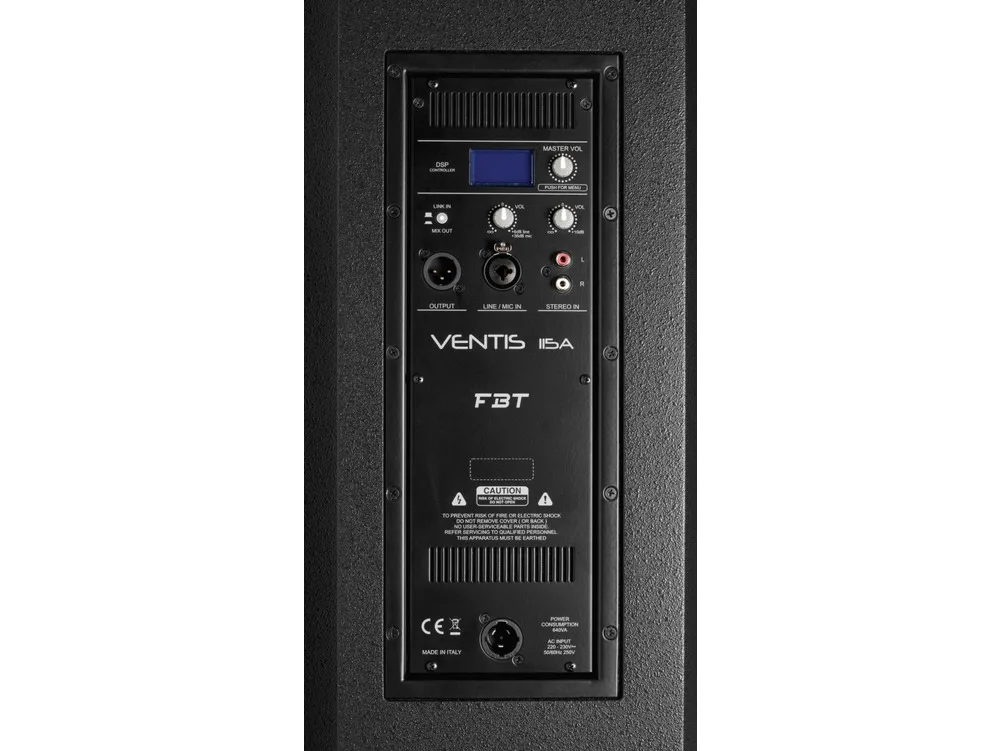

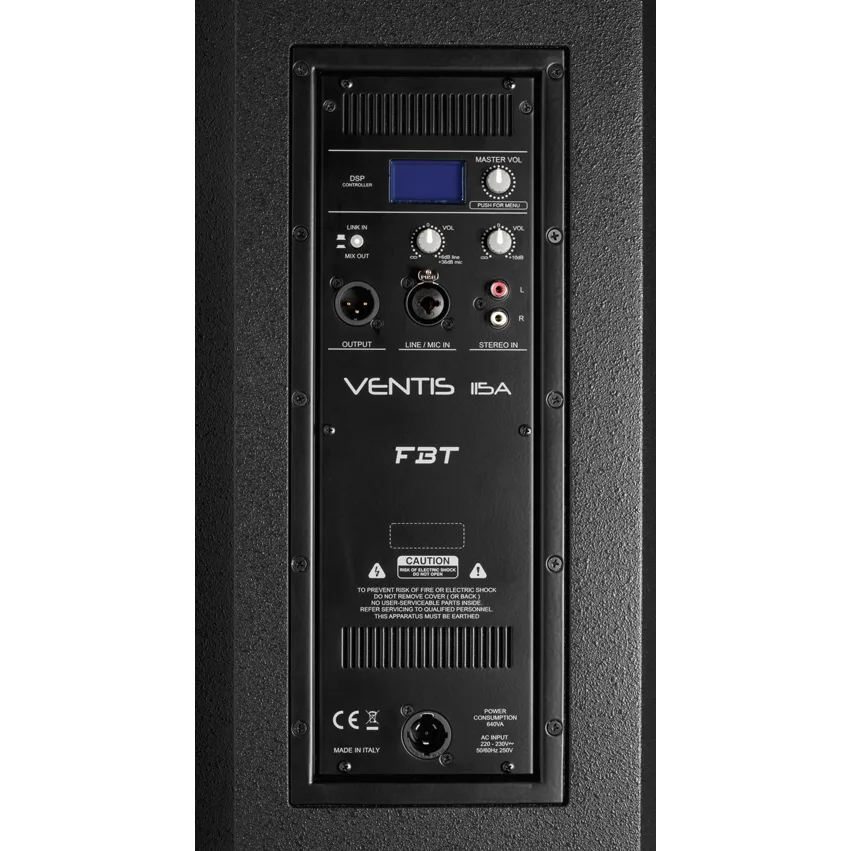

Control section with balanced XLR/Jack input, XLR link output, RCA stereo input, volume controls, and DSP display.
Adjustable delay between 0-10 meters.
Efficient switch-mode power supply with 640VA AC power requirement and a 5-meter power cable.
Maximum SPL: continuous 127dB, peak 133dB.
Shipping dimensions: 600 x 865 x 520 mm, weight 29 kg.

FBT VENTIS preset options

ORIGINAL / LIVE for a distinct and smooth sound.
VOCAL for clearer speech.
DJ to create a high-energy, dance-friendly atmosphere.
TOURING for reliability and power in professional settings.
LOUDNESS for listening at medium or low volume.
WARM to enhance rich, low-mid frequencies.

Summary The Ventis 115A is a powerful, flexible, and easy-to-use speaker featuring advanced DSP technology, high sound quality, and a rugged design. It is ideal for live and DJ performances, studio applications, and fixed installations, and comes with many useful features for professional sound reproduction.
