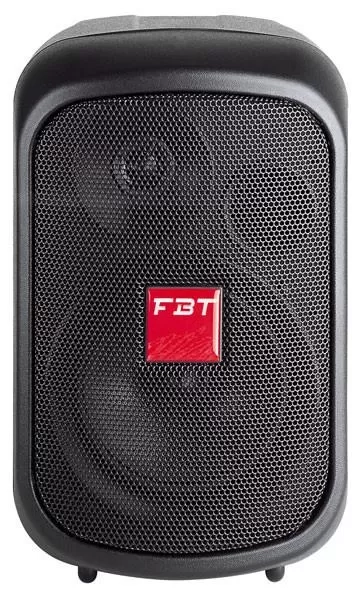

FBT JOLLY 5R Series Speakers
The FBT JOLLY series speakers are designed with lightweight yet rugged gas-injected molded polypropylene cabinets. Available in a black finish, the modern cabinet design blends seamlessly into any décor, making it ideal for fixed installations.

With optional accessories, the JOLLY 5R speakers can be mounted on mic stands, making them suitable for near-field monitoring, live sound, and studio applications.

Key Features
Two-way design: 5" low-frequency woofer + 1" mylar diaphragm dome tweeter
Cabinet dispersion: 90°H x 90°V for wide coverage
Crossover frequency: Fixed at 4 kHz
Frequency range: 80 Hz – 20 kHz
Maximum SPL: 110 dB
Magnetically shielded: Safe for use near video monitors
Protective steel grille: Safeguards against external damage
Installation & Connectivity
Impedance: 16 Ohm – allows up to four JOLLY 5R speakers per channel (eight total with a stereo power amplifier at 2 Ohm), reducing the need for 70V constant-voltage systems and avoiding the sound degradation and added cost of line transformers.
Mounting options: Two M6 fly points and optional brackets for wall or ceiling mounting. Mic stand adapters available for portable or vertical mounting.
Connections: Rear panel includes a female 1/4" input jack and push-pin terminal connectors, internally wired in parallel to provide flexible installation options.
