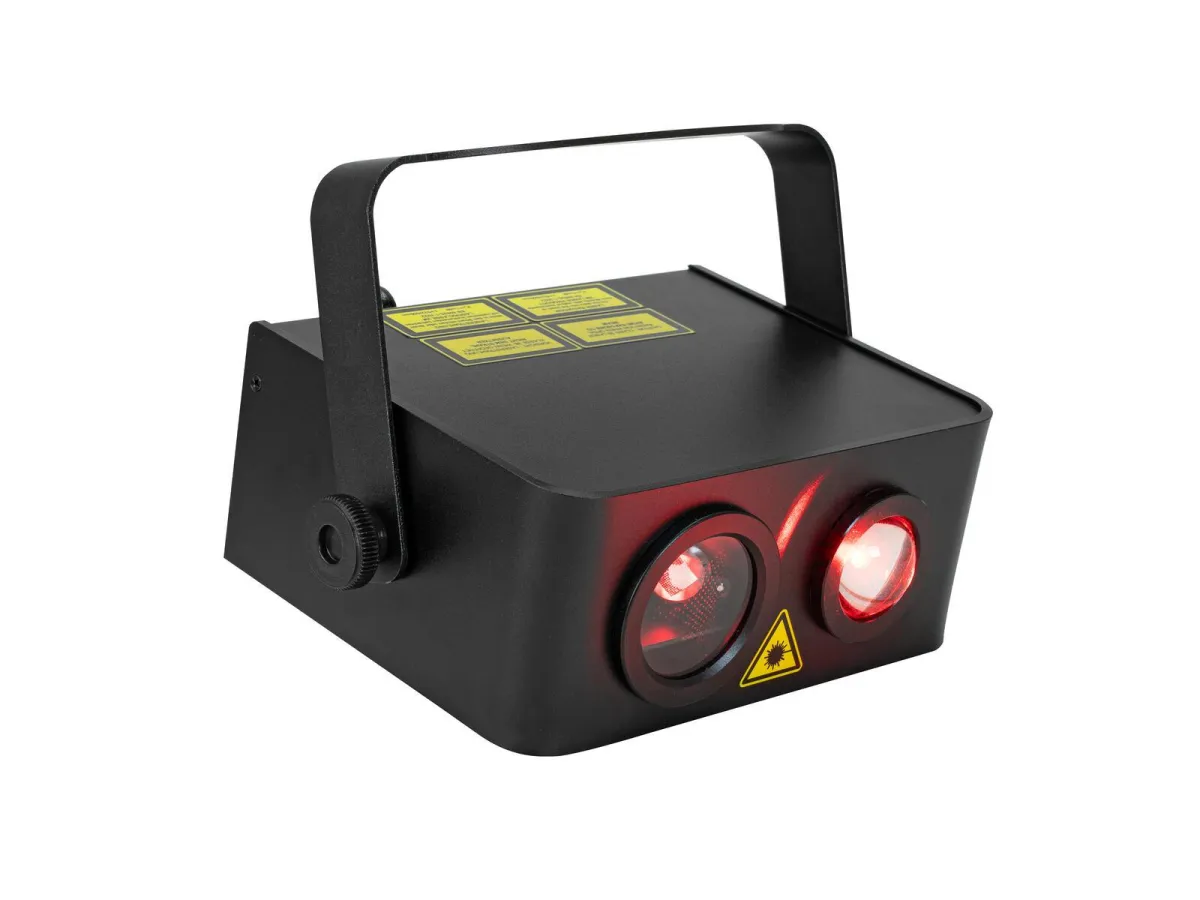

Eurolite PolarStar RGB Laser

Star laser for colored and white star effects and LED northern light effect

1 powerful LED 7 W SMD 3in1 TCL RGB
Animation wheel rotating
Dimmer electronic
Laser
Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
3 integrated show programs
The device is cooled by passive convection cooling
Control via stand-alone; sound to light via microphone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
DMX feed-through for up to 32 further DMX devices
DMX fail mode (hold; blackout)
With a beam angle of 23°
With mounting bracket
3 digit 7-segment LED display
For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer; restaurants, bars and hotels
Very quiet working noise
Application possibility: Suspended; on stand
Package contents

1 x light effect, 1 x power cord, 1 x user manual

Technical Specifications – LED Animation & Laser Effect Light
Power & Electrical
Power Supply: 100–240 V AC, 50/60 Hz
Power Consumption: 20 W
Protection Class: I
Power Connection: IEC connector (male), mounting version
Power Cable: 1.4 m, with safety plug
Fuse: 5 x 20 mm, T 1 A (replaceable)

Light Source
Lamp Type: LED
LED Type: 1 x 7 W SMD 3-in-1 TCL RGB
Flash Rate: 0.5 – 20 Hz

Laser
Class: 2M
Colours: Red, Green, Blue
Laser Power: 193 mW total (R/G/B combined)

Optical & Projection
Beam Angle (Full/½ Peak): 23°
Animation Wheel: Rotating
Projection: Flicker-free
PWM Frequency: 23,500 Hz

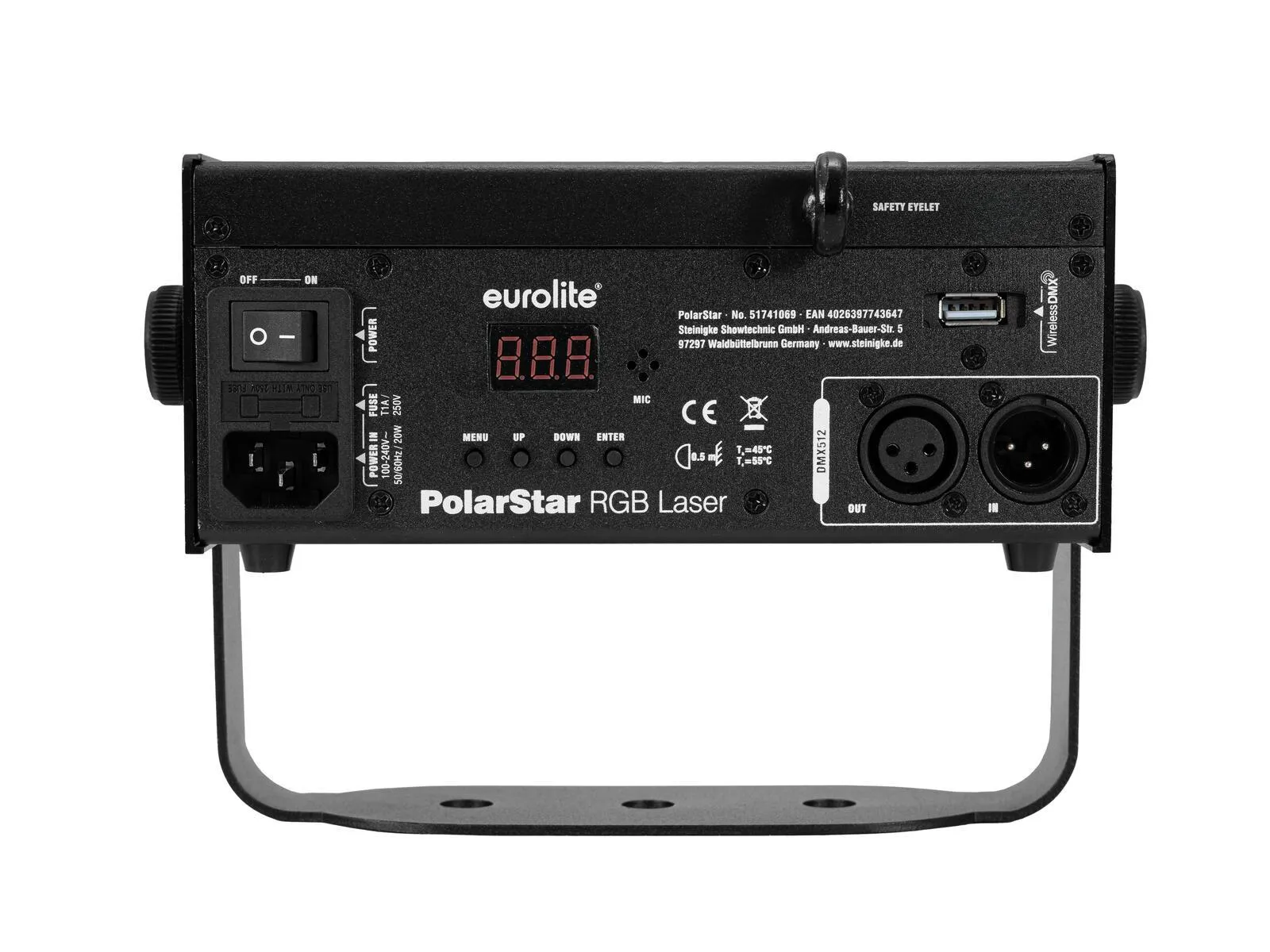

Control & Connectivity
Control Modes:

Stand-alone
Sound-to-light (via microphone)
Master/Slave
DMX
QuickDMX via USB (optional)
W-DMX by Wireless Solution via USB (optional)
CRMX by LumenRadio via USB (optional)
DMX Channels: 8
DMX Input: 3-pin XLR (Male), mounting version
DMX Output: 3-pin XLR (Female), mounting version
DMX Feed-through: Supports up to 32 additional DMX devices
DMX Fail Mode: Hold / Blackout
Display Type: 3-digit 7-segment LED
USB Port: Type A

Mechanical
Cooling: Passive convection
Housing Material: Aluminum
Housing Colour: Black
Attachment System: 3x Ø 10 mm mounting holes
Mounting Bracket: Included

Dimensions & Weight
Width: 240 mm (24.0 cm)
Depth: 205 mm (20.5 cm)
Height: 165 mm (16.5 cm)
Weight: 1.62 kg

Noise & Environment
Noise Classification: Class 1 (very slight noise, suitable for noise-sensitive environments)
