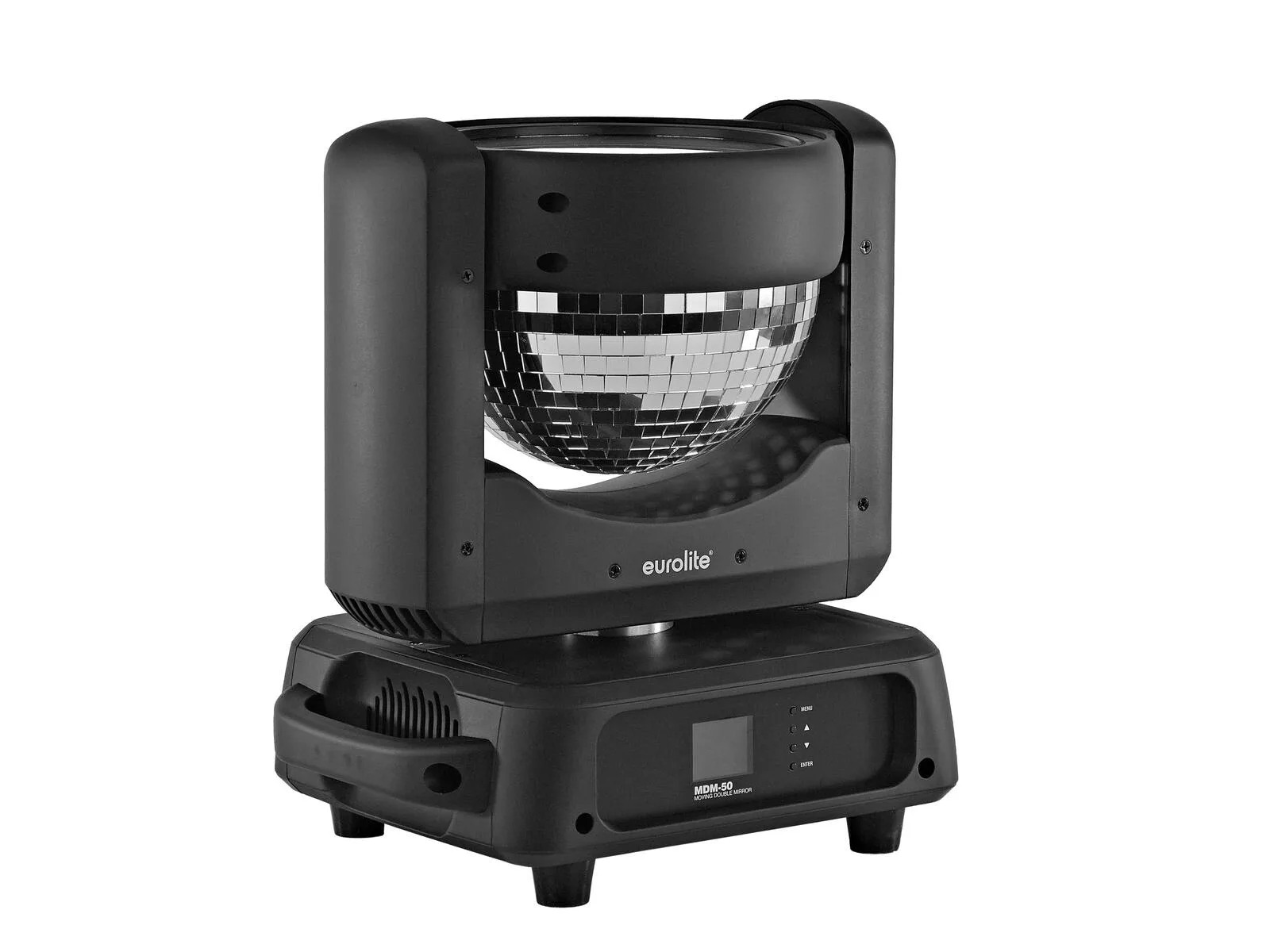

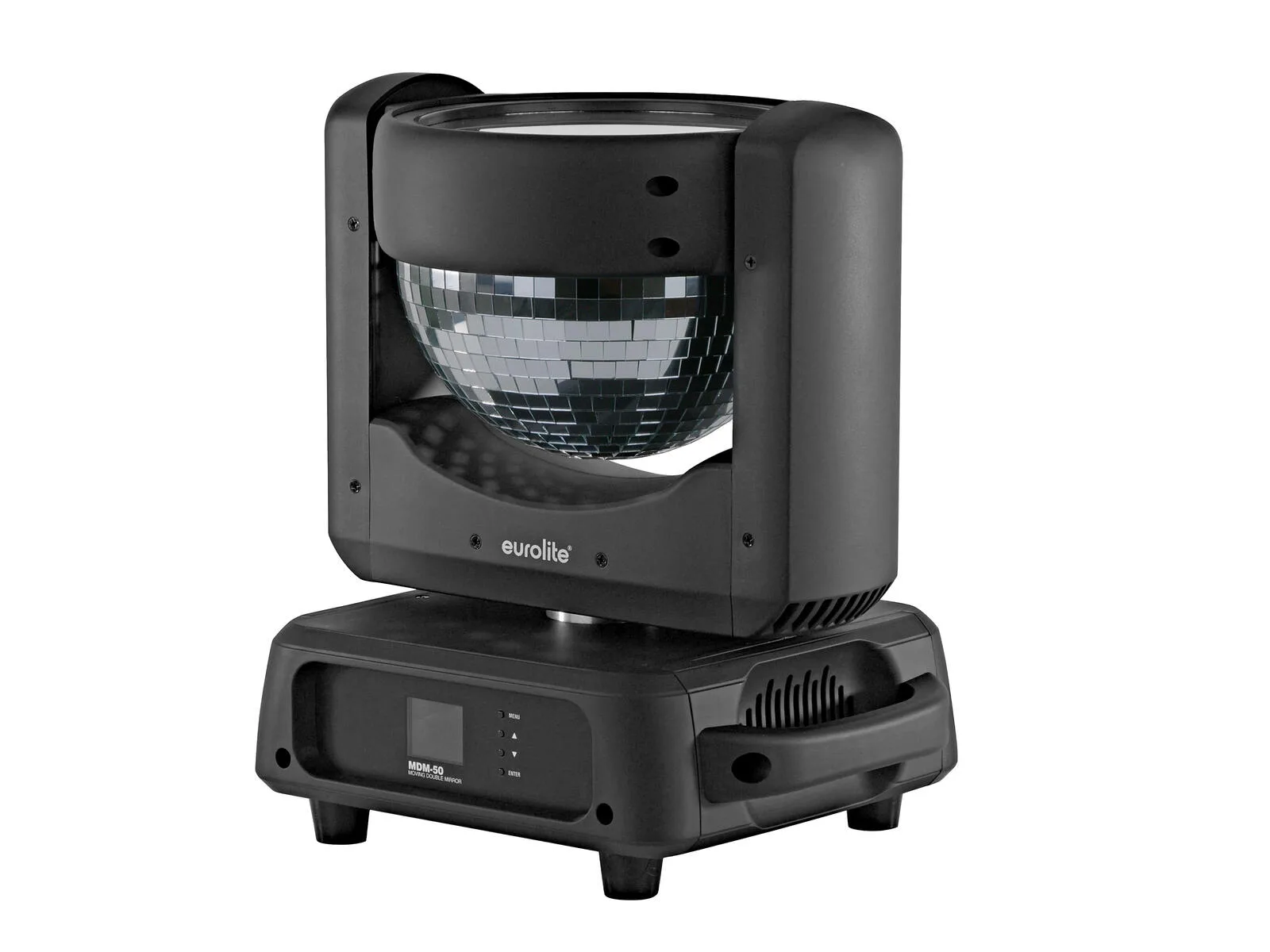

Eurolite MDM-50 Moving Double Mirror

Moving head with rotating mirror half ball, flat mirror and RGB LED ring

This moving head combines a rotating mirror half ball, a flat mirror and an RGB LED ring to create dynamic lighting effects. The mirror half ball rotates continuously with adjustable speed and direction, while the flat mirror redirects light for impressive effects when used with haze. The head can rotate continuously between the mirror half ball and the flat mirror for smooth transitions.

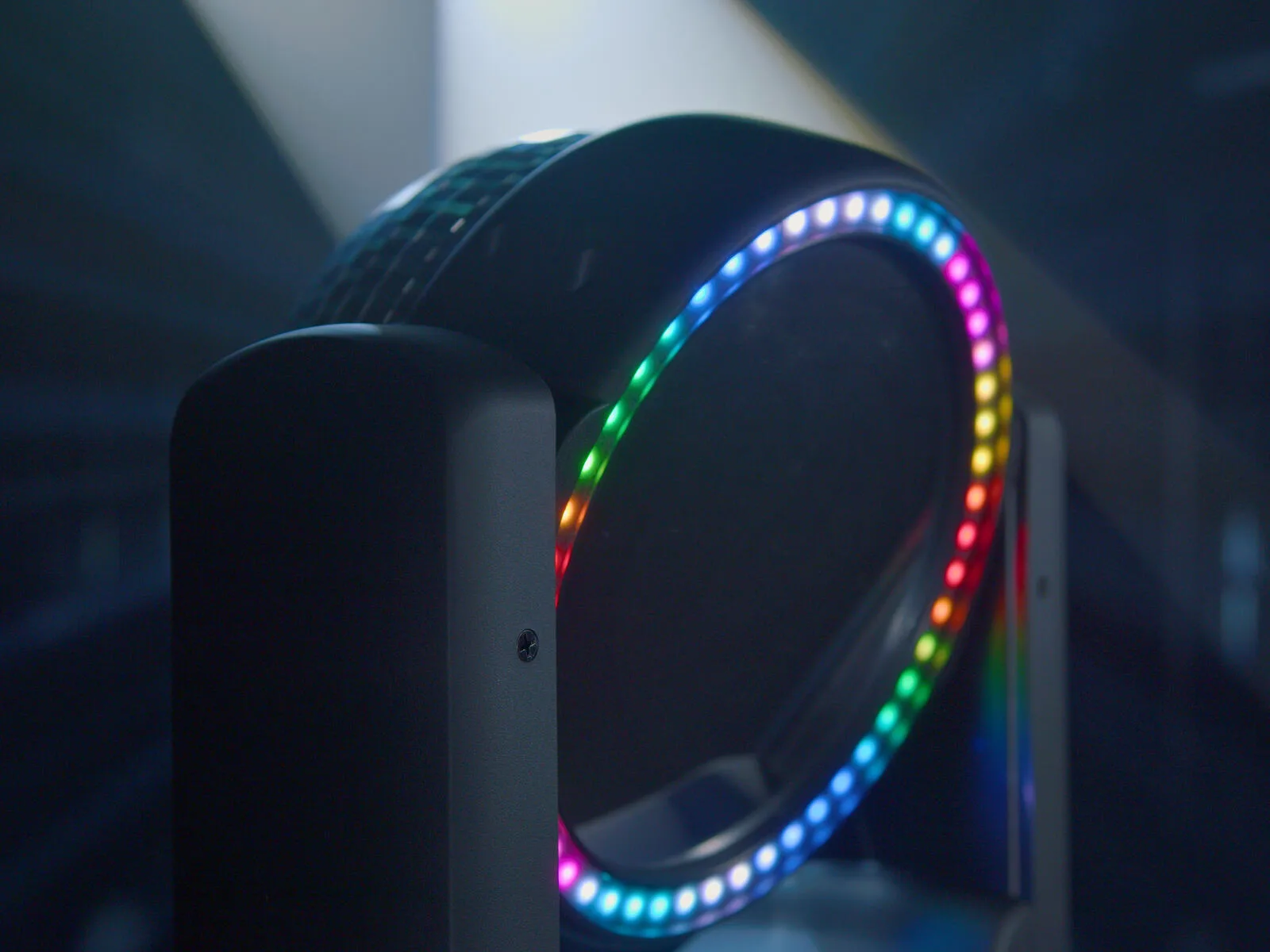

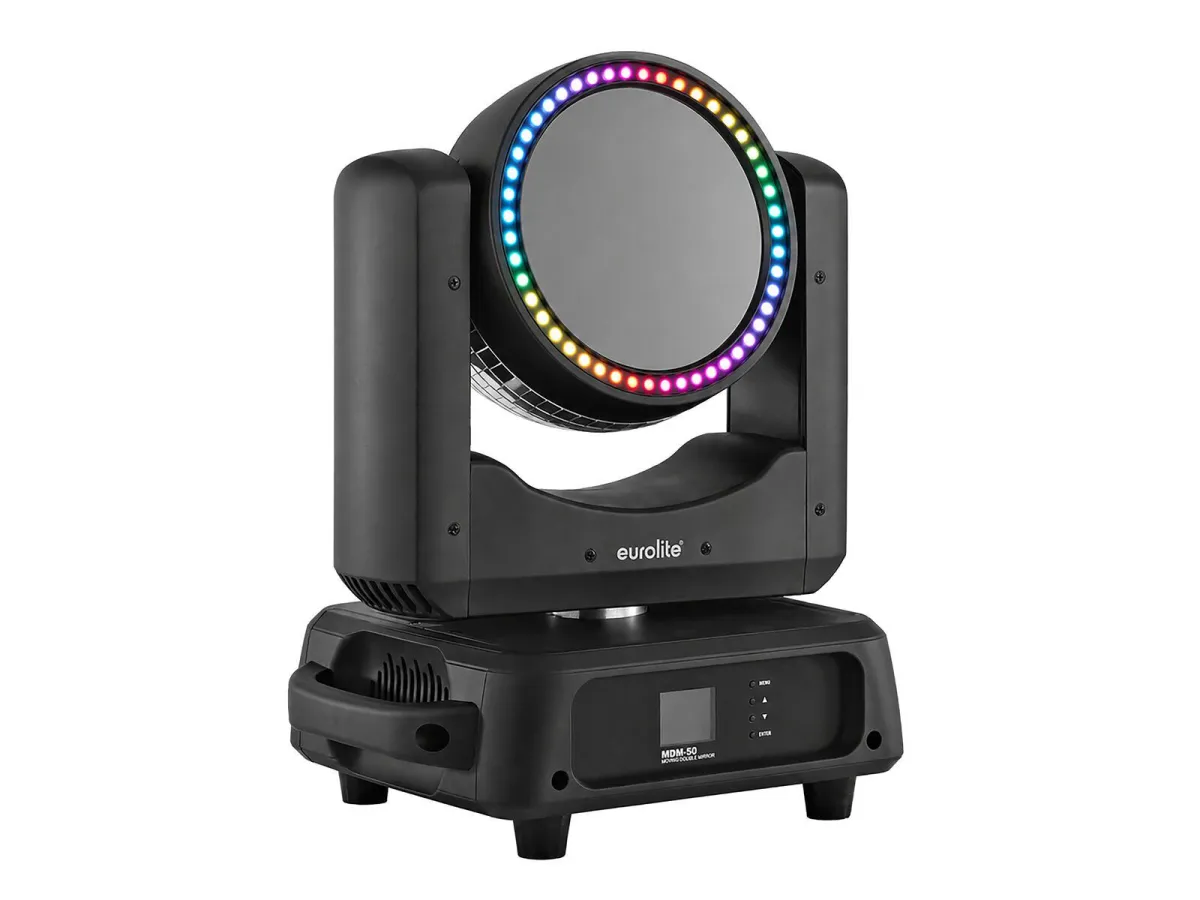

The integrated LED ring features 50 RGB LEDs with 25 individually controllable segments for color accents and chase effects. Precise PAN and TILT positioning, silent operation and multiple control options make it suitable for professional lighting applications.

Features
Rotating mirror half ball with endless rotation.
Flat mirror for dynamic lighting effects.
50 SMD 5050 3-in-1 RGB LEDs with homogeneous color mixing.
25 individually controllable LED segments.
540° PAN with 16-bit resolution.
360° TILT with 16-bit resolution.
Auto position correction (feedback).
Stepless color mixing.
Adjustable color macros.
Adjustable rotation speed.
Adjustable rotation direction.
Electronic dimmer.
Multi beam effect.
4 integrated show programs.
120° ambient light beam angle.
Flicker-free projection.
Silent operation.
Passive convection cooling.
Multicolor LCD display.
Master/slave function.
RDM support.
Stand-alone operation.
Sound-to-light via microphone.
DMX control.
QuickDMX via USB (optional).
W-DMX via USB (optional).
CRMX by LumenRadio via USB (optional).
10, 14, 16, 25 or 88 DMX channel modes.
DMX fail mode: Hold or Zero values.
Power input and output for linking up to 8 units.
2 omega brackets.
2 carrying handles.
4 rubber feet.
USB Type-A.
Suitable for standing or suspended installation.
Suitable for clubs, dance schools, weddings, galas, events, stages, theatres, advertising and shop windows.

Specifications
Power supply: 100–240 V AC, 50/60 Hz.
Power consumption: 25 W.
Protection class: Class I.
Light source: 50 × SMD 5050 3-in-1 RGB LEDs.
Flash rate: 0.5–34 Hz.

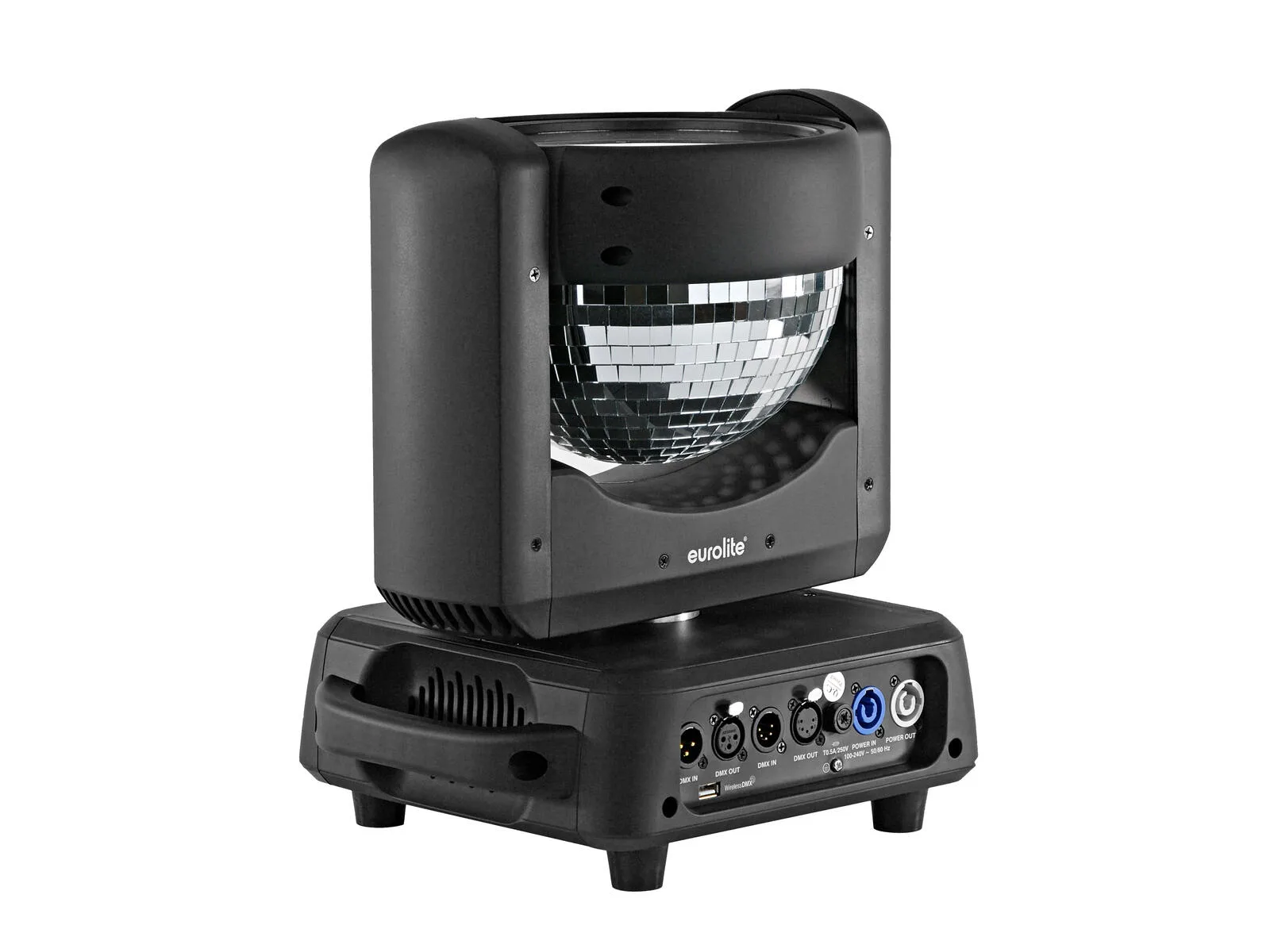

DMX input: 3-pin and 5-pin XLR.
DMX output: 3-pin and 5-pin XLR.
PWM frequency: 4100 Hz.
Color: Black.

Dimensions and weight
Width: 32.6 cm.
Depth: 24.2 cm.
Height: 43.61 cm.
Weight: 8.70 kg.
