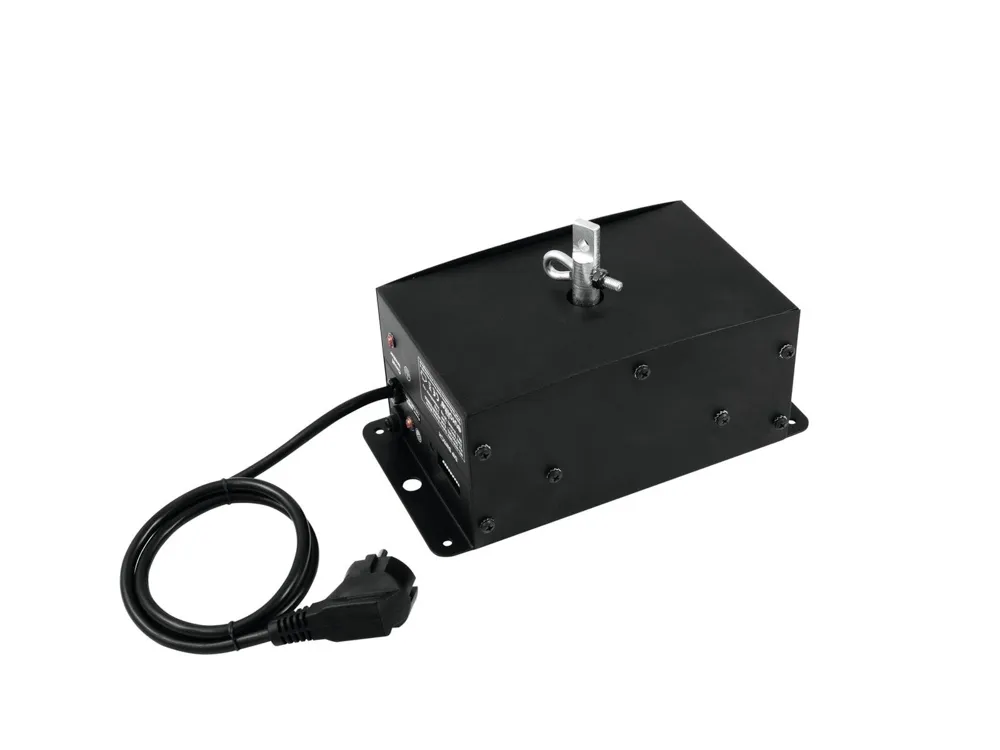

Eurolite MD-2030 DMX Safety Rotary Motor

This solid mirror ball motor can carry a load of up to 10 kg. This equals a mirror ball of approximately 50 cm, 12-fold safety margin included.
The motor has an adjustable speed. This creates either peaceful or more rapid effects.
To make the most of these effects, you can add a pin spot to illuminate the mirror ball.

The rotating direction and speed can be controlled via the DIP switches or any commercial DMX controller. For bigger light installations, a master-slave operation with multiple devices working in sync is also possible, no external control required.

The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.
All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public events. The MD-2030 is delivered ready to use with safety plug and power cord.



FEATURES
DMX-controlled motor for mirror balls up to 50 cm, up to 5 RPM

Suitable for driving mirror balls up to a maximum weight of 10 kg
This weight corresponds with a diameter of 50 cm for the EUROLITE mirror balls
The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
Operable in stand-alone mode or via DMX interface
Functions: Rotation direction, Rotation speed, Master/Slave
Programable via DIP switches
2 chains and 4 quick links must be ordered separately
Ready for connection via power cord with safety-plug
For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
The motor always has to be installed with a secondary safety attachment
Before taking into operation for the first time, the installation has to be approved by an expert
Controling by Stand-alone; DMX
