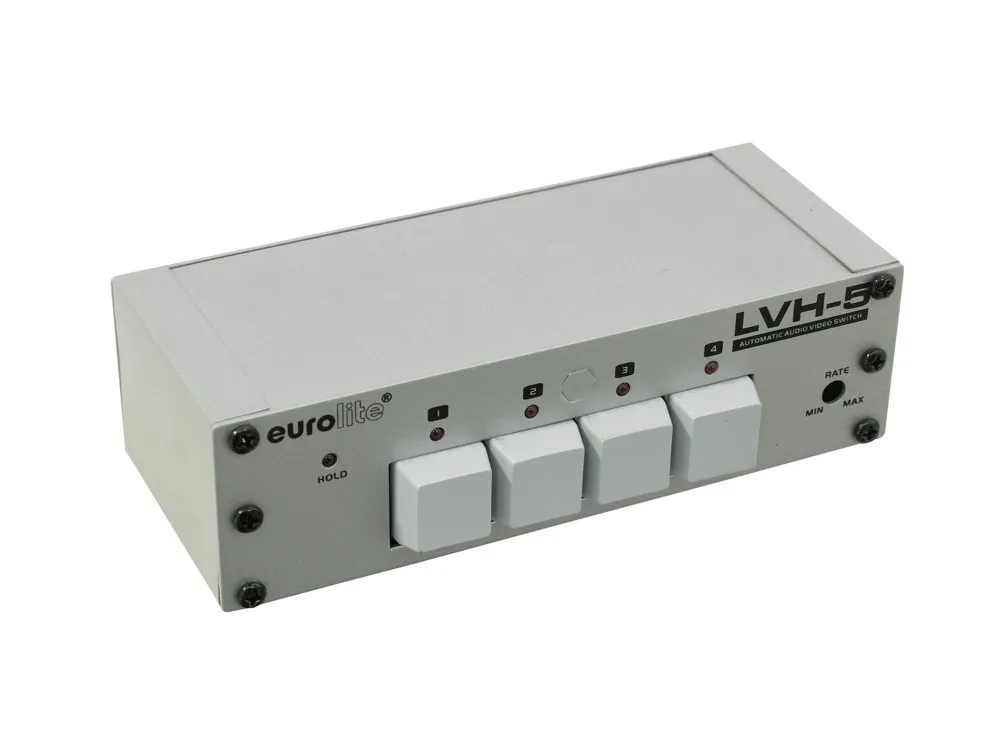

Eurolite LVH-5 Automatic video switch

MANUAL AV SWITCH 4:1
The LVH-5 was designed to switch video signals from up to four sources to one output. Switching is made automatically and is indcated by control LEDs. The switching time is adjustable. Each channel features a manual override button to stop the sequencing mode. Each input is provided with a parallel output for feed-through of the input signal. The open collector outputs allow for controlling other units. Power connections are made using block terminals. The unit is compatible with NTSC and PAL systems.



FEATURES
Automatic video switch 4:1

Automatic switching of video
Switching time adjustable
4 inputs with feed-through output via BNC plugs
1 output via BNC plug
Each channel with manual override button and LED indicator
Open collector outputs for controlling other units
NTSC and PAL compatible
Super compact metal housing
12-24 V DC power supply via block terminals (PSU not included)
