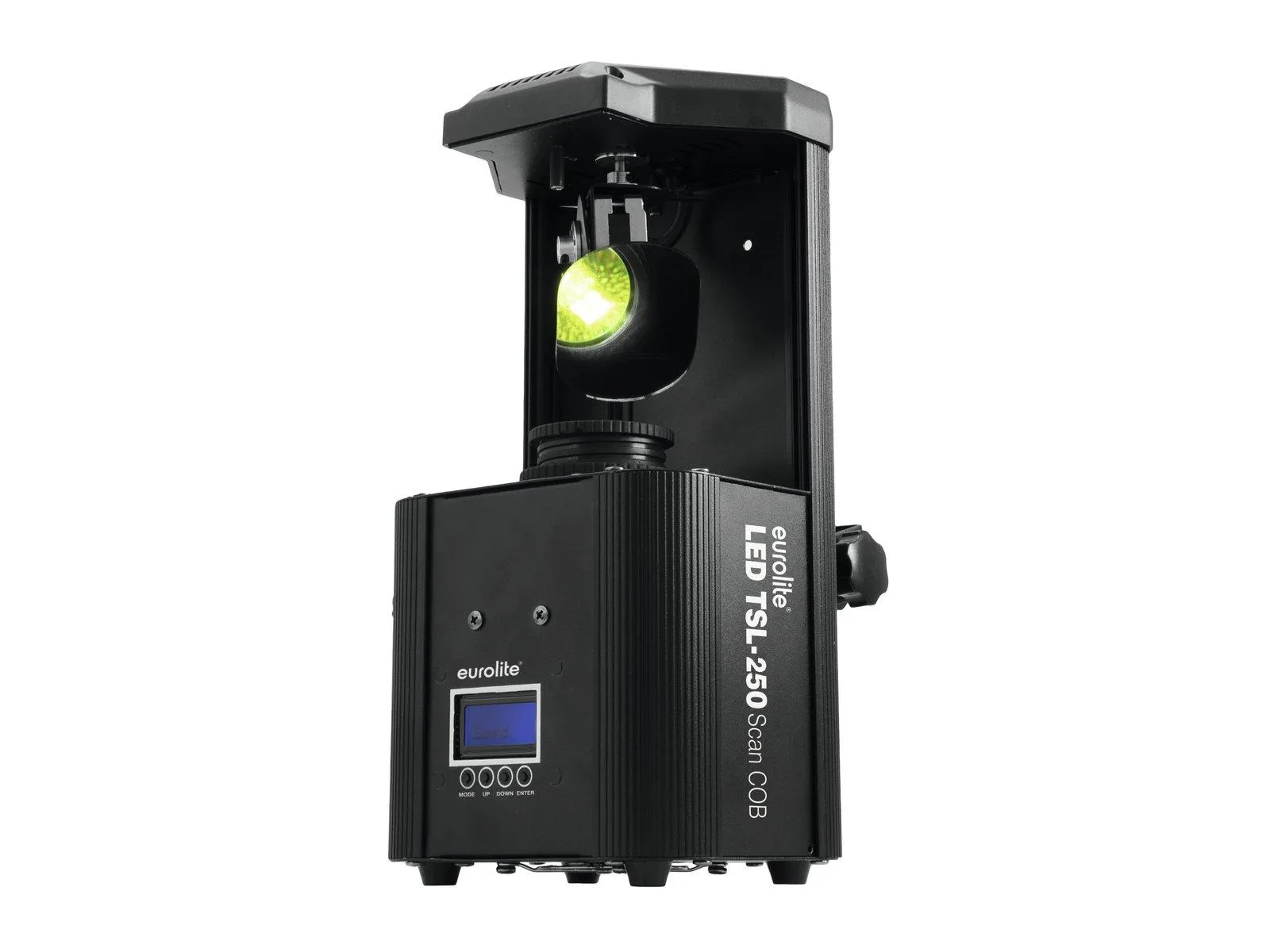

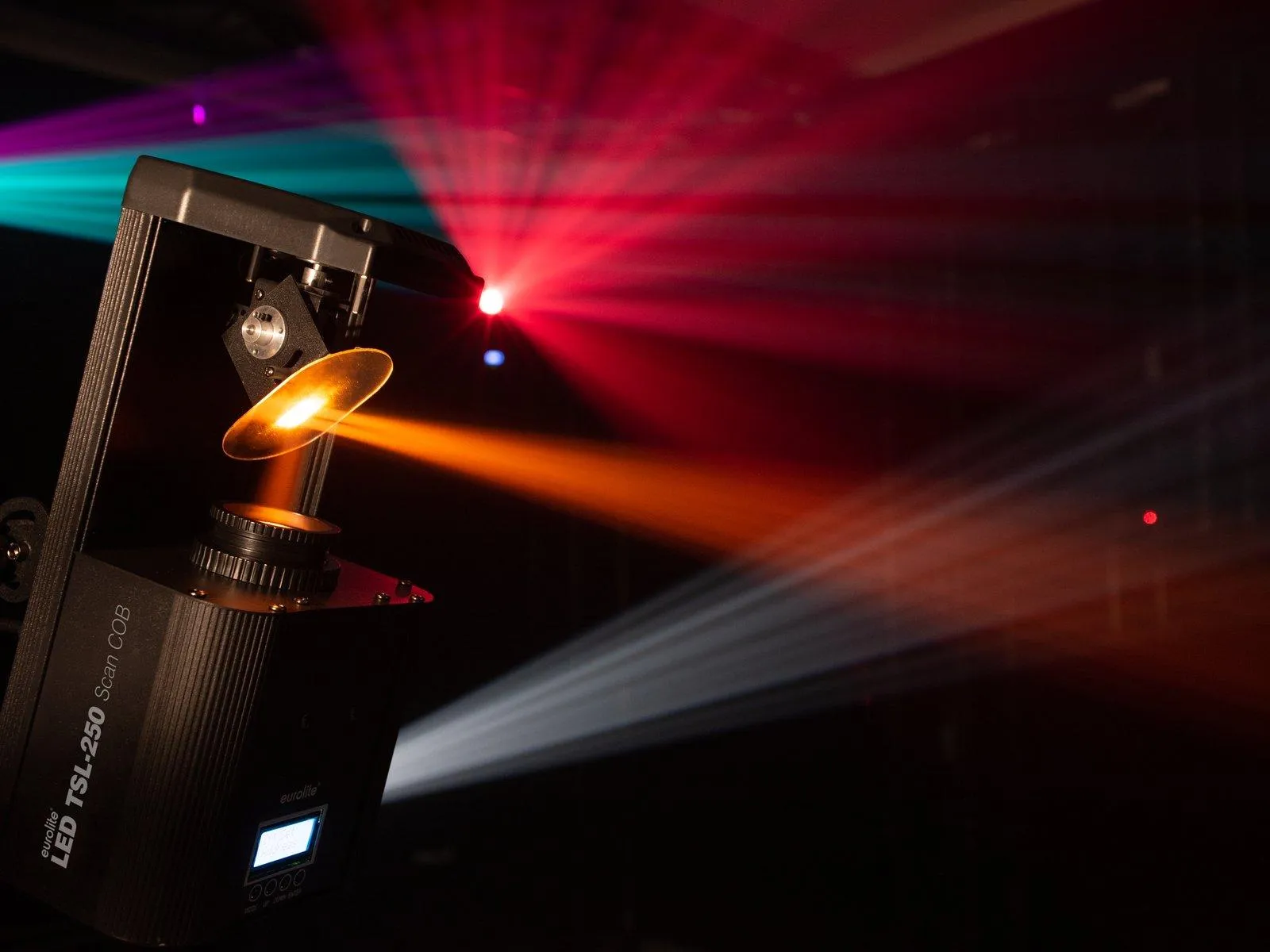

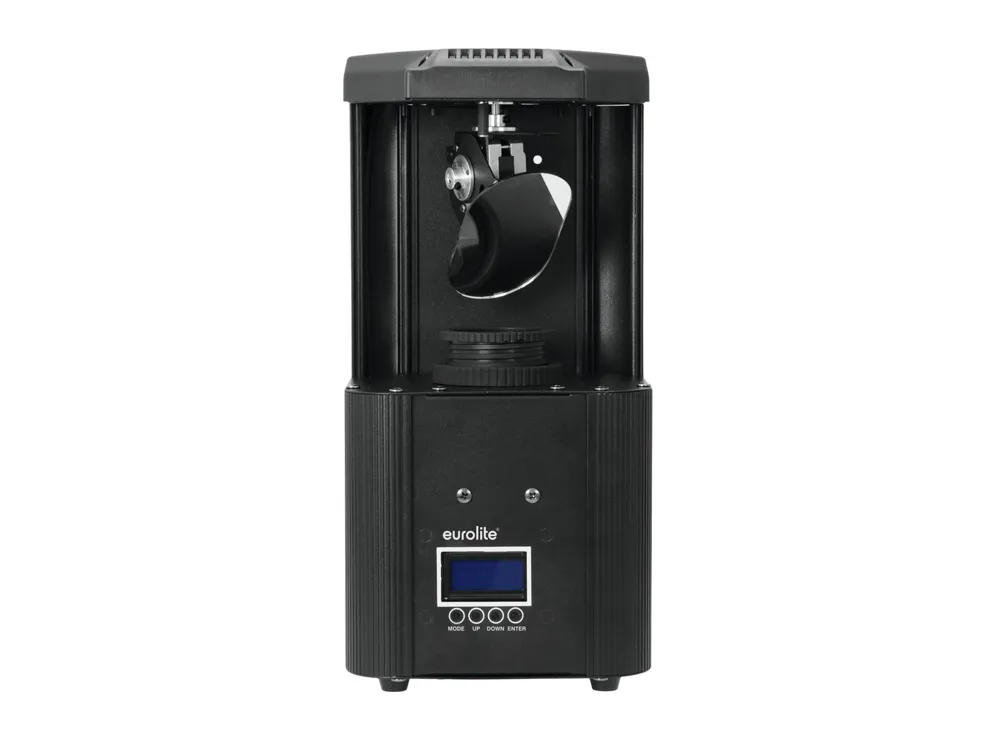

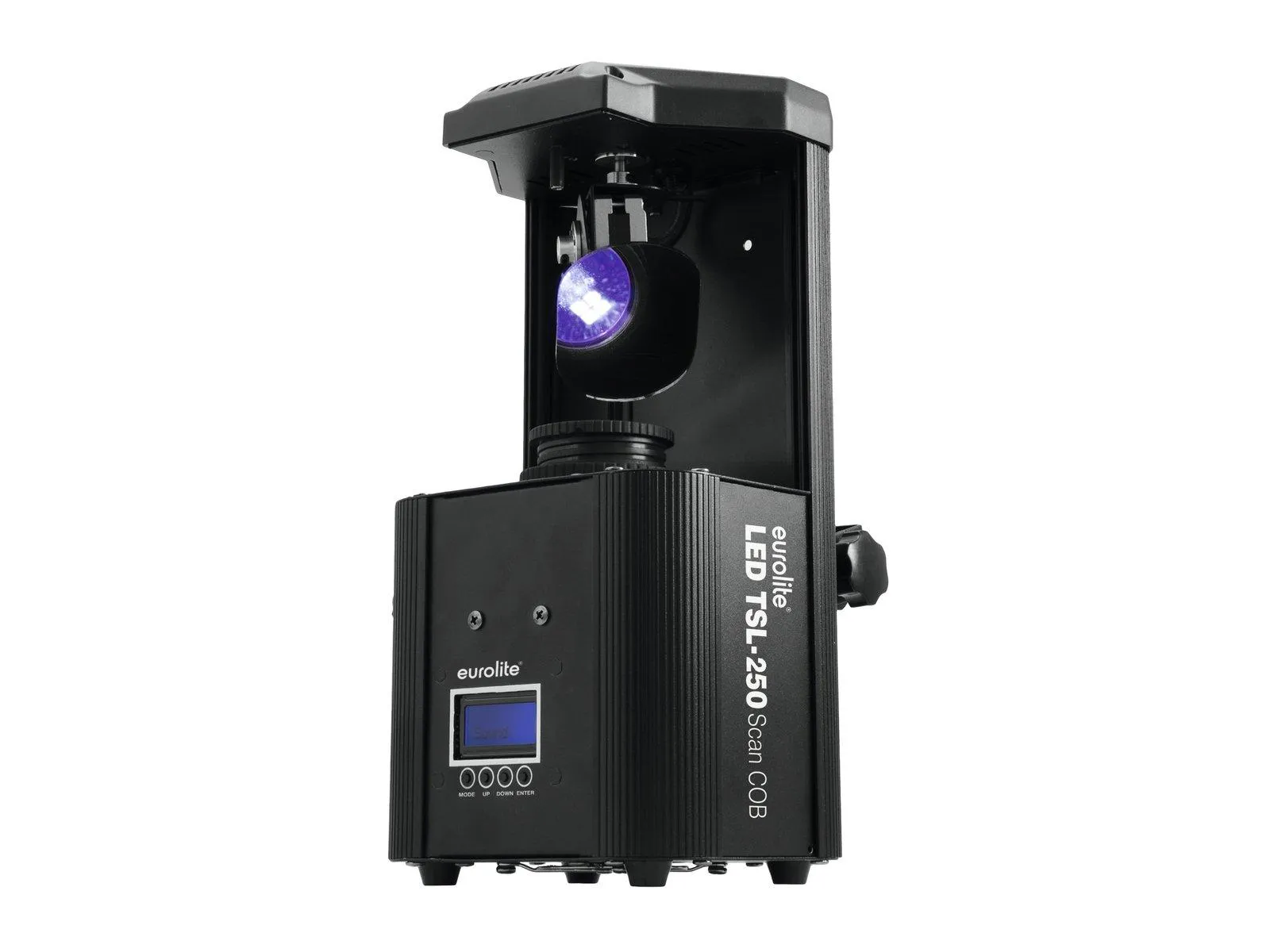

Eurolite LED TSL-250 Scan COB

Features
Handy scanner with 30 W COB LED, gobo and color wheel

Compact design
1 powerful LED 30 W COB (chip-on-board)
Positioning within TILT
Color wheel; gobo wheel with rotating gobos; Focus manual
Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions

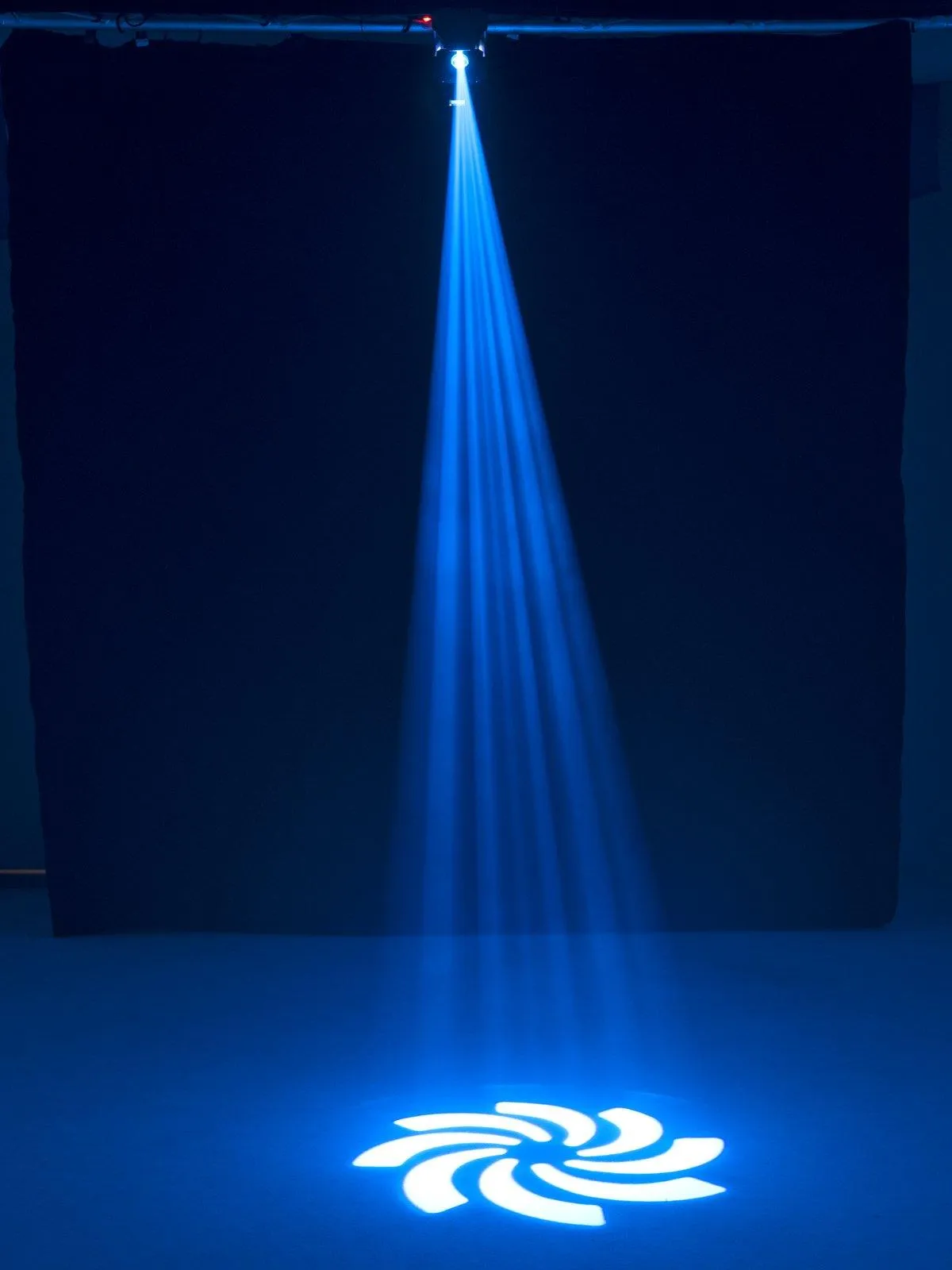

Gobo wheel with rotating gobos, 7 gobos and open
gobos changeable
Slot-in gobo system for easy gobo replacement
Shake effect
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free

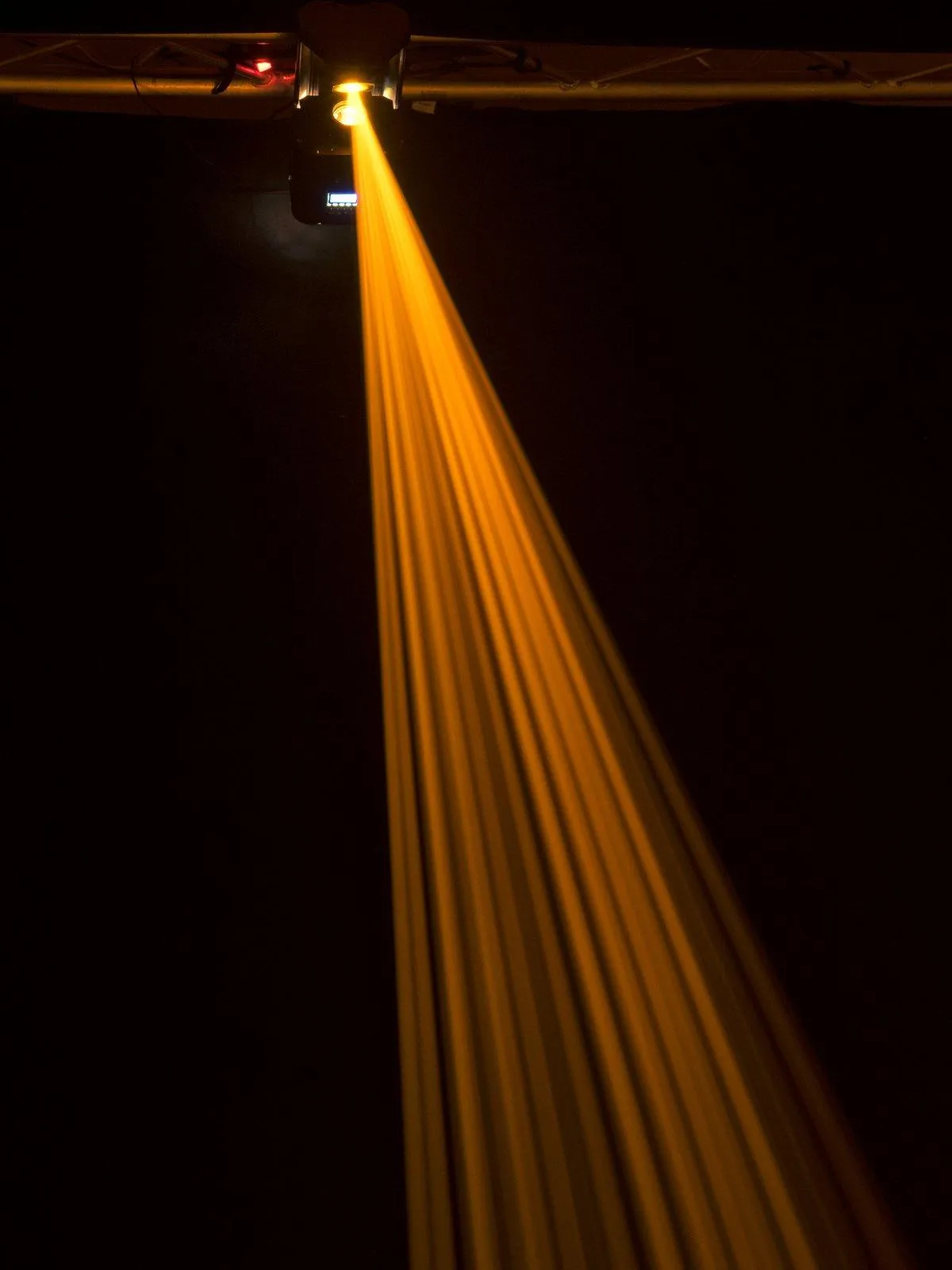

With a beam angle of 9°
LCD display
Dimmer electronic
Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Rubber feet
For application areas such as: Clubs/dancing school; Party room; mobile djs / entertainer

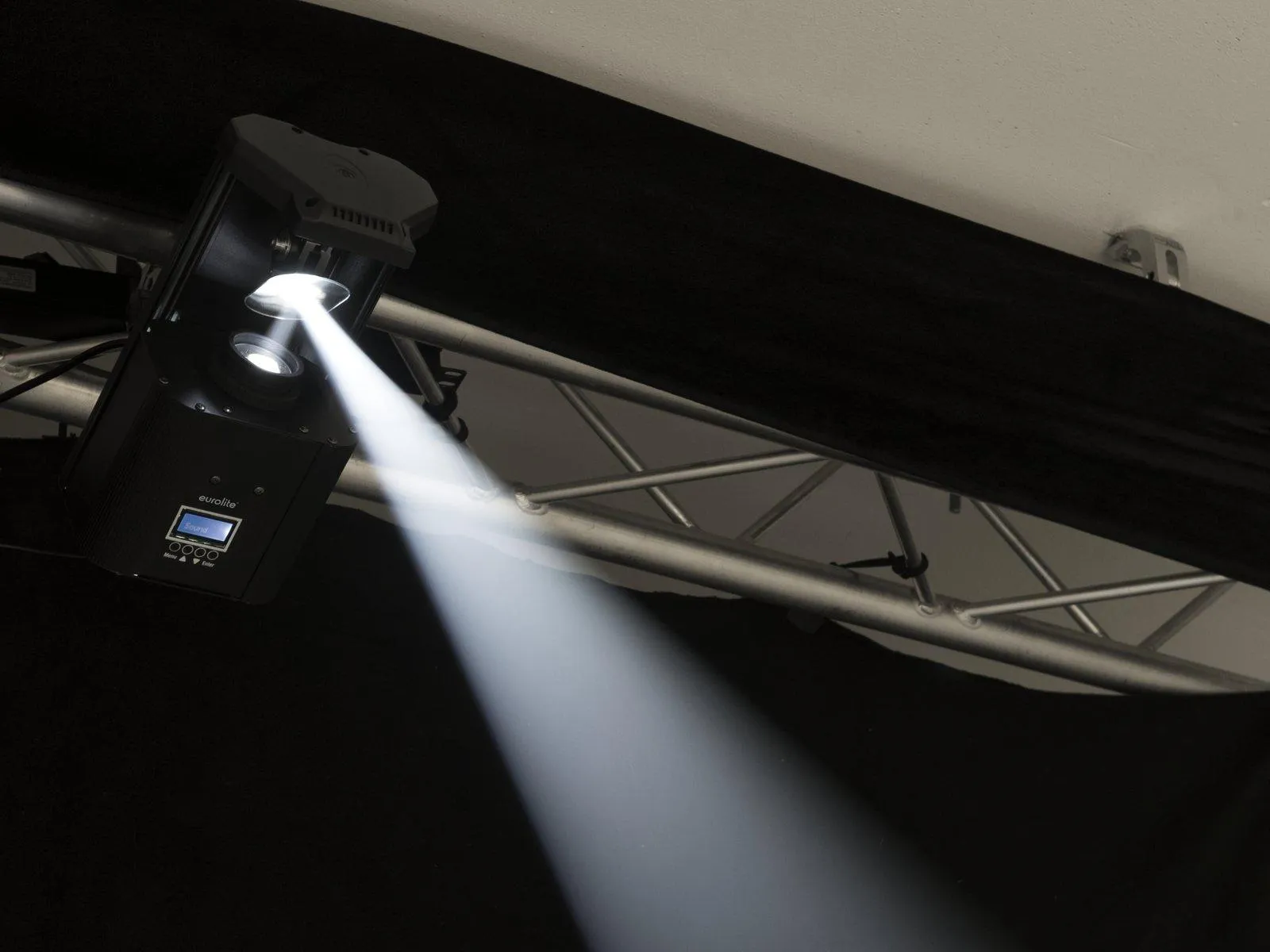

Application possibility: Standing; suspended; on stand

Package contents
1 x device, 1 x user manual, 1 x power cord, 1 x mounting bracket, 2 x screw

Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 65 W
IP classification: IP20
Protection class: Protection class I

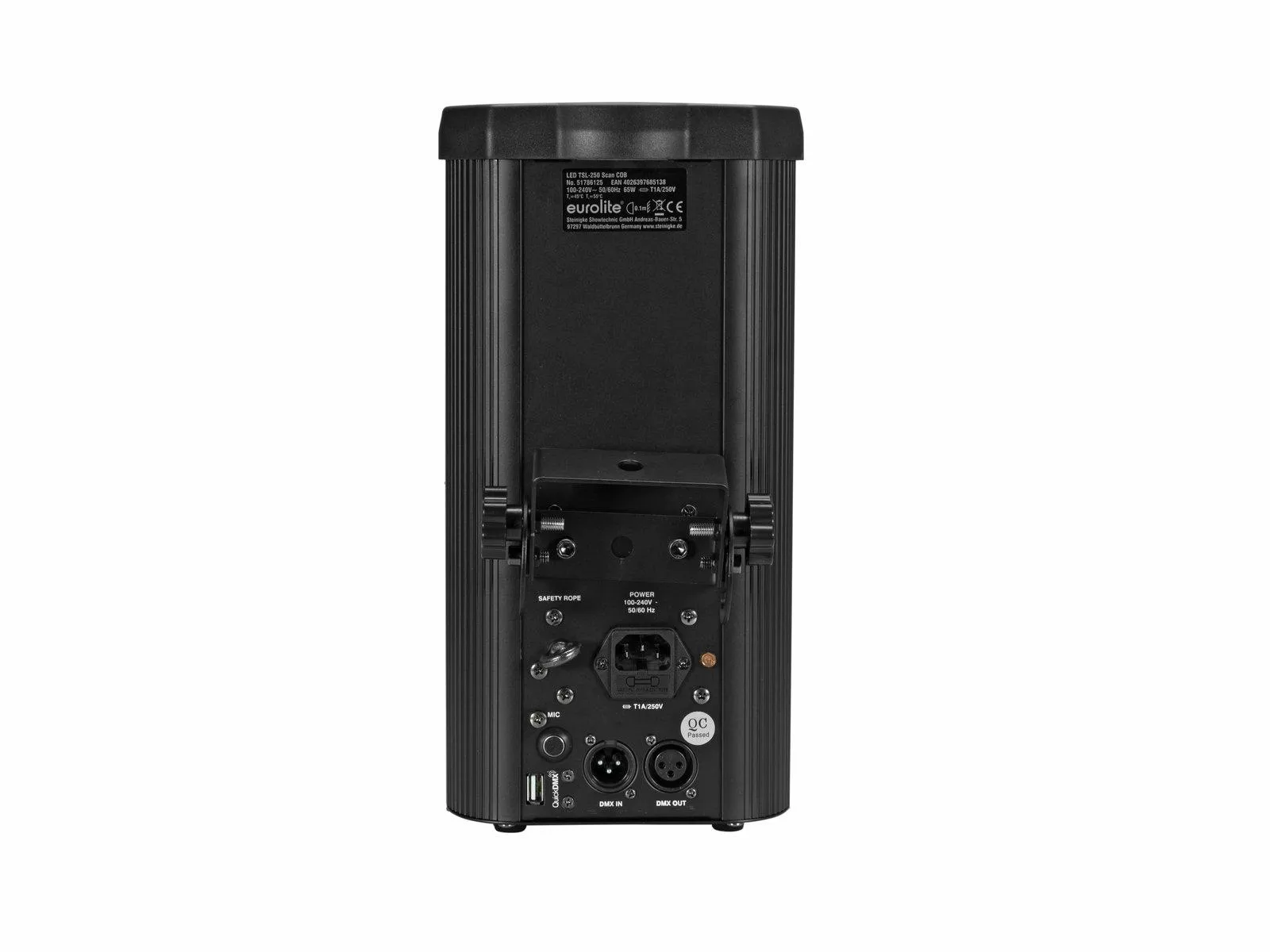

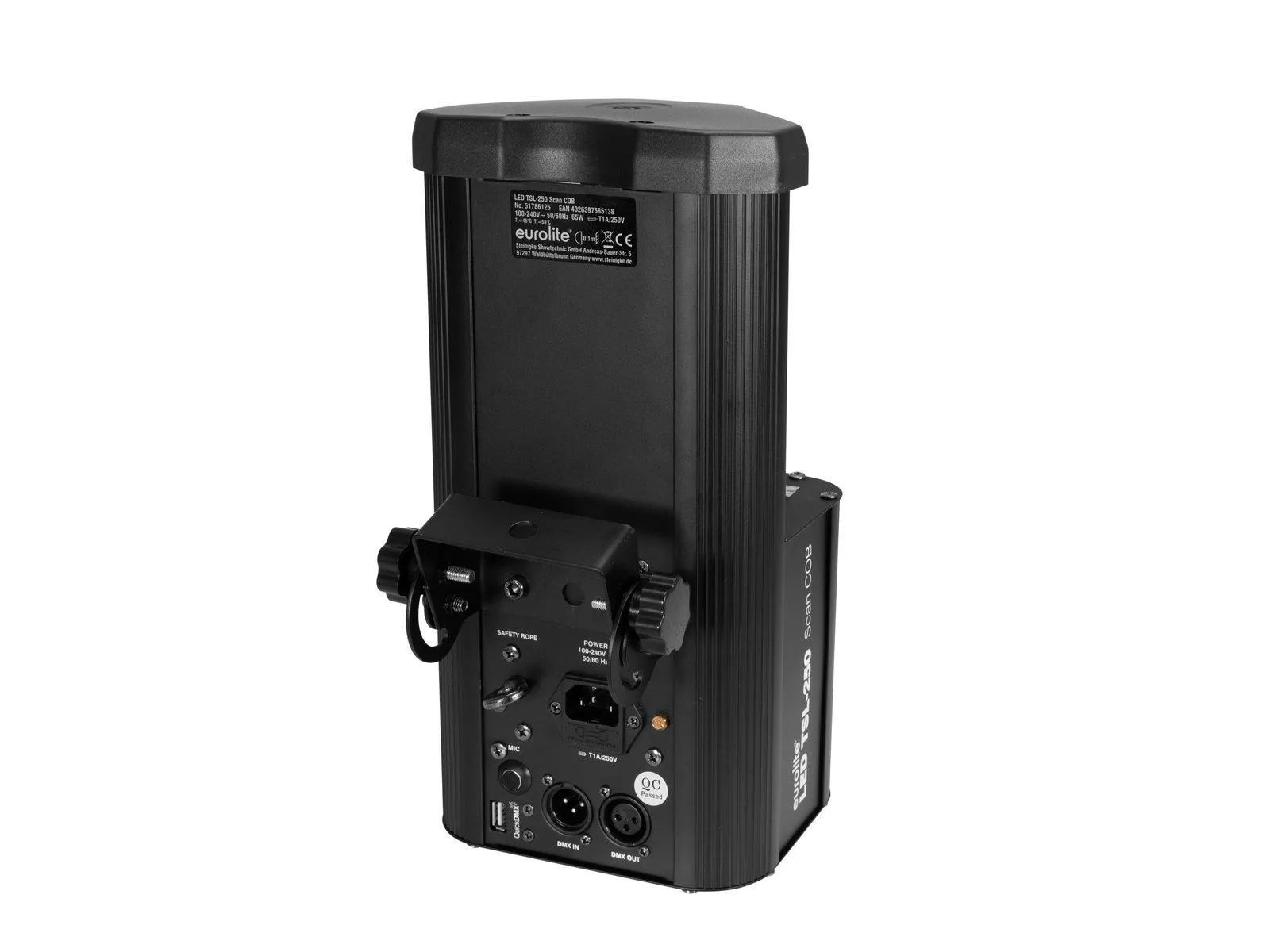

Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Device fuse: 5 x 20 mm, T 1 A Fuse replaceable
Lamp type: LED lamp
LED: 1 x 30 W COB (chip-on-board)
Equipment: Color wheel; gobo wheel with rotating gobos; Focus manual
Color generation: Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos: Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 14mm
Image diameter 10mm
Gobos changeable
Slot-in gobo system for easy gobo replacement
Shake effect
DMX channels: 10
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in: Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Projection: Flicker-free
Beam angle: 9°
Beam angle (1/2 peak): 9°
Illuminance in Lux (lx): Cold white (CW) 1m: 9123 lx, 3m: 955 lx, 6m: 149 lx
Housing color: Black
Display type: LCD display
Transport aid: Rubber feet
Dimensions: Width: 16,0 cm
Depth: 15,0 cm
Height: 33,0 cm
Weight: 3,16 kg
Noise classification: Class 3 (clearly perceptible sounds)
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
