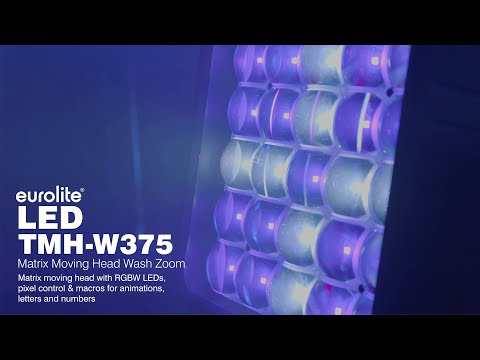

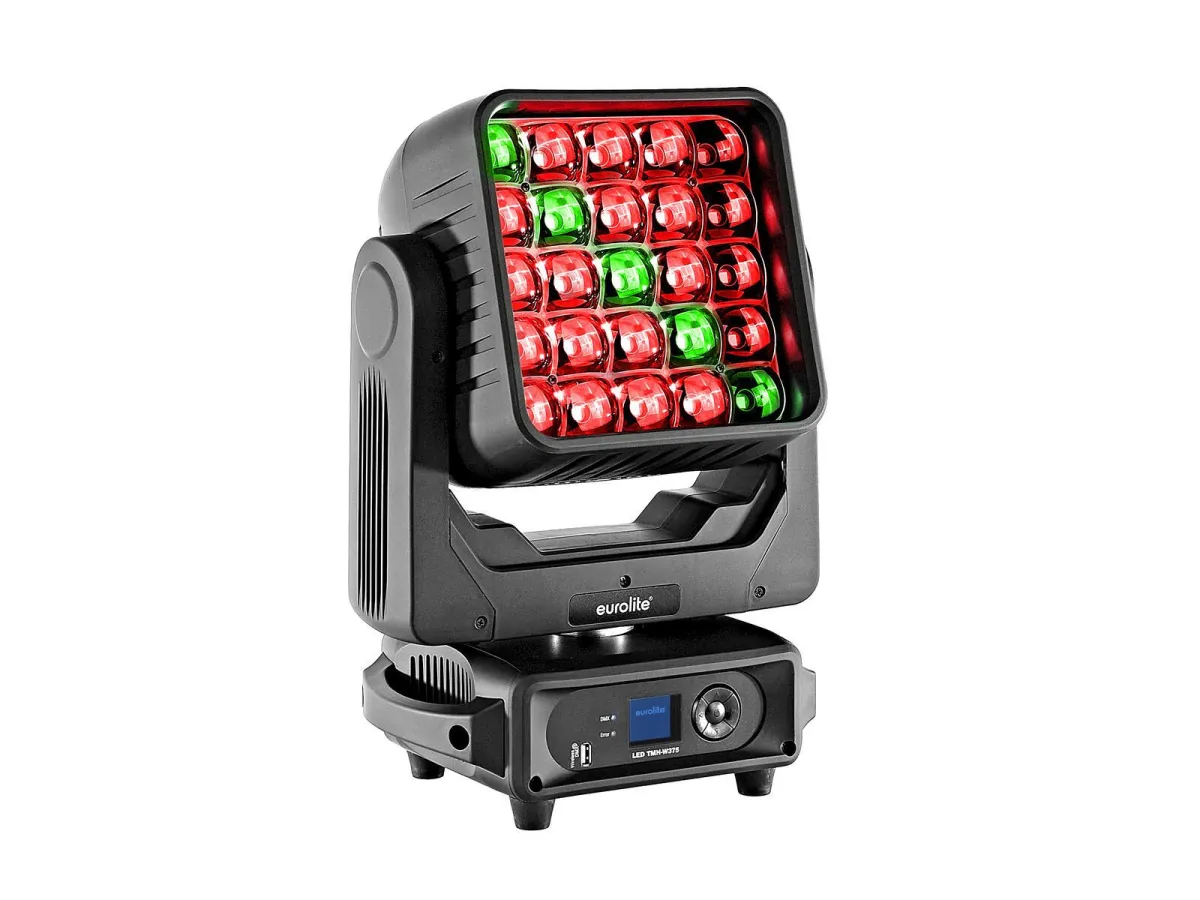

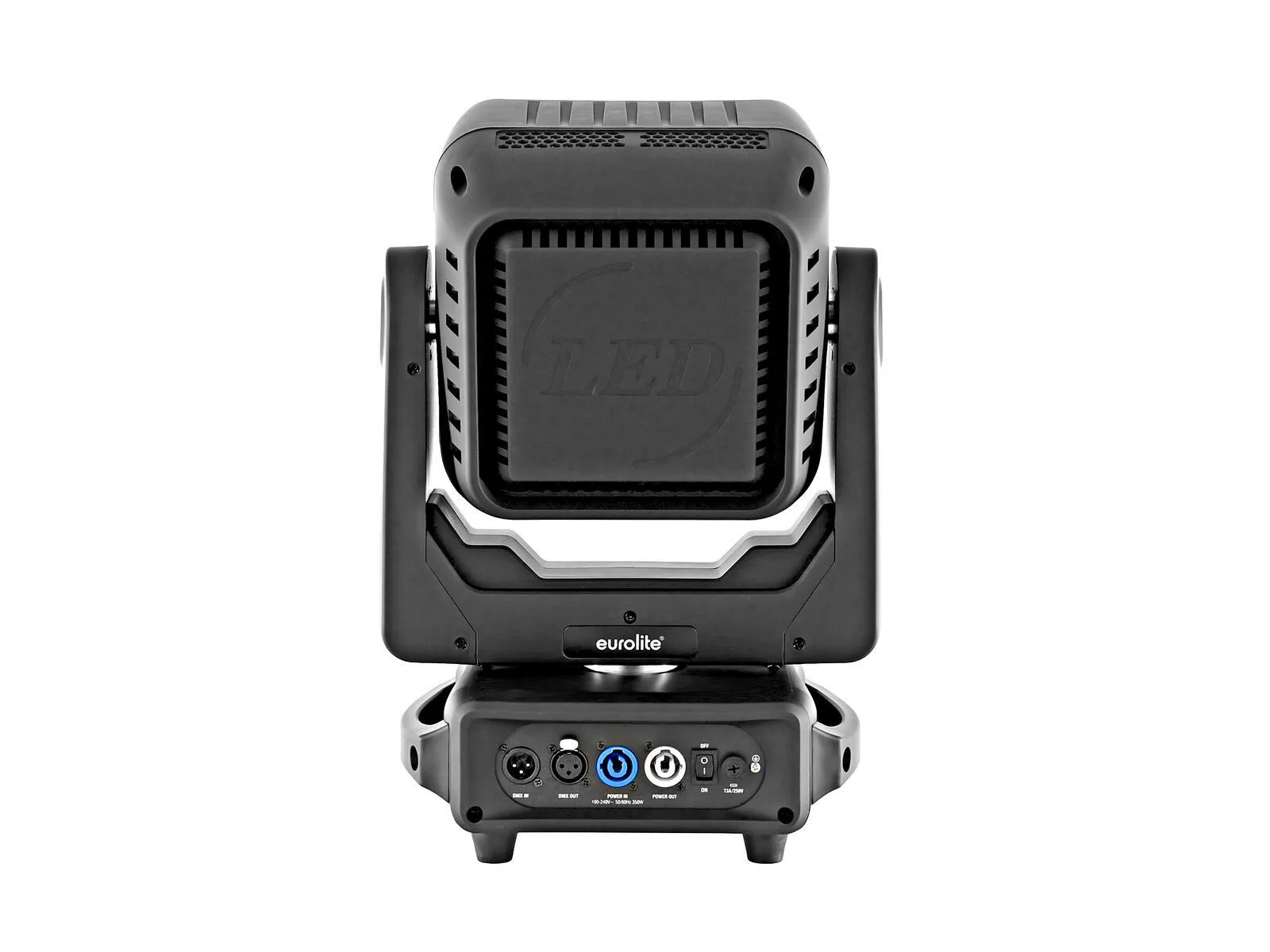

Eurolite LED TMH-W375 Matrix Moving Head Wash Zoom

Matrix moving head with RGBW LEDs, pixel control & macros for animations, letters and numbers
25 powerful LEDs 15 W SMD 5060 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately
Positioning within 540° PAN, 215° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Zoom motor driven
Dimmer electronic; white balance; color macros adjustable; patterns animated; background color adjustable; color fade; color blend stepless
Wash effect; matrix effect
The device is cooled by cooling fan at the head
Control via stand-alone; sound to light; master/slave function; DMX; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
DMX fail mode (hold; zero values)
With a beam angle of 2° - 42°
With omega bracket
Multicolor LCD display
2 Rugged carrying handles
4 x rubber feet
Mains input and output for power linking up to 4 units
Preprogrammed in Light Captain
For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels
Application possibility: Standing; suspended

Technical specifications
Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 350 W
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction: 3 × 1.0 mm² H05VV-F
Power output: P-Con (gray), mounting version
Fuse: 5 × 20 mm, T 3 A fuse replaceable
Lamp type: LED lamp
LED type: 25 × 15 W SMD 5060 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement: 215° exact positioning (16-bit resolution), auto position correction (feedback)
Max. PAN movement: 540° exact positioning (16-bit resolution), auto position correction (feedback)
Flash rate: 0.5–17 Hz
Equipment: Zoom motor driven
DMX channels: 11; 22; 109; 122
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: 2 × cooling fan at the head
Control: Stand-alone; sound-to-light; master/slave; DMX; RDM; QuickDMX via USB (optional); W-DMX via USB (optional); CRMX via USB (optional)
Preprogrammed in: Light Captain
Projection: Flicker-free
PWM frequency: 3700 Hz
DMX fail mode: Hold; zero values
Beam angle: 2°–42°
Beam angle (1/2 peak): 2°–26°
Beam angle (1/10 peak): 8°–42°

Illuminance (Lux)
Narrow red (R): 1 m: 23482 lx; 3 m: 5325 lx; 6 m: 1516 lx
Narrow green (G): 1 m: 52510 lx; 3 m: 12247 lx; 6 m: 3458 lx
Narrow blue (B): 1 m: 9390 lx; 3 m: 2326 lx; 6 m: 657 lx
Narrow cold white (CW): 1 m: 69828 lx; 3 m: 16074 lx; 6 m: 4560 lx
Narrow all: 1 m: 132161 lx; 3 m: 30789 lx; 6 m: 8704 lx
Wide red (R): 1 m: 3644 lx; 3 m: 456 lx; 6 m: 124 lx
Wide green (G): 1 m: 8216 lx; 3 m: 1048 lx; 6 m: 288 lx
Wide blue (B): 1 m: 1513 lx; 3 m: 186 lx; 6 m: 51 lx
Wide cold white (CW): 1 m: 10873 lx; 3 m: 1330 lx; 6 m: 368 lx
Wide all: 1 m: 20729 lx; 3 m: 2577 lx; 6 m: 710 lx

Housing color: Black
Attachment system: 2 × omega bracket
Display type: Multicolor LCD display
Control elements: Power switch
Status LED: DMX, fault
USB port: Type A
Carrying handle: 2 pcs
Transport aid: 4 × rubber feet
Diameter mounting holes: 2 × Ø10 mm
Material: Plastic
Dimensions: 30.3 cm (W) × 23.5 cm (D) × 41.6 cm (H)
Weight: 9.70 kg
Noise classification: Class 2 (slight noise)
