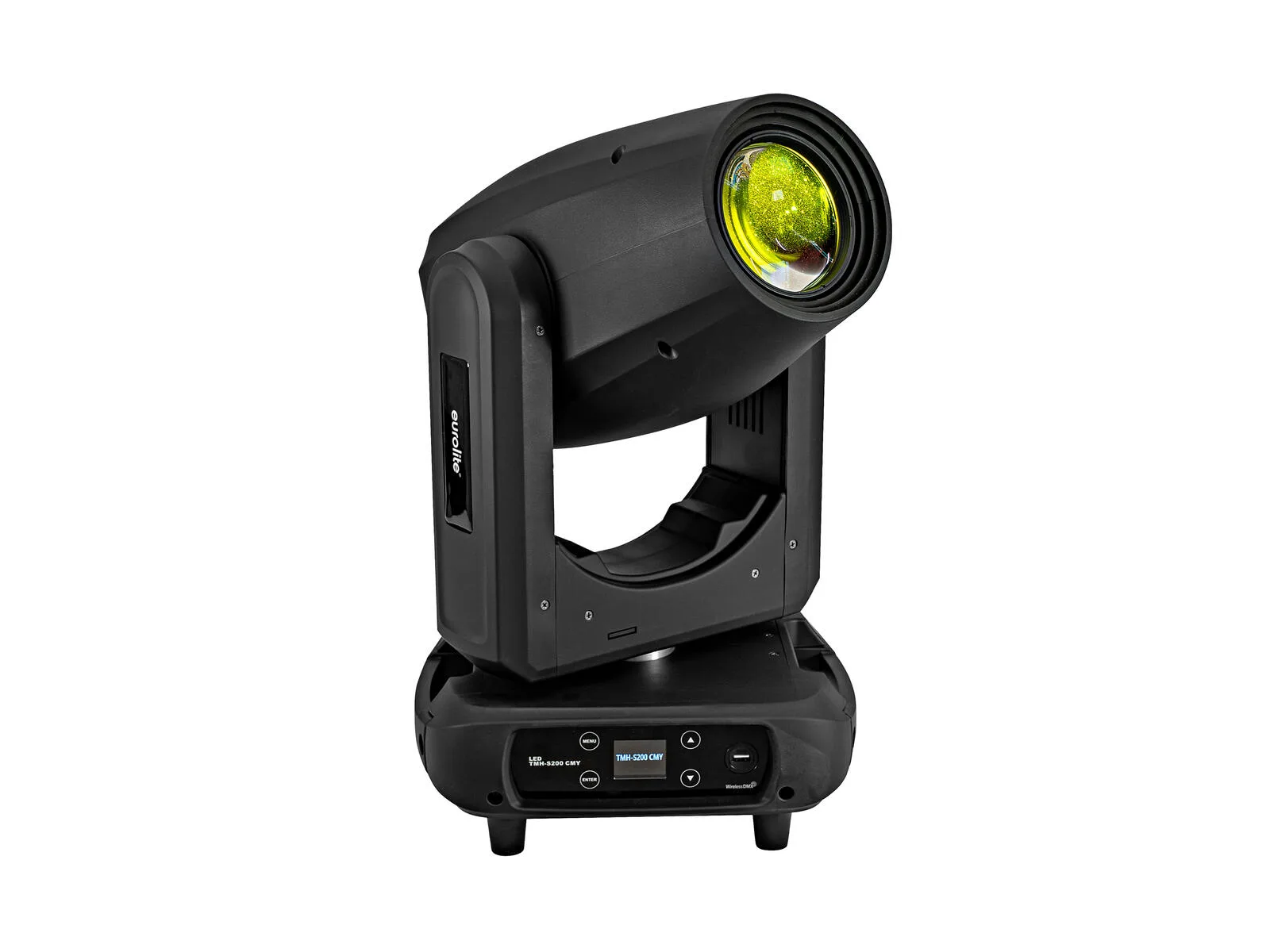

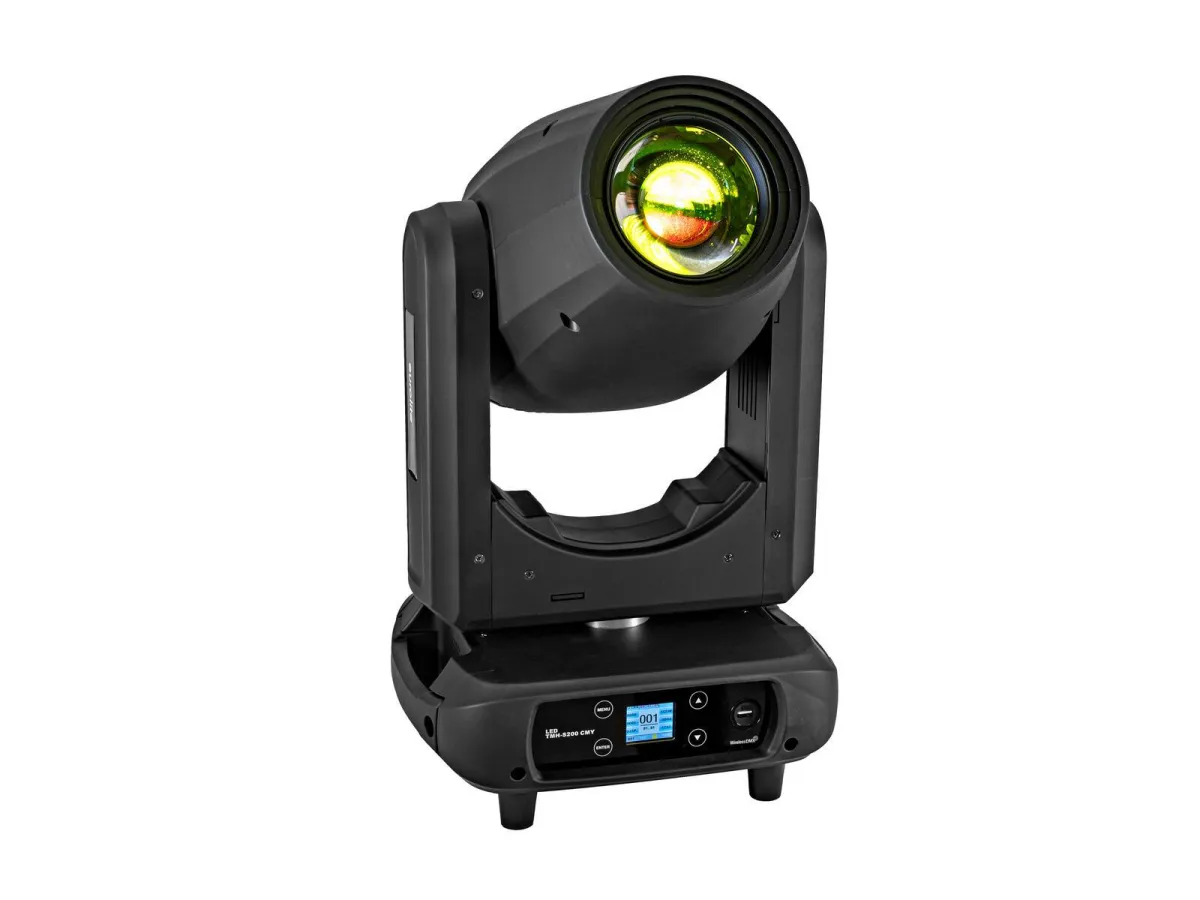

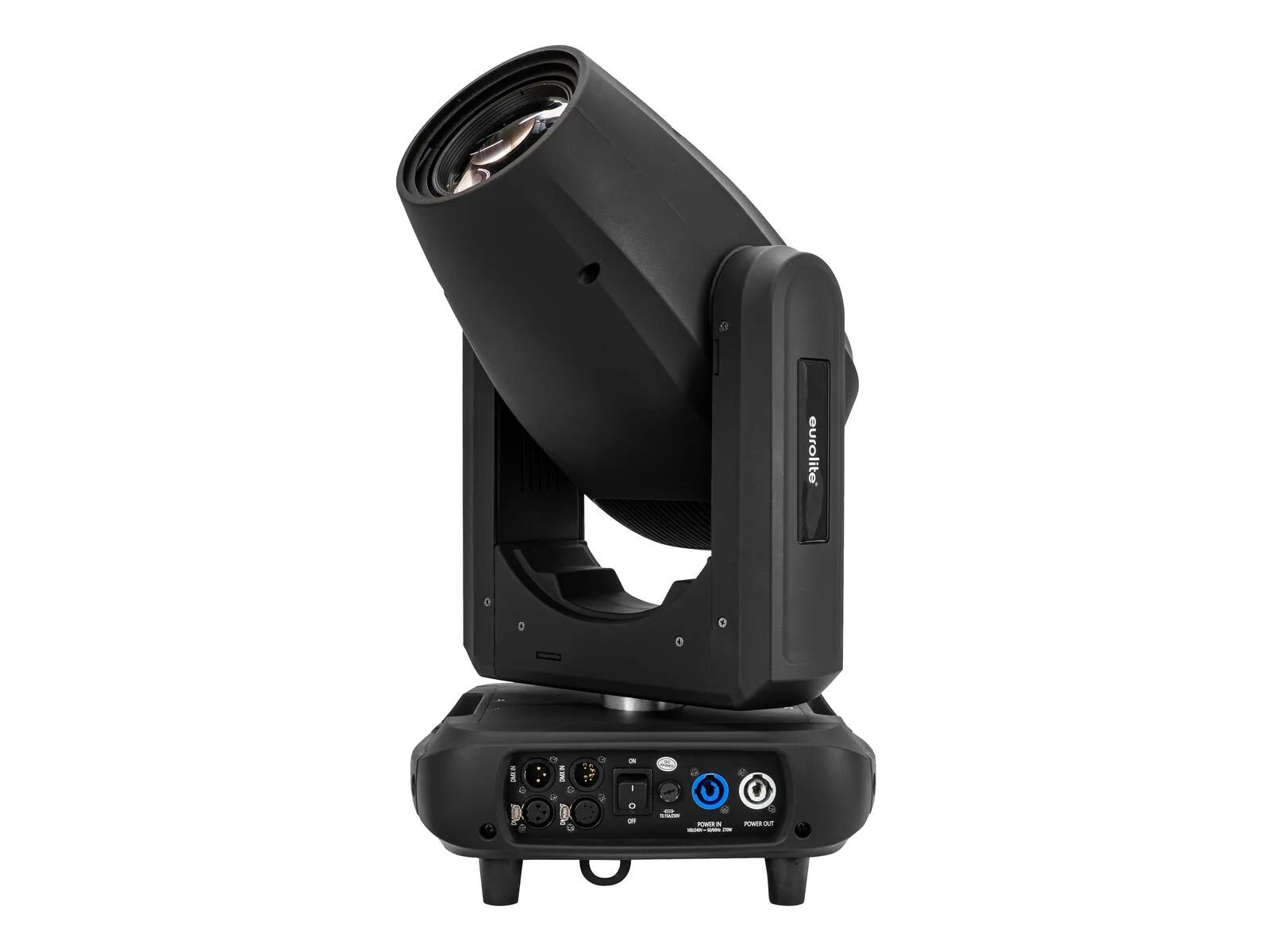

Eurolite LED TMH-S200 CMY Moving Head Beam/Spot/Wash

EUROLITE LED TMH-S200 CMY Moving Head Beam/Spot/Wash
Powerful and versatile hybrid moving head with beam, spot and wash functionality in one fixture. The EUROLITE LED TMH-S200 CMY is equipped with a powerful 200 W COB LED and a wide zoom range of 4°–32°, making it ideal for stages, clubs, events and rental applications.

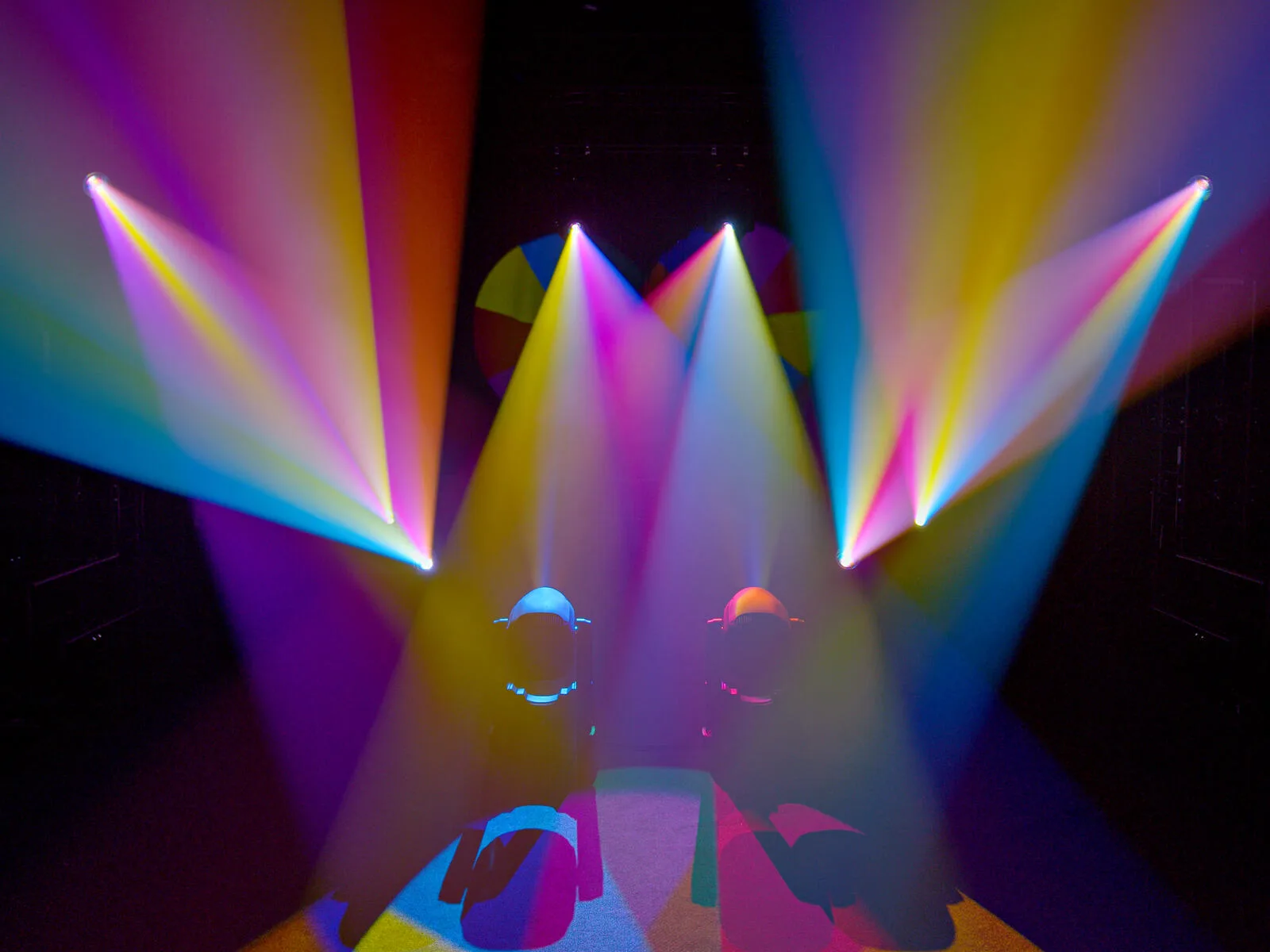

The advanced CMY+CTO color mixing system delivers virtually unlimited color variations and smooth transitions. In addition, the fixture features a color wheel with 6 dichroic color filters plus CTO correction filter and selectable half colors for creative split-color effects.

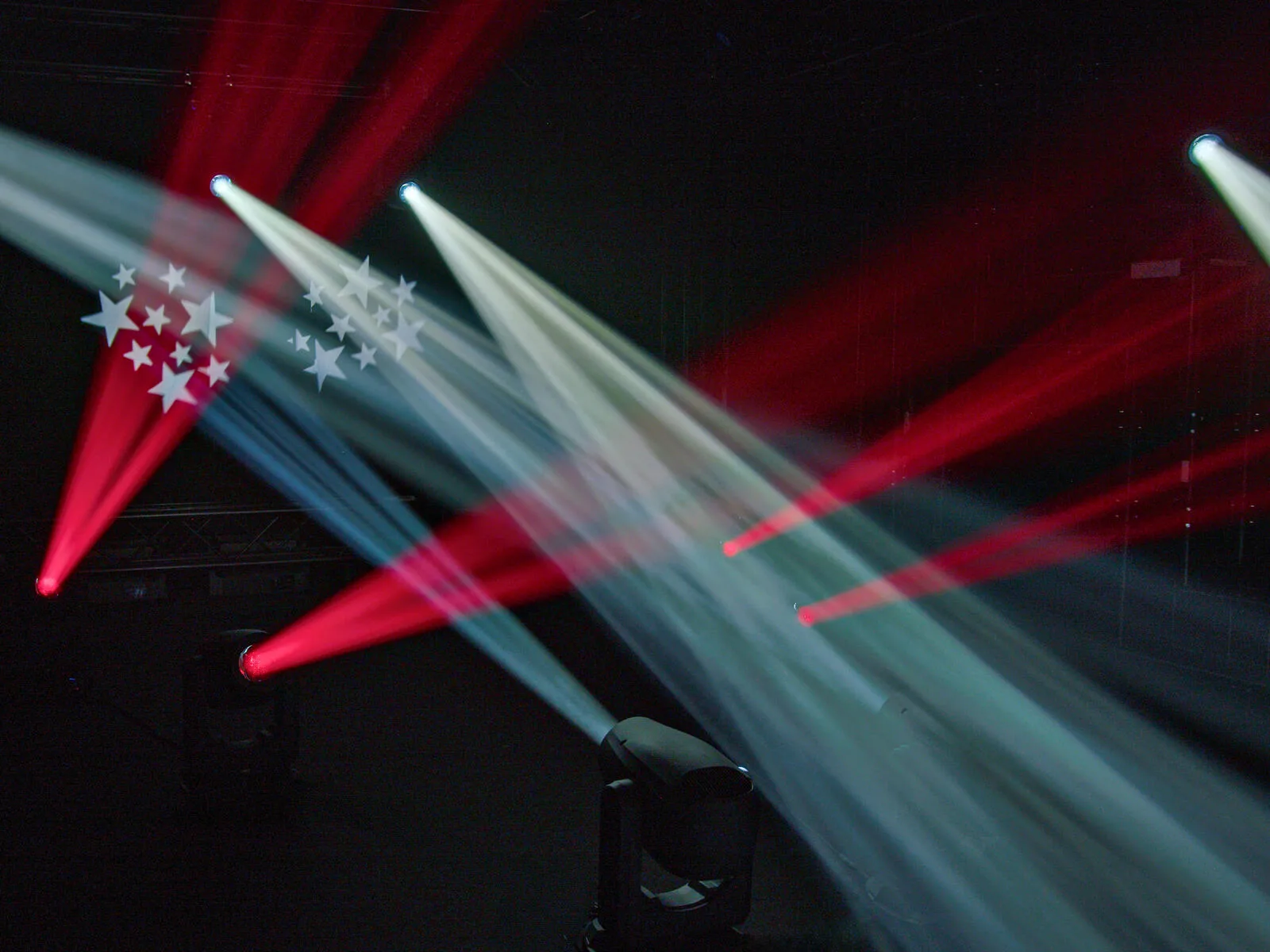

Two separate gobo wheels with both rotating and static gobos, a rotating 8-facet prism and frost filter provide extensive possibilities for creating dynamic and professional lighting effects.

Features
200 W COB cold white (CW) LED
Can be used as beam, spot and wash
Zoom range 4°–32°
CMY+CTO color mixing for unlimited color variations
Color wheel with 6 dichroic colors + open and CTO correction filter
Selectable half colors
Gobo wheel with 7 rotating gobos + open
Gobo wheel with 9 static gobos + open
Slot-in gobo system for easy gobo replacement
Indexable gobos
Shake effect
Rotating 8-facet prism
Frost filter
Motorized zoom
Motorized focus
Flicker-free operation
540° PAN and 220° TILT with precise 16-bit positioning
Automatic position correction (feedback)
Strobe 1–18 Hz
Lamp life: 20,000 hours

Control
Stand-alone
Sound-to-light via microphone
DMX
Master/slave function
CRMX by LumenRadio via USB (optional)
QuickDMX via USB (optional)
W-DMX via USB (optional)
22 DMX channels

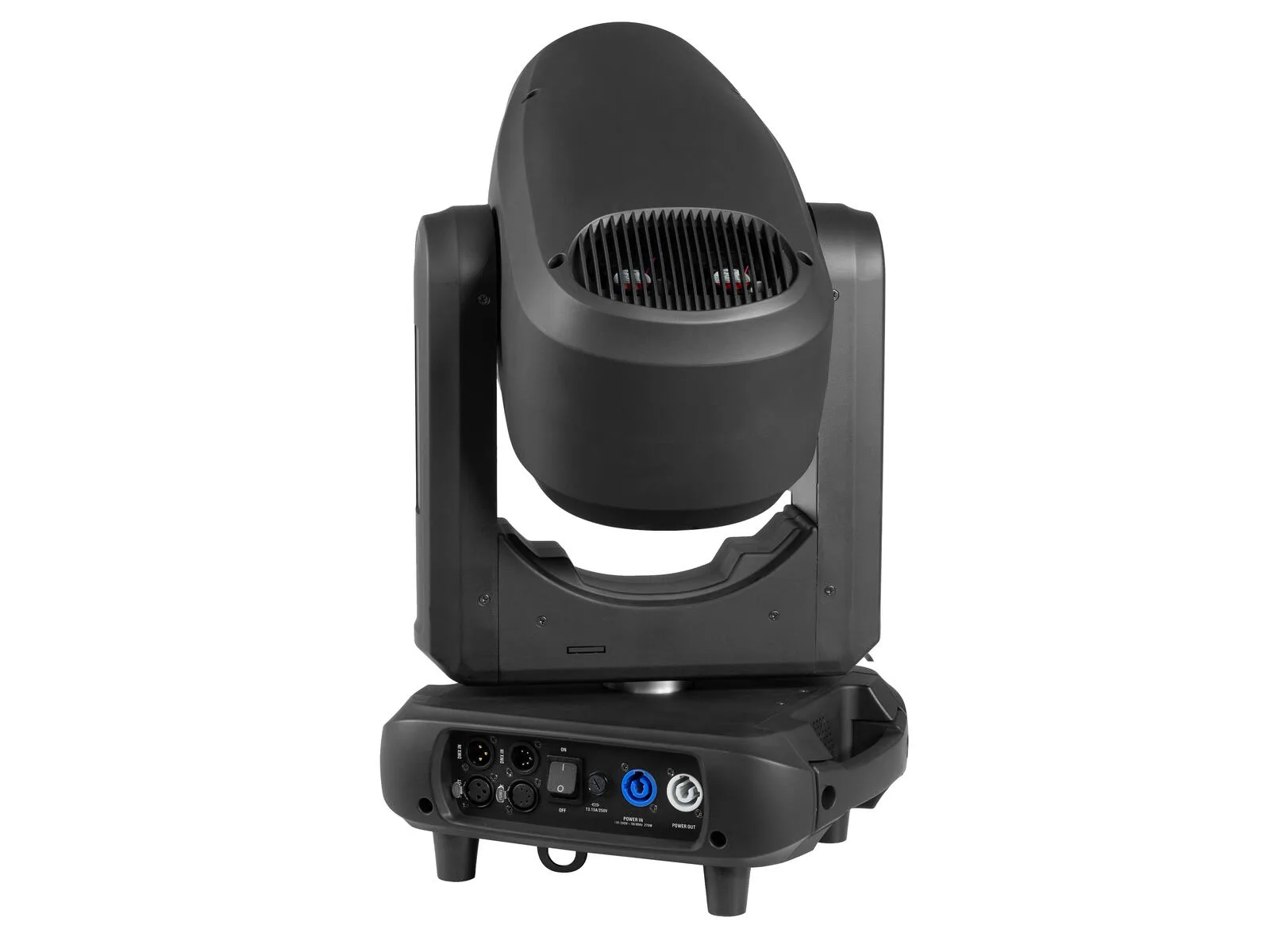

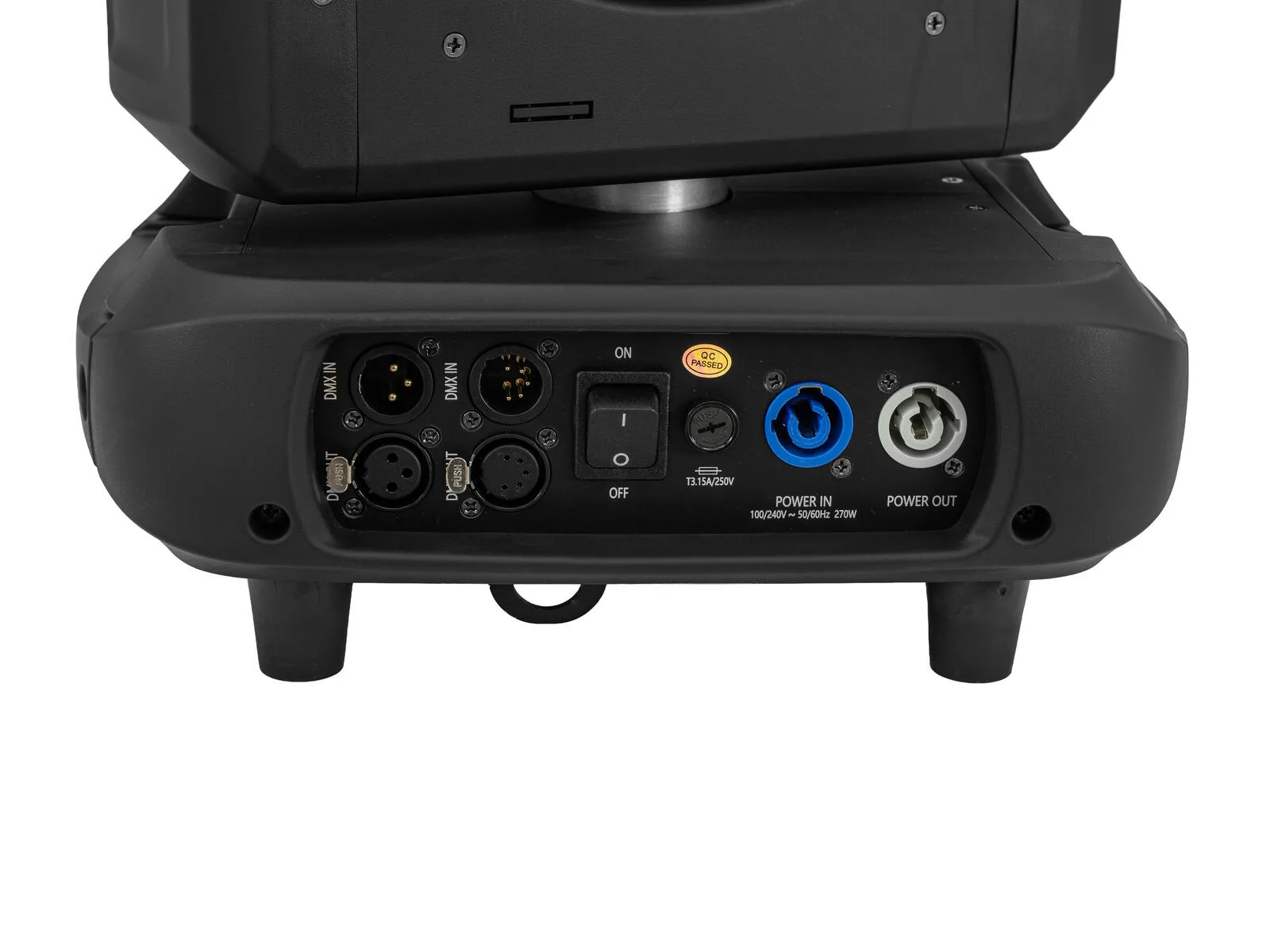

DMX input/output via 3-pin and 5-pin XLR
DMX fail mode: Hold / Zero values
Compatible with: Light Captain and GDTF (GrandMA3)

Construction & Connections
P-Con power input and output for power linking up to 8 units
4 temperature-controlled fans in the head
1 temperature-controlled fan in the base

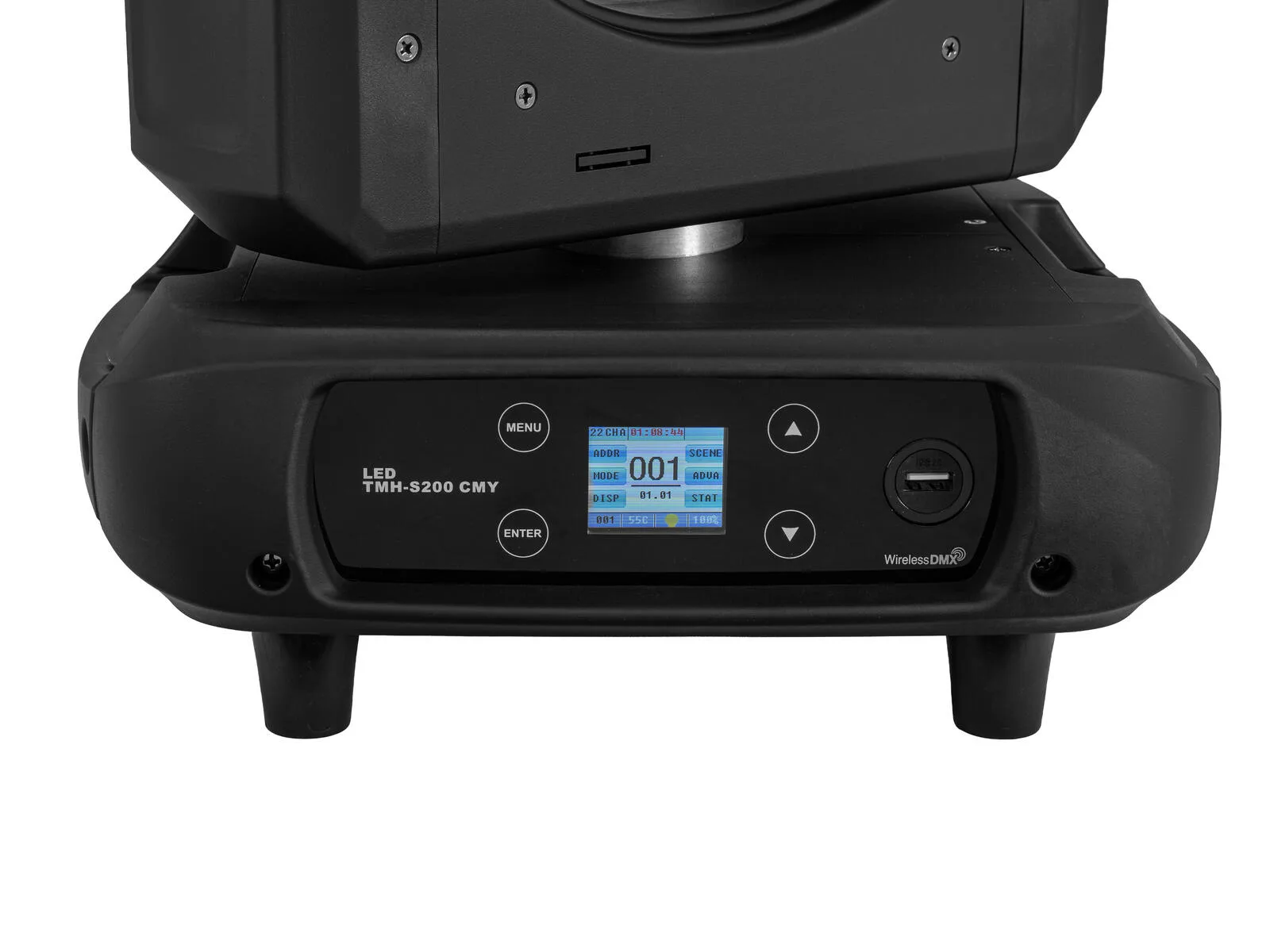

Multicolor LCD display

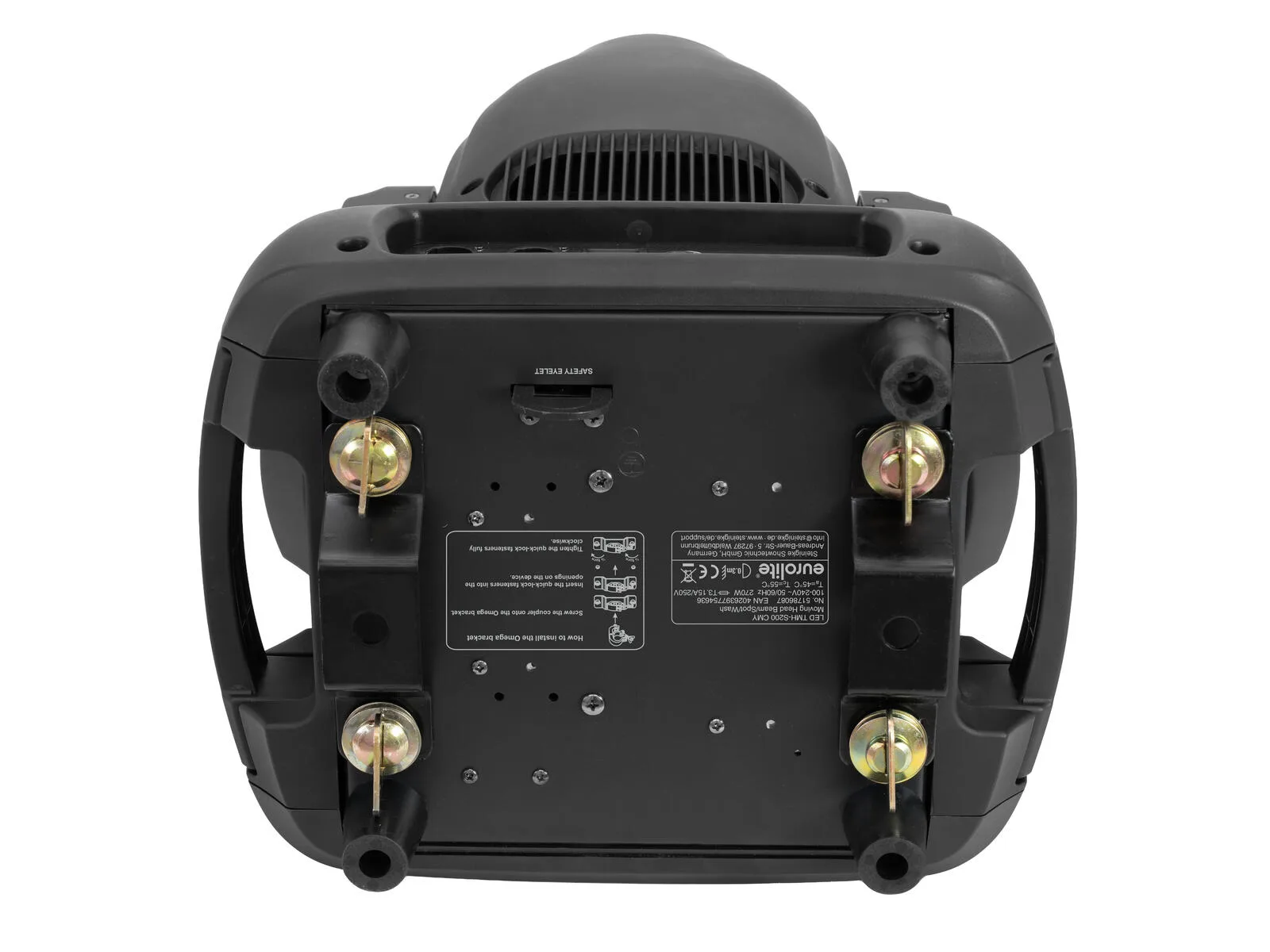

2 omega brackets
2 carrying handles
4 rubber feet
Material: Metal
Color: Black
IP rating: IP20

Technical Information
Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 270 W
PWM frequency: 23000 Hz
Illuminance narrow CW:
3 m: 98862 lx
6 m: 25686 lx
Illuminance wide CW:
1 m: 31366 lx
3 m: 3246 lx
6 m: 812 lx

Dimensions & Weight
Width: 32.4 cm
Depth: 25.5 cm
Height: 57.0 cm
Weight: 15.05 kg
