Eurolite LED TMH Bar H240 Moving Head Beam/Flower

EUROLITE LED TMH Bar H240 Moving Head Beam/Flower

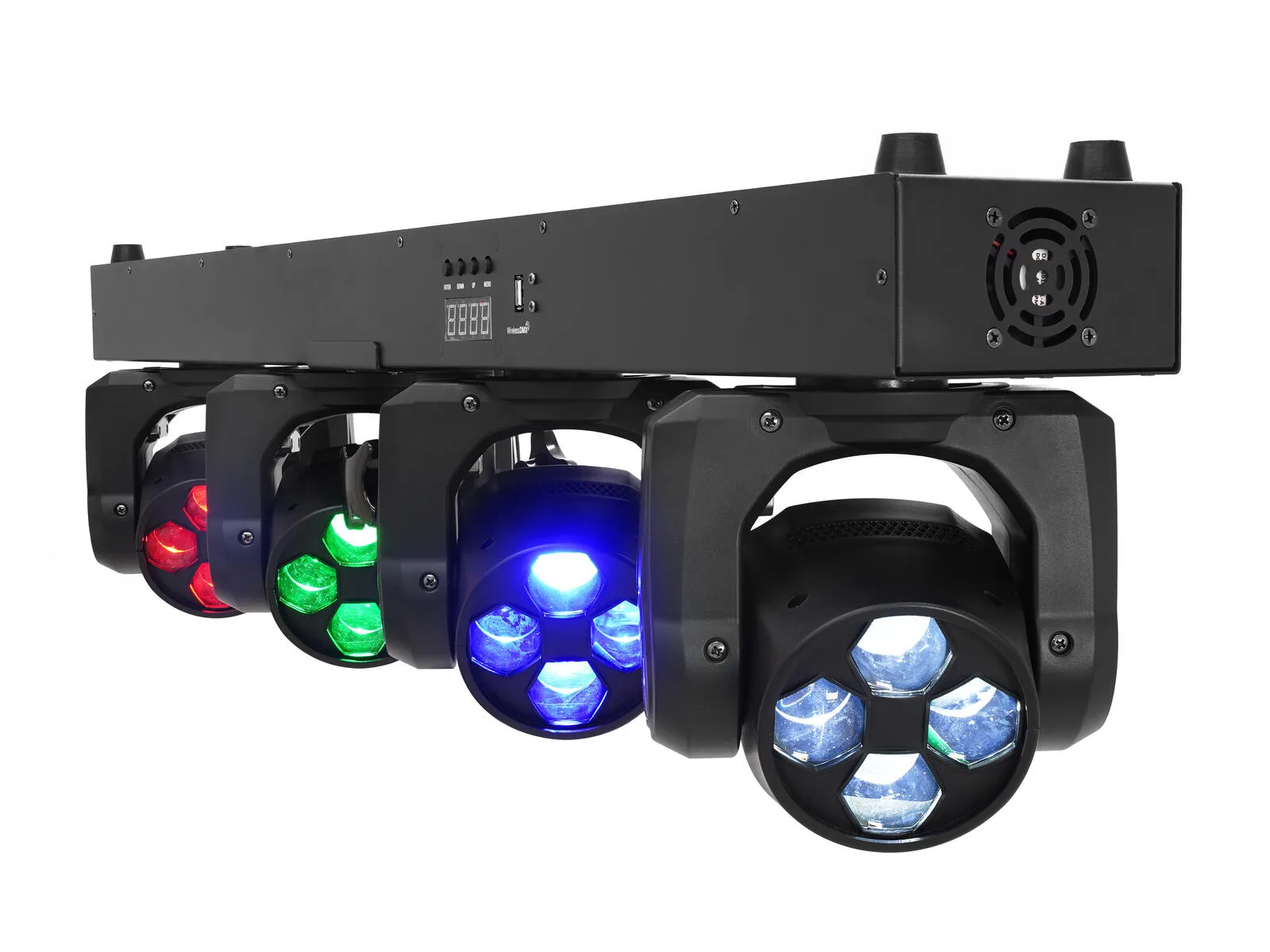

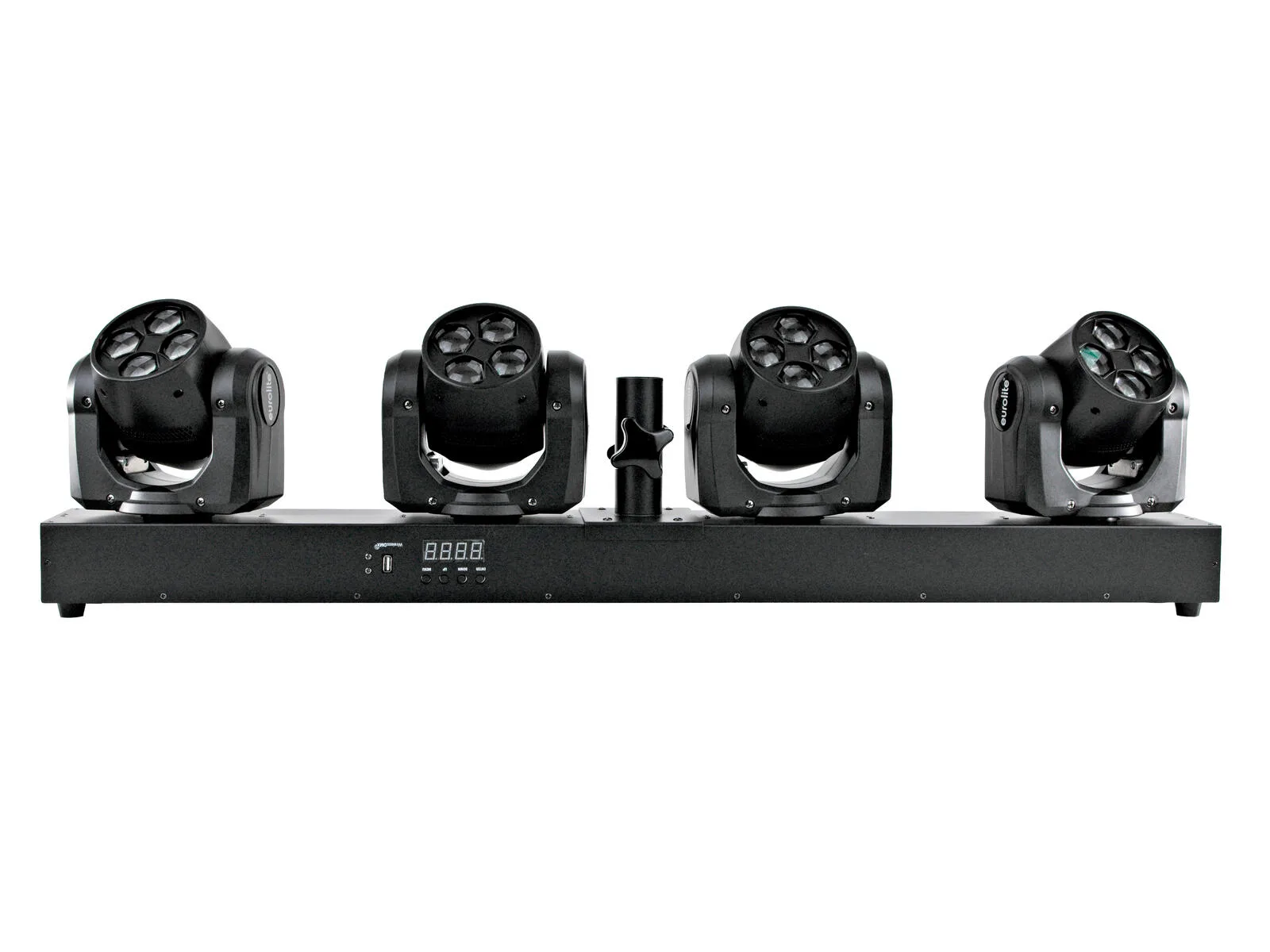

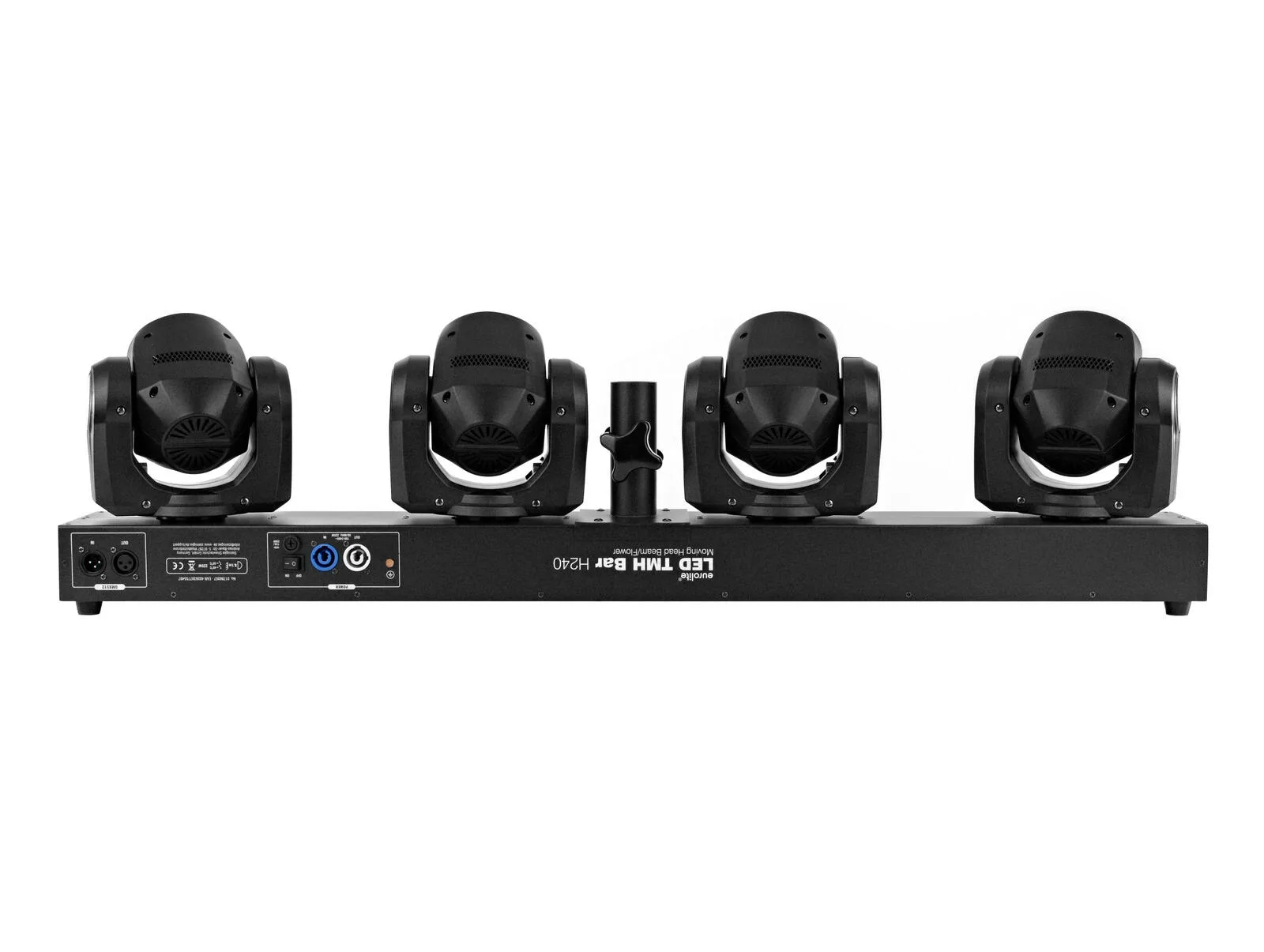

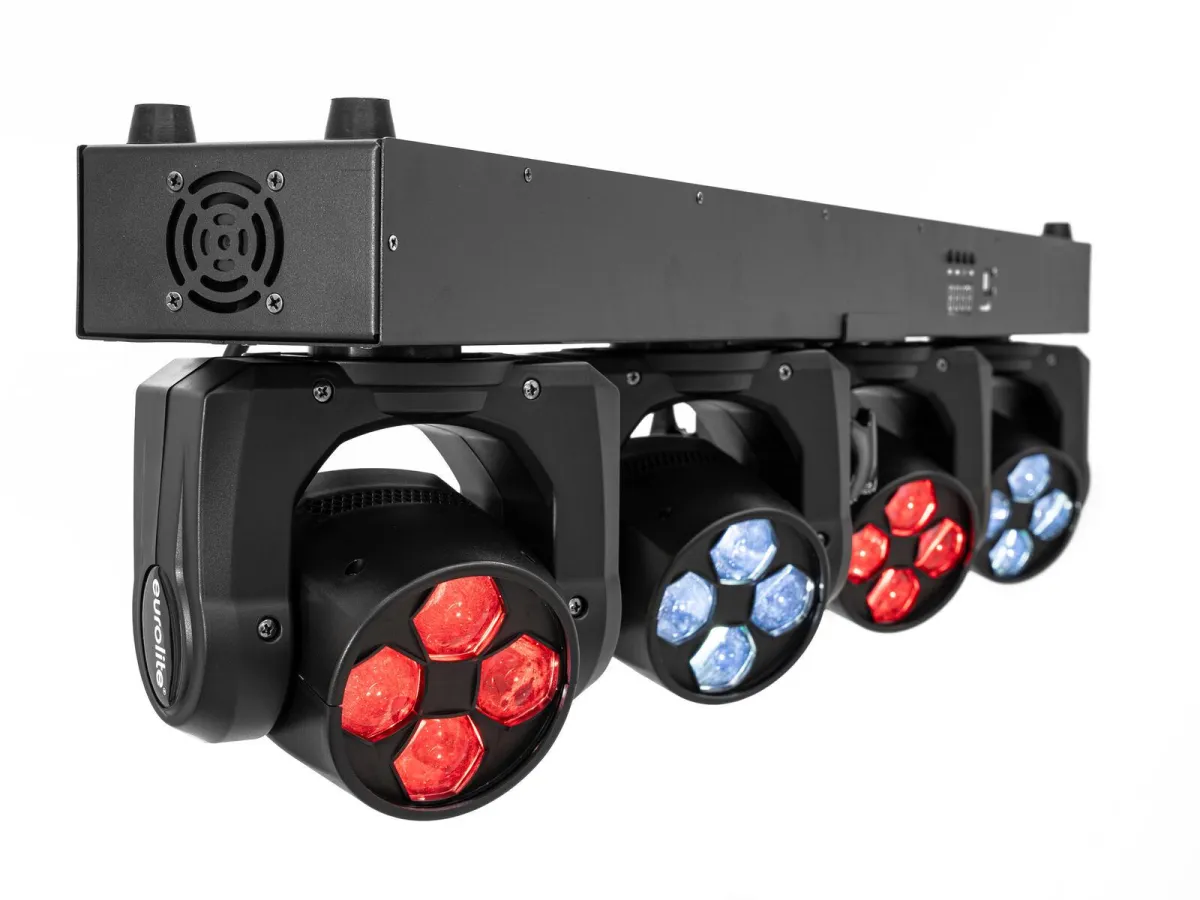

The EUROLITE LED TMH Bar H240 is a powerful LED moving head bar featuring four individually controllable moving heads in a single system. Each unit is equipped with 15 W RGBW LEDs that create both narrow beam effects and wide flower effects for clubs, stages, events, and mobile DJ setups.

The bar can be used standing on the floor, mounted on a stand, or suspended from a truss, and is designed for easy control even with smaller DMX controllers.

Features and Functions

4 individually controllable moving heads
16 x 15 W SMD 6065 4-in-1 RGBW LEDs
RGBW color mixing
Beam and flower effects
2° beam angle
PAN movement up to 540°
TILT movement up to 180°
Precise 16-bit positioning
Rotating lens
Electronic dimmer
Adjustable motion macros
Color selection and adjustable color macros
22 integrated show programs
Flicker-free operation
DMX fail mode: hold and blackout
Master/slave function
Sound-to-light control via built-in microphone
Stand-alone mode
Supports QuickDMX via USB (optional)
Supports W-DMX via USB (optional)
Supports CRMX by LumenRadio via USB (optional)

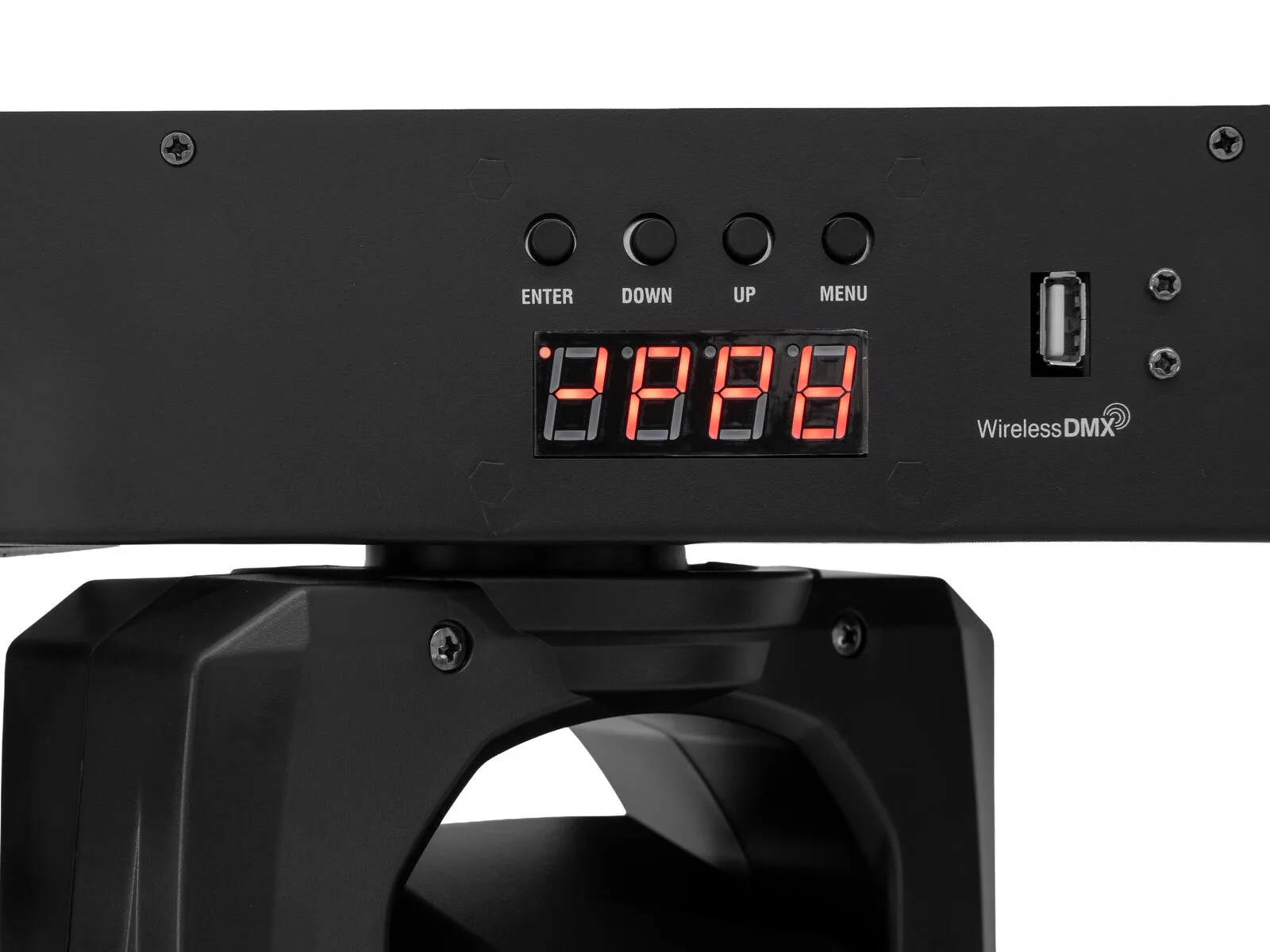

Monochrome 4-digit 7-segment LED display
Omega brackets included
4 rubber feet
Power linking for up to 8 units

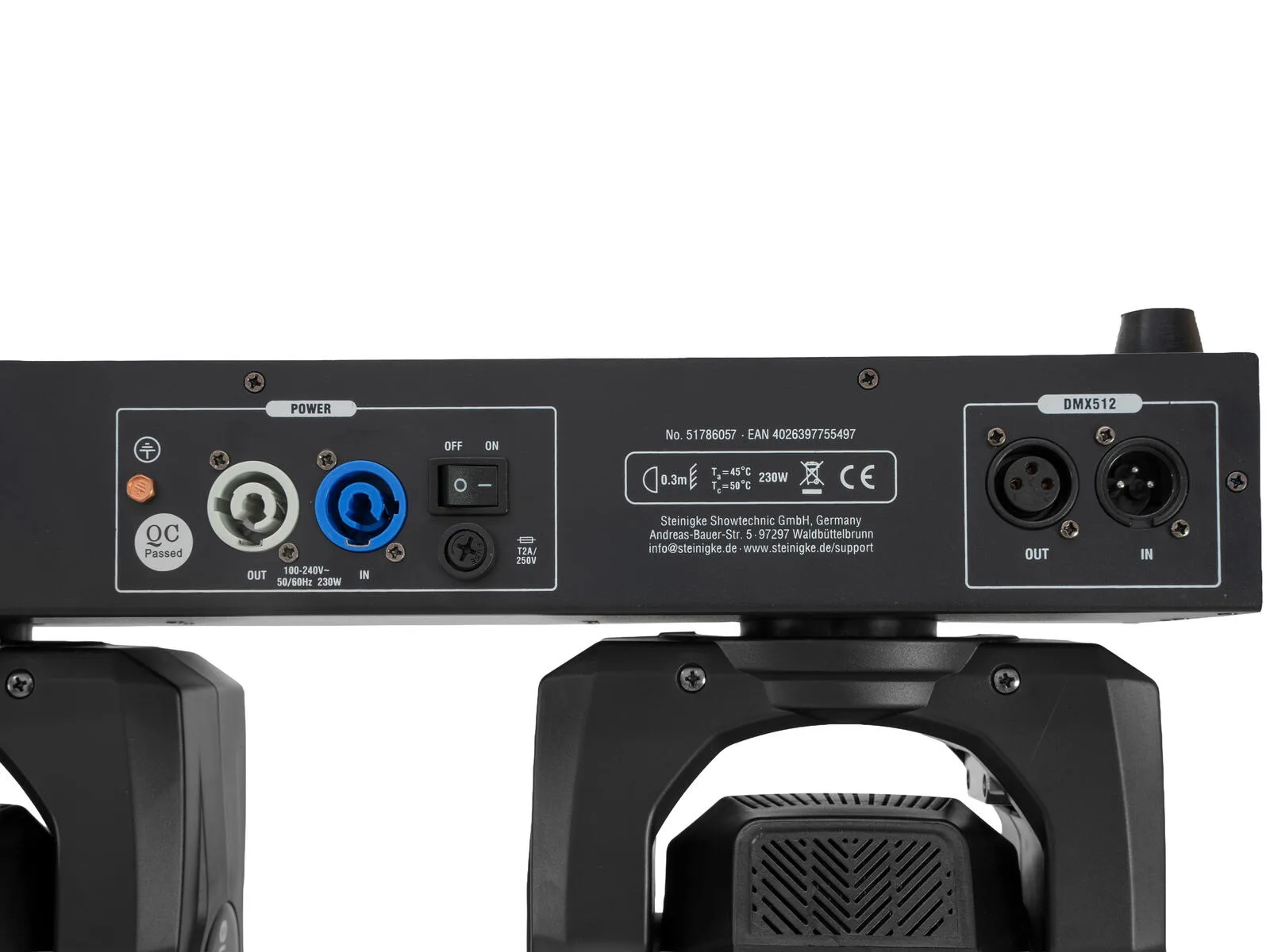

DMX and Connections

DMX channels: 5 / 9 / 14 / 16 / 25 / 29 / 44 / 52
DMX input: 3-pin XLR
DMX output: 3-pin XLR
USB port type A
Power input via P-Con
Power output via P-Con for linking multiple units

Cooling and Construction

2 cooling fans in the base
4 cooling fans in the heads
Black metal housing
Mounting for Ø35 mm stand tube

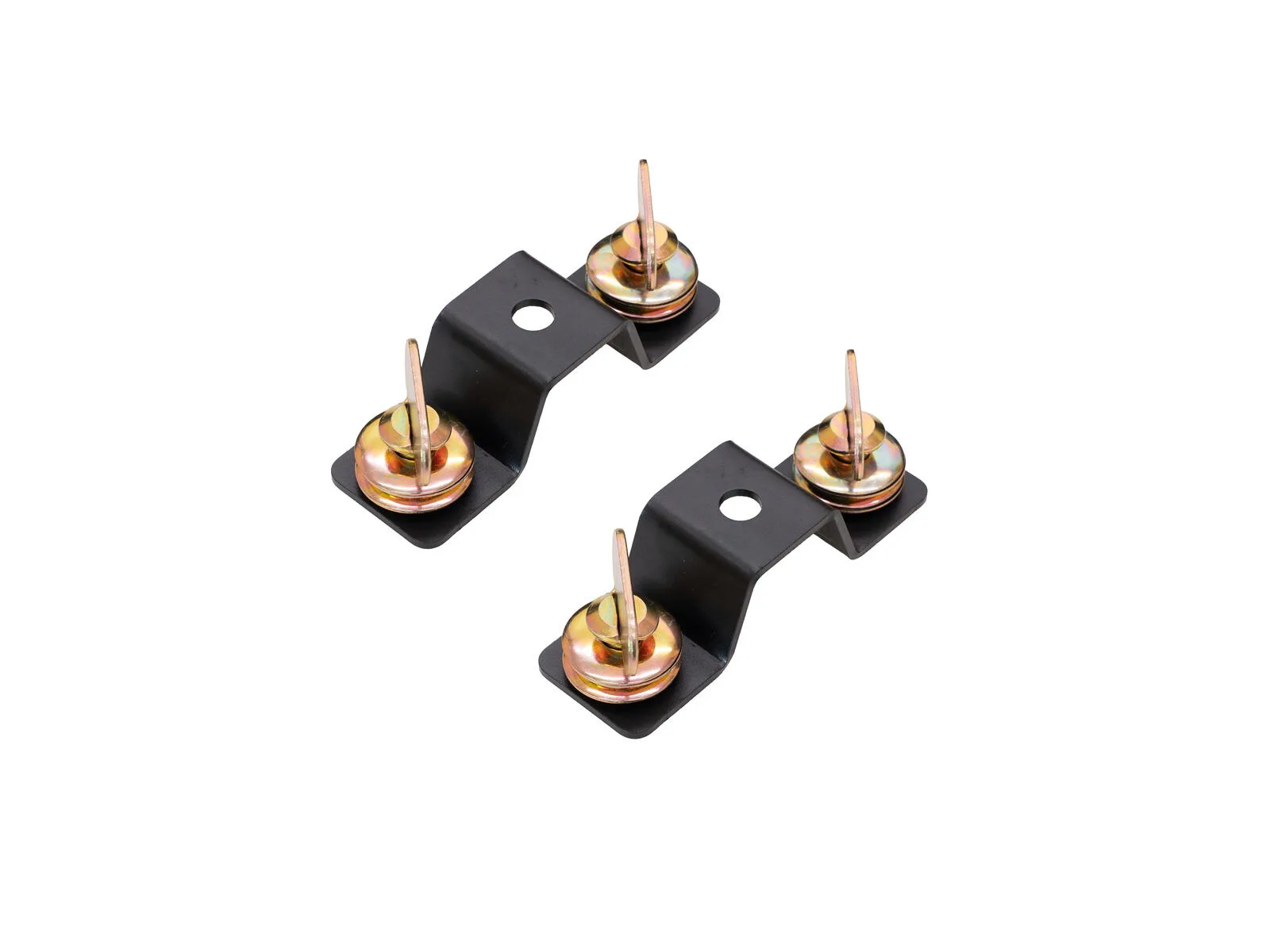

2 x omega brackets
Lamp life up to 20,000 hours

Technical Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 225 W
Protection class: Class I
Flash rate: 2–15 Hz
PWM frequency: 11000 Hz

Dimensions and Weight

Width: 100 cm
Depth: 17.5 cm
Height: 26 cm
Weight: 12.70 kg
