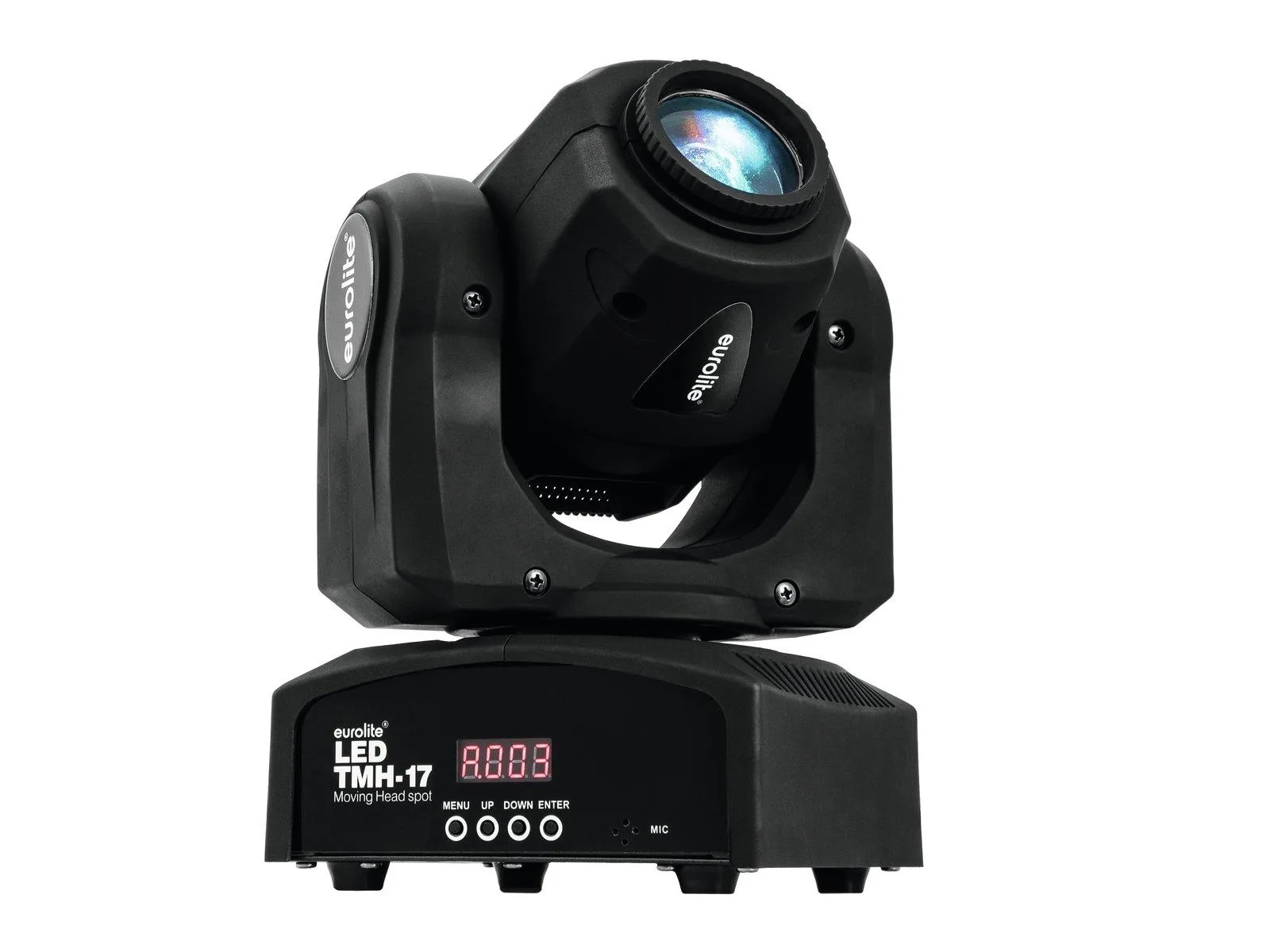

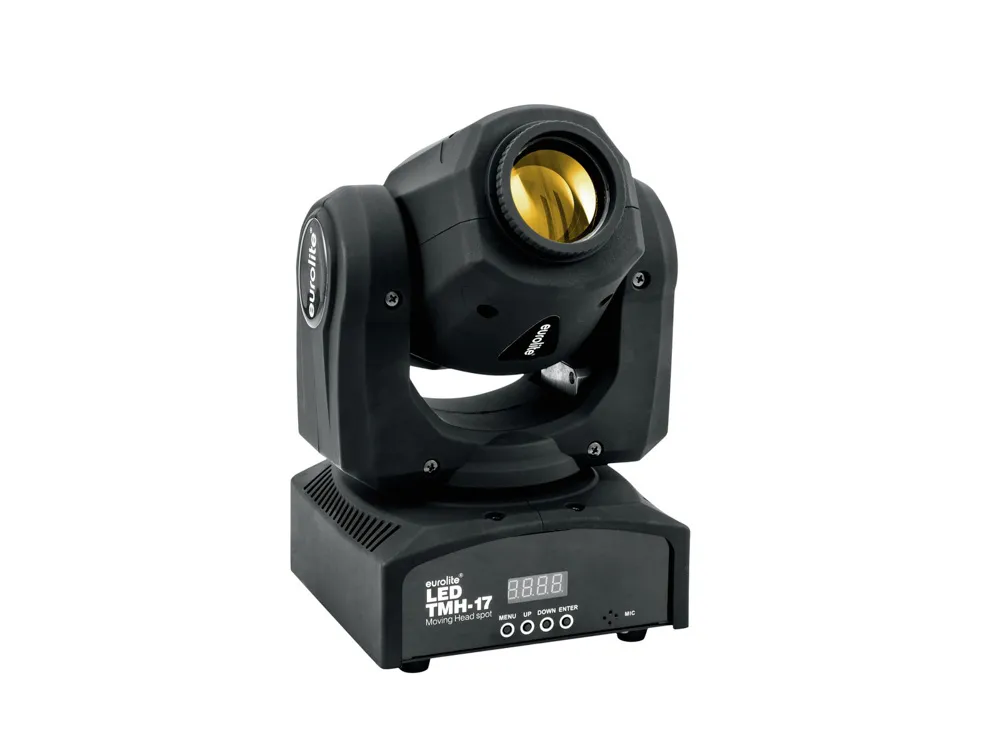

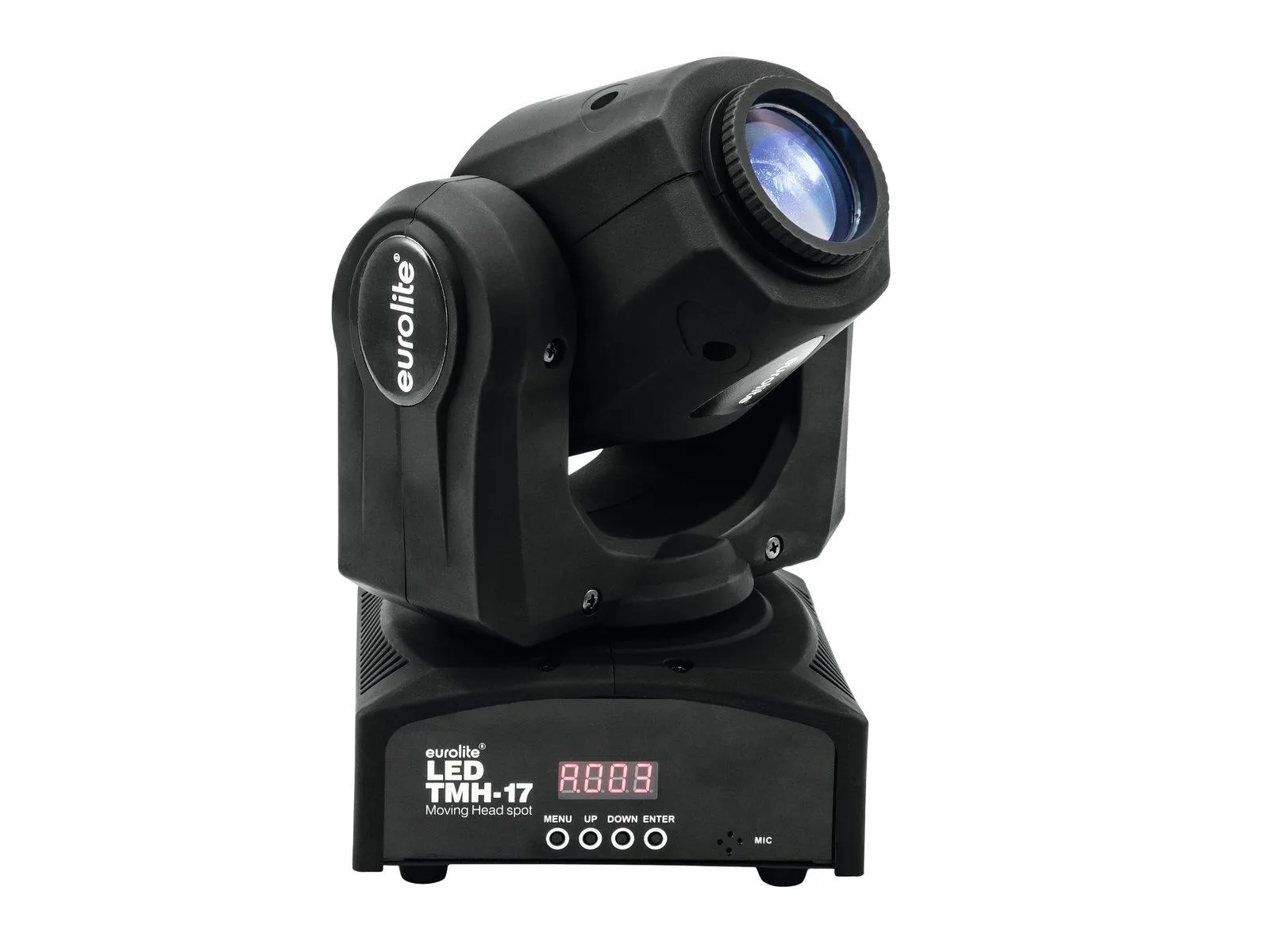

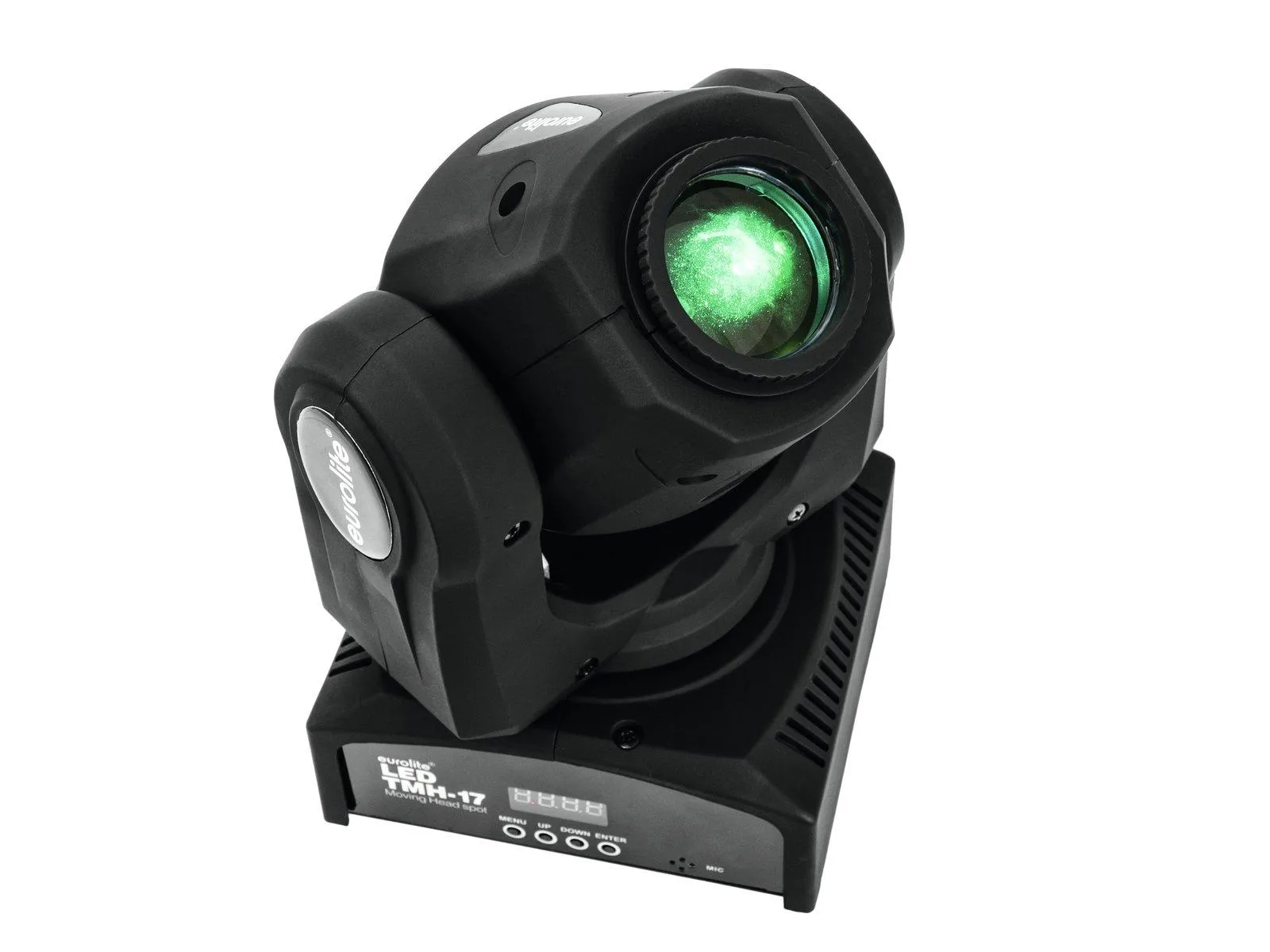

Eurolite LED TMH-17 Moving Head Spot

Powerful Mini-Spot
Very small, very light and nevertheless strong: This mini spot only weighs 3 kg, but brings a lot of light to the dance floor. It is equipped with a color wheel with 7 dichroic colors (plus white) and a gobo wheel with 7 gobos (plus open). Electric dimmers and rainbow effect complete the package. The TMH-13 draws its powerful light power from a 30 W COB LED.

Features
Compact Moving Head Spot with 30 W LED, gobos and color wheel

Compact lightweight
1 powerful LED 30 W COB (chip-on-board) color wheel
Positioning within 540° PAN, 200° TILT
Exact positioning (16 bit resolution)
Gobo wheel with static gobos; Focus manual

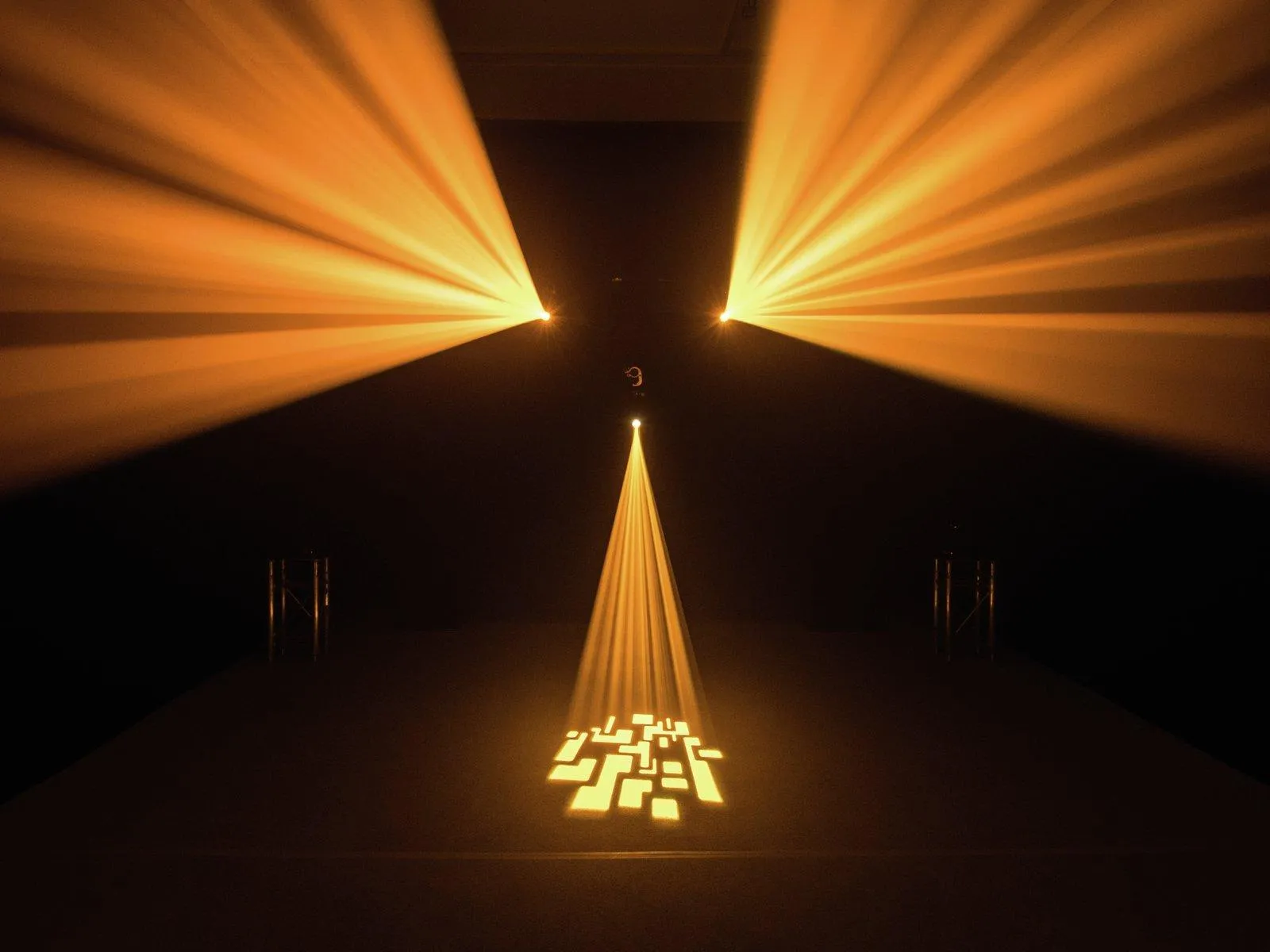

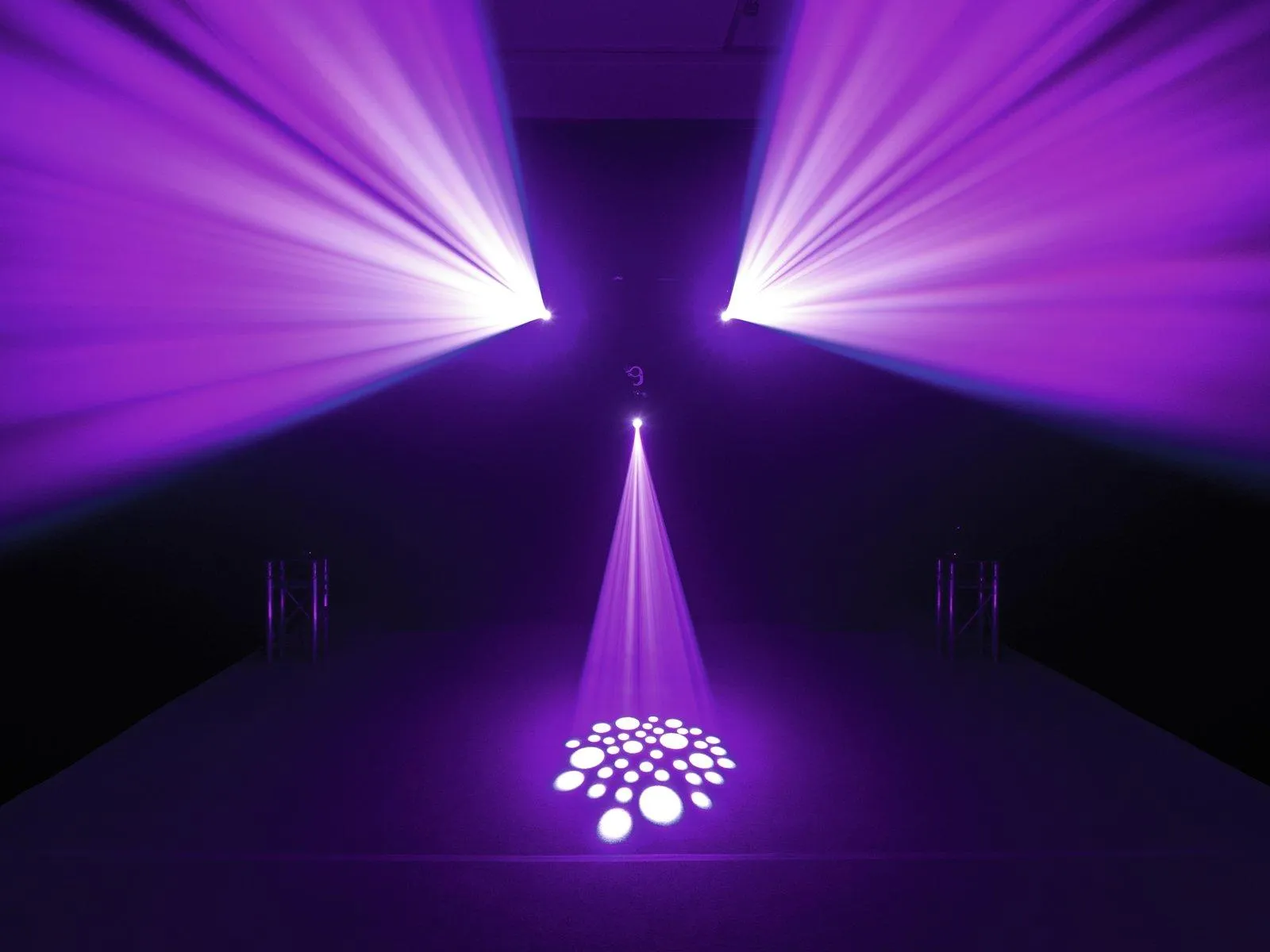

Gobo effect; beam effect; Strobe effect
Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions

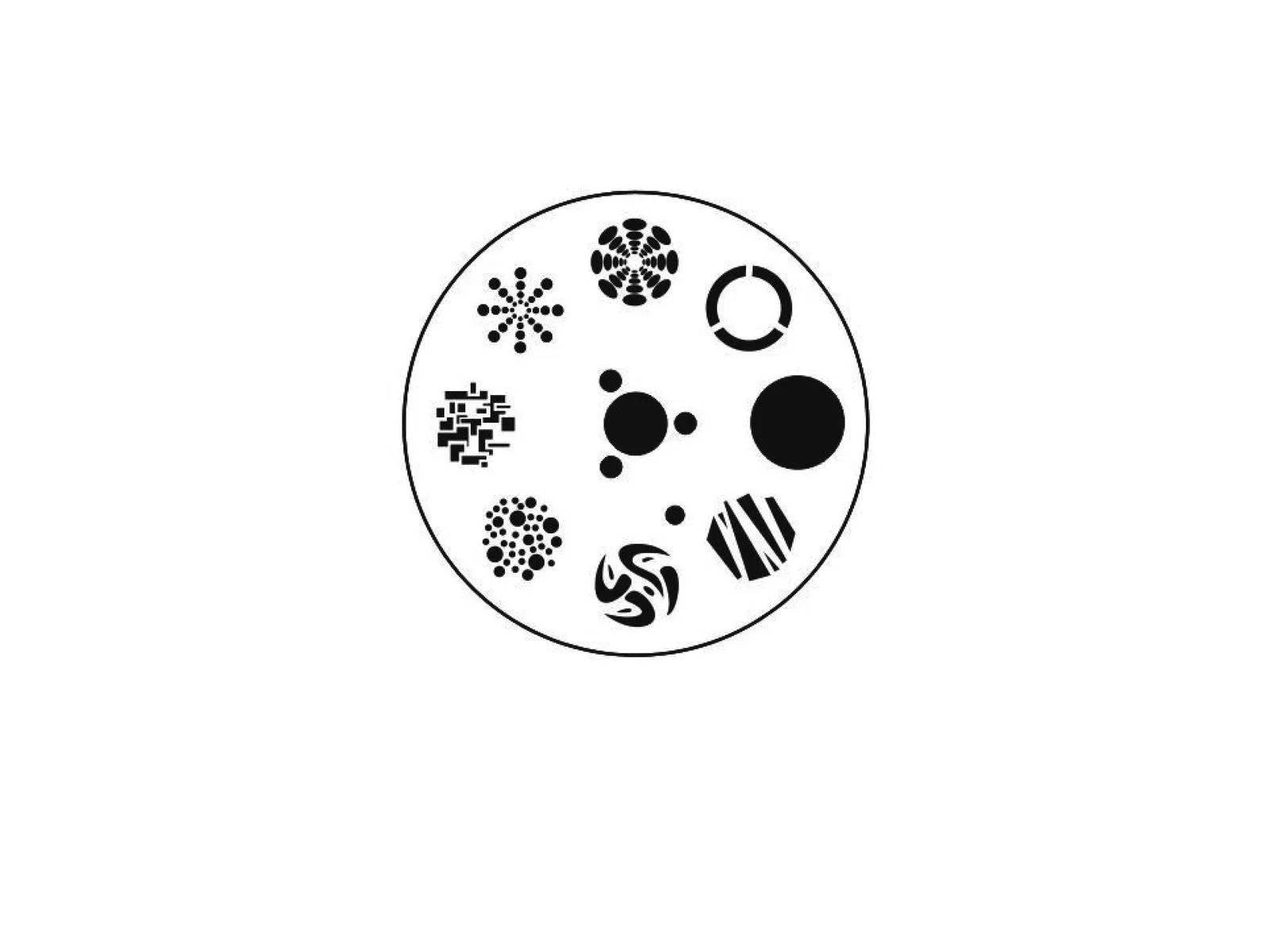

Gobo wheel with static gobos, 7 gobos and open
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; Sound to light via Microphone
With a beam angle of 12°
4 digit 7-segment LED display
Dimmer electronic
Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
For application areas such as: Clubs/dancing school; Party room; mobile djs / entertainer; small rental

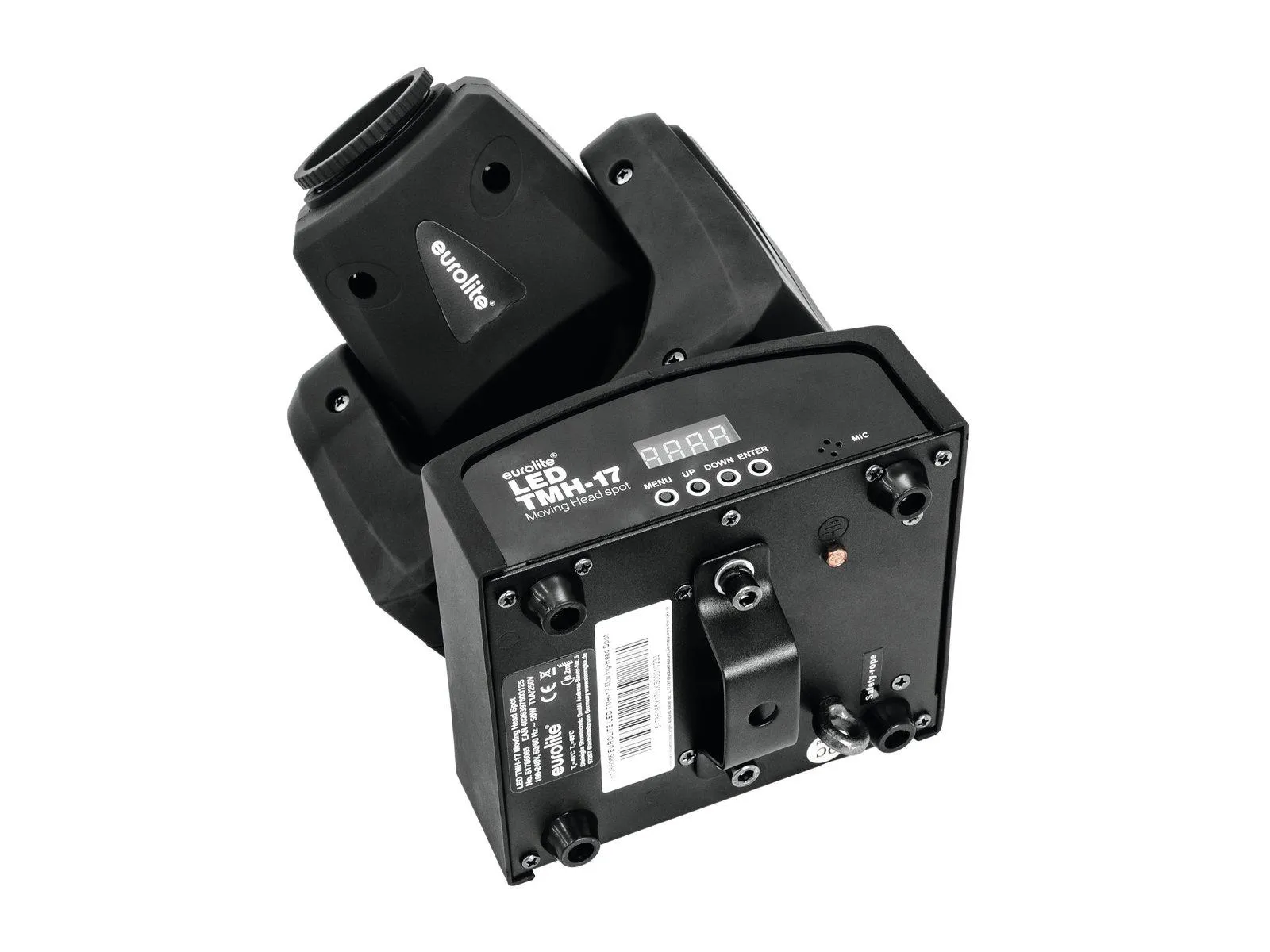

Application possibility: Standing; suspended

Package contents
1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 2 x screw, 4 x washer, 1 x safety eyelet

Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 50 W
IP classification: IP20
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Fuse: 5 x 20 mm, T 1 A Fuse replaceable
Lamp type: LED lamp
LED: 1 x 30 W COB (chip-on-board) color wheel
Max. TILT movement: 200° Exact positioning (16 bit resolution)
Max. PAN movement: 540° Exact positioning (16 bit resolution)
Equipment: Gobo wheel with static gobos; Focus manual
Color generation: Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos: Gobo wheel with static gobos, 7 gobos and open
DMX channels: 9; 11

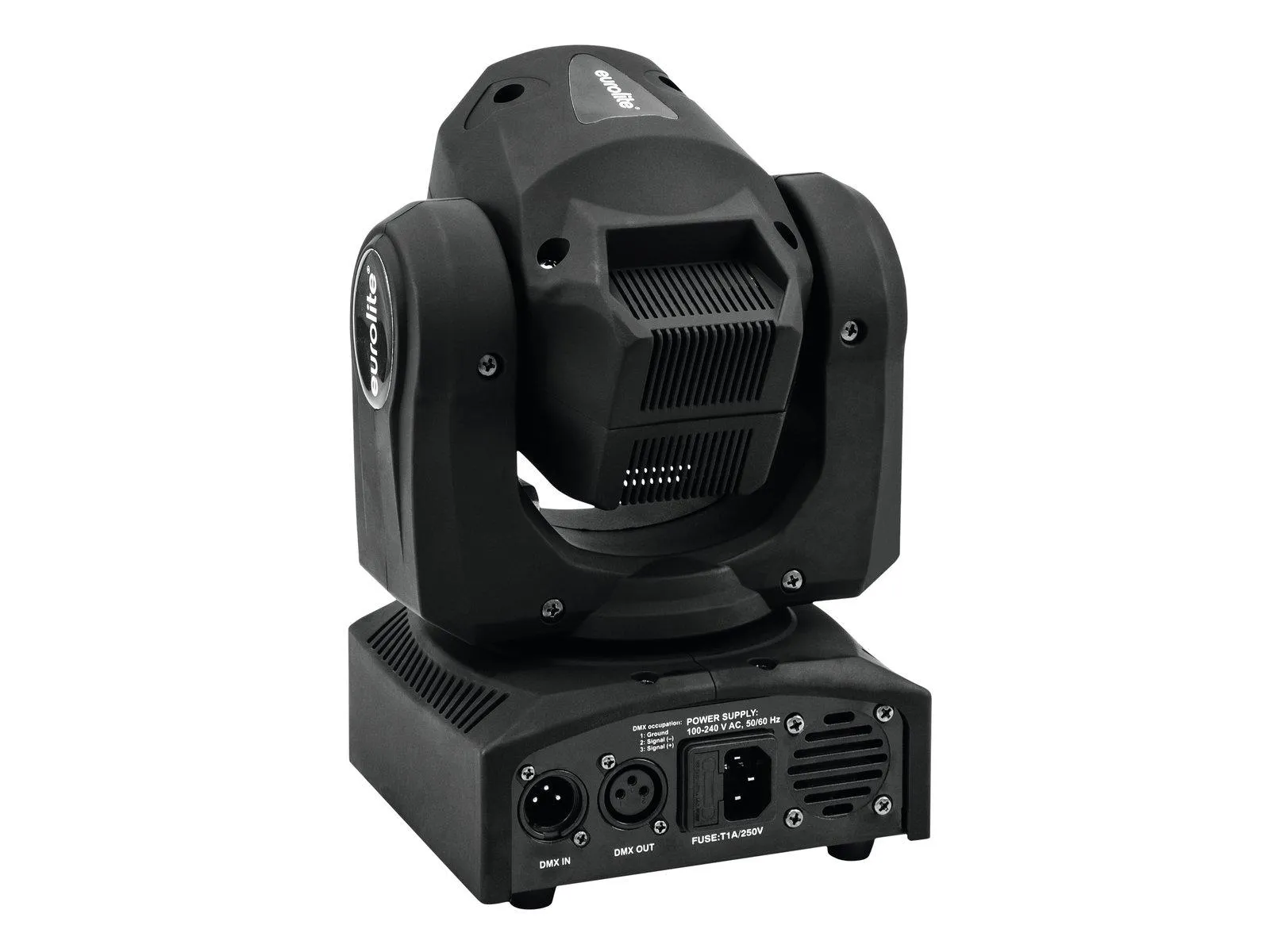

DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: Stand-alone; DMX; Sound to light via Microphone
Preprogrammed in: LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3

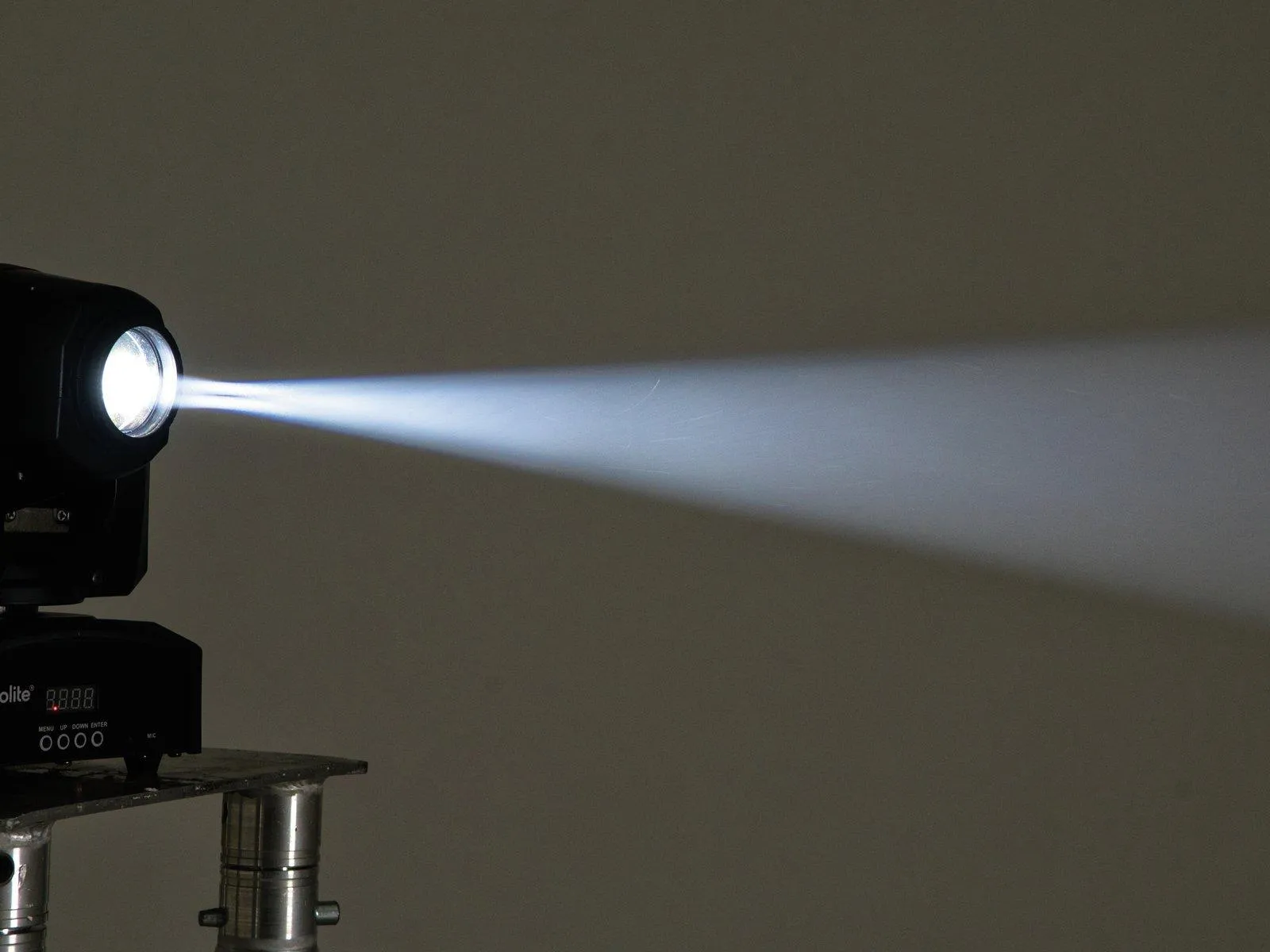

Beam angle: 12°
Beam angle (1/2 peak): 12°
Illuminance in Lux (lx): Cold white (CW) 3m: 1677 lx, 6m: 417 lx
Housing color: Black
Display type: 4 digit 7-segment LED display
Dimensions: Width: 17 cm
Depth: 14,5 cm
Height: 24 cm
Weight: 2,70 kg
Noise classification: Class 3 (clearly perceptible sounds)
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
