Eurolite LED Theatre COB 200 RGBAL

EUROLITE LED Theatre COB 200 RGBAL

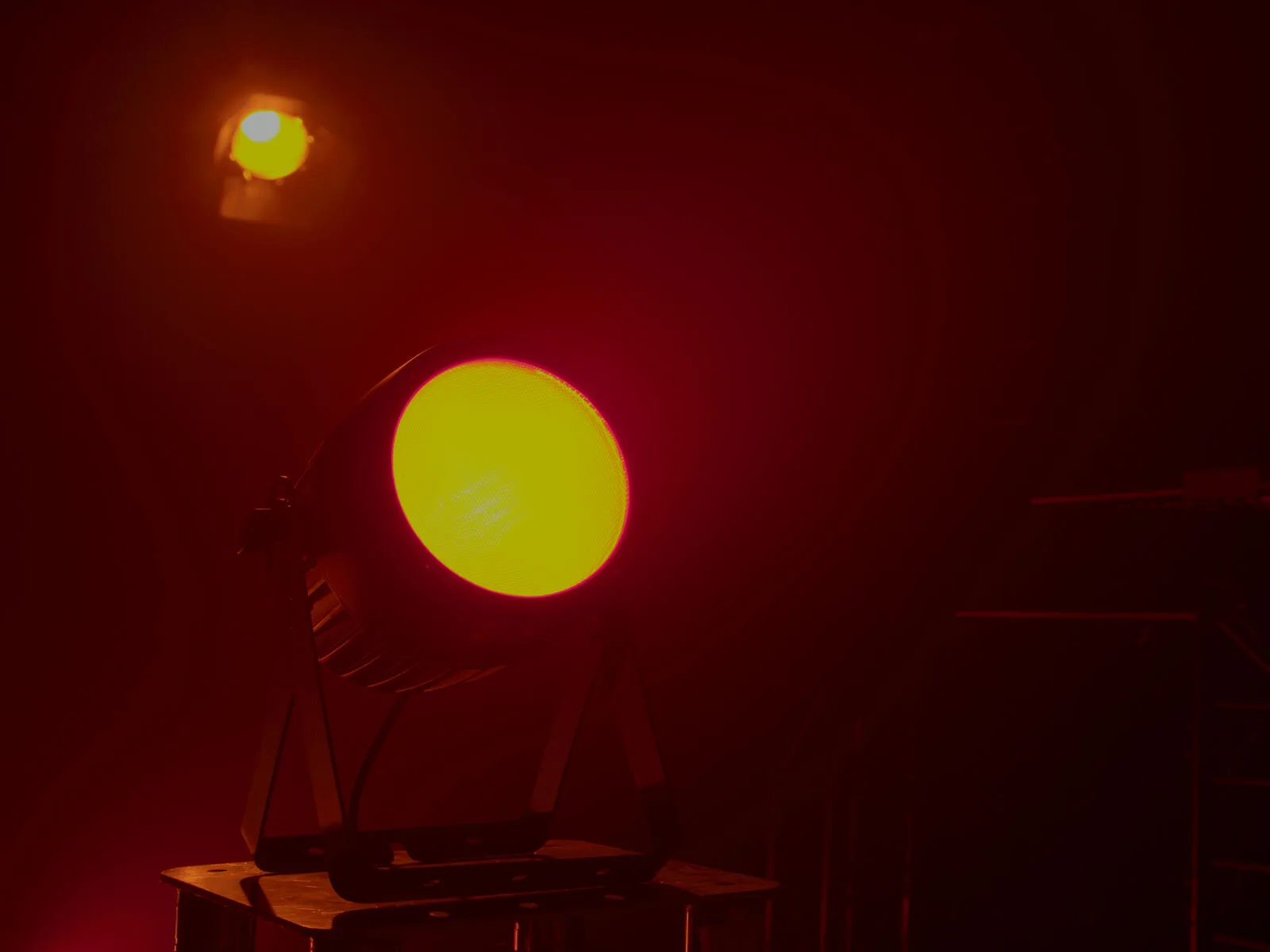

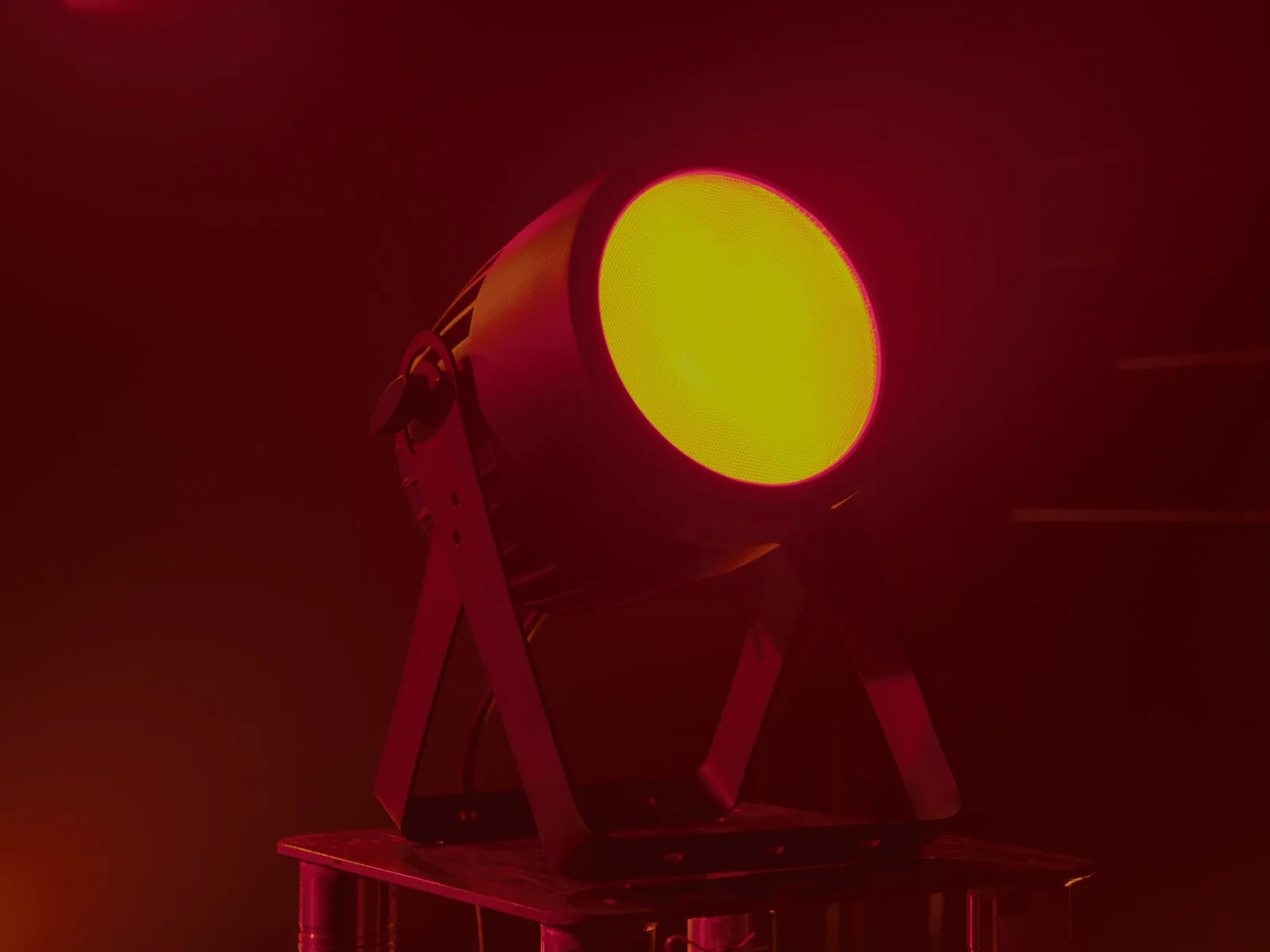

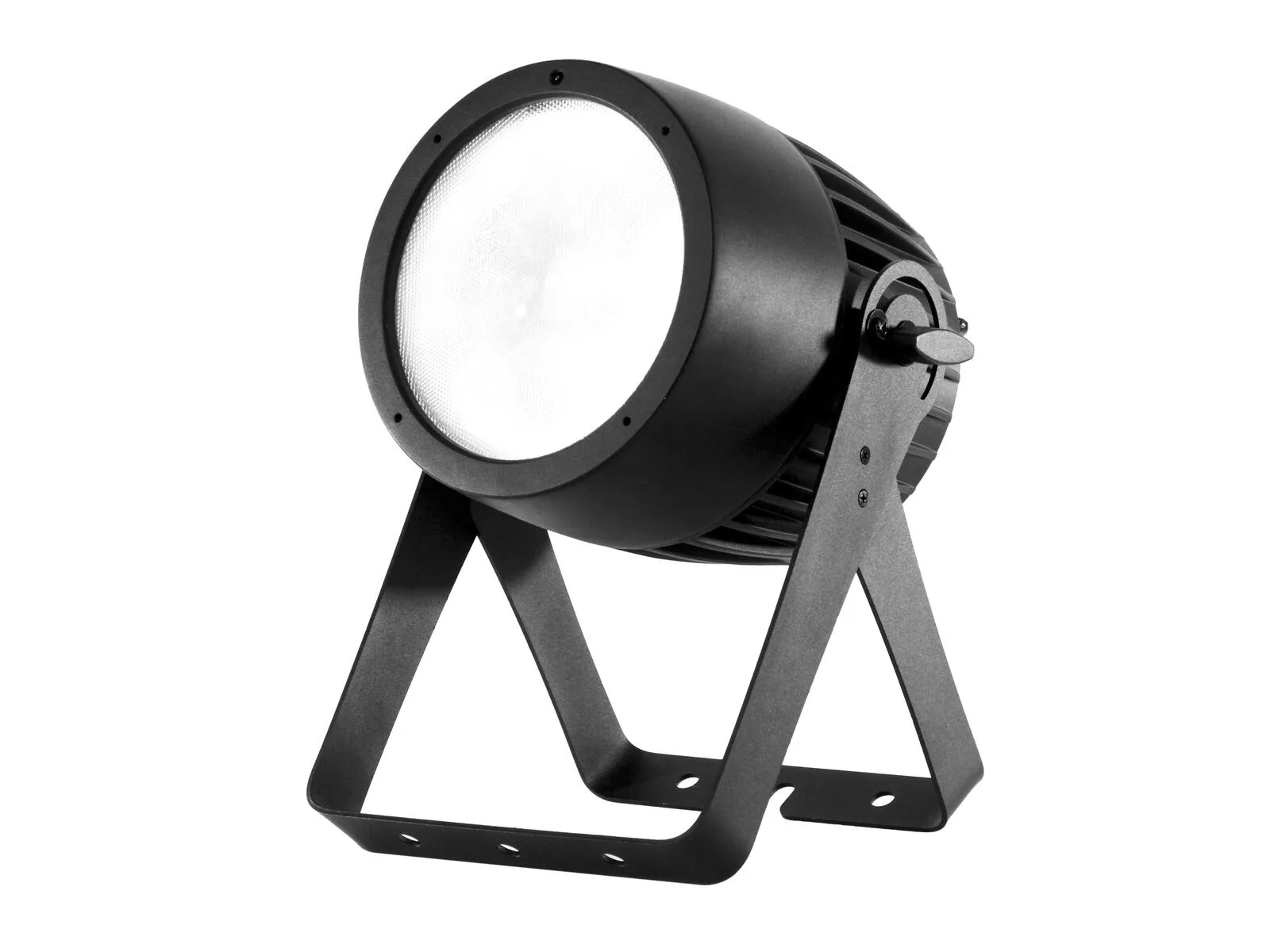

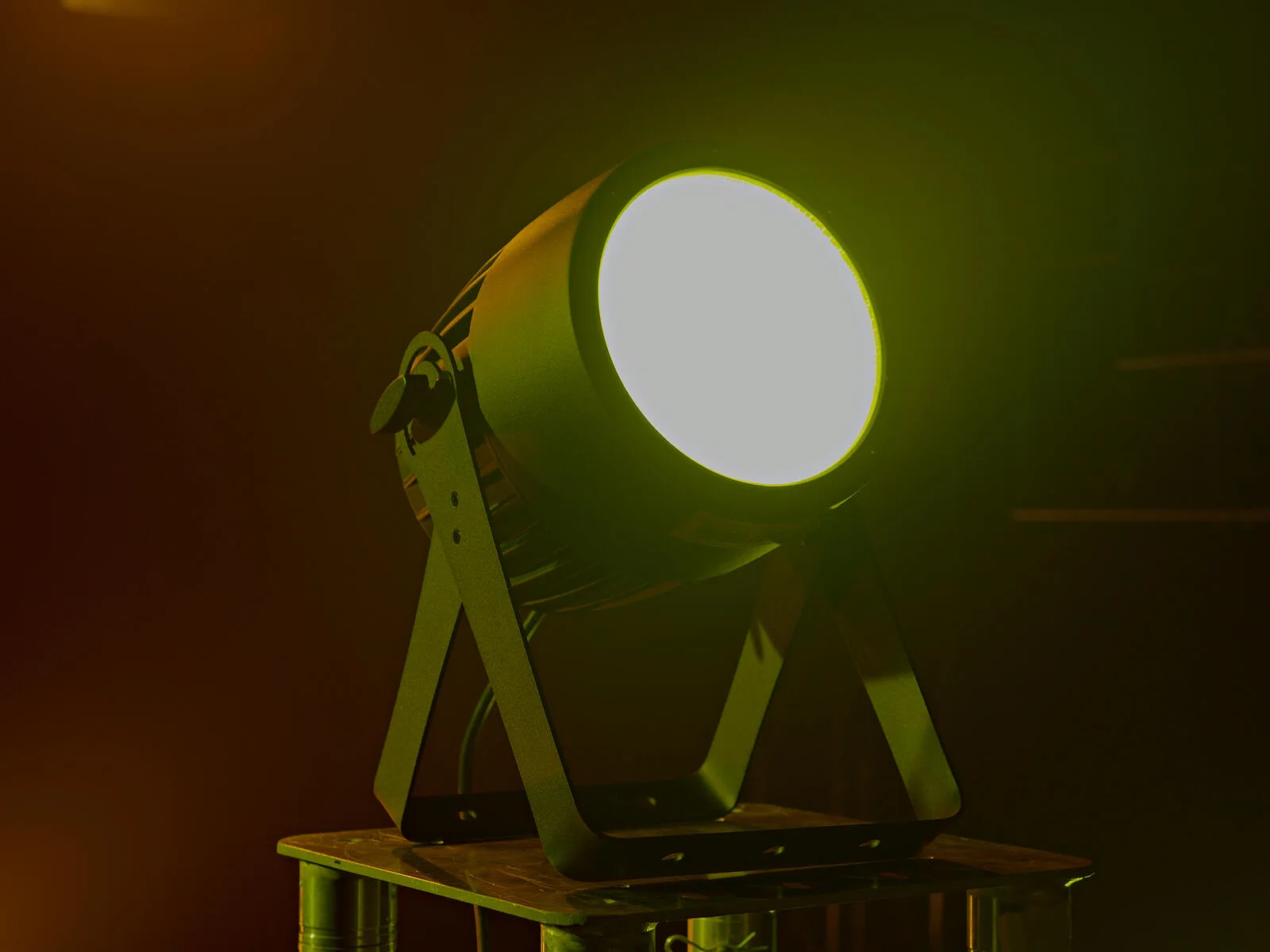

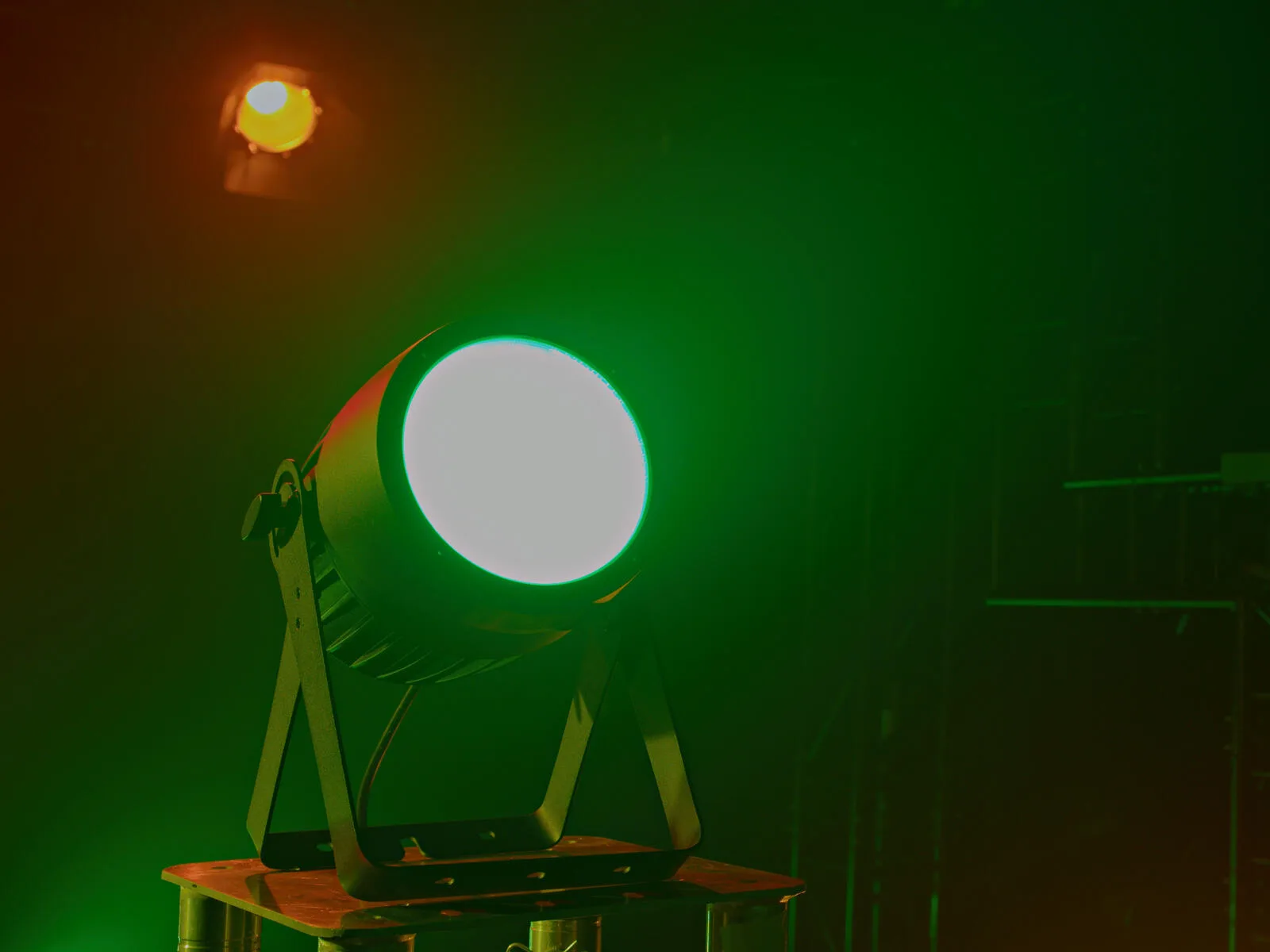

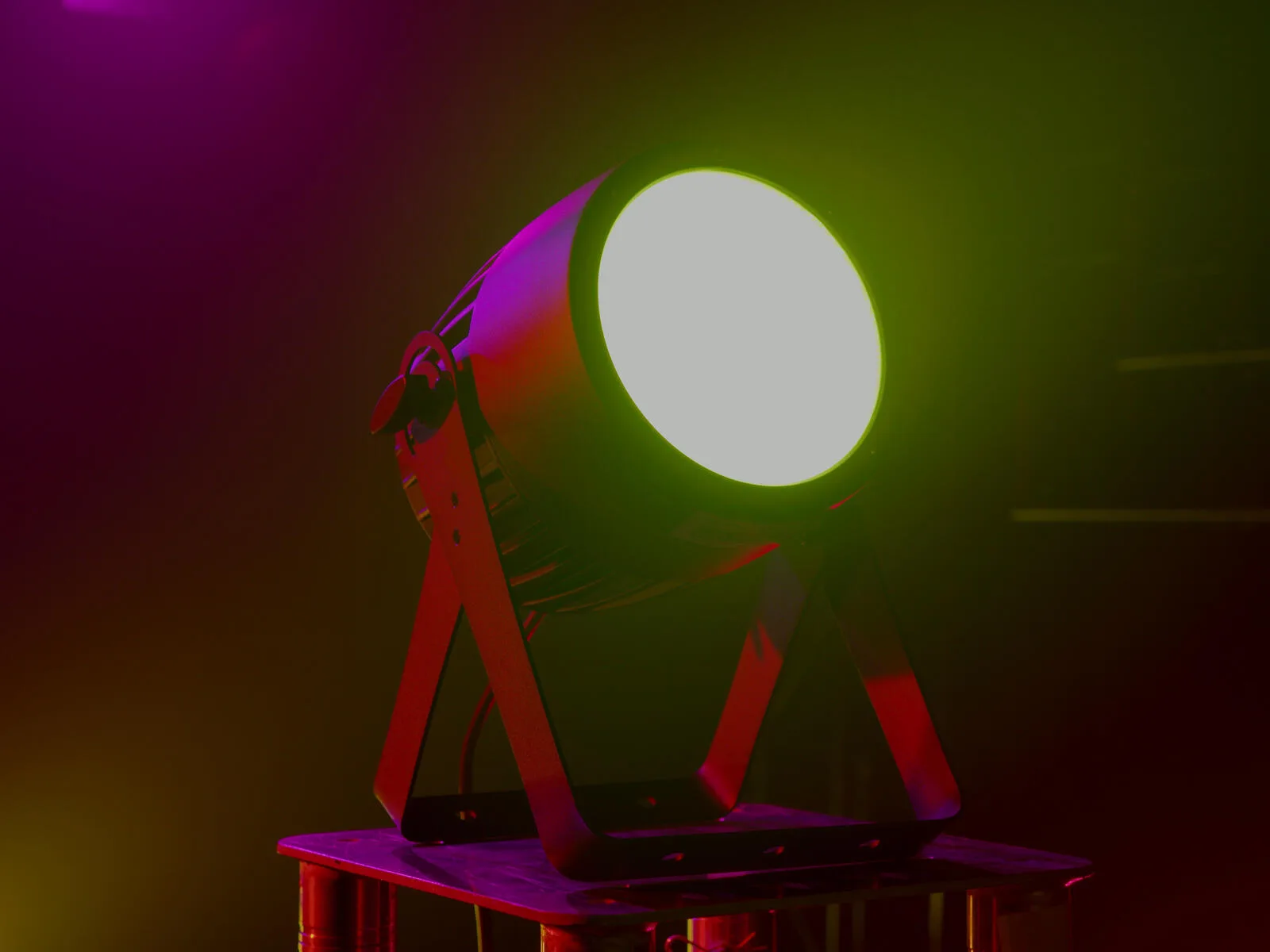

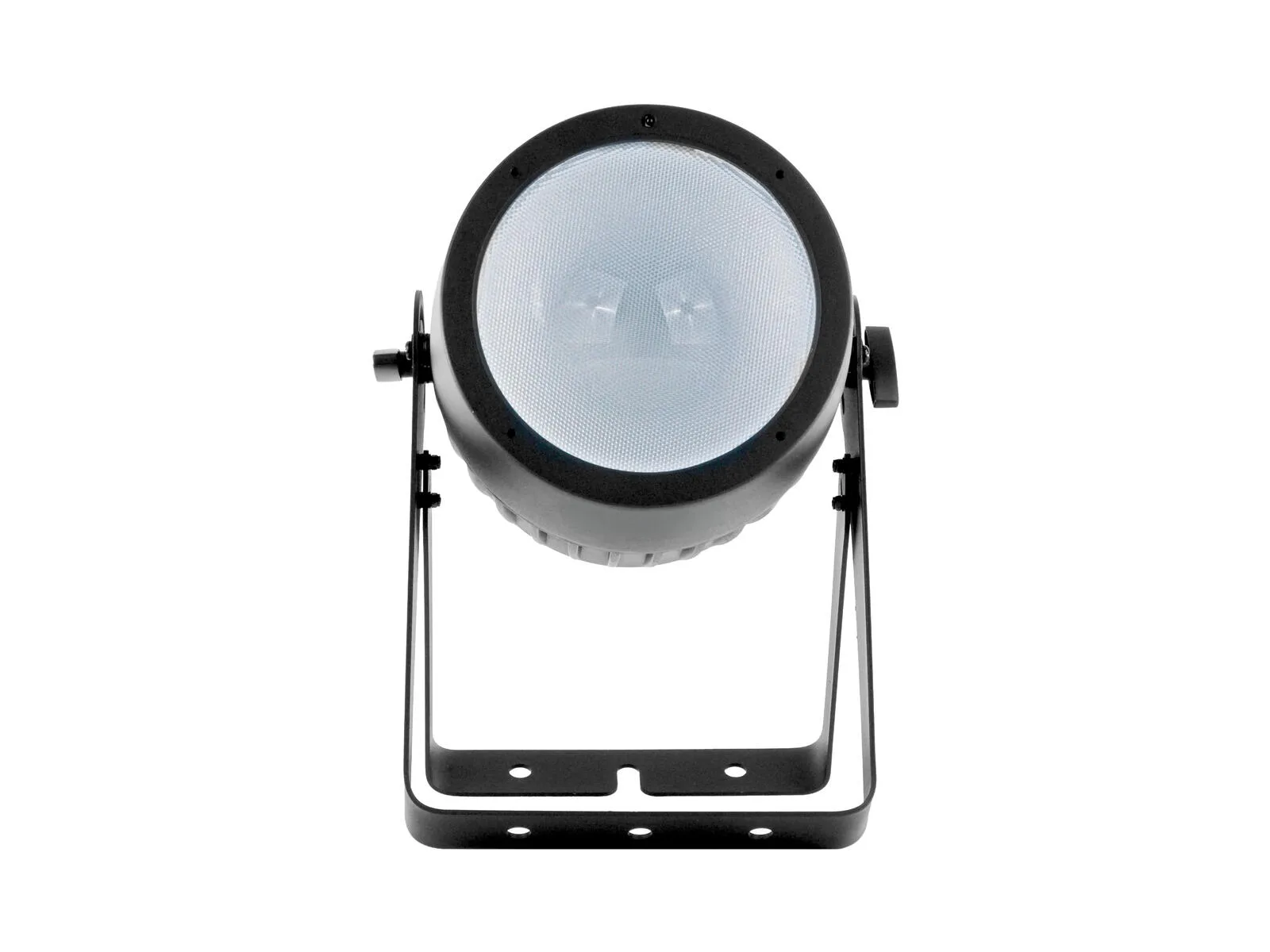

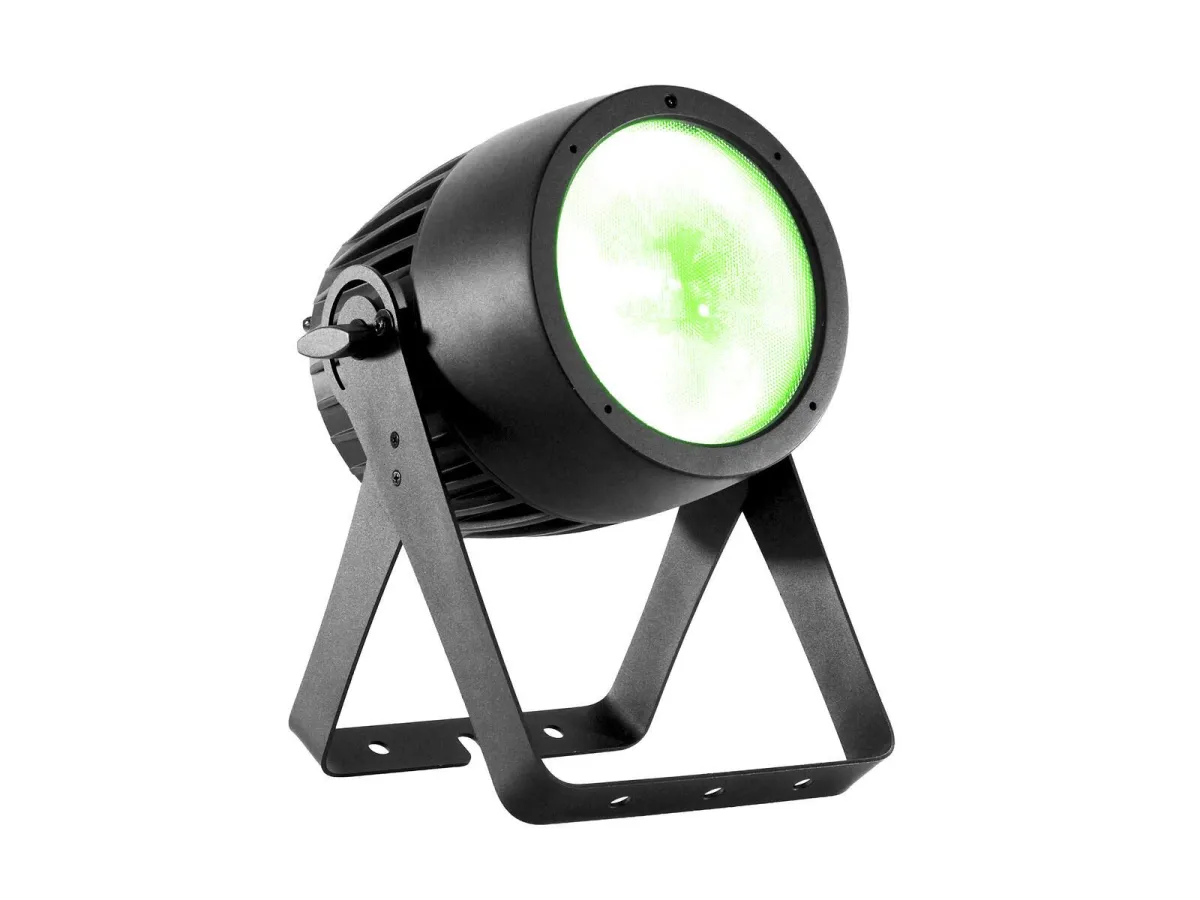

The EUROLITE LED Theatre COB 200 RGBAL is a powerful LED theatre spotlight with a professional design and high light output. The fixture is equipped with a 200 W COB LED featuring RGBAL color mixing, utilizing not only red, green, and blue, but also amber and lime for improved orange and yellow tones as well as white light with adjustable color temperature.

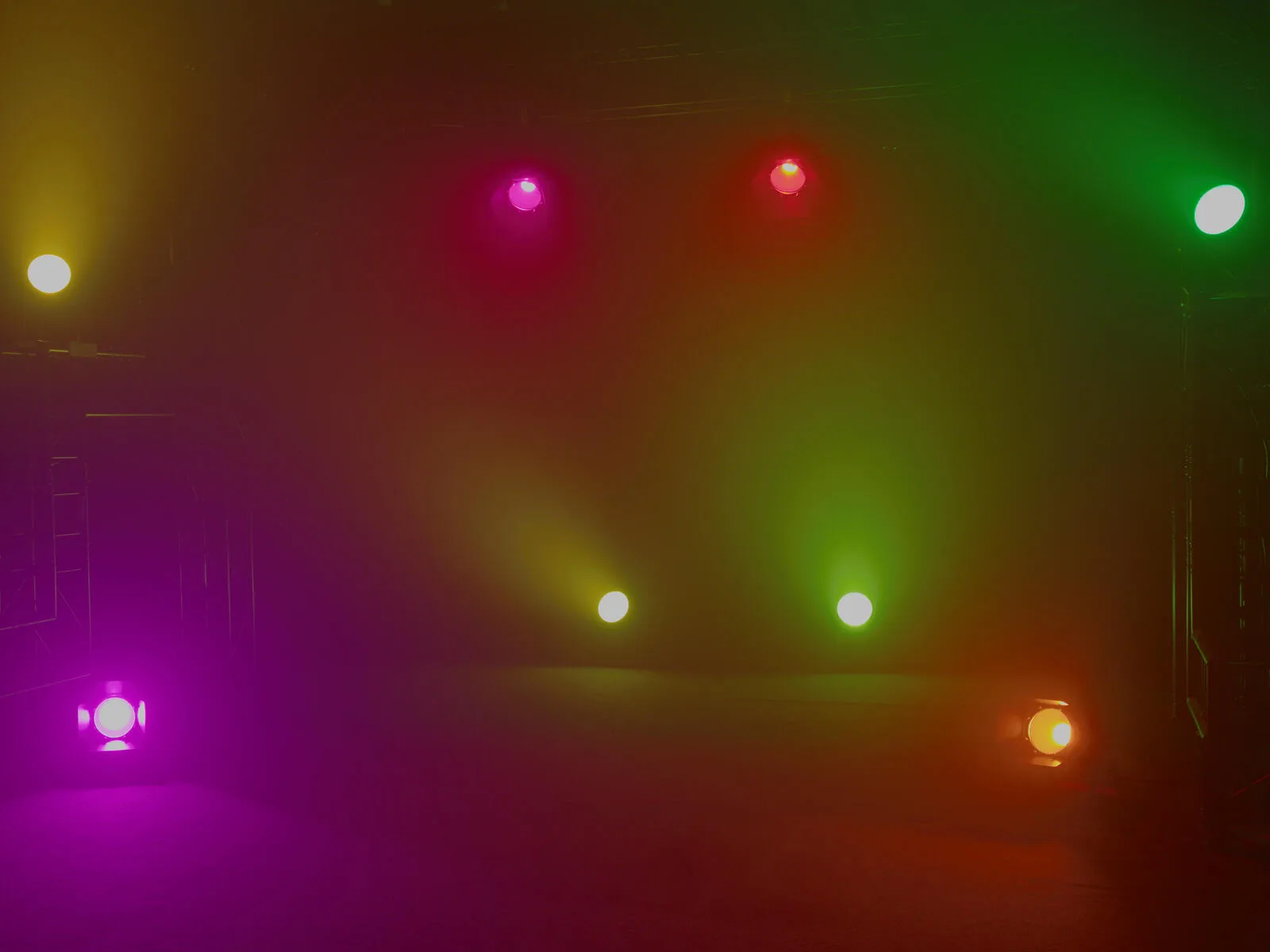

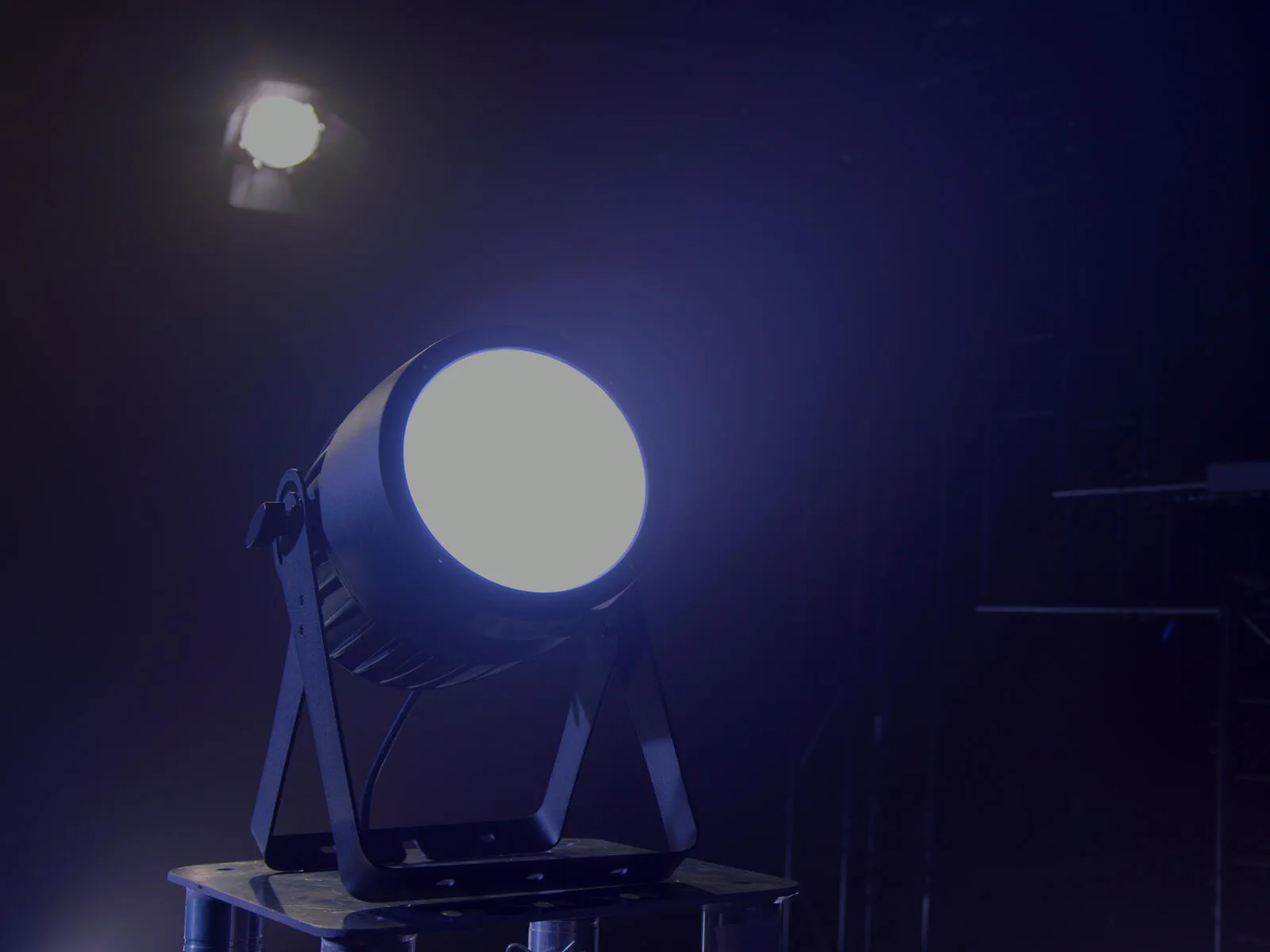

The spotlight is ideal for both colored and white lighting applications in theatres, stages, events, rental setups, restaurants, and retail environments. Its robust aluminum housing is combined with very quiet cooling, making it suitable for noise-sensitive environments.

Features and Functions

1 x 200 W COB (chip-on-board) 5-in-1 RGBAL LED
Homogeneous color mixing
RGBAL color mixing
Enhanced orange and yellow tones
Adjustable color temperature from 1800K to 8000K
15° beam angle
Wash effect
Strobe effect
Electronic dimmer
9 integrated show programs
Direct color selection for 28 preset colors
High color rendering index with CRI 81 Ra
Very quiet operation
Fan cooling
Stand-alone mode
DMX control
Master/slave function
Sound-to-light control via microphone
IR remote control
Supports QuickDMX via USB (optional)
Supports W-DMX via USB (optional)
Supports CRMX by LumenRadio via USB (optional)
DMX fail mode: blackout, hold, full on, static, auto
Double bracket for flexible mounting
Monochrome LCD display
Power linking for up to 8 units

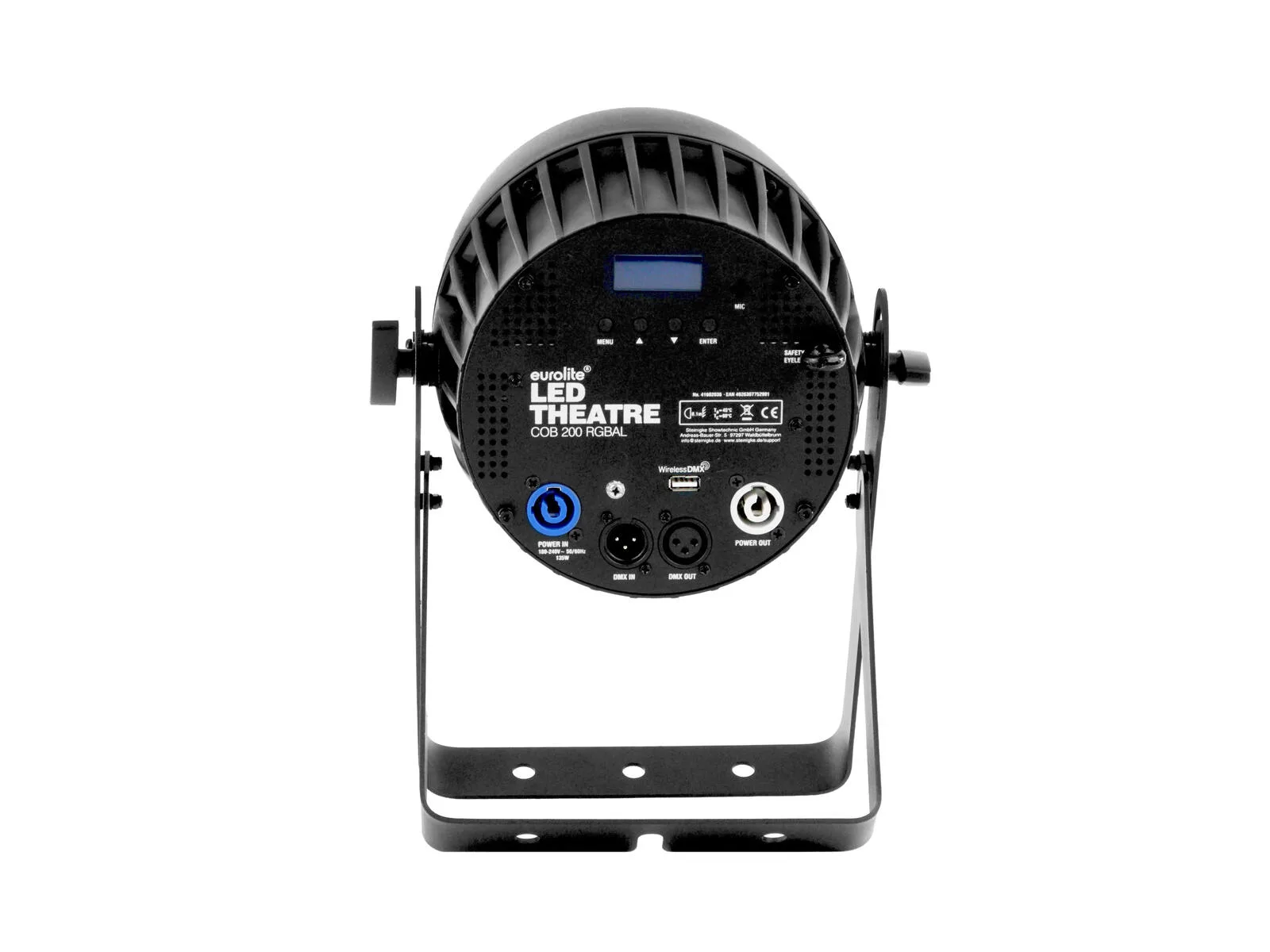

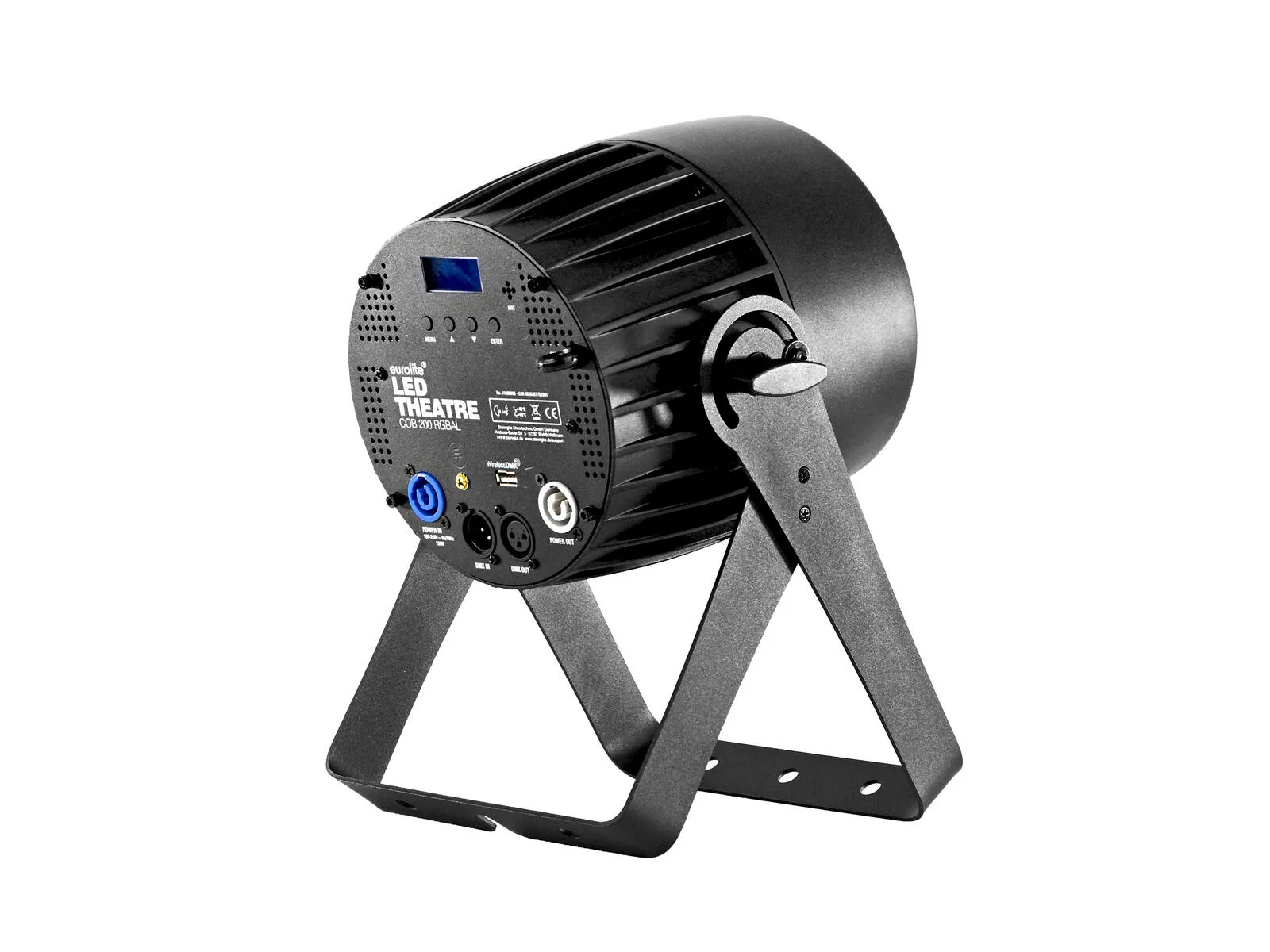

DMX and Connections

DMX channels: 3 / 5 / 7 / 11
DMX input: 3-pin XLR
DMX output: 3-pin XLR
USB port type A
Power input via P-Con
Power output via P-Con for linking multiple units

Construction and Mounting

Robust die-cast aluminum housing
Black finish
Double bracket for floor, suspended, or stand mounting
Compatible with magnetic frost filters for 40° or 60° beam spread
Compatible with optional barn doors
Lamp life up to 50,000 hours

Technical Specifications

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 135 W
IP rating: IP20
Protection class: Class I
Flash rate: 0.5–23 Hz
PWM frequency: 2900 Hz

Dimensions and Weight

Width: 25.95 cm
Height: 37.65 cm
Weight: 4.10 kg
