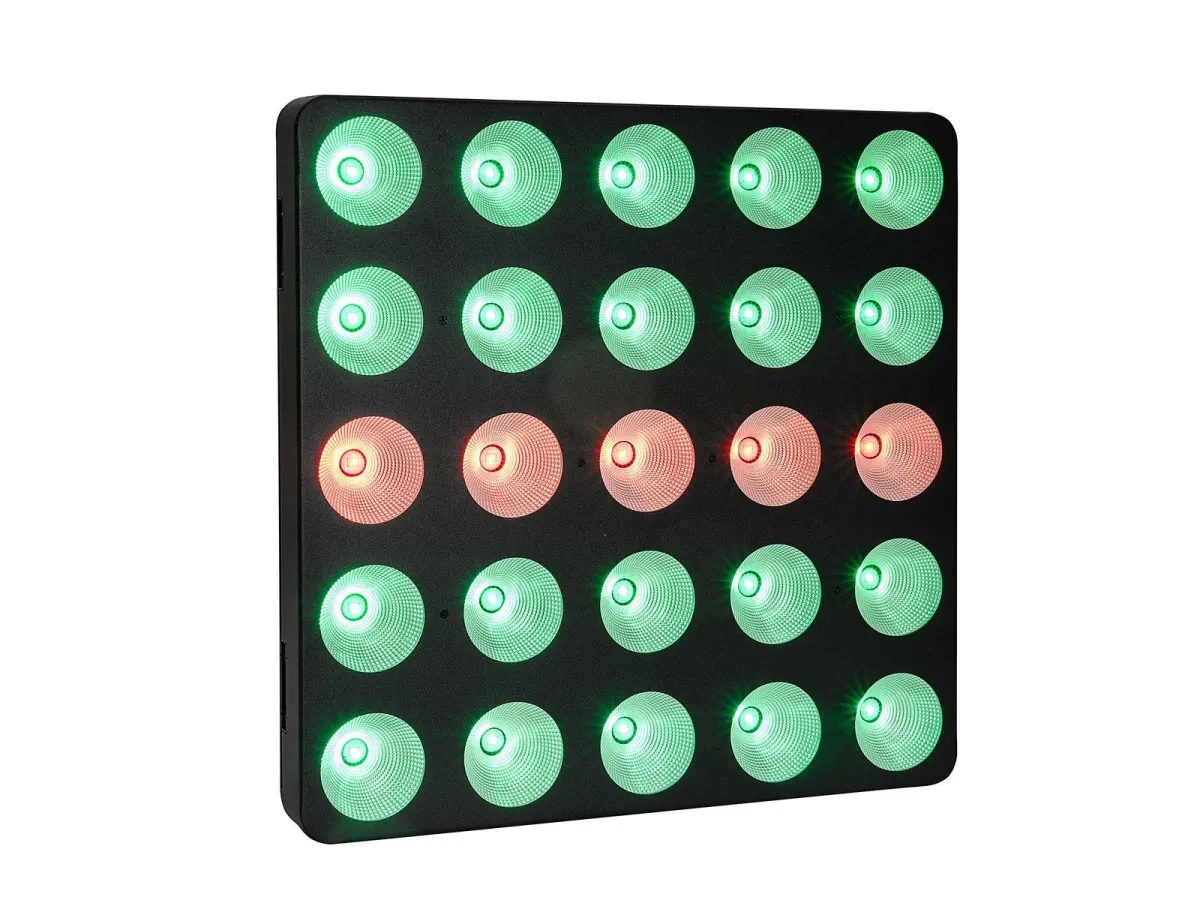

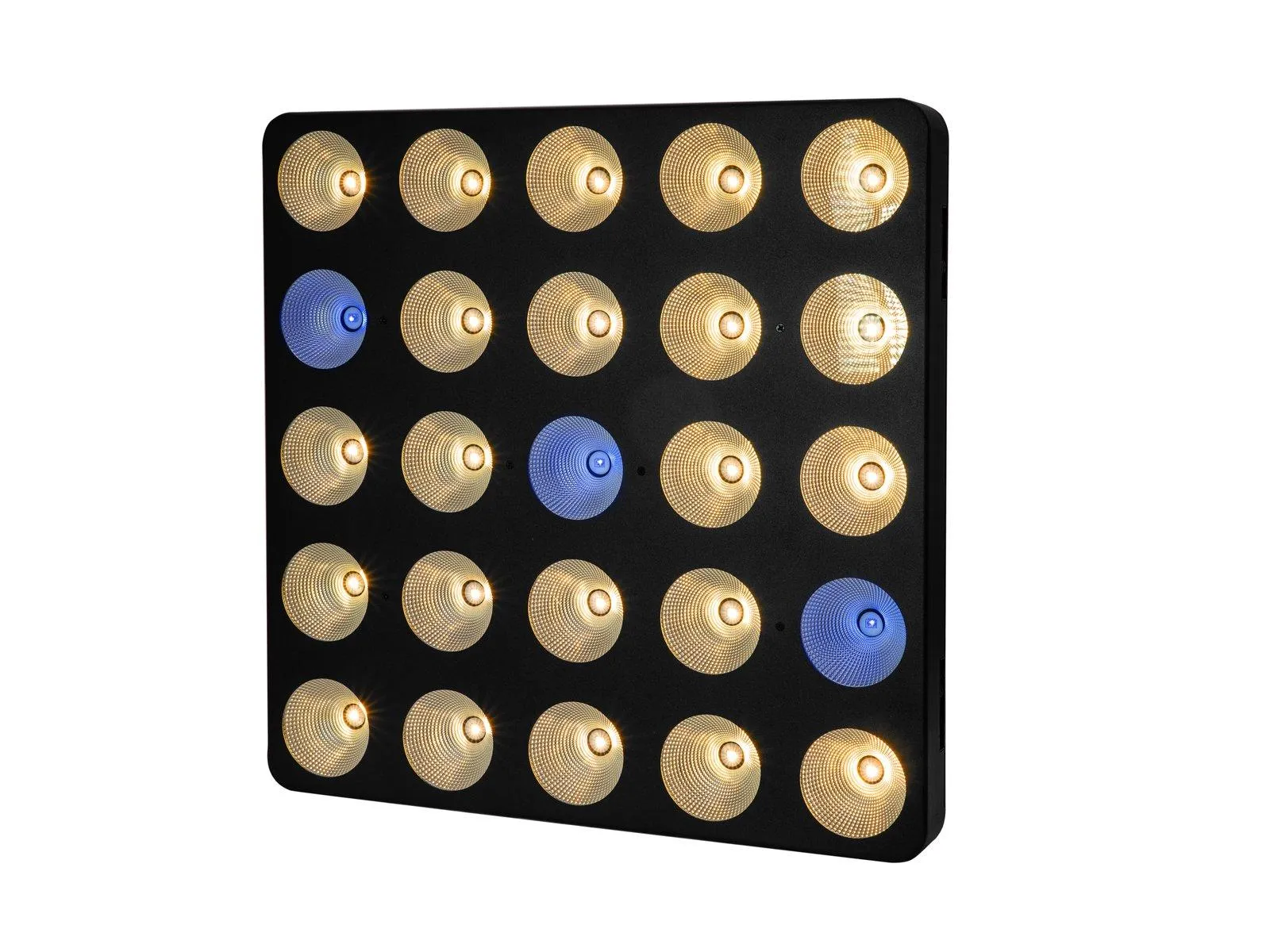

Eurolite LED Pixel Matrix Panel 5x5 RGB/WW

Matrix spotlight with RGB/WW LEDs, Pixel control & macros for sequences, letters and numbers

25 powerful LEDs 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
LEDs controlled separately

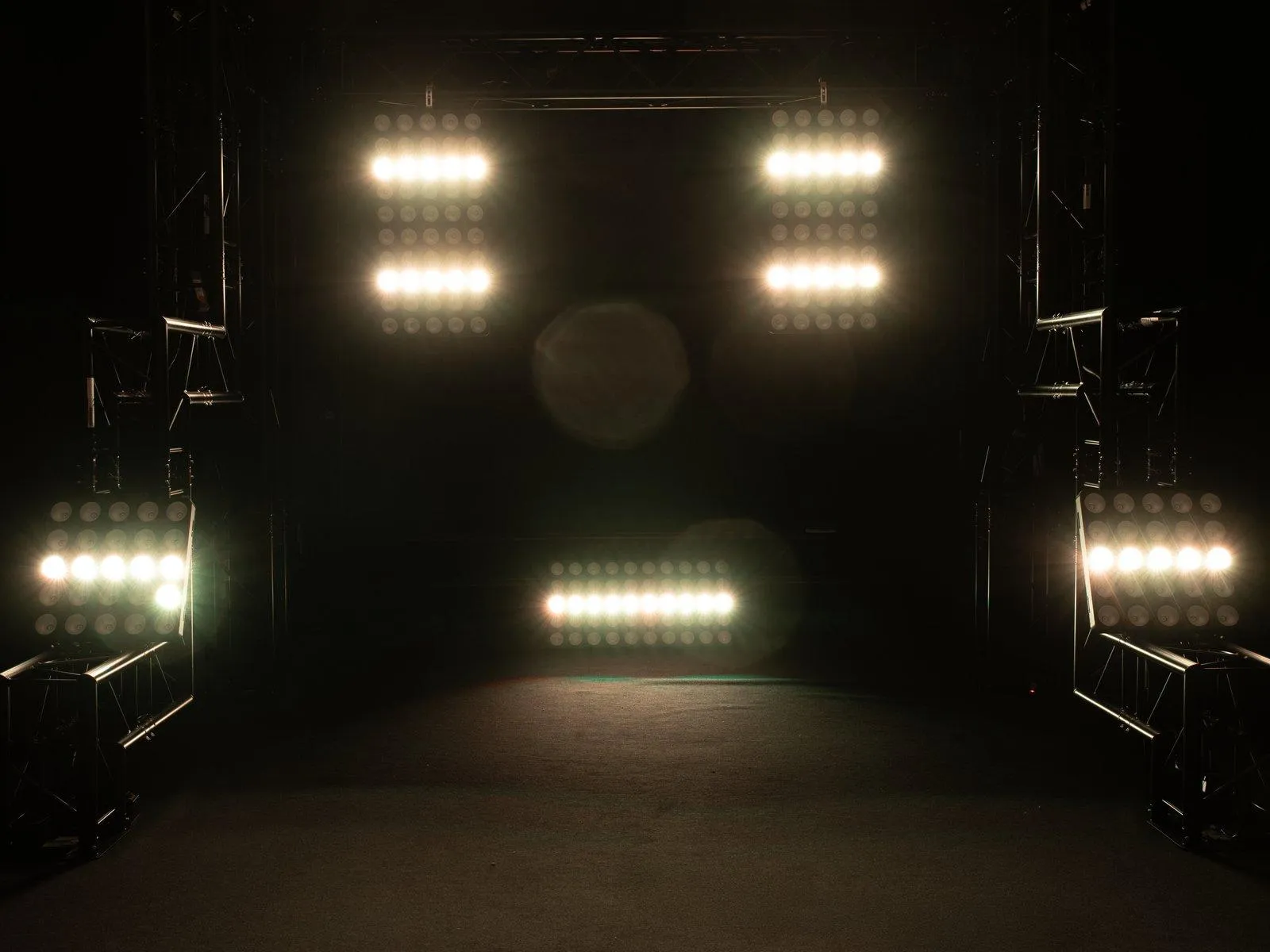

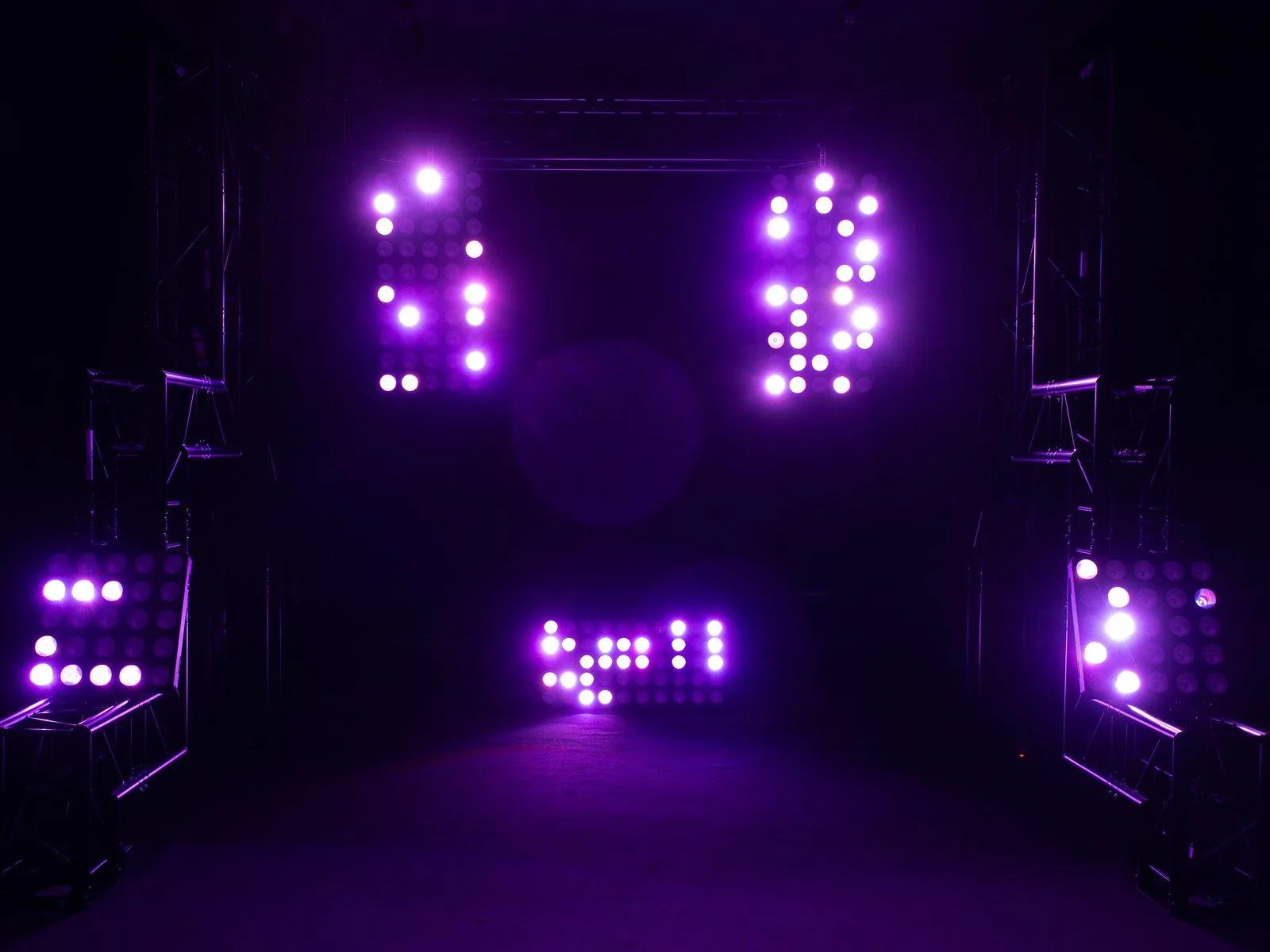

Create sensational light effect surfaces by connecting several devices
Color change; color fade; foreground color adjustable; background color adjustable; color macros adjustable; Dimmer electronic
Blinder effect; matrix effect; strobe effect
9 integrated show programs
The device is cooled by temperature-controlled fan
Control via DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; sound to light; master/slave function
Flicker-free
DMX fail mode (hold; blackout)
With a beam angle of 45°
With mounting bracket
Multicolor LCD display
Mains input and output for power linking up to 8 units
For application areas such as: Wedding/gala/events; mobile use; stage; rental
Very quiet working noise
Application possibility: Standing; suspended; on stand
Preprogrammed in Light Captain

Package contents

1 x device, 1 x user manual, 1 x power cord, 2 x safety eyelet

Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 115 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version
Cable construction: 3 x 1,0 mm² H05VV-F
Cable length: 1,45 m
Power output: 1 x P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 2 A fuse replaceable
Lamp type: LED lamp
LED type: 25 x 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
DMX channels: 4; 10; 15; 100; 102
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Network connection: Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
Cooling: Temperature-controlled fan
Control: DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; sound to light; master/slave function
Preprogrammed in: Light Captain
Projection: Flicker-free
DMX fail mode: Hold; blackout
Beam angle: 45°
Beam angle (1/2 peak): 45°
Beam angle (1/10 peak): 82°
Housing color: Black
Attachment system: Mounting bracket
Display type: Multicolor LCD display
USB port: Type A
Diameter mounting holes: 3 x Ø10mm
Material: Metal
Dimensions: Width: 45,0 cm
Depth: 10,6 cm
Height: 45,0 cm
Weight: 9,00 kg
Noise classification: Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
