Eurolite LED KLS Move FX Compact Light Set AIR

Compact complete lighting set with moving heads, spots, derby effects and laser

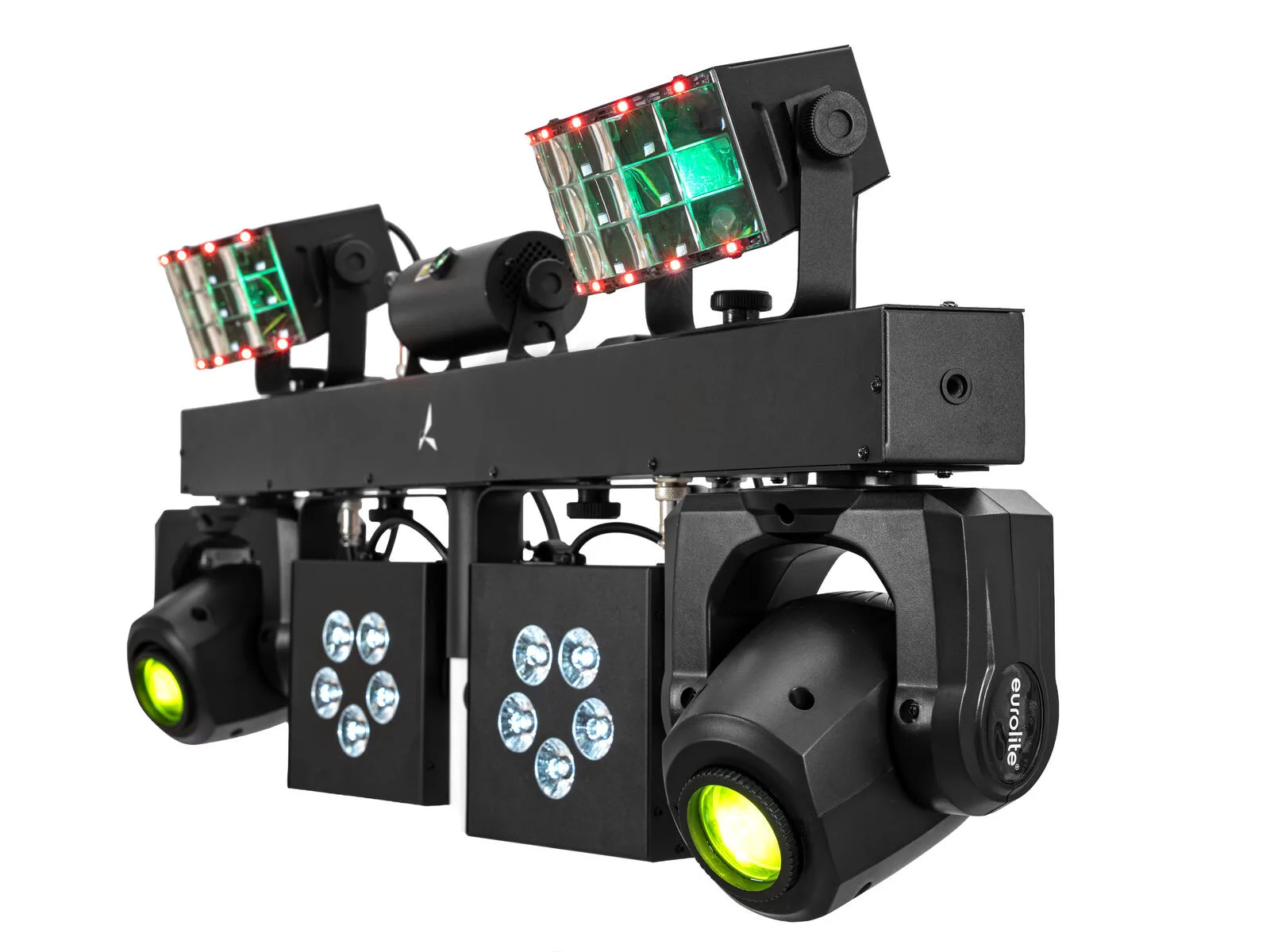

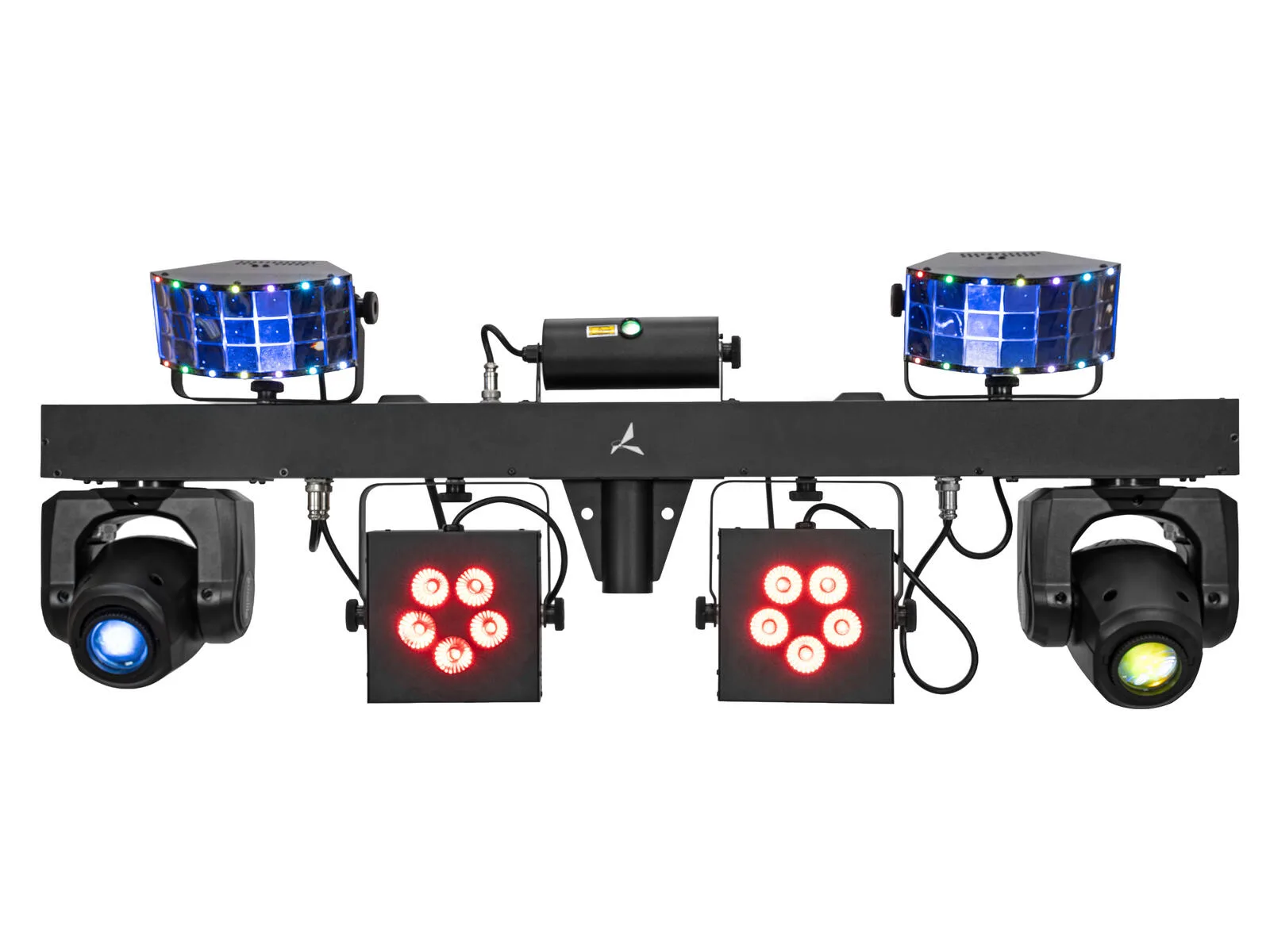

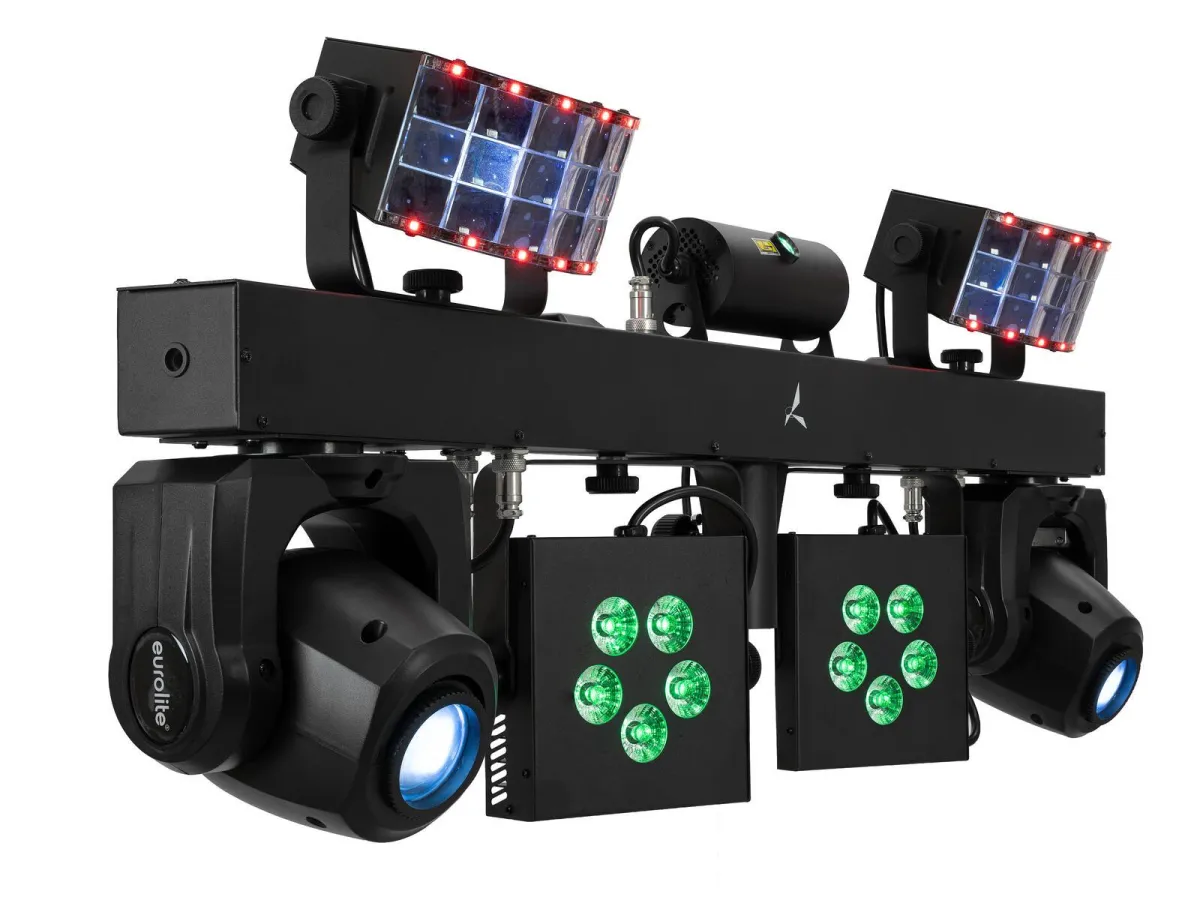

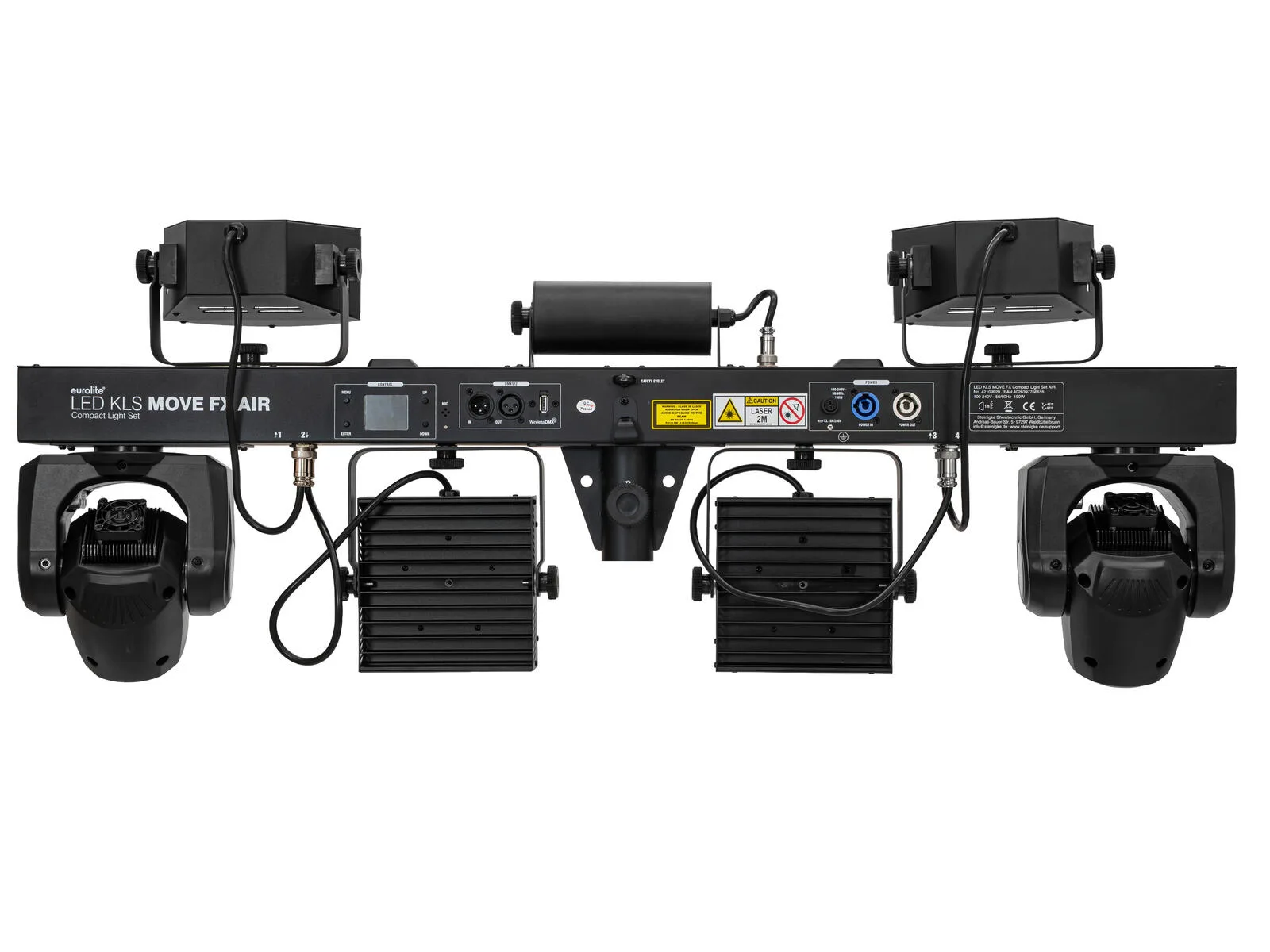

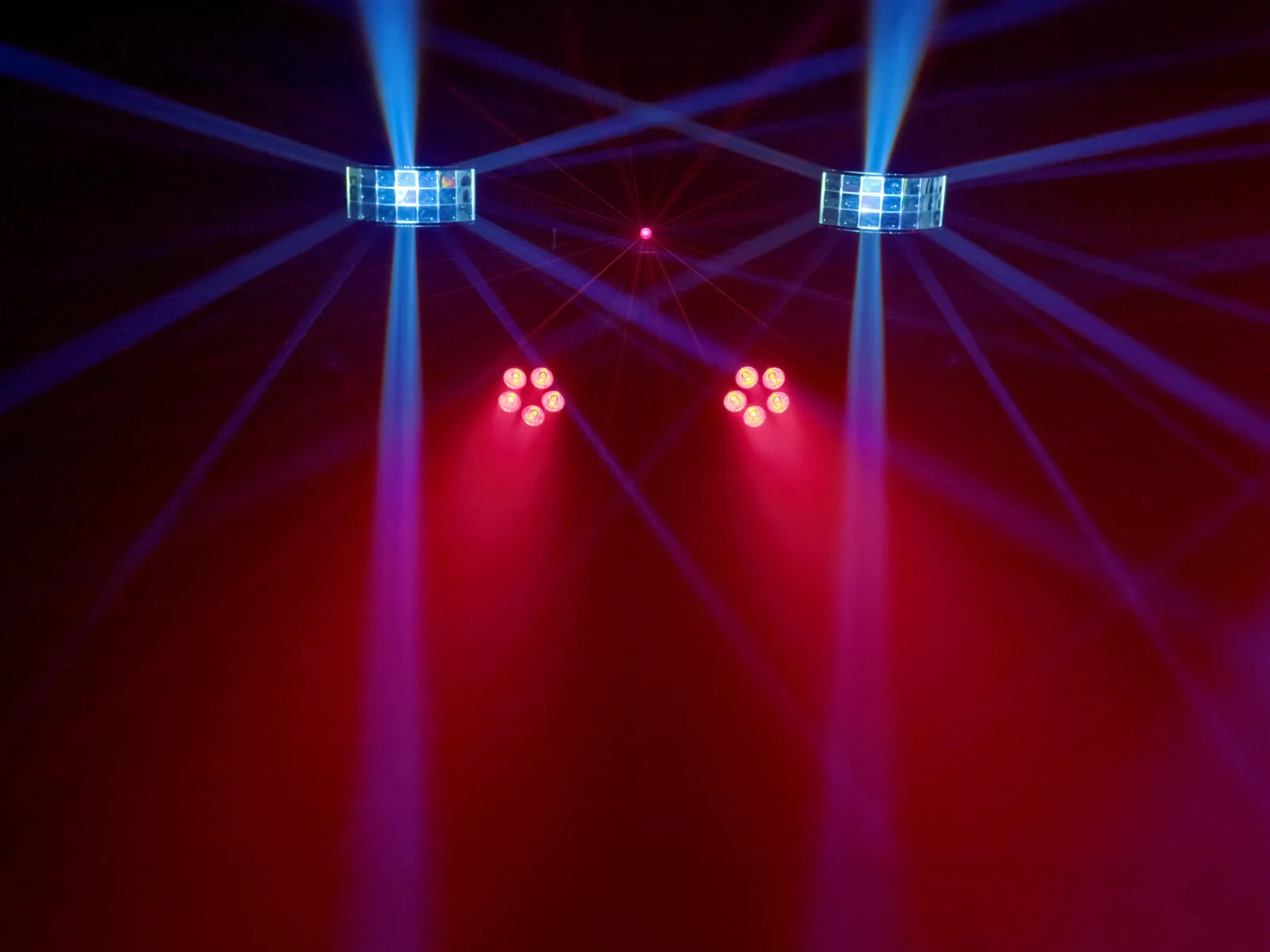

EUROLITE LED KLS MOVE FX Compact Light Set AIR is a complete lighting system for party rooms, mobile DJs and entertainers, restaurants, bars and hotels. The system consists of a crossbar with integrated DMX control unit, two RGBW spots, two derby effects, a star laser, 28 RGB twinkle LEDs and two moving heads.

Lighting and effects
10 × 15 W SMD 6065 4-in-1 RGBW LEDs for two separately controlled spots
RGBW color mixing with homogeneous color mix
18° beam angle
Direct selection of 20 preset colors
2 separately controlled lighting effects with 8 × 2.2 W SMD 5054 R/G/B/W LEDs
Direct selection of 8 preset colors
28 × 0.2 W SMD 3838 3-in-1 RGB LEDs for twinkle effect
Flash rate: 1–30 Hz
Flicker-free projection
117 integrated show programs

Moving heads
2 × 40 W COB LEDs with cold white light
2 separately controlled moving light effects
Pan: 540° with exact positioning at 16-bit resolution
Tilt: 180° with exact positioning at 16-bit resolution
Manual focus
Color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 7 gobos and open
Shake effect
Cooling with two temperature-controlled fans at the head
Moving light illuminance, cold white: 14,407 lx at 1 m, 1,084 lx at 3 m and 258 lx at 6 m

Laser
Laser class: 2M
Laser color: R/G
Red laser module: 100 mW, 650 nm
Green laser module: 30 mW, 532 nm
Cooling fan at the head
Laser class 2M requires no additional protective measures or appointment of a laser safety officer in Germany, according to the supplied information

Wireless AirW control
Integrated AirW radio transceiver for wireless master/slave operation
Adaptive frequency hopping for interference-free operation in the 2.4 GHz band
AirW range: up to 70 m
Wireless remote control with a range of up to 30 m with line-of-sight
Wireless footswitch available as an optional accessory

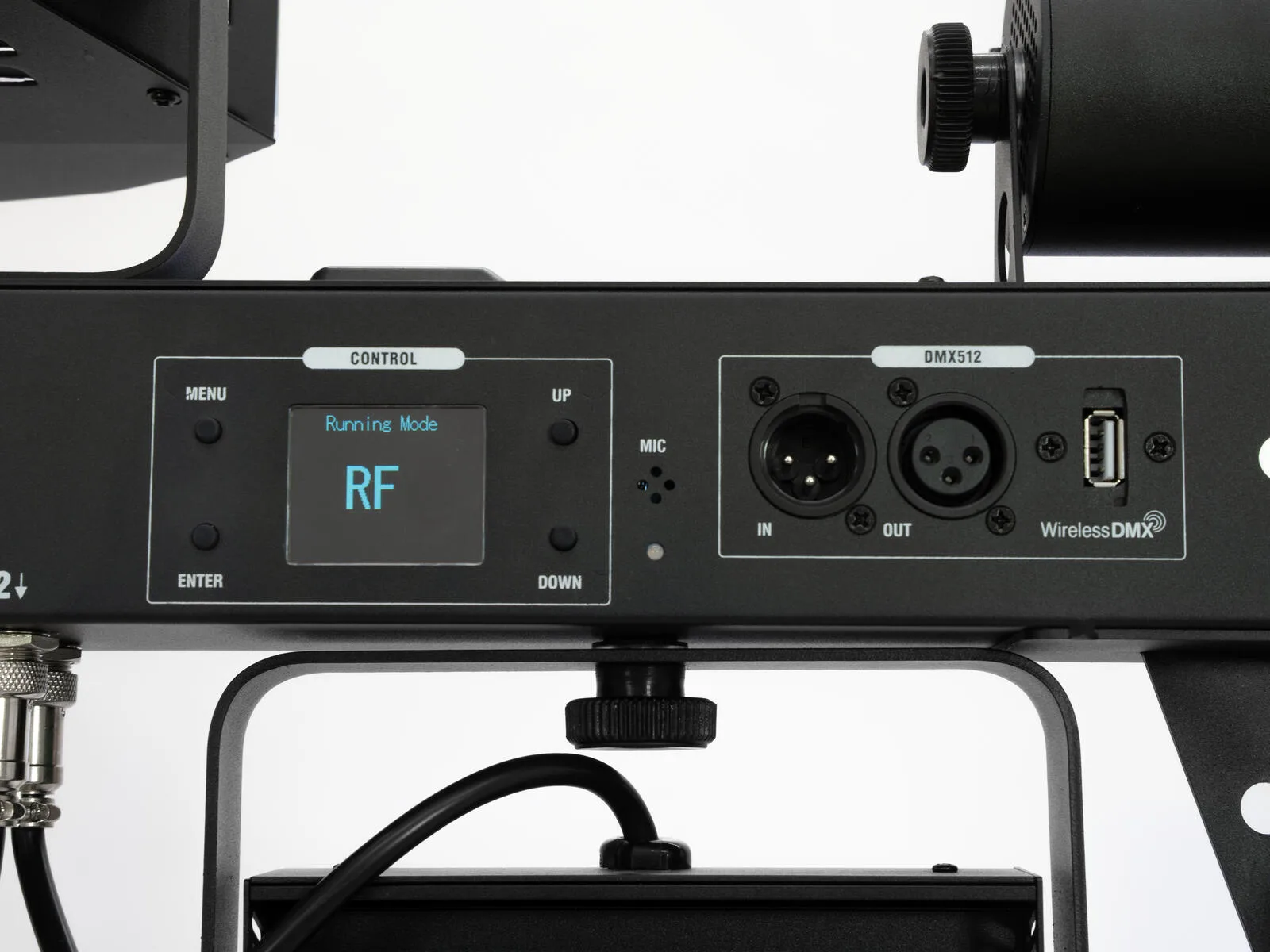

Control and connections
DMX modes: 3, 26, 46 and 45 channels
Stand-alone operation
Sound-to-light via microphone
Master/slave function
DMX
AirW
Wireless remote control
QuickDMX via USB as an optional solution
W-DMX via USB wireless solution as an optional solution
CRMX by LumenRadio via USB as an optional solution
Wireless footswitch as an optional accessory
DMX input: 3-pin XLR
DMX output: 3-pin XLR
USB port: Type A
1 × multicolor OLED display
DMX status LED
DMX fail modes: Hold, blackout, auto and full on

Mounting and construction
Application: suspended or on stand
Tube mounting: 1 × Ø 35 mm
2 × M8 threads
2 × mounting brackets
Mounting holes on the bar: 2 × Ø 10 mm
With mounting bracket
Mains input and output for power linking up to 8 units
Housing: matte black
Material: painted metal
Additional material: plastic
Noise classification: Class 2, slight noise
Protection class: Class I
Photobiological safety: Risk Group

Power supply
Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 190 W

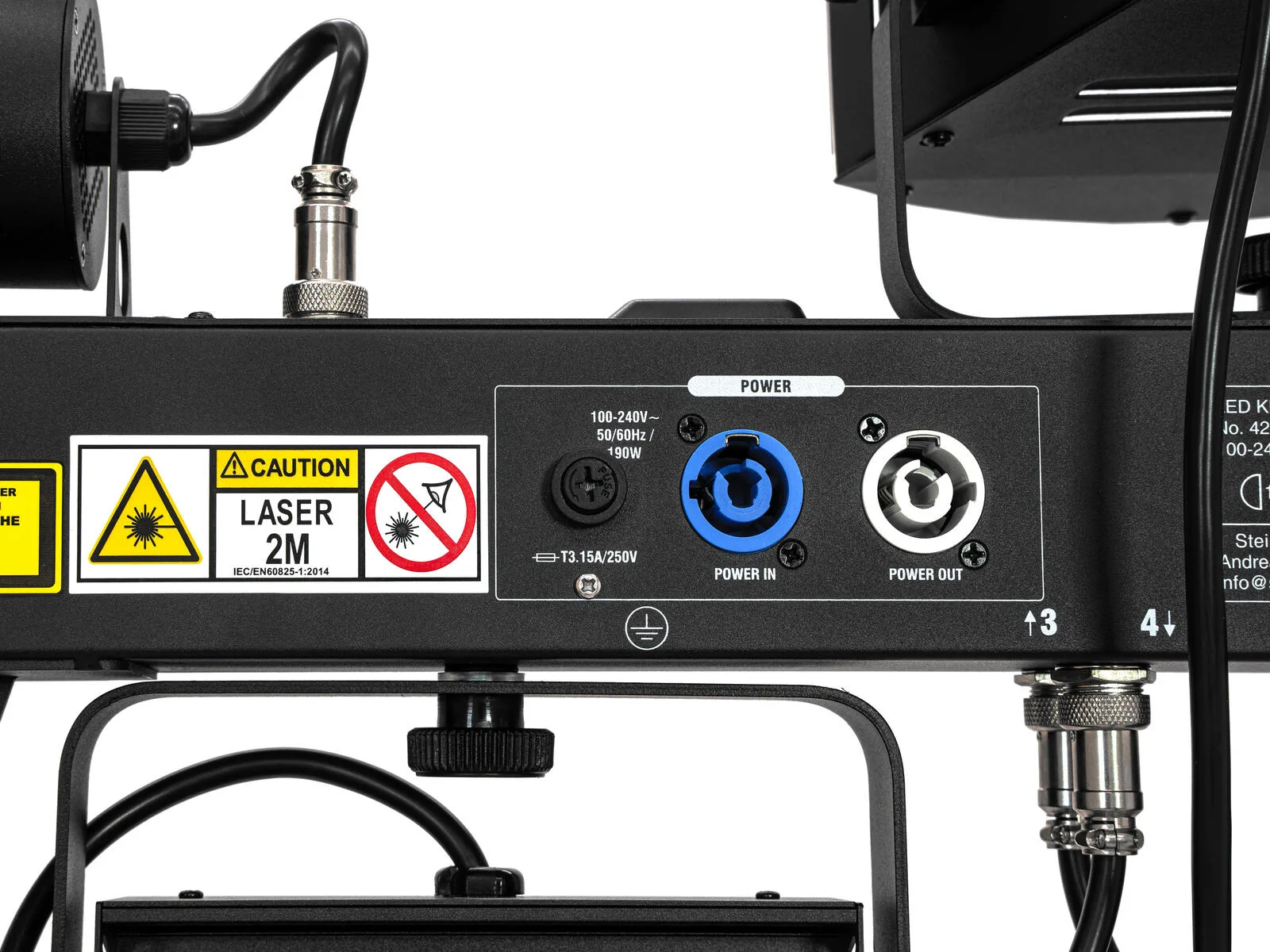

Power input: P-Con (blue), mounting version with power supply cord and safety plug
Power output: P-Con (grey), mounting version Bypass
Fuse: 5 × 20 mm, T 3.15 A, replaceable
Power cord: 3 × 1.0 mm² H05VV-F
Power cord length: approx. 3 m

Dimensions and weight
Length: 103 cm
Width: 13.3 cm
Height: 45.2 cm
Weight: 15.70 kg

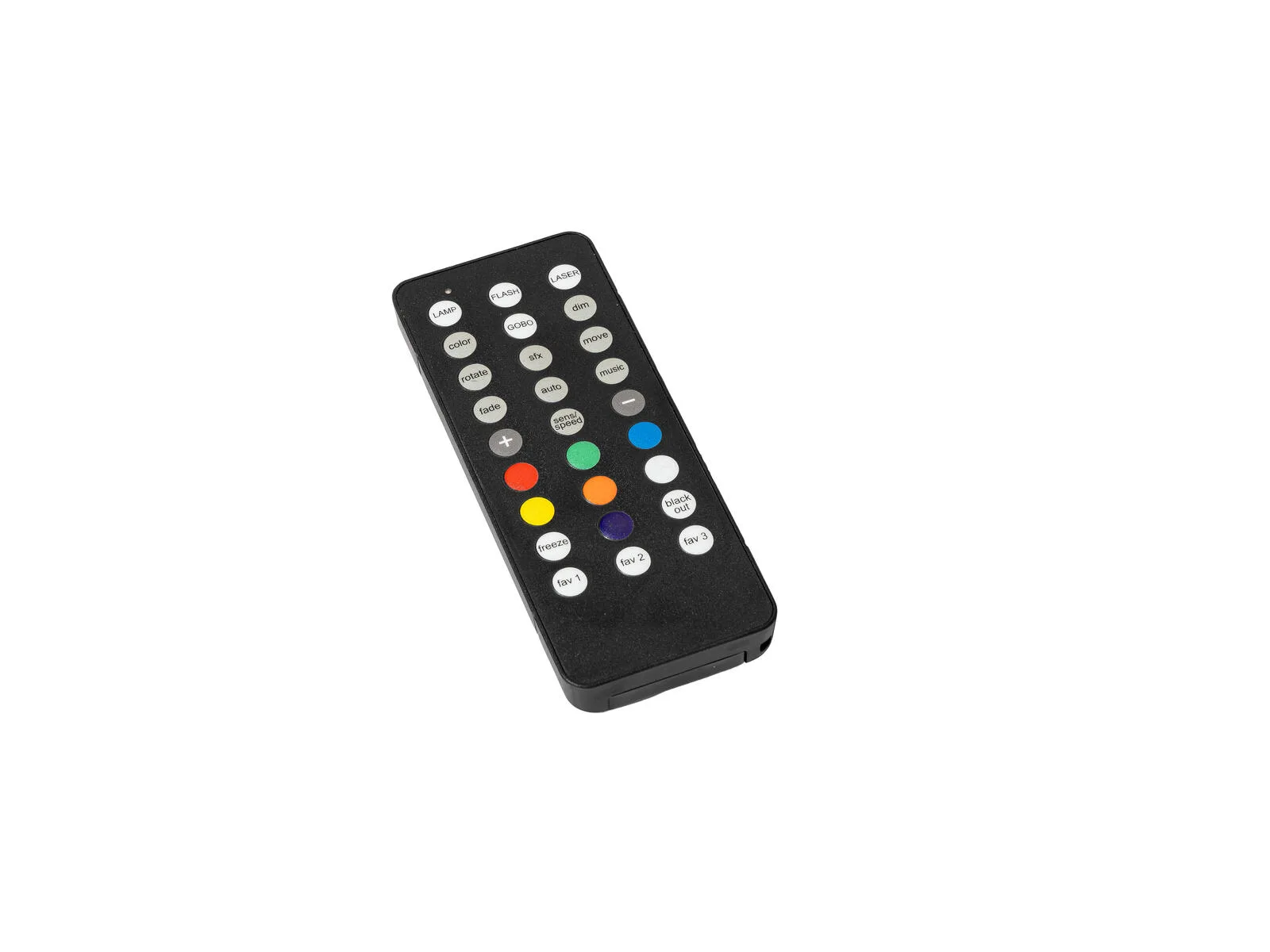

Remote control
Battery: 1 × 12 V 23AE alkaline manganese
Range: up to 30 m with line-of-sight
Carrier frequency: 433.92 MHz

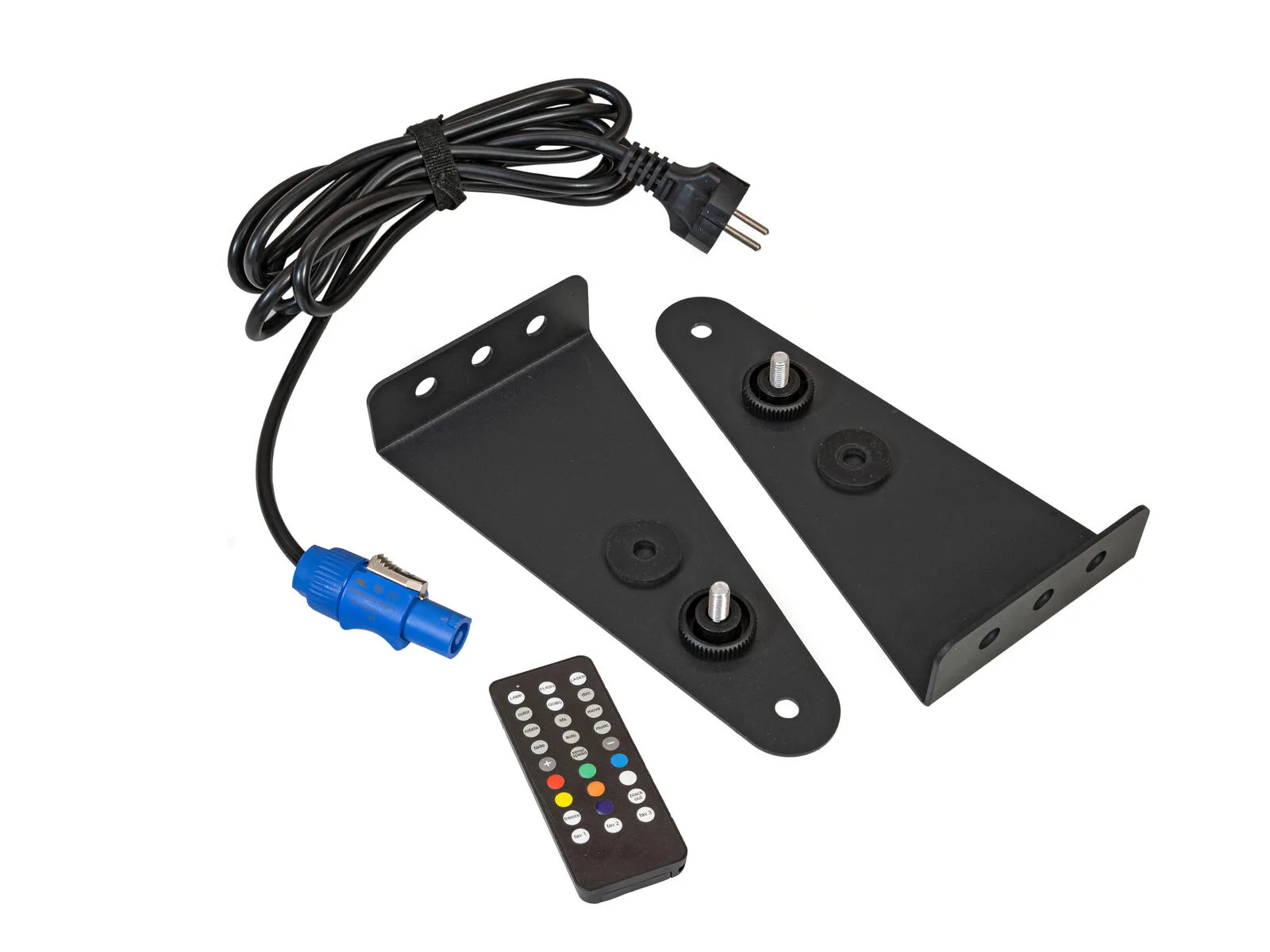

Included
Practical transport bag included.
