Eurolite LED KLS Laser Bar Next FX Light Set

EUROLITE LED KLS Laser Bar Next FX Light Set

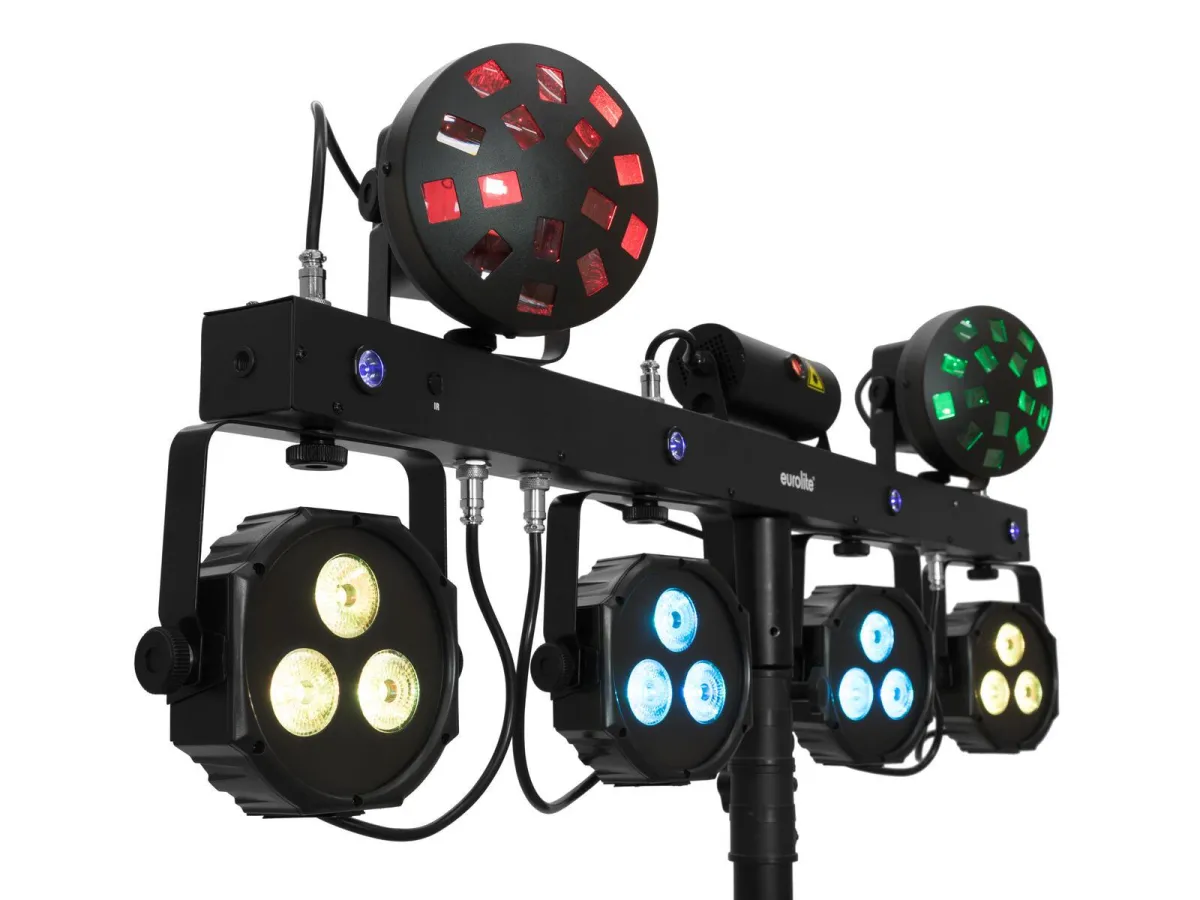

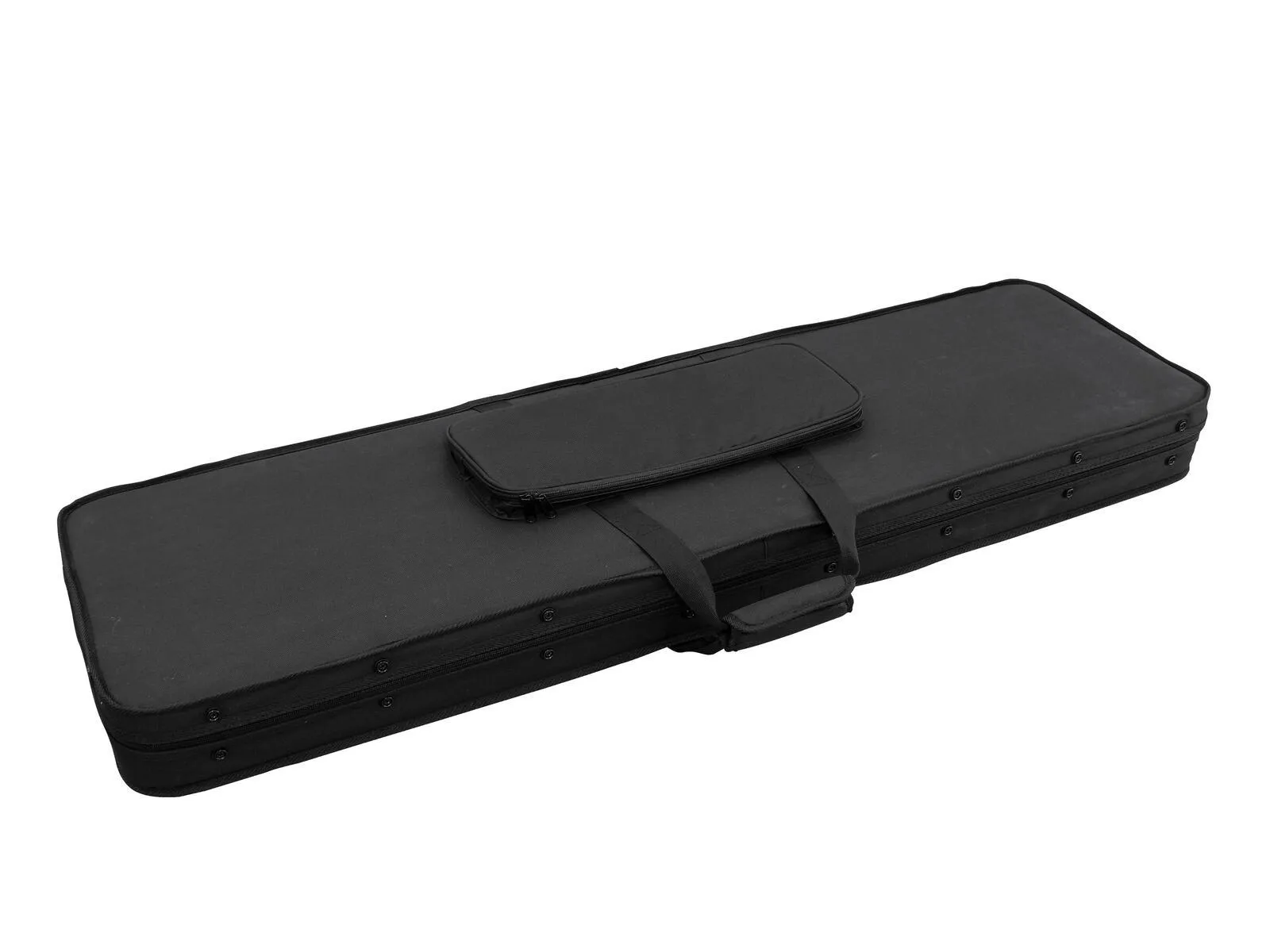

Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag

2 laser diodes project hundreds of red and green laser beams
2 rotating derbies for mirror ball effects
Compact lightweight
Crossbar with integrated DMX control unit and TV spigot for tripod installation

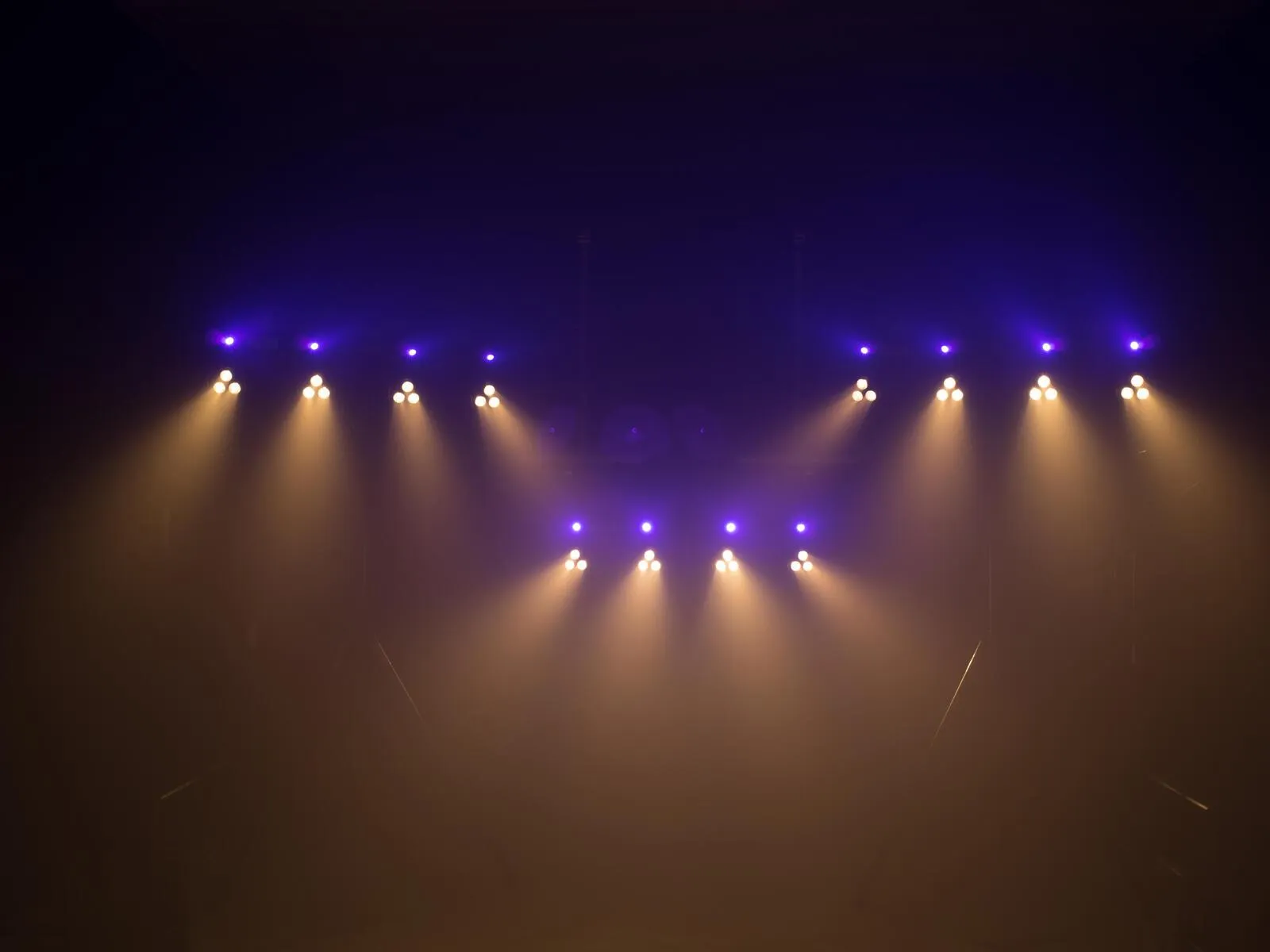

When fog is used, this effect becomes especially attractive
Dimmer electronic; color blend stepless; program selection
26 integrated show programs
The device is cooled by cooling fan
Control via DMX; stand-alone; sound to light via microphone; IR remote control; QuickDMX via USB (optional); wireless footswitch (optional)
Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
TV spigot
With mounting bracket
3 digit 7-segment LED display

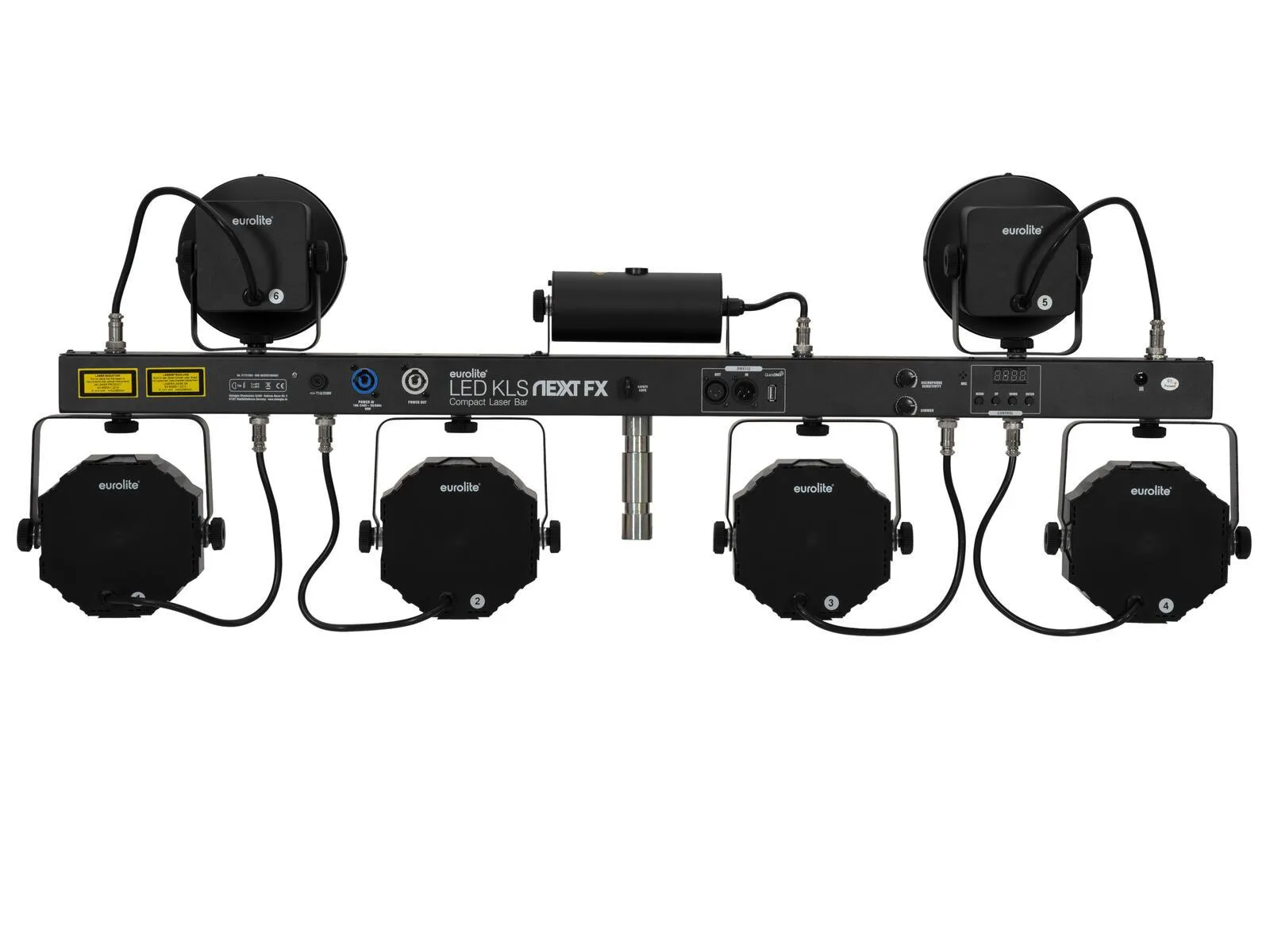

Mains input and output for power linking up to 8 units
For application areas such as: Wedding/gala/events; clubs/dancing school; mobile djs / entertainer; small rental
Application possibility: On stand

Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 90 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length: 3 m
Power output: 1 x P-Con (gray), mounting version
Fuse: T 1 A fuse replaceable
Lamp type: LED lamp
DMX channels: 6; 8; 11; 21; 25; 29
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: DMX; stand-alone; sound to light via microphone; IR remote control; QuickDMX via USB (optional); wireless footswitch (optional)
Preprogrammed in: Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Housing color: Black
Attachment system: TV spigot Ø 28mm
2x mounting bracket
Display type: 3 digit 7-segment LED display
Dimensions: Width: 111 cm
Depth: 15 cm
Height: 41 cm
Weight: 10.50 kg
Noise classification: Class 2 (slight noise)

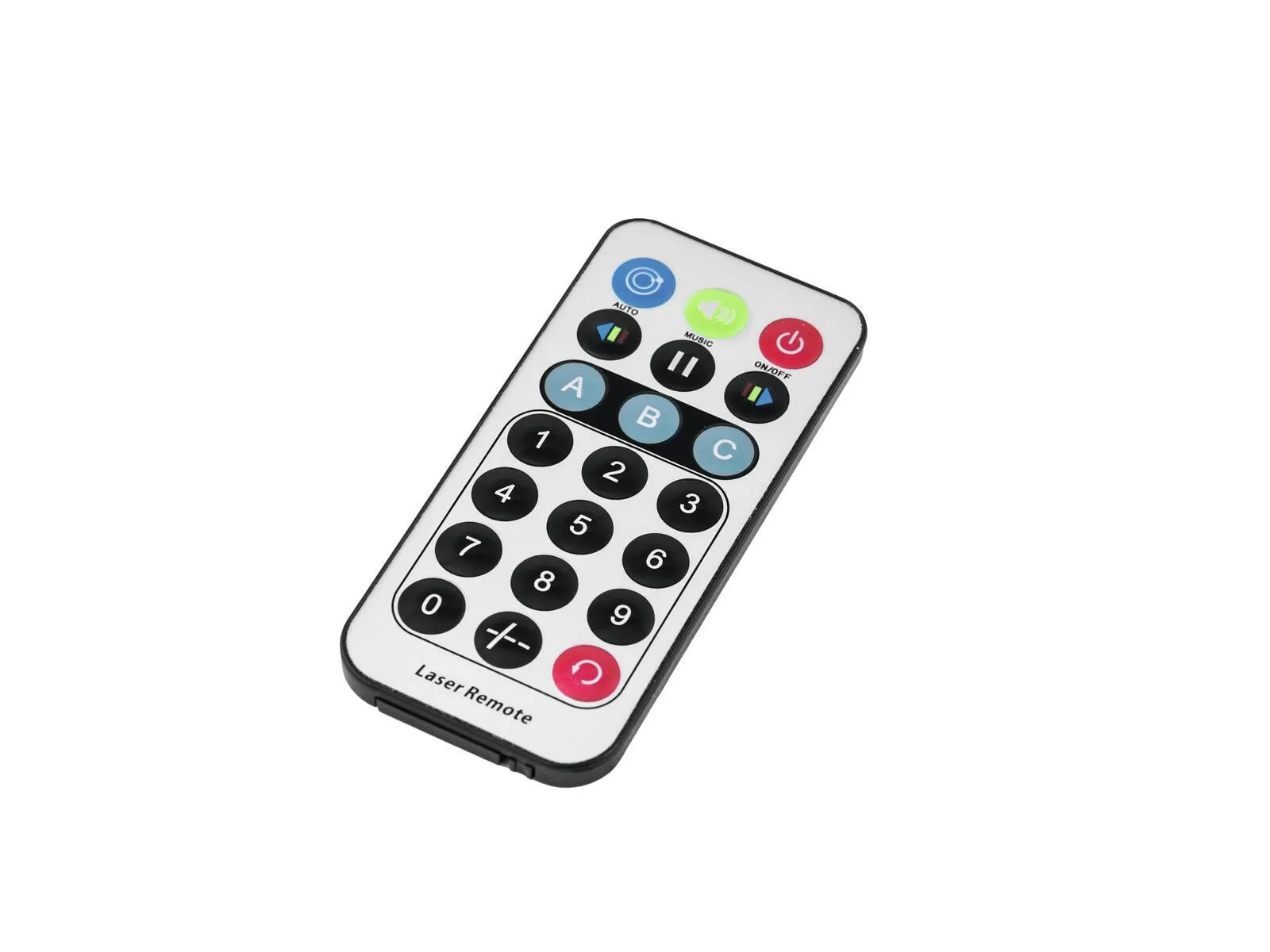

Remote control
Battery: Button cell 3.0 V CR2025 lithium manganese built-in
Laser
Laser class: 2M
Laser color: R/G
Laser module: Red (R) 100 mW 650nm
Green (G) 30 mW 532nm
Light effect
LED type: 4 x 3 W SMD 8072 R/G/B/WW
Spotlight
LED type: 3 x 4 W SMD 9080 4in1 QCL RGB/WW (homogenous color mix)
Beam angle: 7°
Beam angle (1/2 peak): Spot 7°
Beam angle (1/10 peak): Spot 20°
Bar
LED type: 4 x 1.5 W SMD 8072 ultra violet (UV)
Flash rate: 0 - 30 Hz
