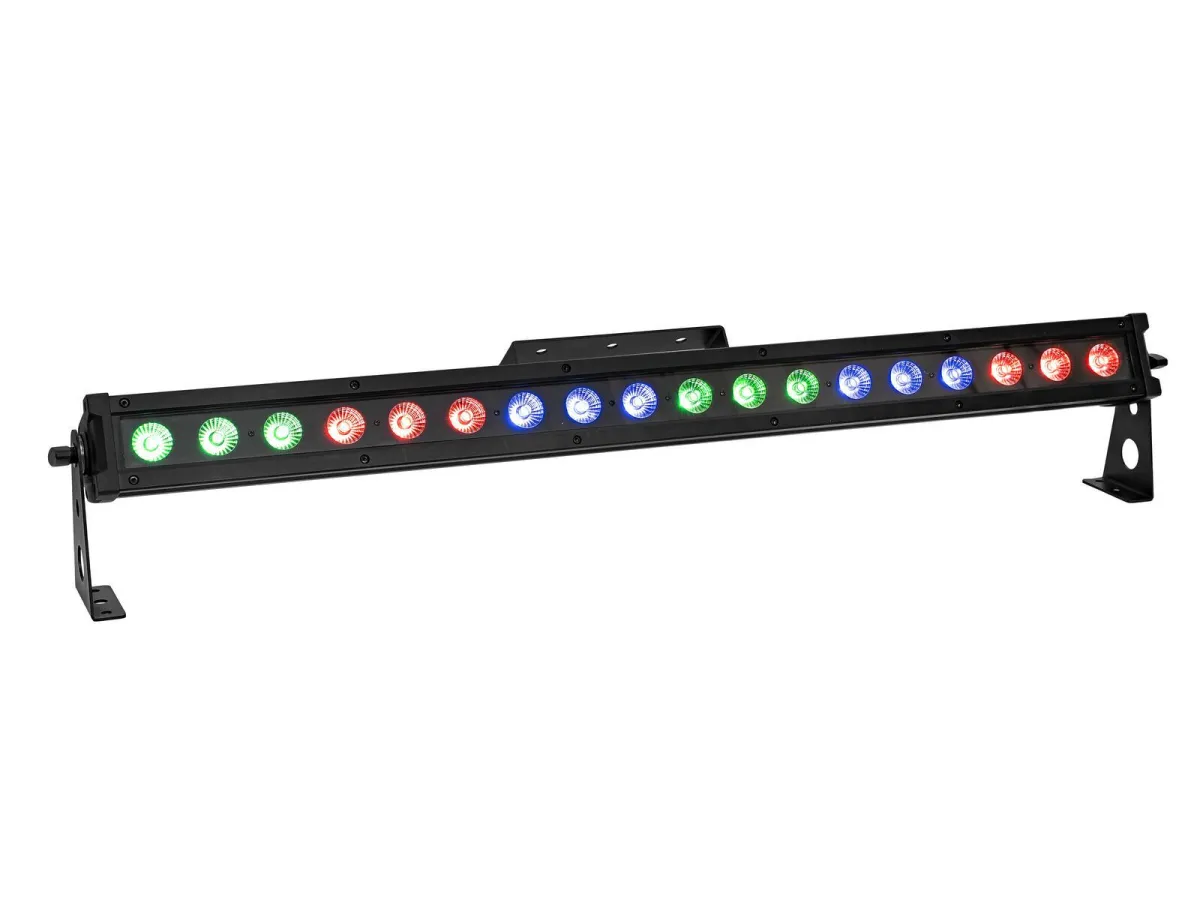

Eurolite LED IP T-PIX 18 QCL Bar

Weatherproof (IP65) bar with RGBW color mixing and pixel control, incl. IR remote control
18 powerful LEDs 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately
Dimmer electronic; color change adjustable
Wash effect; strobe effect
12 integrated show programs
Direct color selection for 19 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; IR remote control; DMX; master/slave function
Flicker-free
DMX fail mode (blackout; hold; full on; static; auto)
With a beam angle of 18°
With mounting bracket; with bracket for floor use

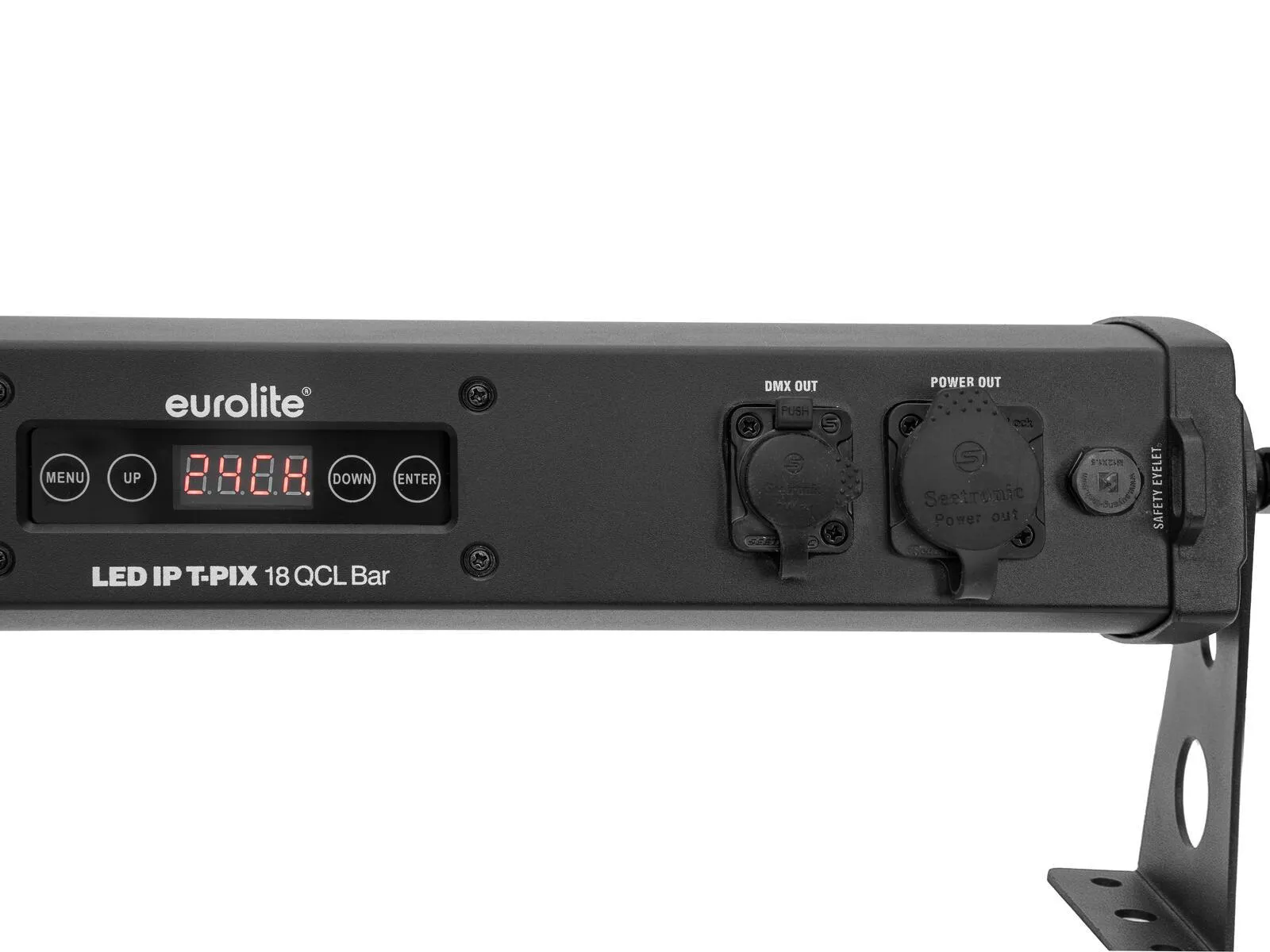

4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Clubs/dancing school; stage; restaurants, bars and hotels; installation
Silent operation
Application possibility: Suspended

Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 75 W
IP classification: IP65
Protection class: Protection class I
Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction: 3 x 1.0 mm² H05RN-F
Power output: IP T-Con (F) mounting version
Lamp type: LED lamp
LED type: 18 x 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
Flash rate: 0.5 - 24 Hz
DMX channels: 3; 4; 6; 9; 22; 24; 36; 72
DMX input: 3-pin XLR (M) mounting version IP
DMX output: 3-pin XLR (F) mounting version IP
Cooling: Passive convection cooling
Control: Stand-alone; IR remote control; DMX; master/slave function
Projection: Flicker-free
PWM frequency: 4100 Hz
DMX fail mode: Blackout; hold; full on; static; auto
Beam angle: 18°
Beam angle (1/2 peak): 18°
Beam angle (1/10 peak): 38°
Lamp life: 50000 h
Housing color: Black
Attachment system: Mounting bracket
2x bracket for floor use
Display type: 4 digit 7-segment LED display
Use of brands: Built with SEETRONIC connector
Material: Aluminum casting
Dimensions: Width: 106.5 cm
Depth: 13.3 cm
Height: 21.0 cm
Weight: 6.40 kg
Noise classification: Class 0 (no noise at all)
Remote control
Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
