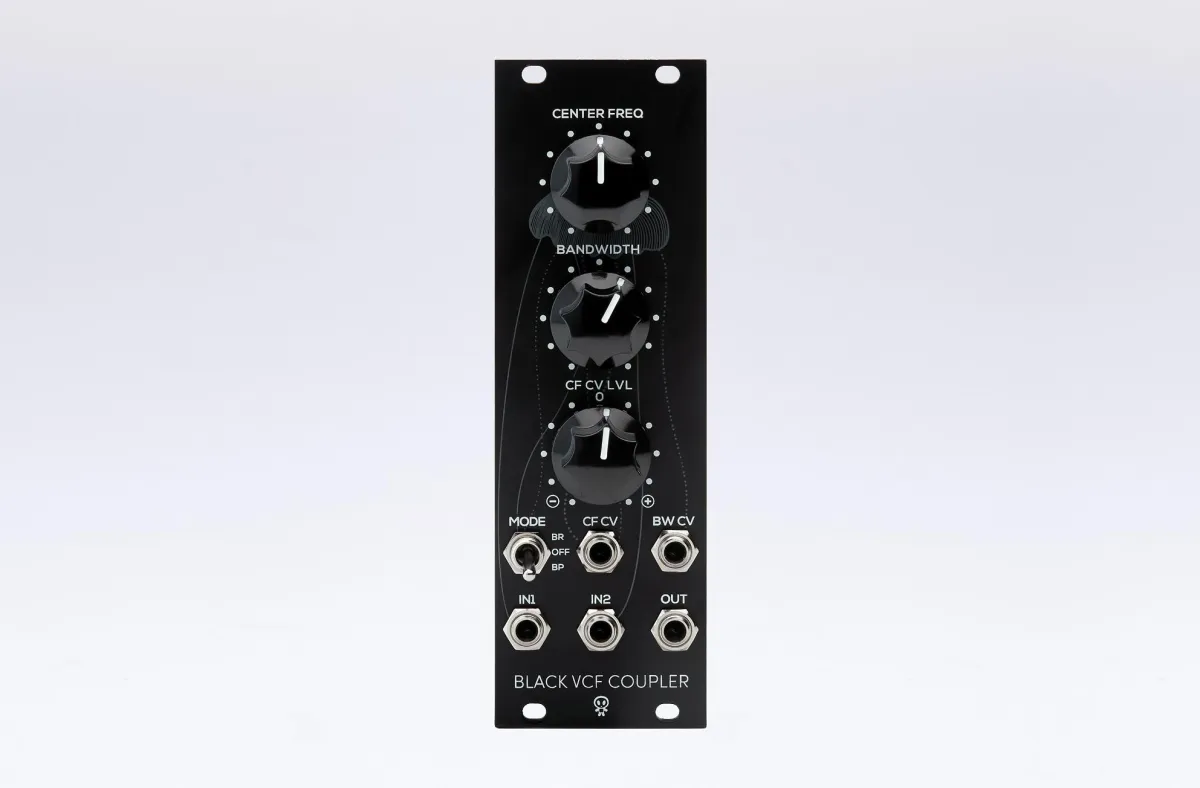

Erica Synths Black VCF Coupler

The Erica Synths Black Filter Coupler is a satellite module to the Black High Pass VCF and the Black Low Pass VCF. It adds Bandpass and Band Reject filter functionality, both with adjustable center frequency and bandwidth, while both VCFs still can operate on their own. All modules have manual and CV control over all parameters and that adds unprecedented nuances in sound design to your modular system.

Features
Bandpass and Band reject filters
Manually adjustable center frequency and bandwidth
Voltage control over center frequency and bandwidth

NB! The module is designed to work exclusively with both the Black High pass VCF and the Black Low Pass VCF.
Technical specifications:

CV level
-5V - +5V
Power consumption
+25mA, -21mA
Module depth
35mm
