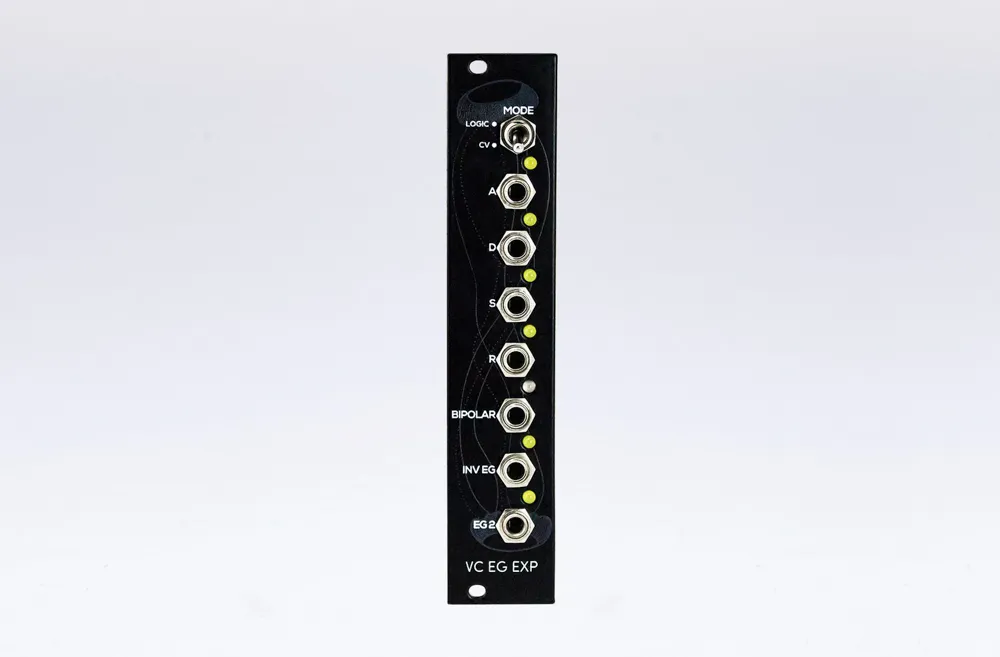

Erica Synths Black VC EG Expander

Erica Syths Black VC EG Expander takes the Black VC EG to the next level – it outputs gates or CVs for each active stage of the envelope so you can design some really advanced patches. Inverted and bipolar envelope outputs are also available.

Features
4 simultaneous logic or CV outputs for each envelope stage
Bipolar envelope output (-5V - +5V)
Inverted envelope output
Duplicated envelope output
5HP panel width

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

NB! This expander module can be connected only to the Black VC EG. It will not work as a standalone eurorack module.
