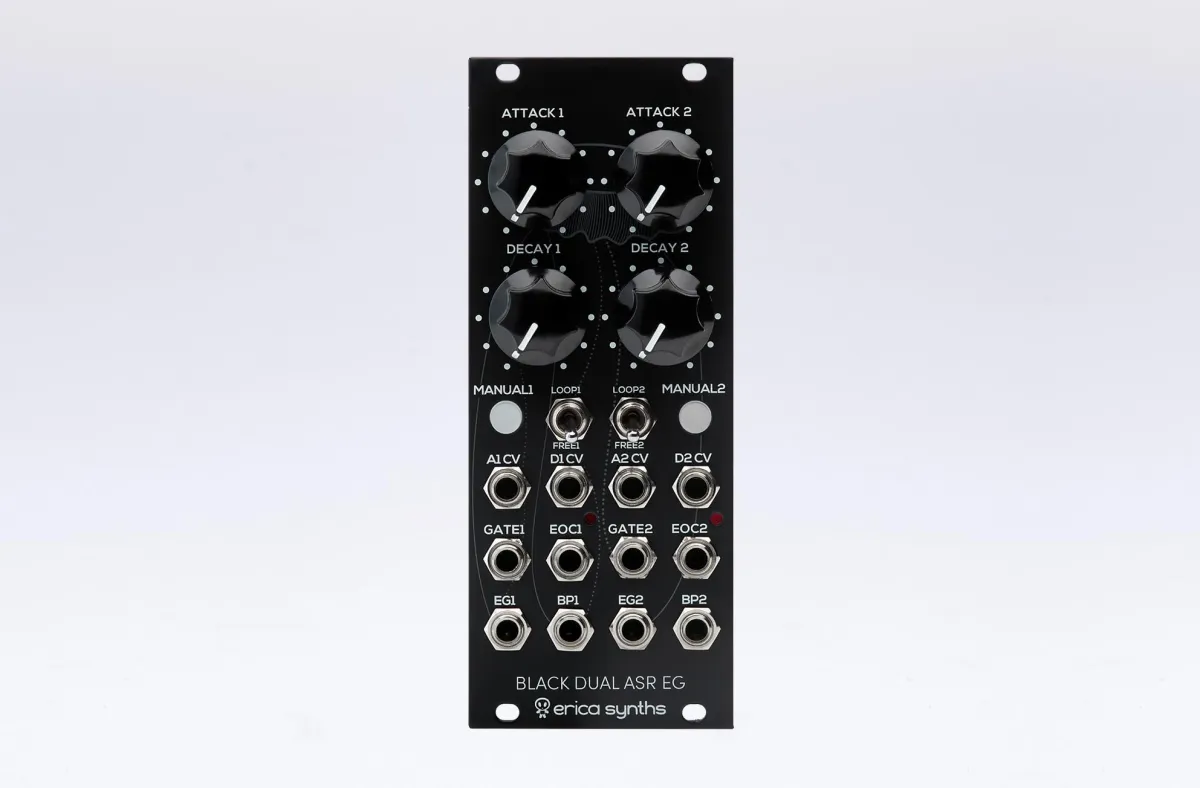

Erica Synths Black Dual ASR EG

The Black Dual ASR EG is a versatile, full analogue looping AD/ASR envelope generator with voltege control over attack and release times, that can also be used as low frequency oscillator with manually and voltage controlled shape and rate. It has two identical parts, each featuring all typical envelope generator controls and bonus features – the end of the cycle output and bi-polar LFO output. When in loop mode the shortest attack and decay settings turn the module into voltage controlled drone oscillator with adjustable waveform (it will not track 1V/oct, though).

Features
Dual voltage controlled envelope generator and LFO
Manual and voltage control over Attack and Decay/Release
Adjustable LFO shape
Manual gate button
Loop/Free running switch
End of the cycle output
Bipolar LFO output
A jumper for the EG/LFO time configuration
Technical specifications:

Attack time
0-1” (3”)
Decay/Release time
0,01” – 3” (9”)
EG level
0 – 10V
Bi-polar LFO level
-5V - +5V
EOC trigger level
+5V
CV level (full span)
-5V - +5V
Power consumption
+38mA, -32mA
Module width
10HP
Module depth
35mm
