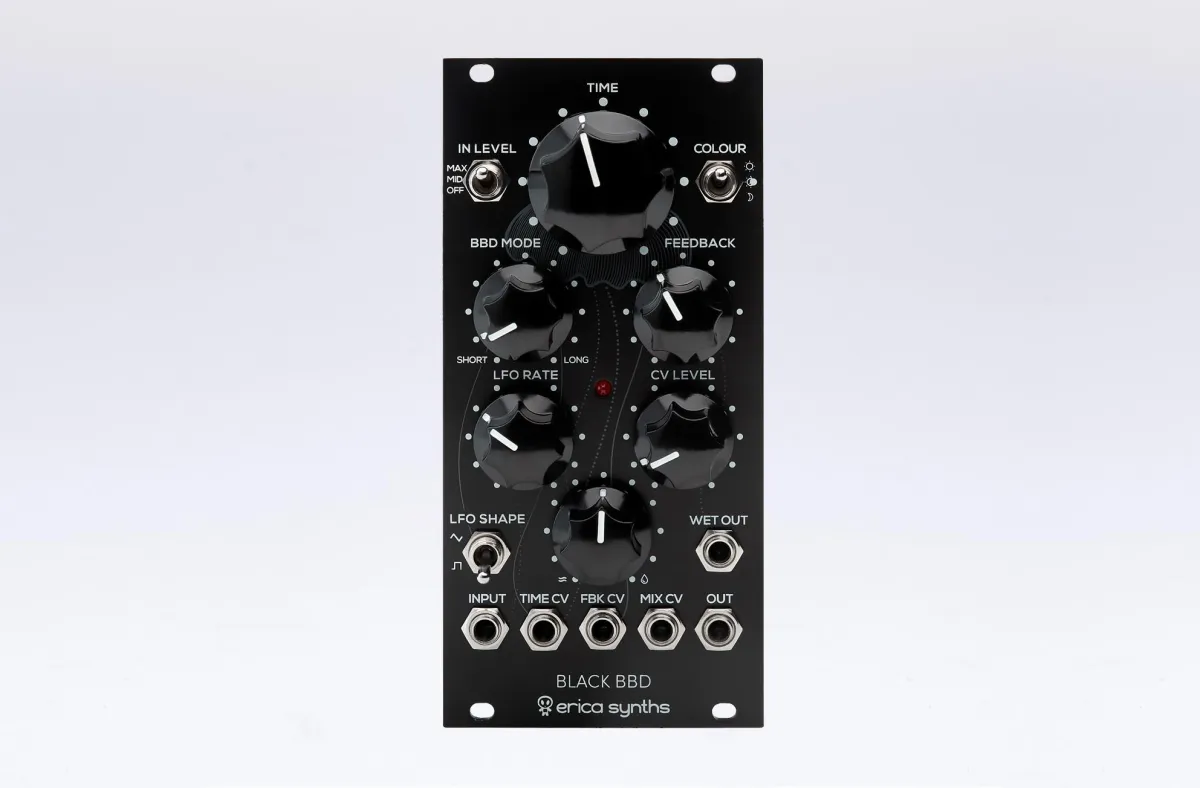

Erica Synths Black BBD

The Black BBD is one of a kind analogue delay module - it features two BBD lines - short 1024 stage, and long 4096 stage that work simultaneously and you can smoothly fade between those two thus creating distinct multi-tap effect. Furthermore, an advanced BBD clock noise cancellation circuit is implemented that reduces unwanted BBD noise without filtering higher frequencies of the audio signal. Most of parameters are voltage controlled, which allows to integrate the module in complex modular setups.
Features
Full analogue design
Two BBD lines (1024 and 4096 stages)
Smooth crossfade between BBD lines
Built in LFO
CV control over Time, Feedback and Dry/Wet mix

Technical specifications:

Audio level
10Vptp
CV level (full span)
-5V - +5V
Power consumption
+95mA, -81mA
Module width
12HP
Module depth
35mm
