Eliminator Lighting Vortex 150

The Vortex 150 continues to redefine dynamic lighting with its classic moonflower effect and barrel mirrored scanner. Powered by a robust 150W white LED engine, it delivers razor-sharp 3-degree beams that cut through the air with precision. Featuring 11 vibrant Color/GOBO combinations, GOBO shake effects, mesmerizing strobe effects, and 6 built-in light shows, the Vortex 150 is designed to captivate audiences and help bring a party to life.

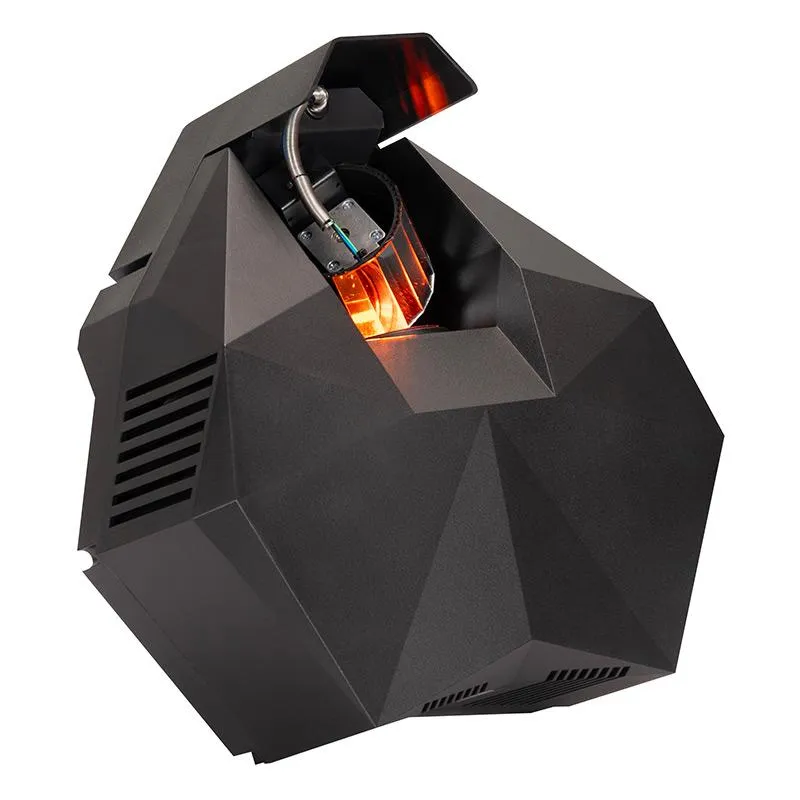

Take control with multiple operation modes, including DMX, Remote Device Management (RDM), sound activation, or show mode. Adjust settings effortlessly using the intuitive 4-button control menu and digital display. The barrel mirror ensures rapid, fluid movements with a range of 180° on the X-axis and a full 360° on the Y-axis. Fine-tune the beams and GOBO patterns using the manual focusing knob for ultimate precision.
The fixture is equipped with 5-pin DMX In/Out connections, an IP65 locking power input, and a safety loop for secure mounting. Compact and lightweight, the Vortex 150 is ideal for tight spaces, low ceilings, and high-energy venues such as bars, lounges, roller rinks, and fun centers.

Light Source
Type: White LED
Power: 150 W
Lifetime: 30,000 hours

Barrel & Beam
Movement: X-Axis = 180°, Y-Axis = 360°
Beam Angle: Multiple beams, 3° each
Beam Focusing: Adjustable via knob

Colors & GOBOs
Options: 11 Color/Gobo combinations
Extras: 2 Beam Reducers, Color/Gobo Shake

Control
Modes: DMX512, RDM, Sound, Show Mode
Strobe Rate: 0.5–33 Hz
LED Refresh Rate: User selectable
Built-in Light Shows: 6
DMX Channels: 2 Modes (10 & 12 Channels)

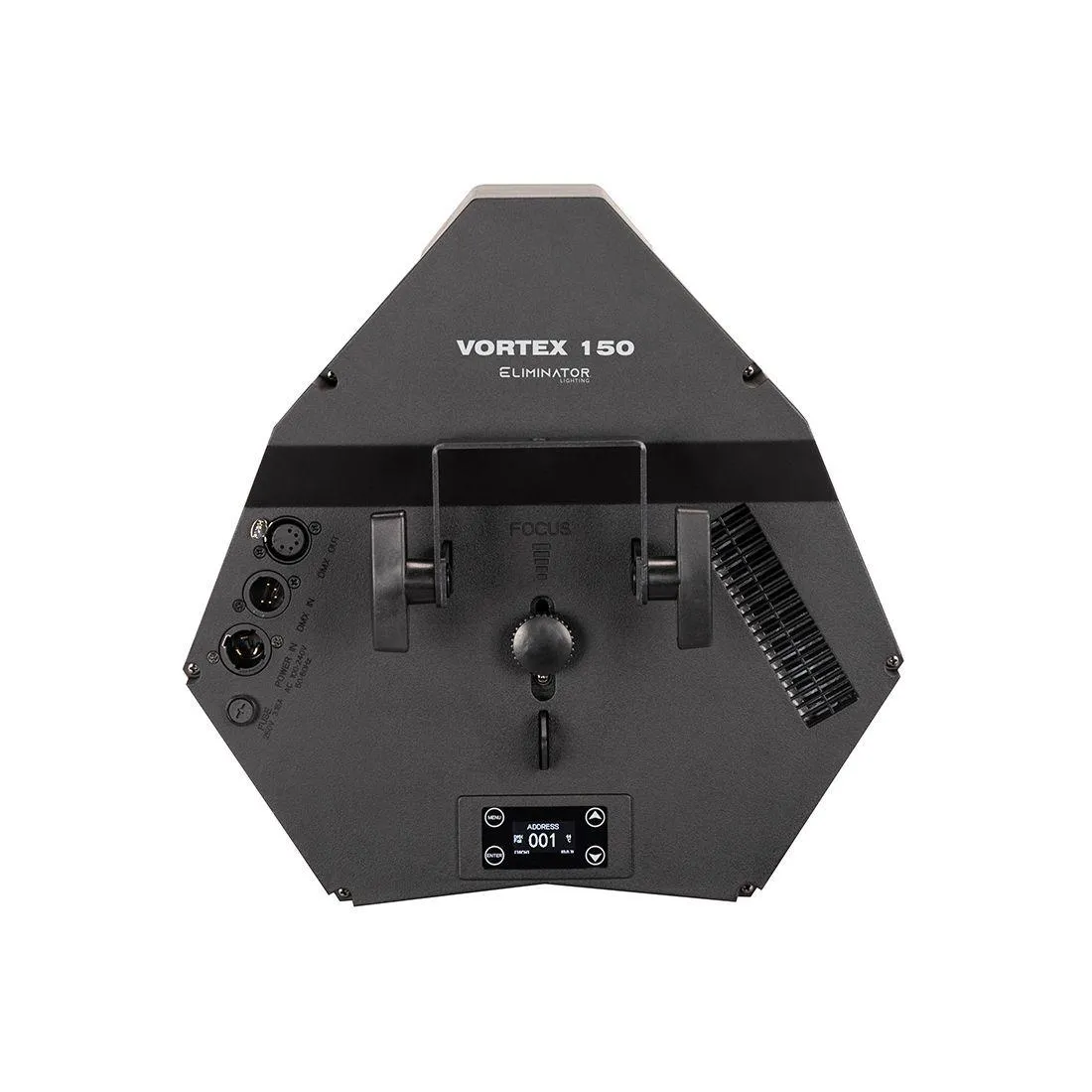

Interface: 4-button digital display

Connections
DMX: 5-pin In/Out
Power: IP65 locking power input
Safety: Eye for safety cable

Electrical
Voltage: 100–230 V AC, 50/60 Hz
Power Consumption: 175 W @ 230 V

Physical
Dimensions (L x W x H): 339 x 235.6 x 334.4 mm
Weight: 5.1 kg
IP Rating: IP20

Included Accessories
Adjustable angle hanging bracket
Power cable
