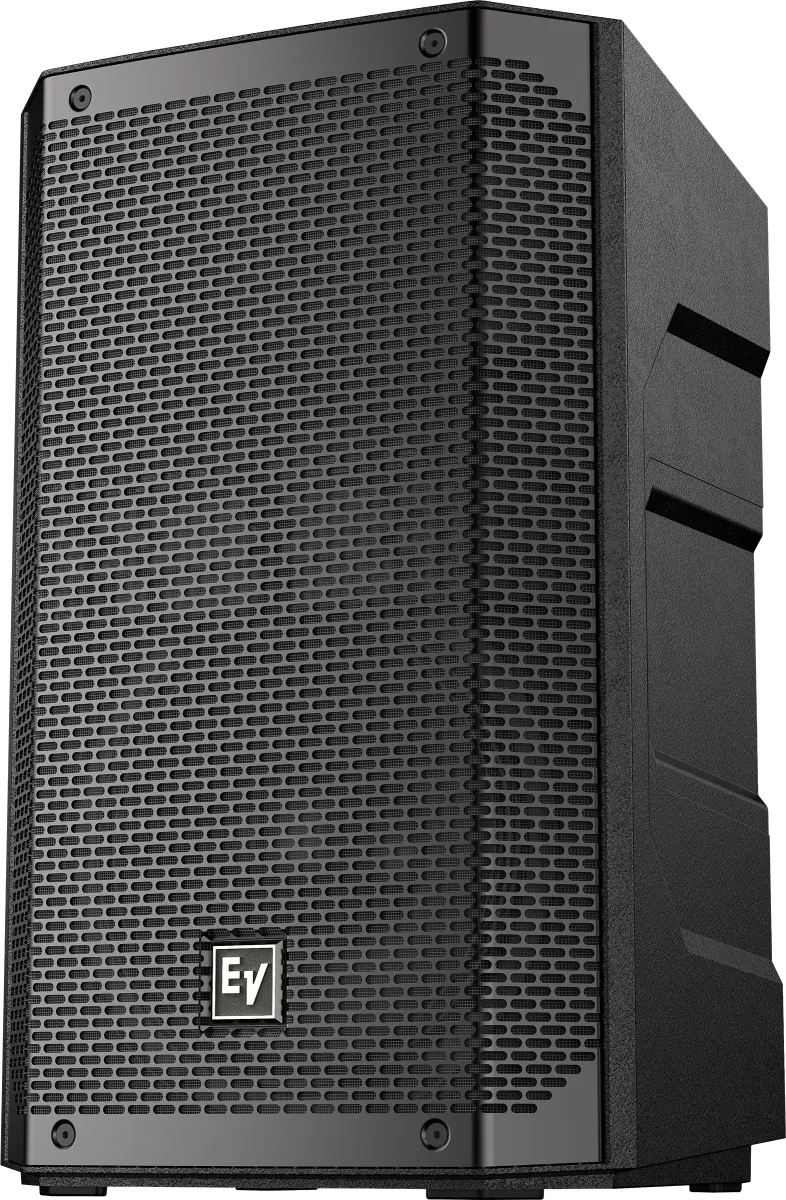

Electro Voice ELX200-10

ELX200-10 - 10" Passive Loudspeaker

1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.

SPECIFICATIONS
Suspension (3) M10 suspension points
Minimum Impedance 7.2
HF Transducer DH-1L 1-inch titanium compression driver
Speaker Type Full-Range
Woofer Size 10
Powered or Passive Passive
SPECIFICATIONS
Frequency Response (-3 dB)¹ 65 Hz - 20 k
Frequency Range (-10 dB)¹ 49 Hz - 22 kHz
Max. SPL/1m (calc)² 127
Coverage (Nominal -6 dB) H 90
Coverage (Nominal -6 dB) V 60
LF Transducer EVS-10M 254 mm (10 in)
Power Rating 1200
Crossover Frequency 2 k
Connector Type Dual NL4
Enclosure Material Polypropylene Composite
Grille 18 AWG steel with powdercoat
Available Color Black or White
Height 531
Width 330
Recommended High-Pass Frequency 55
Depth 319
Weight Net 13.4
Power Handling (Continuous / Peak) 300 W/1200
Nominal Impedance 8
Axial Sensitivity (SPL, 1 W @ 1 m) 90
