Eikon UXLR

EIKON is pleased to announce the arrival of UXLR, a device with an exclusive design that is accessible to everyone for extending their wireless connections. The UXLR is a UHF PLL wireless audio system designed for transmitting signals via XLR connection, providing a reliable and high-quality signal.

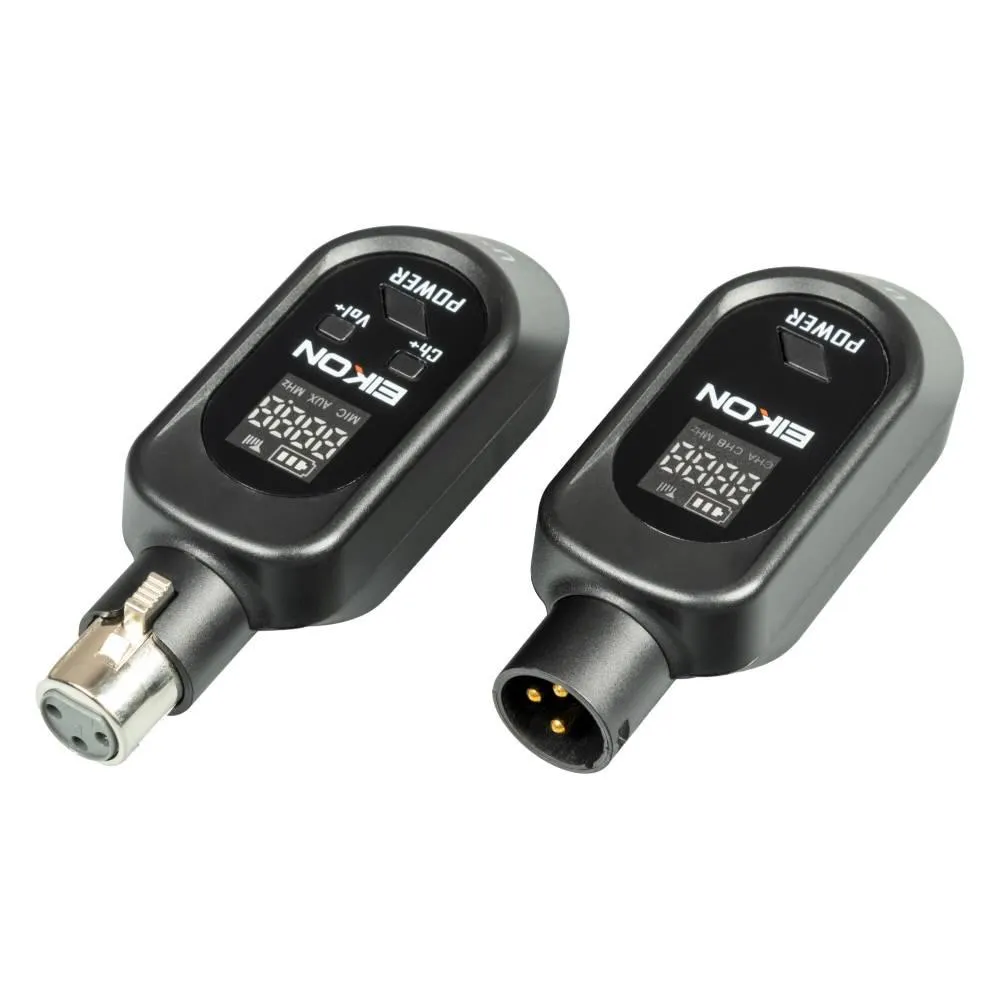

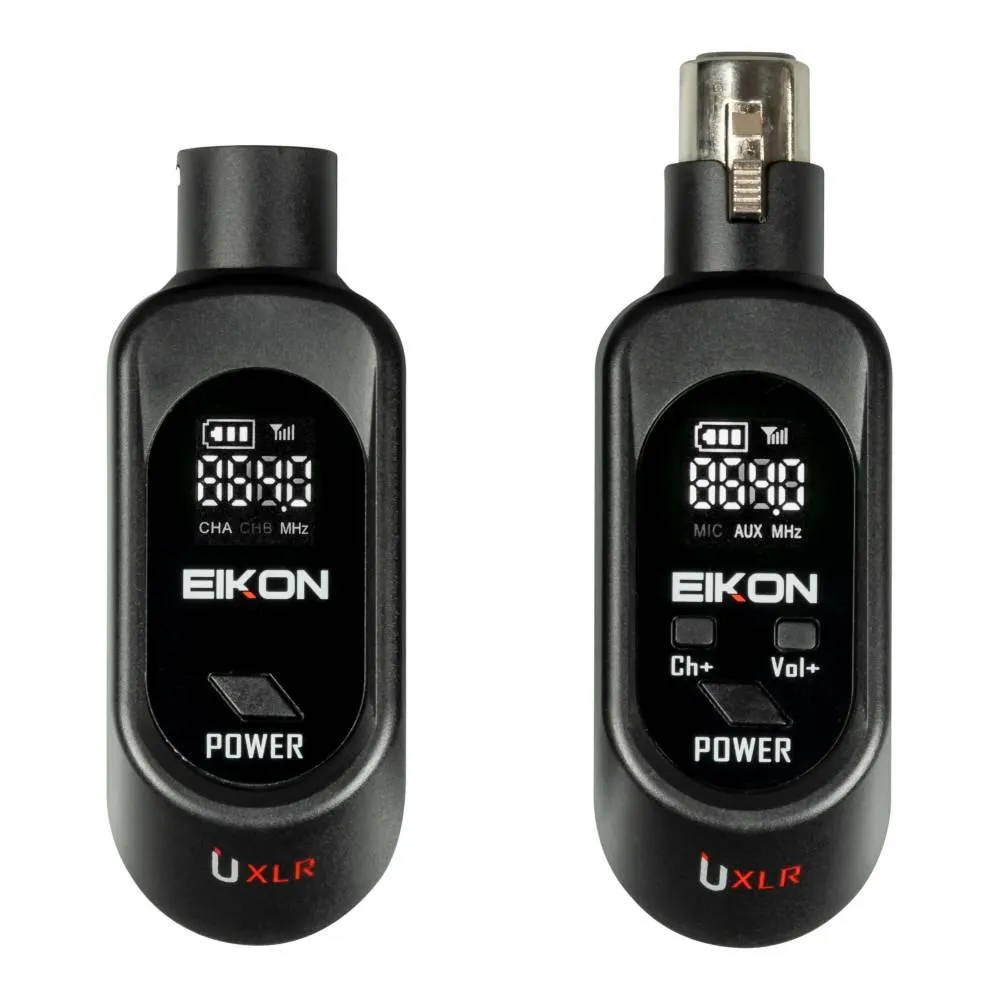

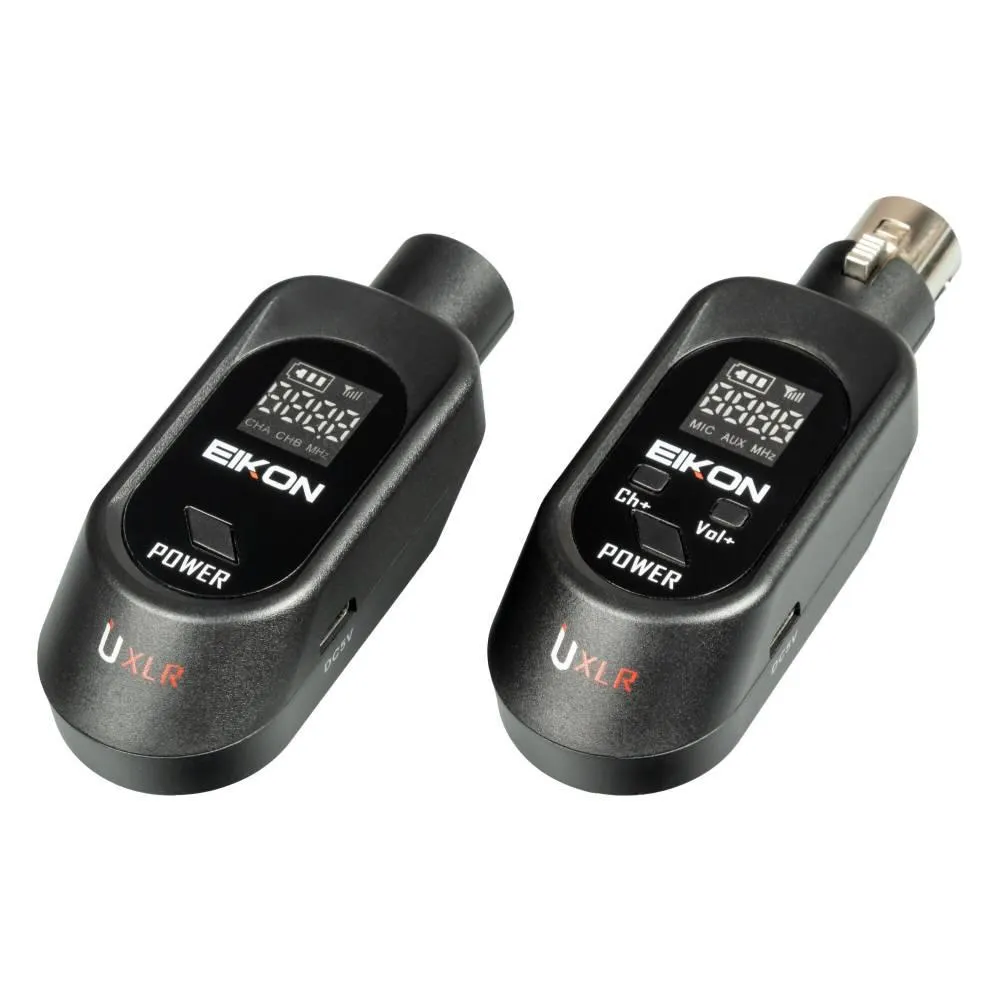

The system consists of three units: a female XLR transmitter, a male XLR receiver, and a USB-C charging cable, all enclosed.

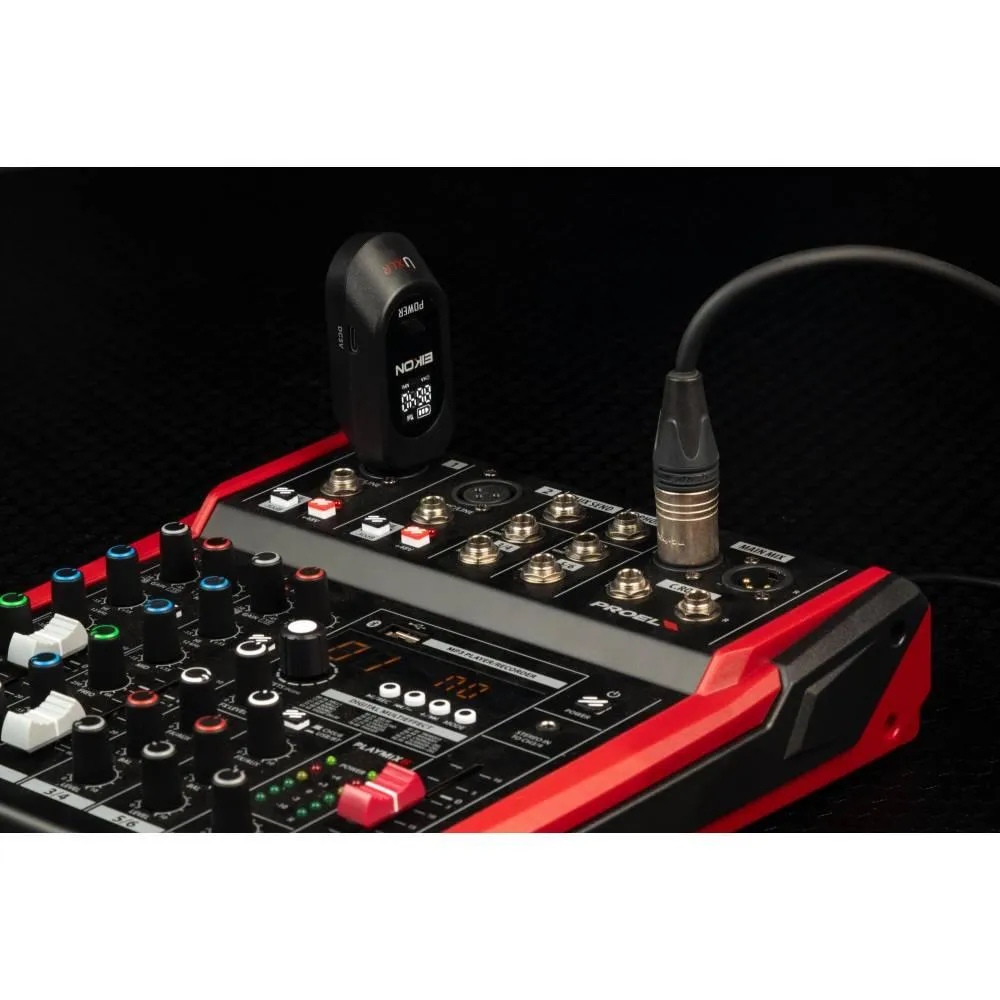

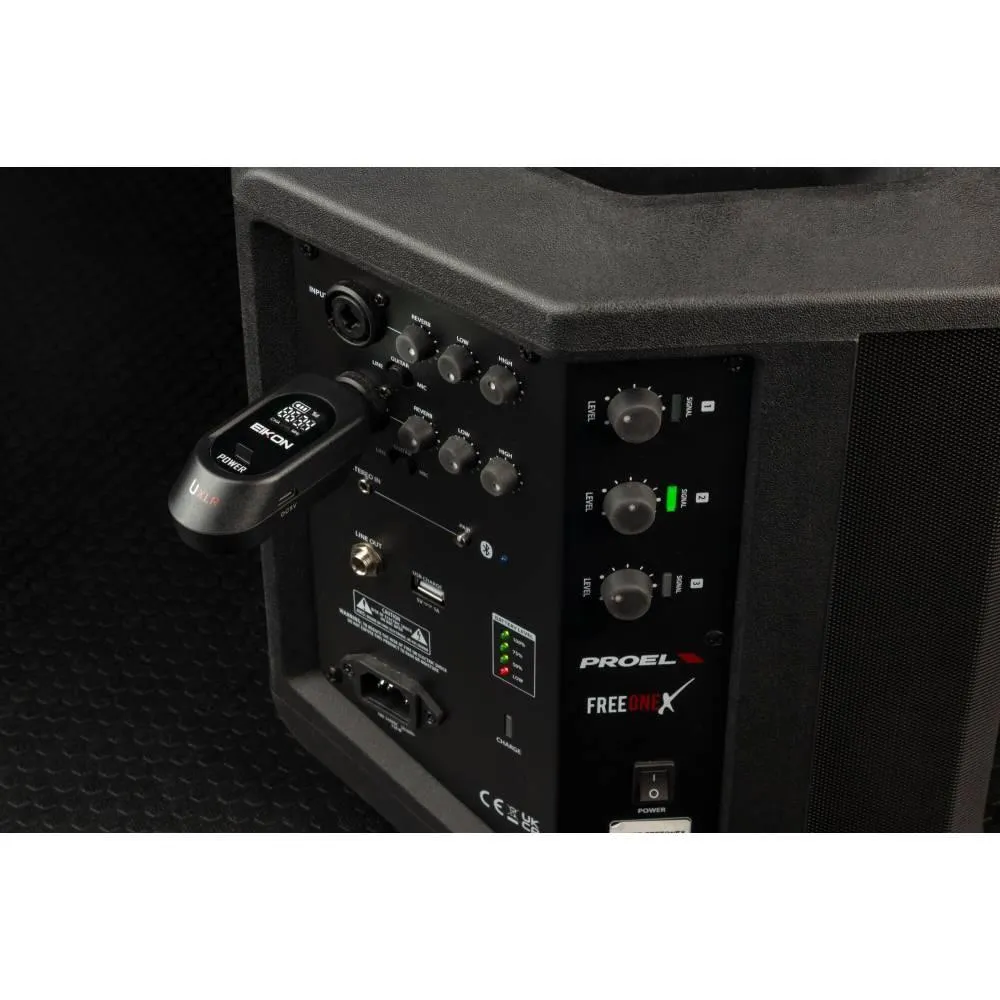

There are 16 frequency channels available (30 for the 500 MHz band version), allowing the system to be used simultaneously or in environments with other wireless equipment. UXLR is the simplest and most affordable way to wirelessly transmit balanced or unbalanced XLR signals, such as those connecting mixers to active speakers and amplifiers. It can also transform any dynamic or condenser microphone into a wireless microphone, thanks to its dual input sensitivity and Phantom Power function.

Features
MIC / LINE input sensitivity selection
UHF Quartz locked DQPSK modulation mode
Up to 30 meters range
Built in 3.7V/800mA lithium battery
5V USB-C charging cable included
Up to 5 hours autonomy

Specs
UXLR – UHF PLL Transmitter
RF Channels 16 or 30 frequency presets depending on band
RF Frequency Band UHF: 863-865 MHz or 568.500 – 580.100 MHz
RF Frequency Stability ±0.002%
RF Oscillation Mode PLL Synthesized
RF Modulation Type DQPSK
RF Output Power 10mW
Sub-harmonic < 40 dB
Operating current 130 mA
Operating Time 3 to 5 hrs
Operating Power Supply 3.7 V / 800 mA - built-in Lithium battery
Charging mode USB charging 5V – type C connector
Charging time 3 hours
Weight 0.10 Kg

UXLR – UHF PLL Receiver
RF Channels 16 or 30 frequency presets depending on band
RF Frequency Band UHF: 863-865 MHz or 568.500 – 580.100 MHz
RF Frequency Stability ±0.005%
RF Oscillation Mode PLL Synthesized
RF Modulation Type DQPSK
RF Receiving Sensitivity < -98 dBm
RF Receiving range Up to 30 meters
Audio dynamic range 106 dBm
THD Distortion < 0.5%
S/N Ratio > 102 dBA
Operating current 85 mA
Operating Time 3 to 5 hrs
Operating Power Supply 3.7 V / 800 mA - built-in Lithium battery
Charging mode USB charging 5V – type C connector
Charging time 4 hours
Weight 0.10 Kg
