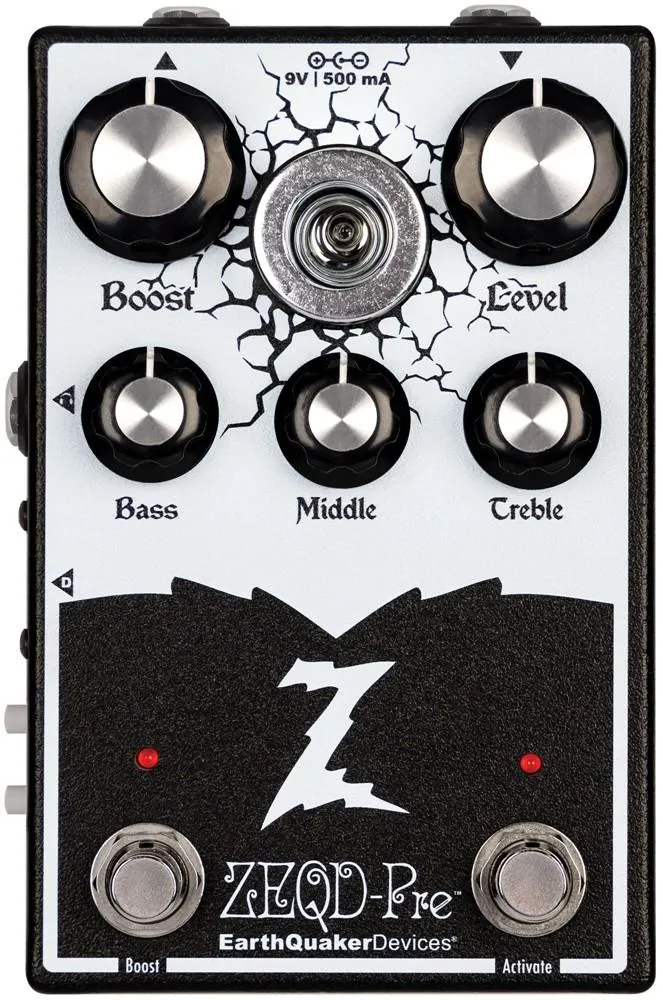

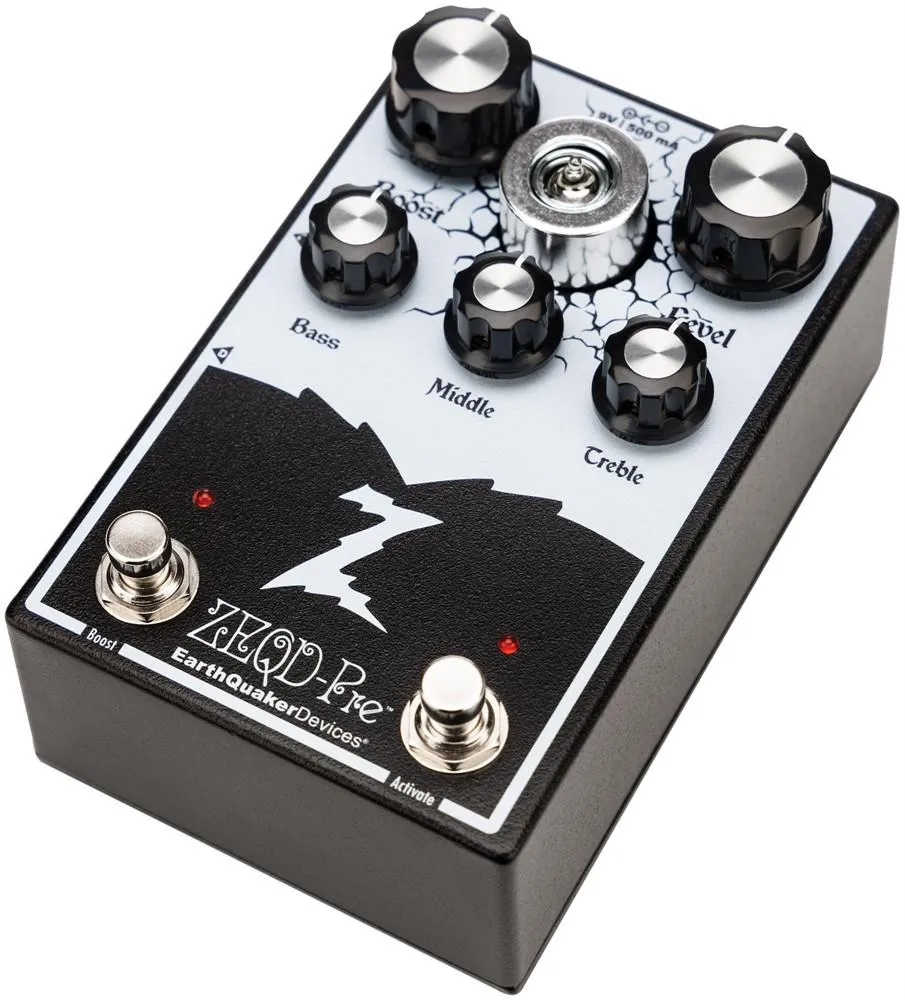

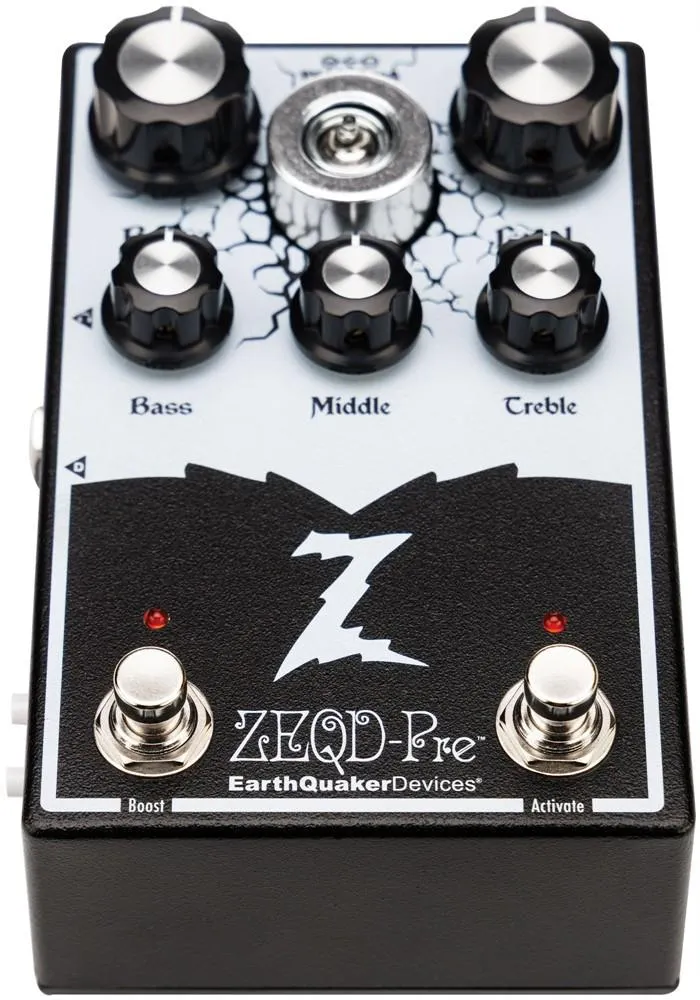

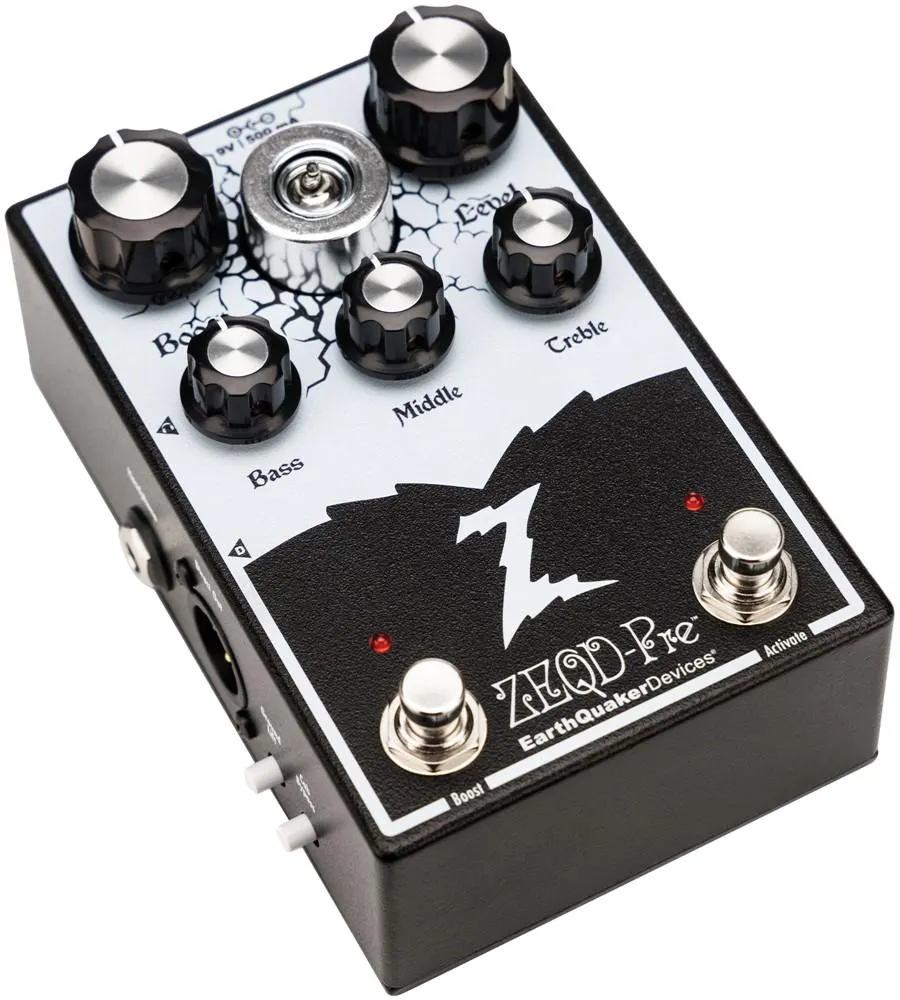

Earthquaker Devices ZEQD-Pre Tube Preamp

The EarthQuaker Devices ZEQD-Pre is a fully analog tube preamp and booster pedal developed in collaboration with Dr. Z Amplification, bringing the warmth, dynamic response, and touch sensitivity of real tube circuitry to your pedalboard. Driven by a genuine EF86 pentode tube — the same type used in boutique tube amps — this preamp pedal adds harmonic richness, clarity, and organic feel to guitars, bass, synths, keyboards, drums, microphones, and more.

Positioned at the end of your signal chain, the ZEQD-Pre offers intuitive, hands-on control with a passive 3-band EQ, a dedicated Boost footswitch that bypasses the EQ for a full-range boost, and a cab simulation that can be switched on or off. With professional connectivity including a balanced XLR direct output with ground lift and a headphone output for quiet practice or monitoring, it’s ideal for recording, live performance, hybrid rigs, or silent stages.

Key Features
All-analog tube preamp pedal adds warmth and dynamic response to your tone.
Driven by a real EF86 pentode tube for authentic amp-like feel and hi-fi clarity.
Passive 3-band EQ sculpts bass, middle, and treble with precision.
Boost footswitch bypasses EQ for a full-range level boost.
Switchable analog cabinet simulation for direct recording and silent practice.

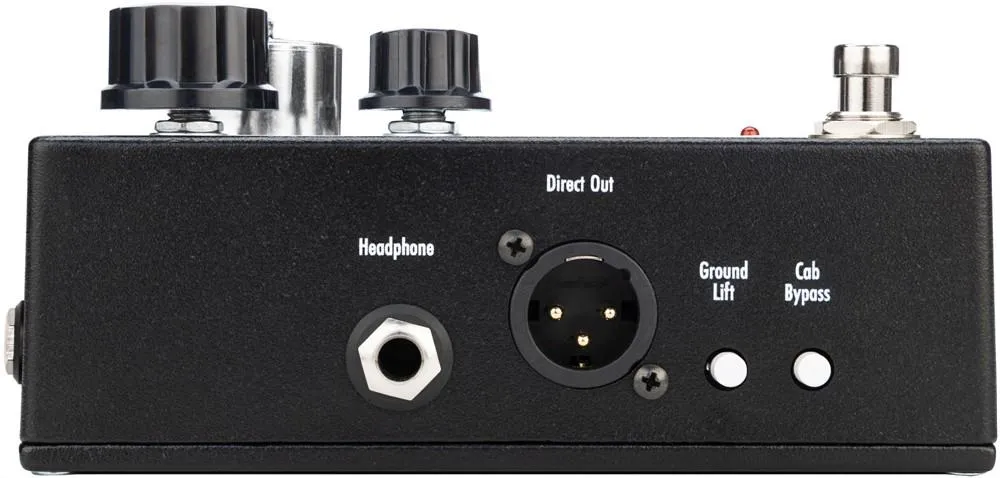

Balanced XLR DI output with ground lift for professional connectivity.
Headphone output for quiet, immersive monitoring.

Specifications
Product type: Tube preamp pedal
Circuit: Fully analog with EF86 pentode tube
Controls: Boost, Level, Bass, Middle, Treble
EQ: Passive 3-band EQ
Footswitches: Boost, Activate

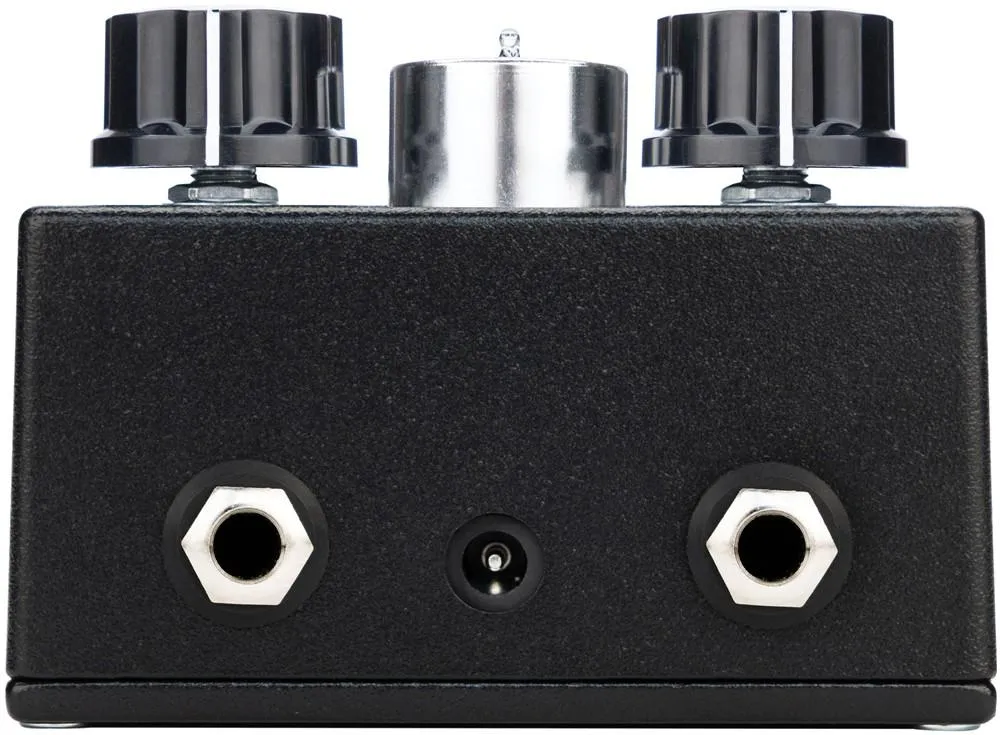

Connectivity: 1× 1/4" input, 1× 1/4" output, balanced XLR direct out, 1× 1/4" headphone output
Ground lift: Yes
Cab bypass: Yes
Power: 9V DC adapter (sold separately), current draw 500 mA
Dimensions (L×W×H): Approx. 149 × 100 × 70 mm
Weight: Approx. 569 g
Made in: USA
