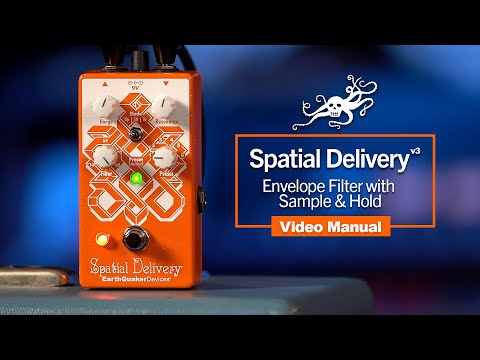

EarthQuaker Devices Spatial Delivery

Envelope Filter with Sample & Hold
The Spatial Delivery is an oddball, a voltage controlled envelope filter that allows you to step outside the universe of funk while reinforcing your secret love affair with auto-wah. This baby has three modes with the switchable Up Sweep, Down Sweep, and Sample & Hold functions, along with Range, Resonance and Filter controls. Get some wild filter sweeps with the Up and Down modes and adjust the Range to control the sensitivity and reaction time of the envelope, which alters the width of the frequency sweep. Reign in the controls a bit, add your favorite overdrive/fuzz after the Spatial Delivery and you’ve got a real nice resonant, cut-through-the-mix lead tone.

We took the already cosmic, original Spatial Delivery and added six available preset slots for you to store your preferred settings. Even the expression jack assignment can be saved and recalled in any of the slots so that the signature sounds you dial in are readily available with a quick tap of the switch. Save your settings confidently on the go thanks to the two modes indicated by the LED Save/Recall switch.

Dimensions
121 x 64 x 57 mm with knobs

Current Draw
75 mA

Input Impedance
500 kΩ

Output Impedance
100 Ω

Flexi-Switch® Technology
This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

• For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
