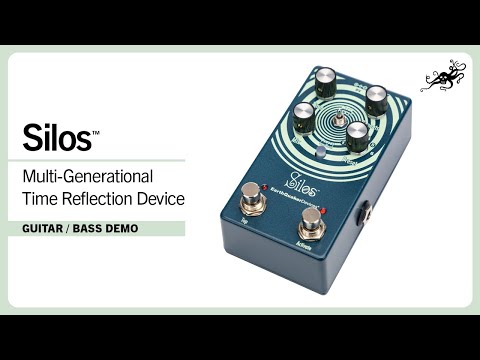

EarthQuaker Devices Silos

Multi-Generational Time Reflection Device
Unlike anything before it, Silos merges together a digital, analog, and tape delay into one compact and powerful pedal. In addition to the tri-voice delay, it features tap tempo, user-assignable expression control, and the ability to save and recall six presets, making it endlessly customizable and easy to operate. It’s like having three classic pedals all rolled into one! Now you can save room on your pedalboard while never having to decide which single delay to use again.

Dimensions
121 x 64 x 57 mm with knobs

Current Draw
75 mA

Input Impedance
500 kΩ

Output Impedance
100 Ω

TRS expression pedal wiring
Tip: Wiper
Ring: +3.3V
Sleeve: Ground

Flexi-Switch® Technology
This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation: tap the footswitch once to activate the effect and then tap again to bypass.

• For momentary operation: hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Silos is buffered bypass with tails. Power is required to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
