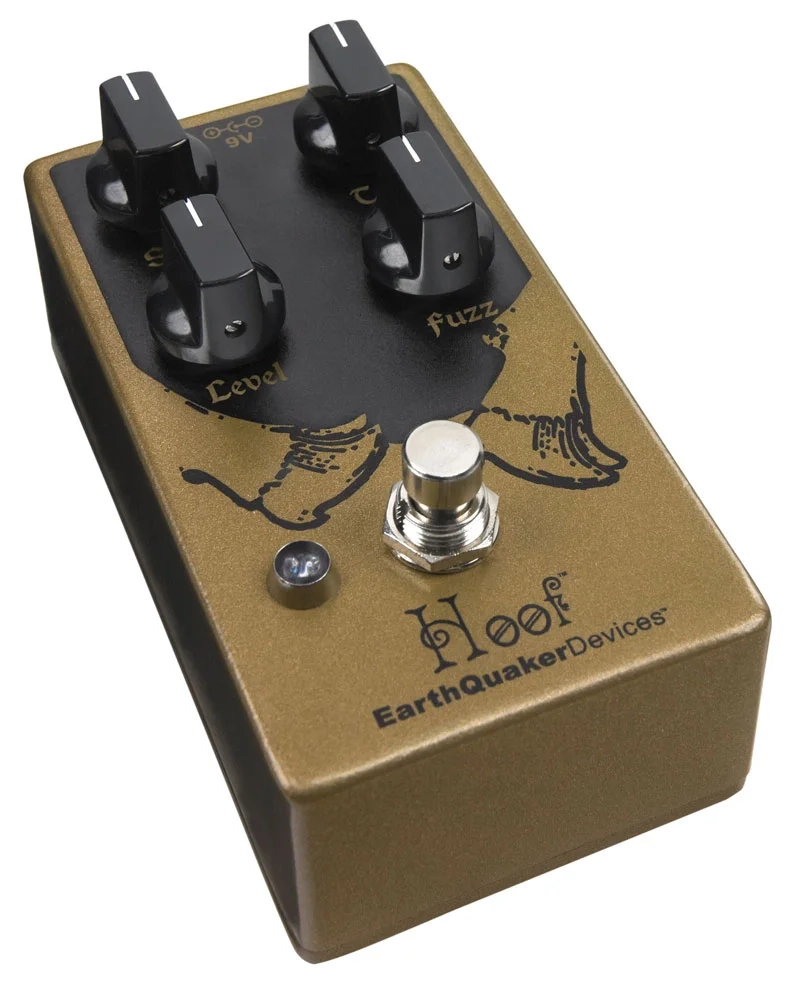

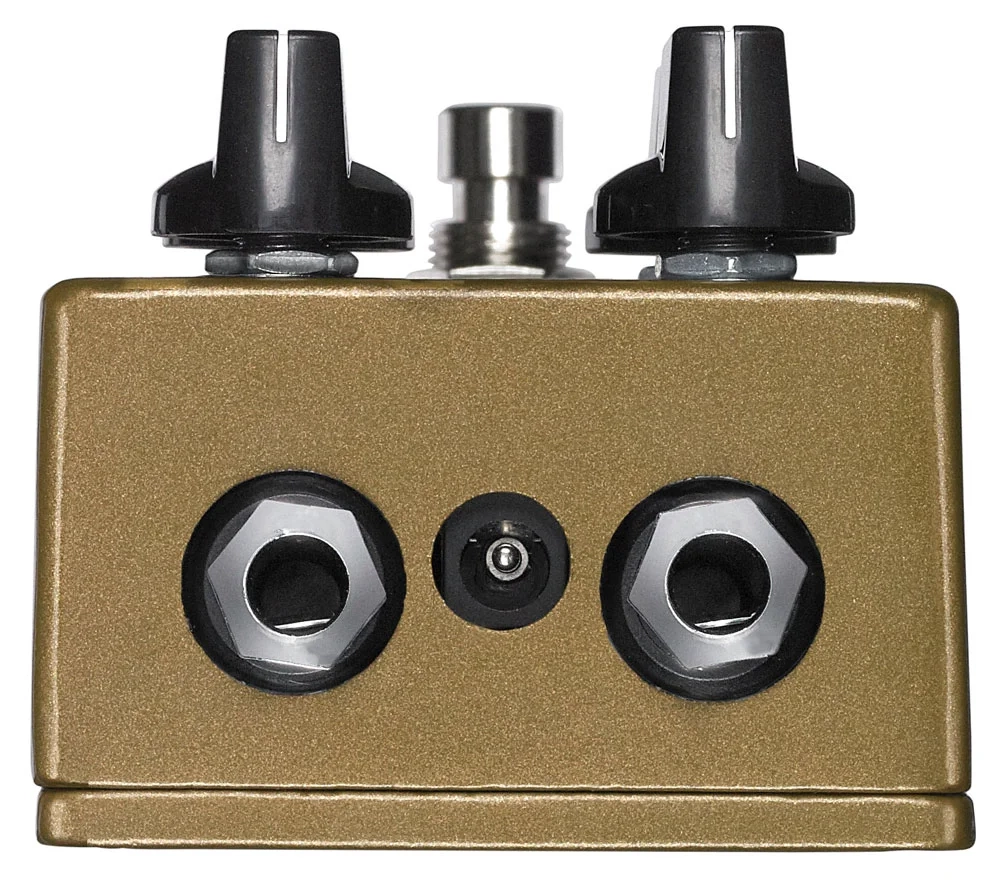

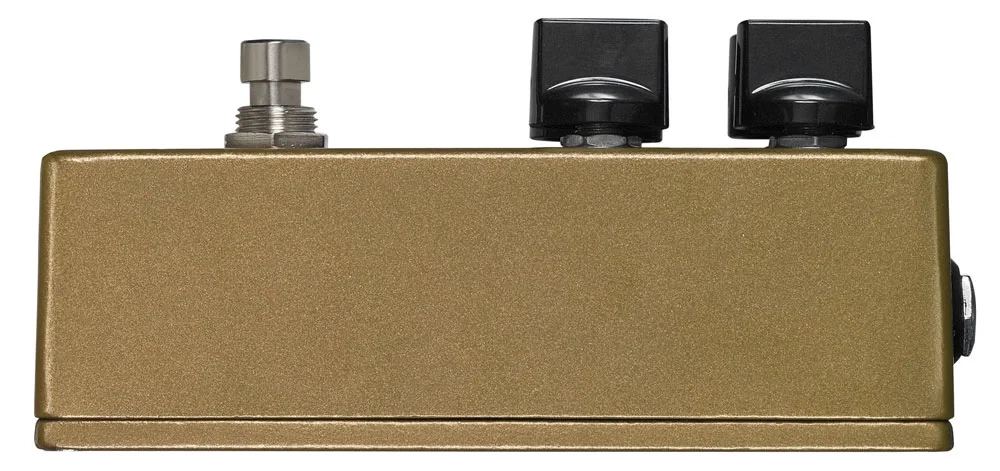

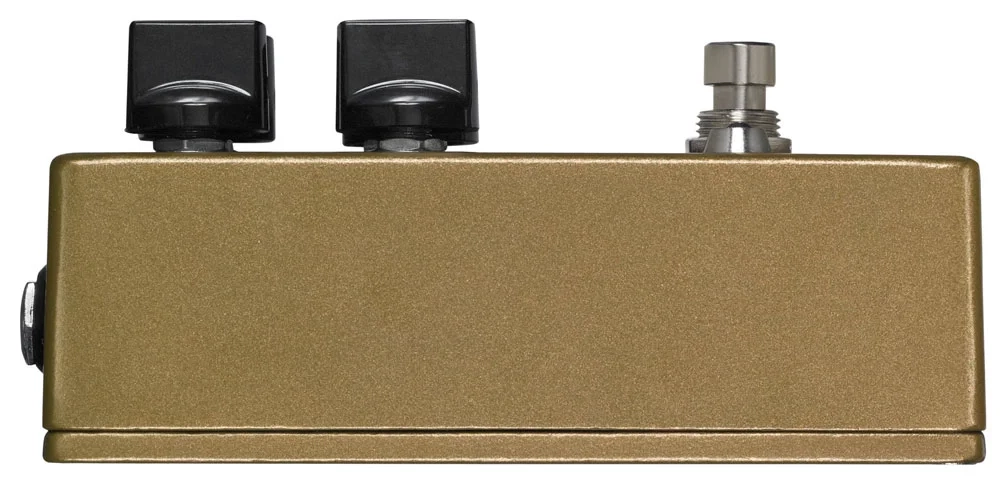

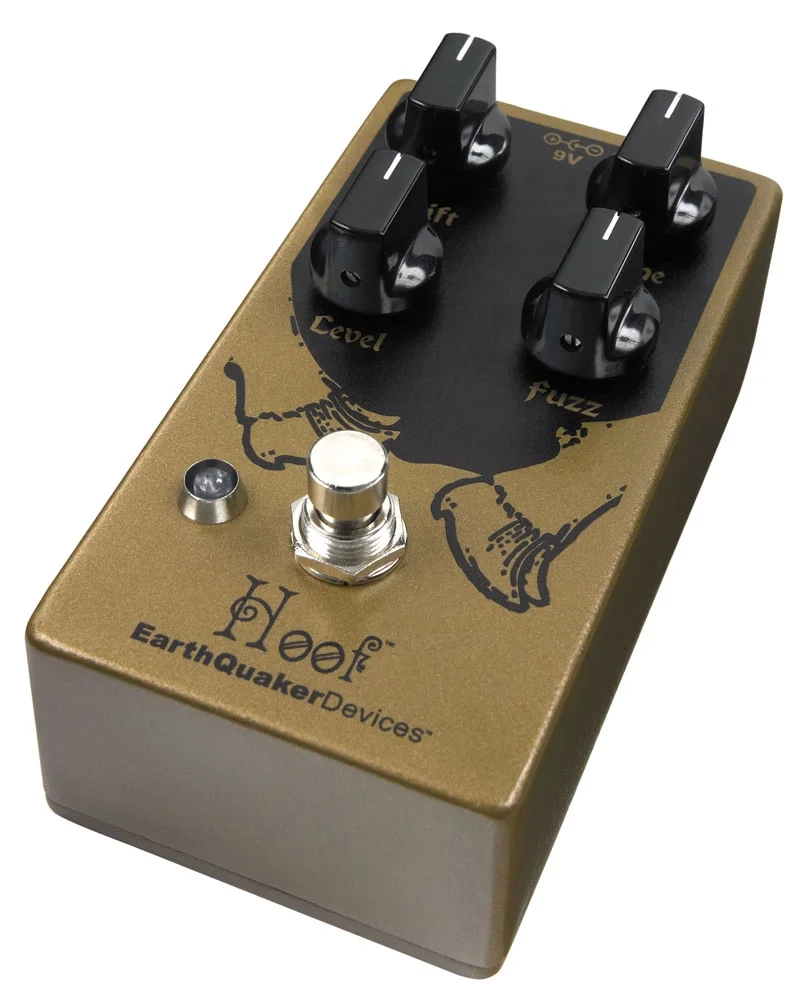

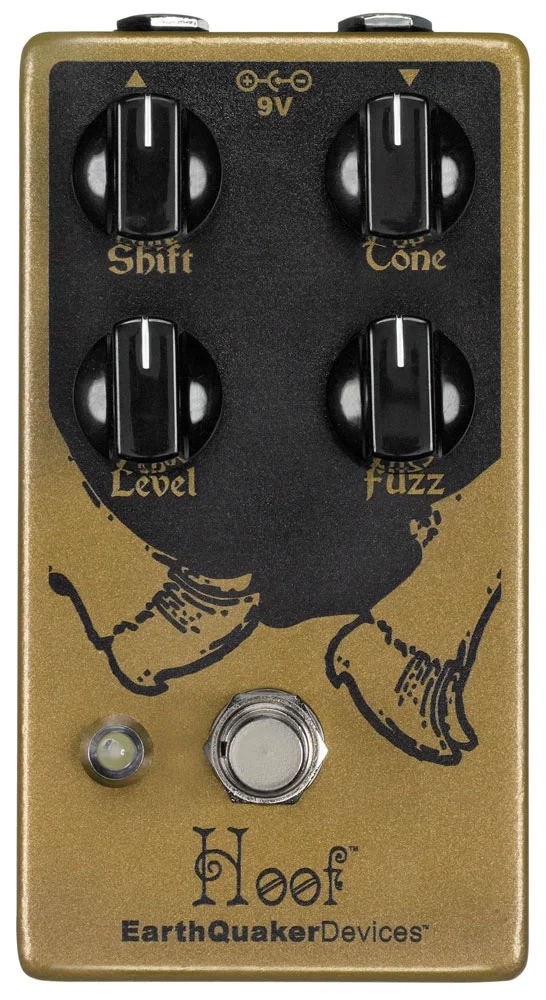

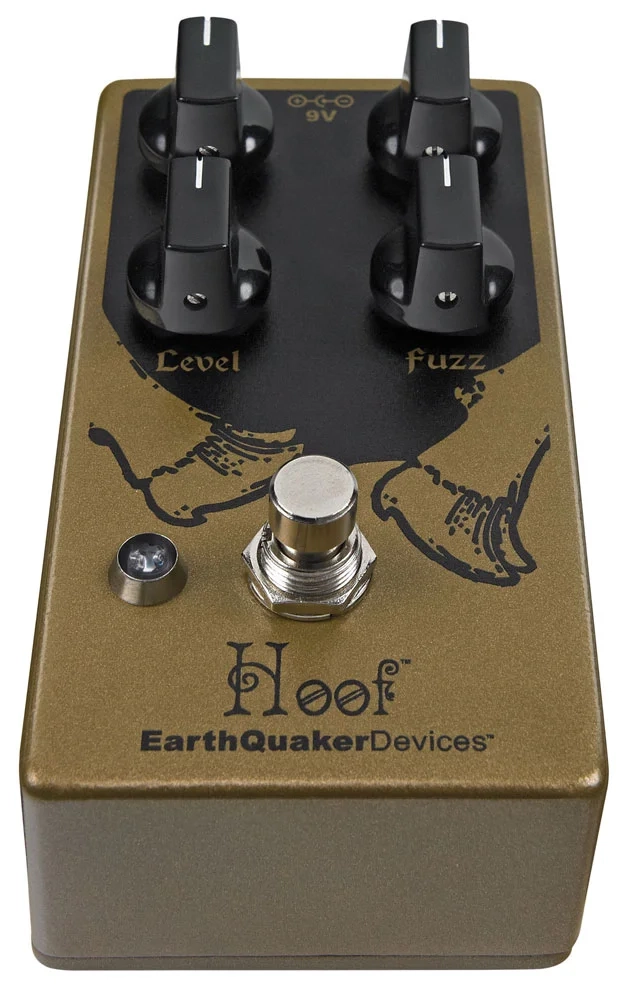

EarthQuaker Devices Hoof Germanium/Silicon Fuzz

The Hoof is loosely based on the classic green Russian fuzz circuit and features a hybrid Germanium/Silicon design, pairing maximum tone with maximum temperature stability not found in finicky and expensive vintage units. We hand-match our NOS Germanium transistors to exacting specifications for pedal-to-pedal consistency, taking the guesswork out of your fuzz purchase, and guaranteeing that your Hoof delivers the same smooth, natural, and harmonically-rich sustain as all your friends’ Hoofs. All your friends have Hoof fuzzes, right?

Dimensions 121 x 64 x 57 mm with knobs
Current Draw 15 mA
Input Impedance 130 kΩ
Output Impedance

Switching
This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
