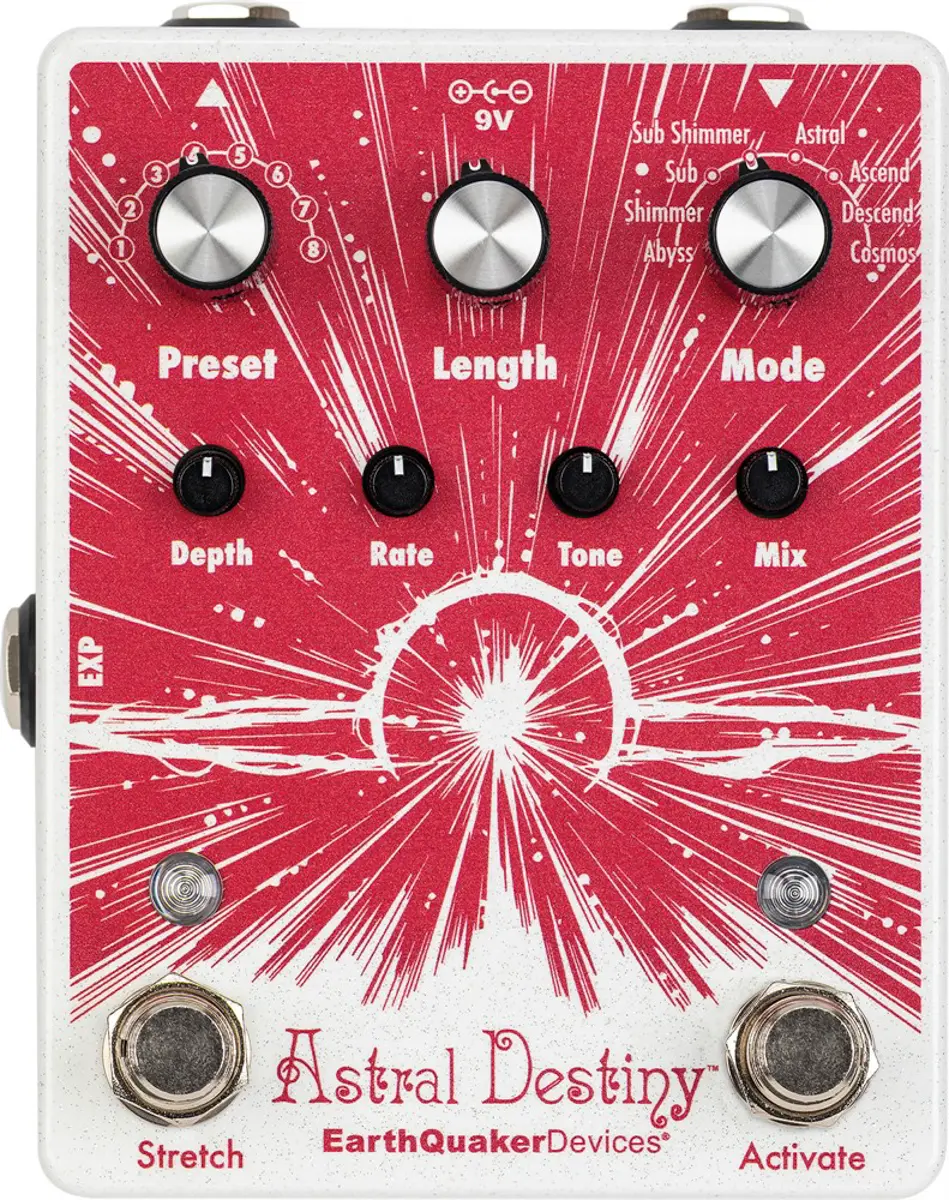

EarthQuaker Devices Astral Destiny Octave Reverb

The Astral Destiny is a compact and powerful modulated octave reverb pedal that features 8 reverb modes with 8 editable presets, assignable expression control, tails for natural reverb decay when the effect is bypassed and a super cool stretch feature that doubles the length of the reverb while adding an adjustable pitch bending effect.

Dimensions
118 x 93 x 57 mm)with knobs

Current Draw
85 mA

Input Impedance
500 kΩ

Output Impedance
100 Ω

Expression Jack

Use any TRS expression pedal to take control over the Length, Depth, Rate, Tone, or Mix panel controls! You can also use Control Voltage with the EXP Jack. The CV range is 0 – 3.3v.

EXP Jack Internal Connections:
Sleeve= Ground
Ring= 3.3v
Tip= Wiper (CV)

Tails or Full Bypass Switching

Astral Destiny can operate in two different bypass states: Tails or Full Bypass. It comes factory set in Tails Mode which allows the reverb effect to naturally decay after the effect is bypassed and is indicated by a Green Activate LED. Full Bypass will cut the reverb effect completely when the effect is bypassed and is indicated by a Red Activate LED.

Astral Destiny is buffered bypass which means that there will always be an active buffer present and it requires power to pass signal.

Stretch Footswitch

The Stretch footswitch doubles the length of the reverb effect while adding a temporary change in pitch.

• Tap for an immediate pitch change.

• Hold for a temporary pitch bending effect.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
