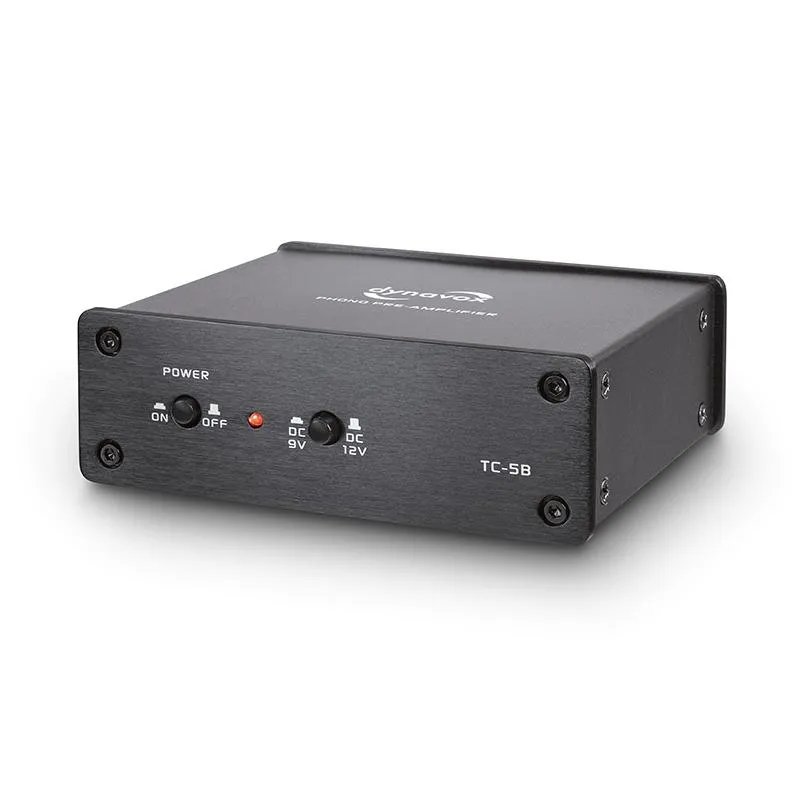

Dynavox TC-5B Phono Preamplifier Black

The TC-5B is a brand-new phono preamplifier for MM systems. It is used when a turntable needs to be connected to an amplifier without a phono input, or when the built-in phono stage of an amplifier does not meet sound quality expectations. Phono preamplifiers amplify and equalize the very small signal from the turntable, making it suitable for connection to an amplifier. These signals are highly sensitive to interference, often causing noise or hum. The TC-5B addresses this with excellent shielding, a high-quality metal housing with solid 4 mm aluminum front and rear panels, and an external power supply to minimize interference. As a unique feature in its price range, the TC-5B can also switch to battery operation with a 9V block for even cleaner sound, lasting up to 40 hours of playback (battery not included).

Technical Data
Type: Phono preamplifier
Frequency range: 20 Hz – 20 kHz
THD: < 0.03 %
Input sensitivity: 25 mV
Output voltage: 2.5 V
Signal-to-noise ratio: >87 dB/1 kHz
Input impedance: 47 kOhm (100 pF)

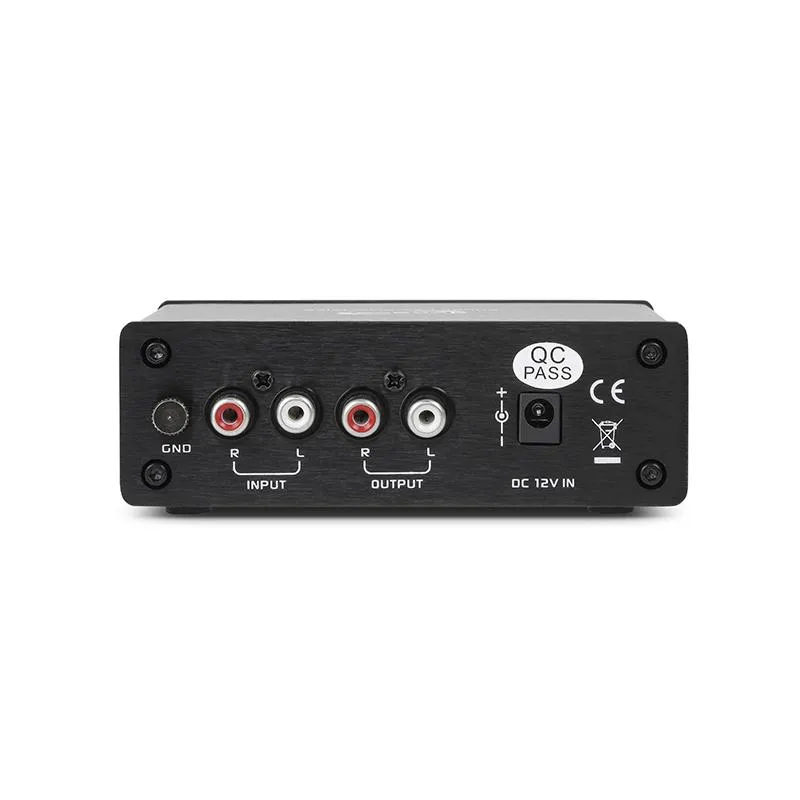

Inputs: 1 x Stereo RCA
Outputs: 1 x Stereo RCA
Operating voltage: 12 V (power supply) or 9 V battery
Color: Black
Dimensions: W x H x D 124 x 45 x 115 mm
Weight: 400 g
