DPA 5006-11A

A complete surround kit combining three d:dicate™ 4006A Omnidirectional Microphones and two d:dicate™ 4011A Cardioid Microphones, carefully factory-matched to achieve full precision.

Even though the standard tolerances on the d:dicate™ Microphone Series are extremely low, the surround match is even closer.

The specially-selected d:dicate™ 4006A Omnidirectional Microphones are matched within ±0.5 dB on both frequency response and sensitivity. The d:dicate™ 4011A Cardioid Microphones are matched within ±1 dB.

The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (±2 dB) of the microphones make the d:dicate™ 4006A Omnidirectional Microphones the perfect choice for all AB Stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of d:dicate™ 4006A Omnidirectional Microphones will provide you with a lifetime of satisfying listening.

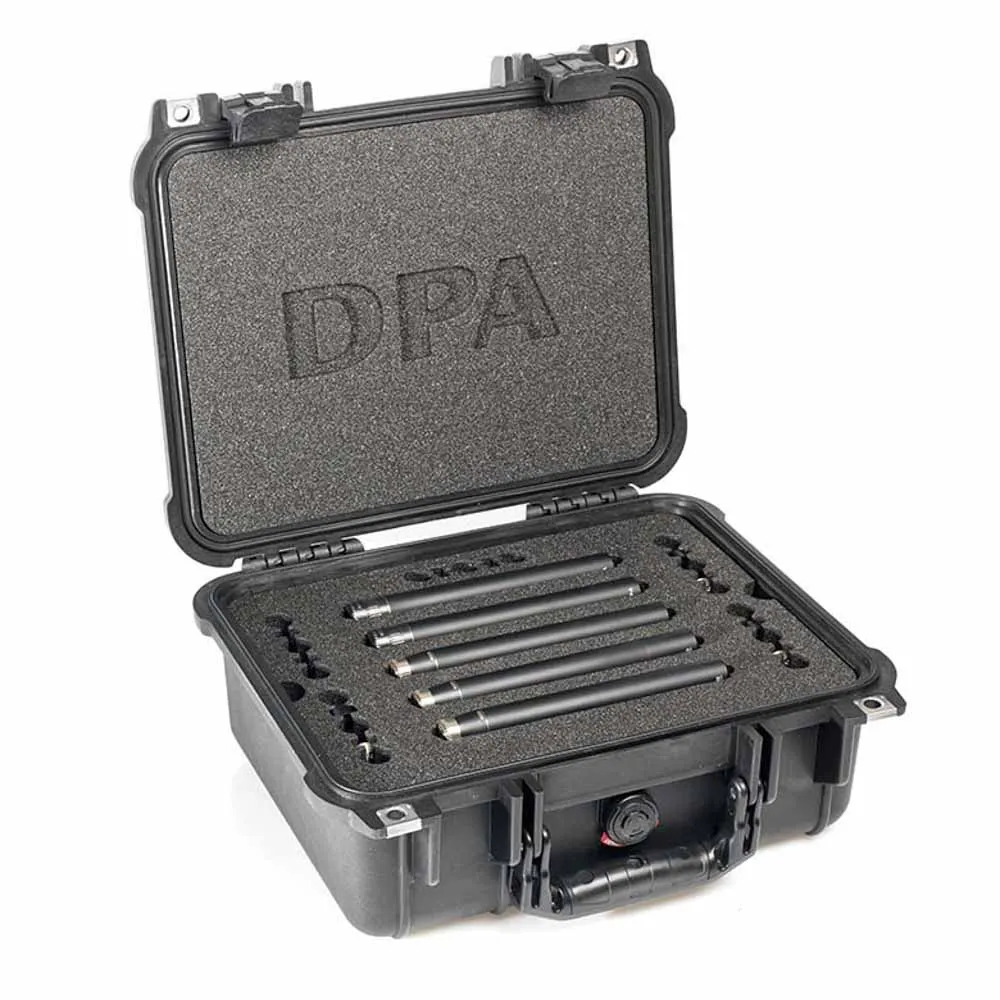

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.


Directional pattern

4006A: Omnidirectional; 4011A: Cardioid

Principle of operation

4006A: Pressure; 4011A: Pressure gradient

Cartridge type

Pre-polarized condenser

Frequency range

10 Hz to 20 kHz

Frequency range, ±2 dB

4006A: 10 Hz to 20 kHz

Frequency range, ±2 dB, at 30 cm (11.8 in)

4011A: 40 Hz to 20 kHz

Sensitivity, nominal, ±2 dB at 250 Hz

4006A: 40 mV/Pa; -28 dB re. 1 V/Pa

Sensitivity, nominal, ±2 dB at 1 kHz

4011A: 10 mV/Pa; -40 dB re. 1 V/Pa

Equivalent noise level, A-weighted

4006A: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A)). 4011A: Typ. 18 dB(A) re. 20 µPa (max. 20 dB)

Equivalent noise level, ITU-R BS.468-4

4006A: Typ. 27 dB (max. 29 dB). 4011A: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)

4006A: Typ. 79 dB(A). 4011A: Typ. 76 dB(A)

Total harmonic distortion (THD)

< 1% up to 139 dB SPL peak

Dynamic range

4006A: Typ. 124 dB. 4011A: Typ. 121 dB

Max. SPL, peak before clipping

4006A: 147 dB. 4011A: 159 dB

Switchable attenuator, filters etc.

0 dB / -20 dB

Output impedance

< 200 Ω

Minimum load impedance

2 kΩ

Cable drive capability

100 m (328 ft)

Output balance principle

Impedance balancing with Active Drive

Common mode rejection ratio (CMRR)

> 60 dB

Power supply (for full performance)

48 V Phantom power (± 4 V)

Current consumption

2.8 mA

Connector

XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Color

Matte black

Weight

4006A: 163 g (5.7 oz). 4011A: 158 g (5.6 oz)

Microphone diameter

4006A: 16 - 19 mm (0.63 - 0.75 in). 4011A: 19 mm (0.75 in)

Capsule diameter

4006A: 16 mm (0.63 in). 4011A: 19 mm (0.75 in)

Microphone length

170 mm (6.7 in)

Maximum output voltage, RMS

> 5 V

Polarity

+V at pin 2 for positive sound pressure

Temperature range

-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)

Up to 90%

Matching tolerance (frequency response and sensitivity)

4006A: ±0.5 dB. 4011A: ±1 dB

Phase deviation for kit

4006A: < 5°. 4011A: < 10°
