Dophix Uomo Vitruviano Chrous/Phaser



UOMO VITRUVIANO chorus/ phaser, handbuilt analog effects pedal, new old stock parts

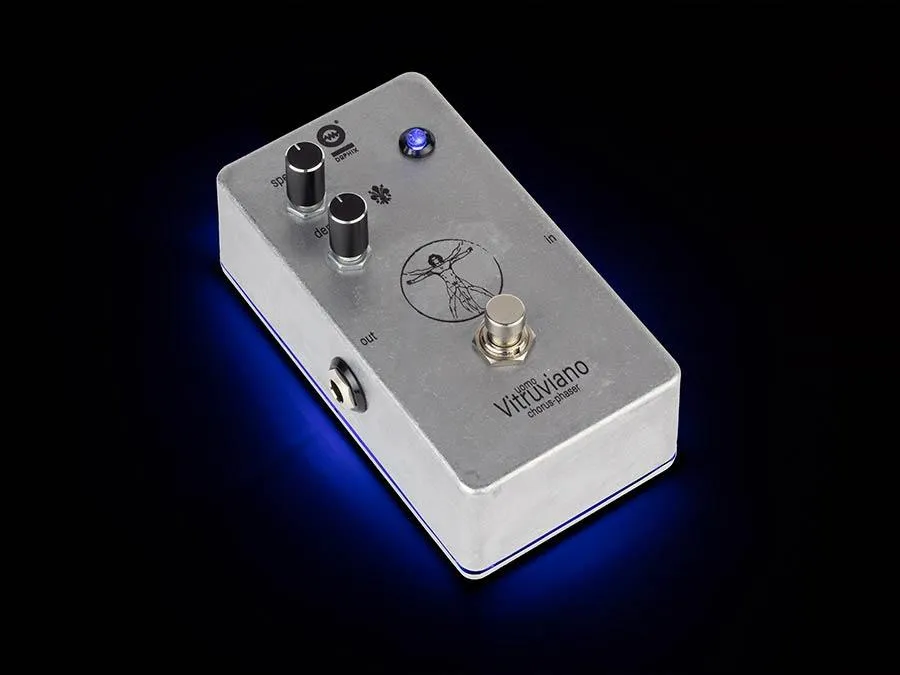

The Dophix UOMO VITRUVIANO is a handbuilt analog chorus-phaser pedal.

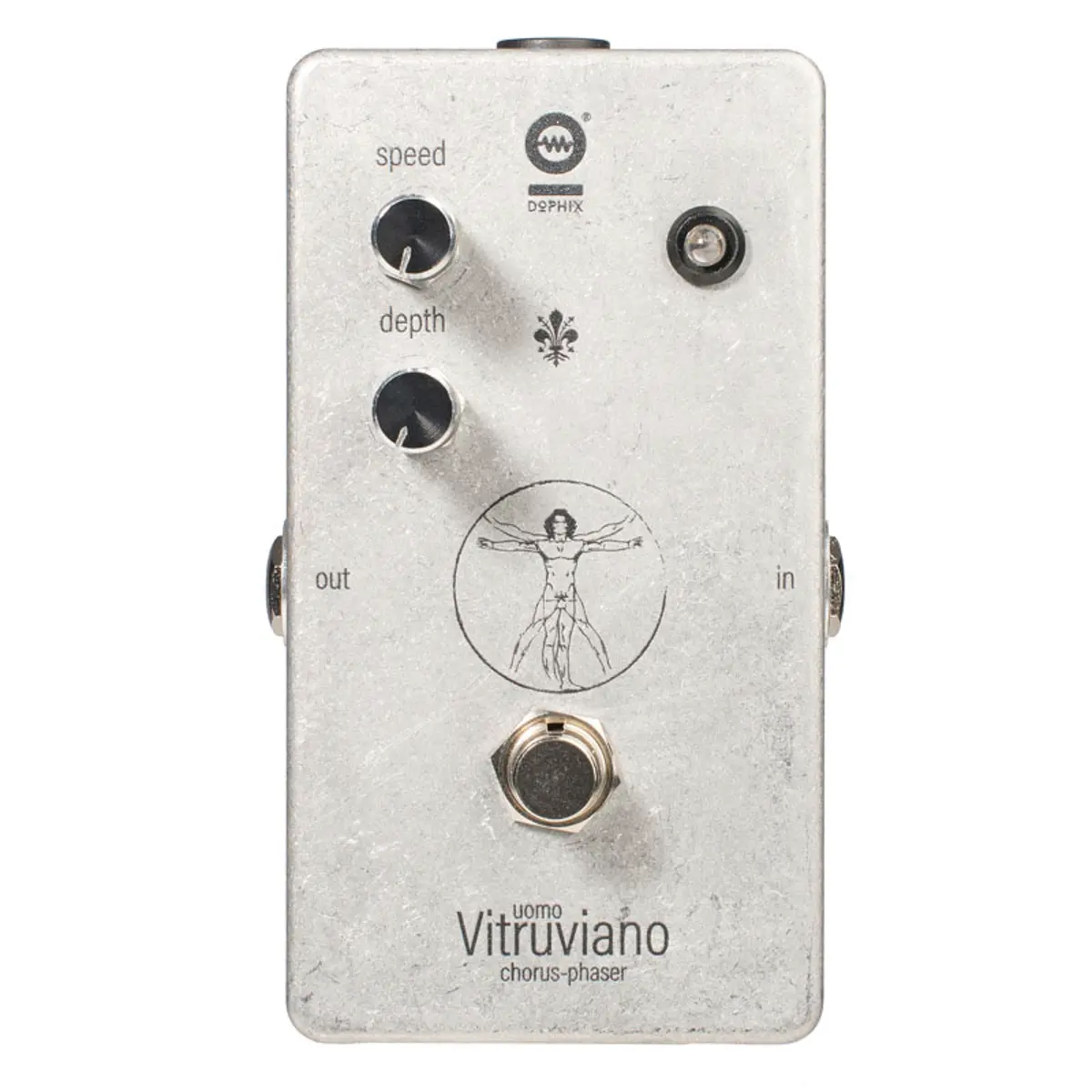

This original modulation effect pedal has only 2 knobs (depth and speed), but with them you can set many different sweet spots, ranging between chorus, phaser and univibe-like effects.

Dophix effects from Florence, Italy, are made by hand, one by one.

Uomo Vitruviano was named after and inspired by the Vitruvian Man, the famous representation of the human body drawn by Leonardo da Vinci. According to Dophix, the perfect proportions of man in the circles on the drawing in particular inspired the perfect roundness of the sounds in this pedal.

The pedal maintains the integrity of the original guitar signal very well due to an analog dry through circuit, the quality of the components in the circuit, true bypass switching and a sophisticated layout of the circuit board, that was made with great attention to the quality of the audio signal traces.

Technical specs:
• power: 9v DC, 19mA (battery or standard external power supply)

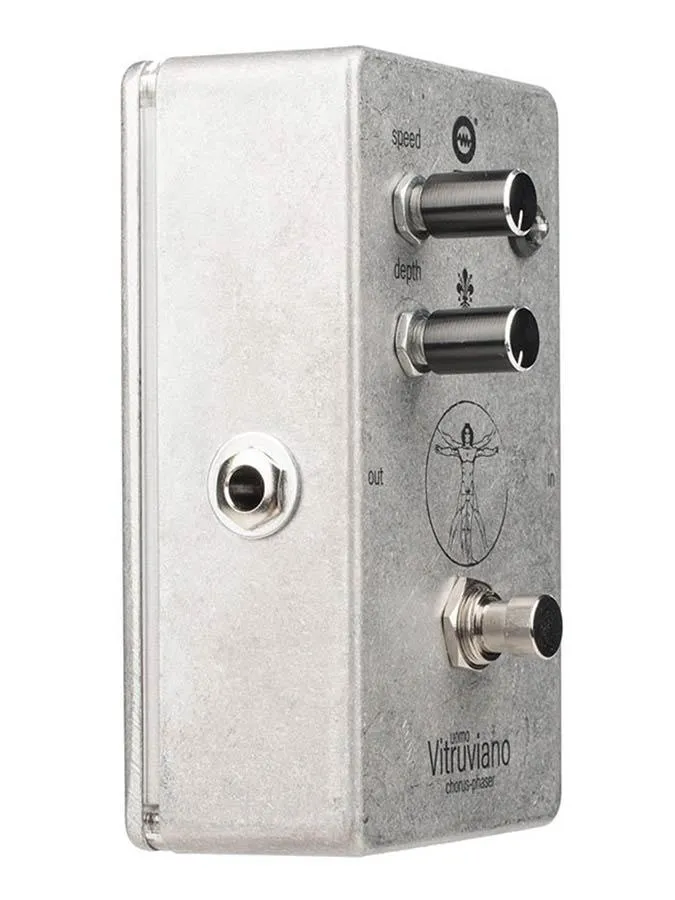

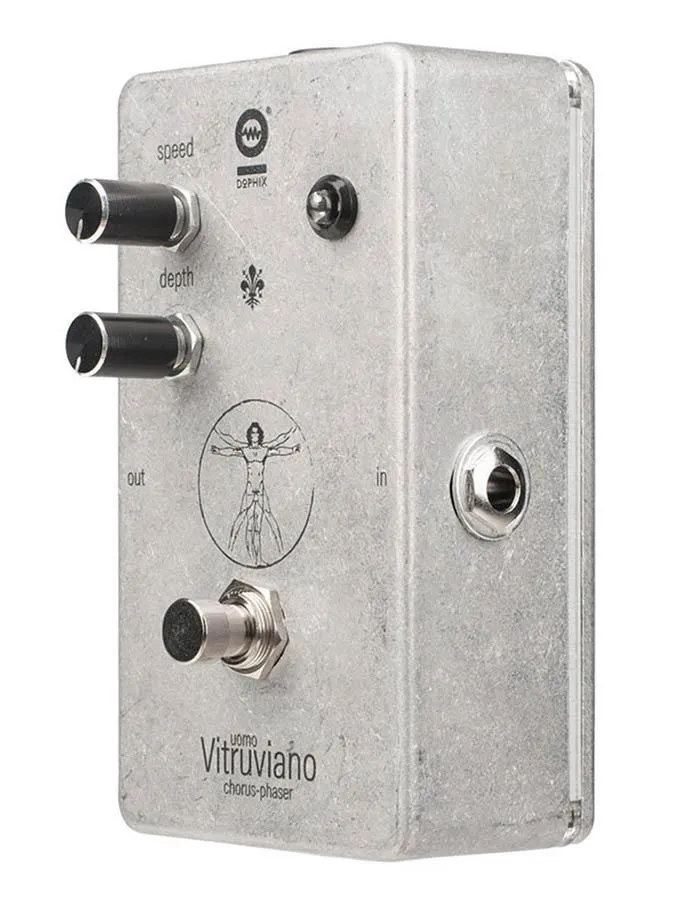

• jacks: side mounted 6.3 mm (1/4") jack connectors
• switching: true bypass
• input impedance: 1 mOhm
• output impedance: 300 ohm
• dimensions: 112 × 60 × 31 mm
• weight: 400 gr
