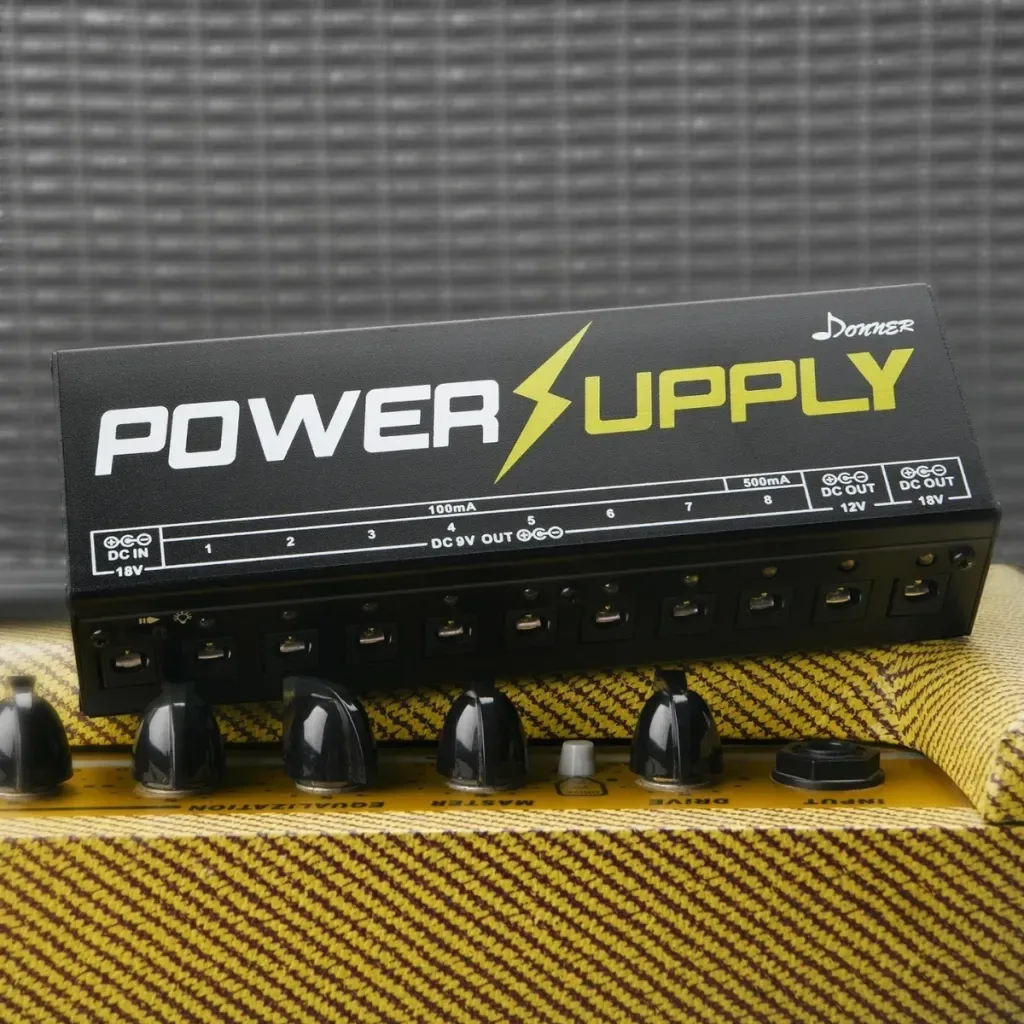

Donner DP-1

Multi-output pedalboard power supply with 10 outputs

The Donner DP-1 is a compact pedalboard power supply featuring 10 outputs for guitar effects pedals. It supports 9 V, 12 V and 18 V DC, delivers low-noise and stable power, includes built-in short-circuit protection and comes with all essential accessories for easy setup.

Features

10 outputs for effects pedals
Supports 9 V, 12 V and 18 V DC
7 × 9 V / 100 mA outputs
1 × 9 V / 500 mA output
1 × 12 V / 100 mA output
1 × 18 V / 100 mA output
Low-noise power supply
Stable DC power
Independent short-circuit protection for each output

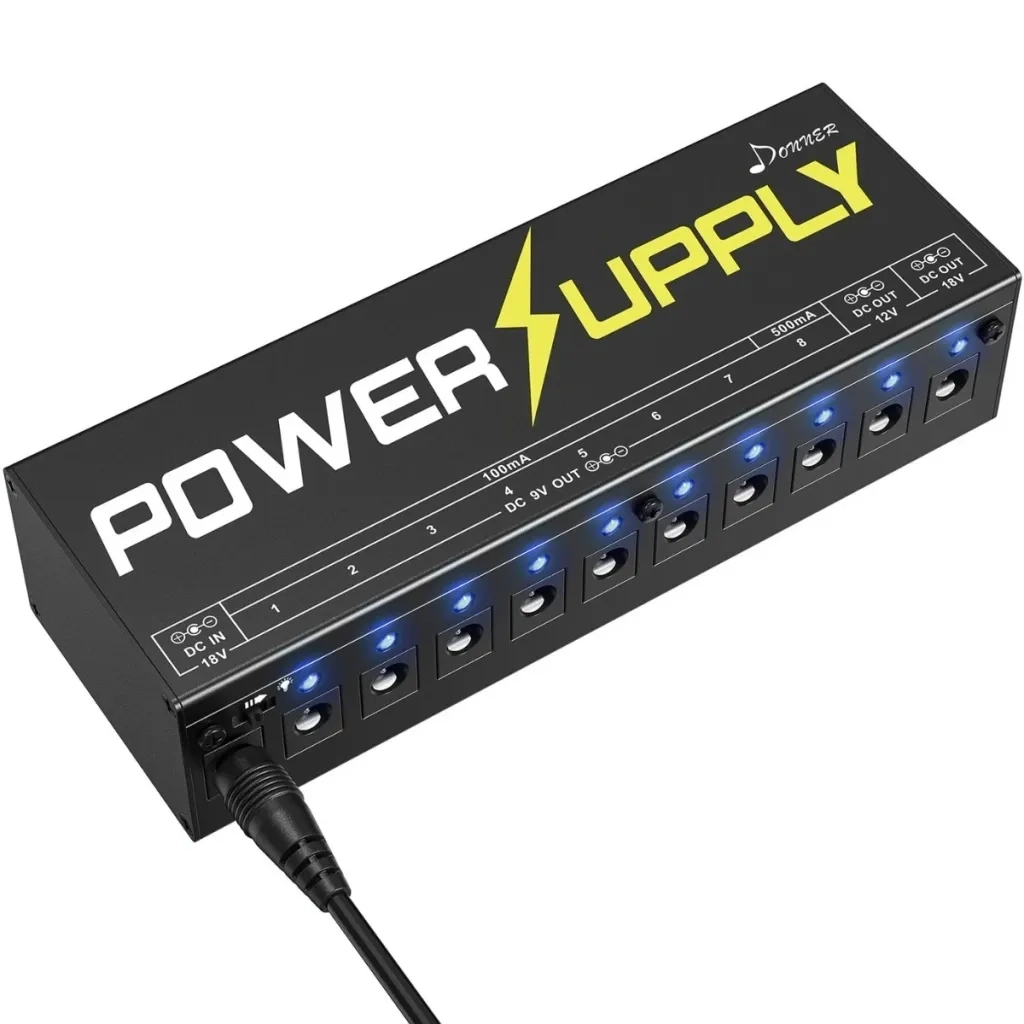

Blue LED status indicators
Compact aluminum housing

Specifications

Type: Multi-output pedalboard power supply
Output voltage: 9 V / 12 V / 18 V DC
Current capacity: 1 A / 1000 mA
Polarity: Center positive / Center negative
Dimensions: 15 × 5 × 3 cm
Weight: 196 g

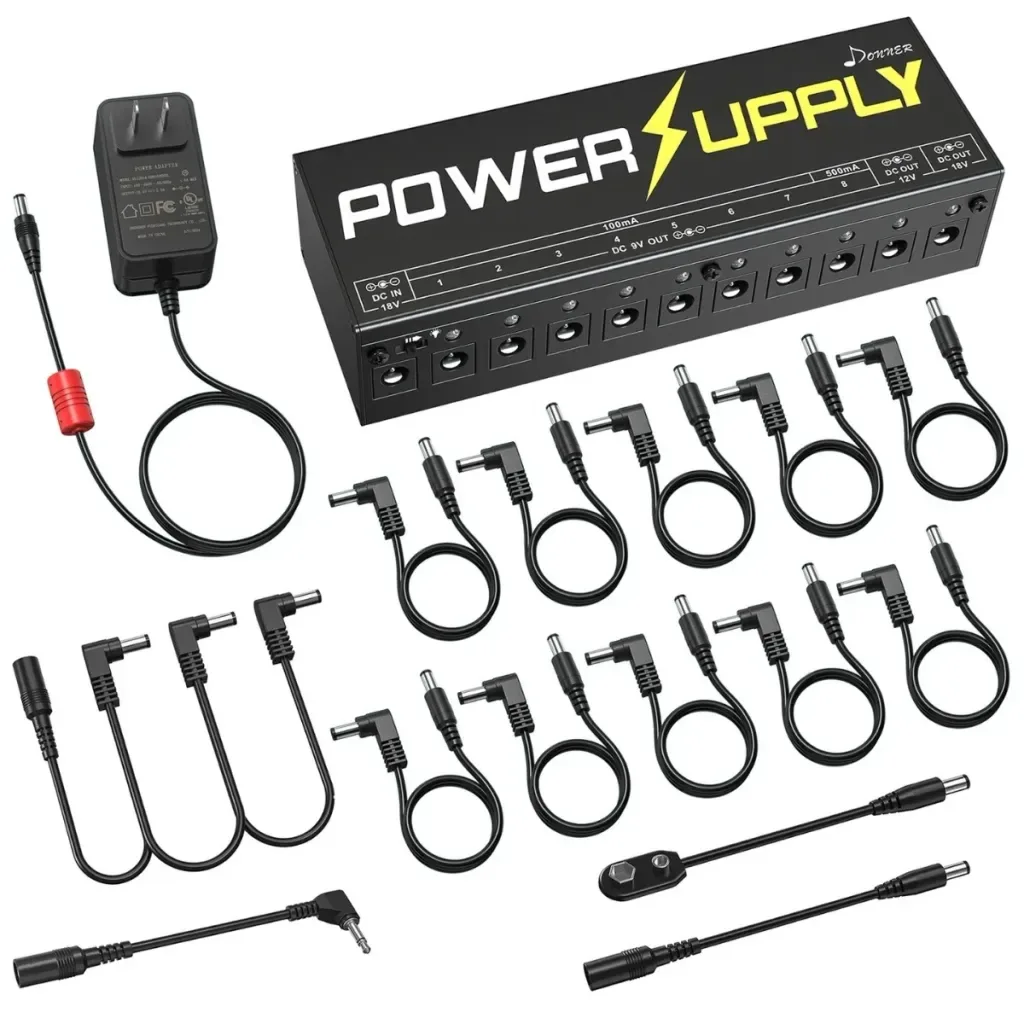

Included accessories

18 V DC power adapter
10 DC power cables
2 polarity reversal cables
User manual
