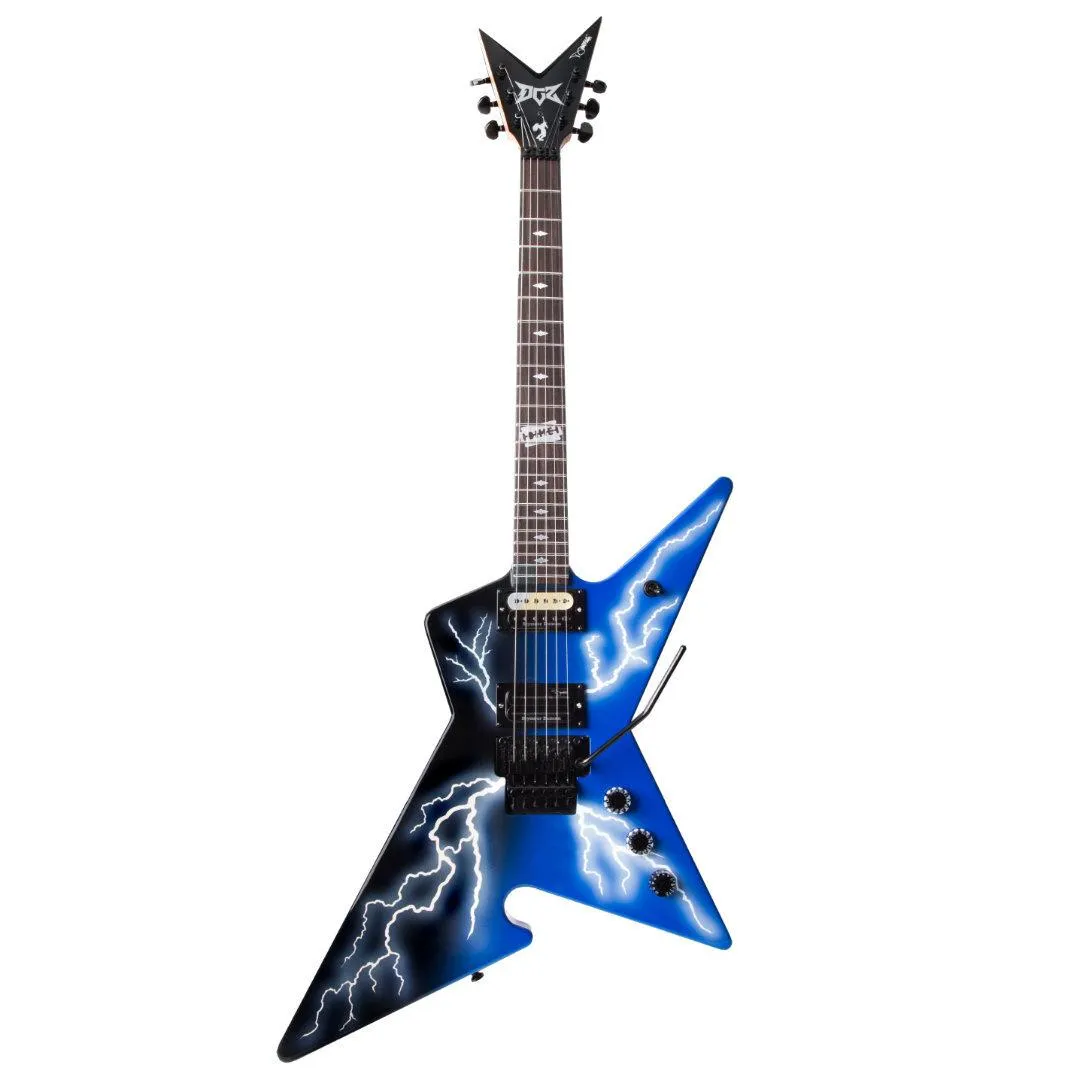

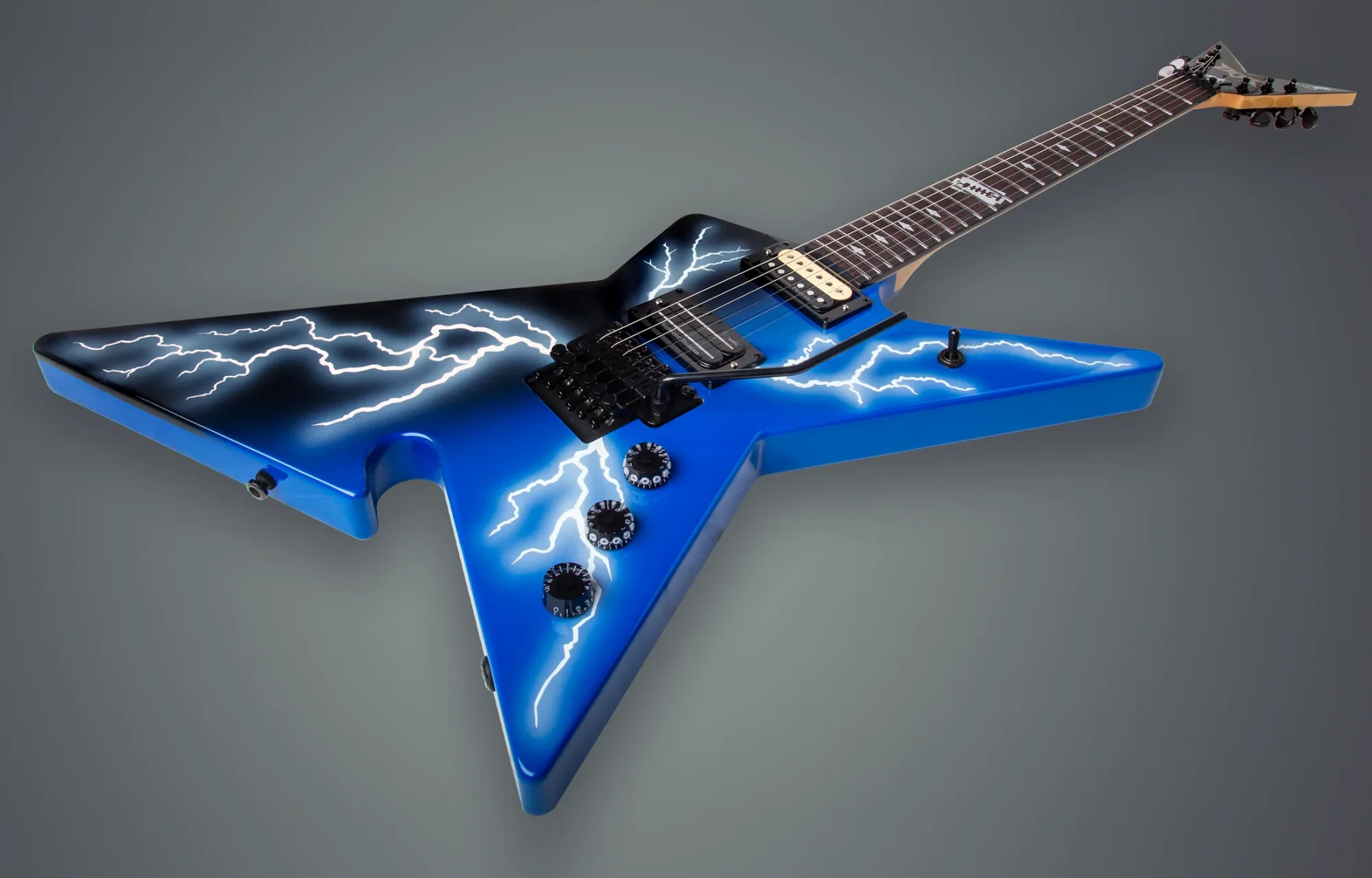

Dime Guitarz Culprit Dimebolt Lightning Graphic

Culprit Standard brings Dimebag Darrell’s iconic tone, feel and design to a guitar built with details drawn from the USA Custom Shop original. The guitar follows Darrell’s exact design and specifications from 1998 and features Dimebucker and ’59 pickups for the distinctive bite, clarity and screaming harmonics of Dime’s tone.

DimeBooster
DimeBooster Technology provides up to 15 dB of additional gain from the passive pickups
Activated by tapping the tone control
No 9V battery required
Charges via USB-C

Construction
Set Neck construction
Mahogany body with Flame Maple top
Body thickness: 38 mm

Neck
3-piece Maple neck
Ebony fingerboard
Scale length: 24.75"
Nut width: 43 mm
Nut: Floyd Rose R3, 12" radius
Fingerboard radius: Compound 12–16"
Neck contour: Medium Soft V
Thickness at 1st fret: 21.5 mm
Thickness at 12th fret: 22.5 mm
22 Medium Jumbo stainless steel frets

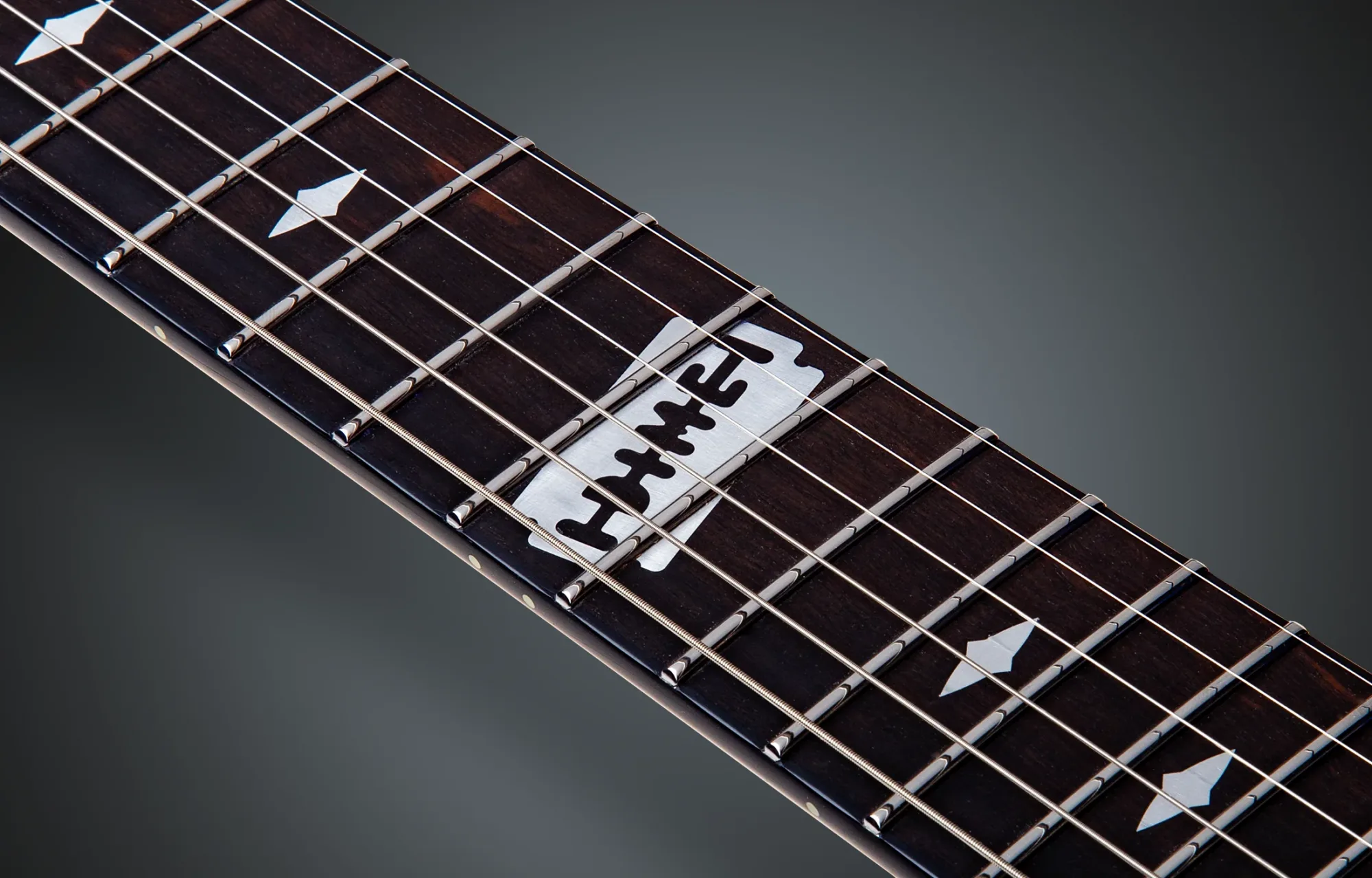

Diamond Plate inlays with Dime Razorblade at the 12th fret
Neck finish: Gloss Polyester

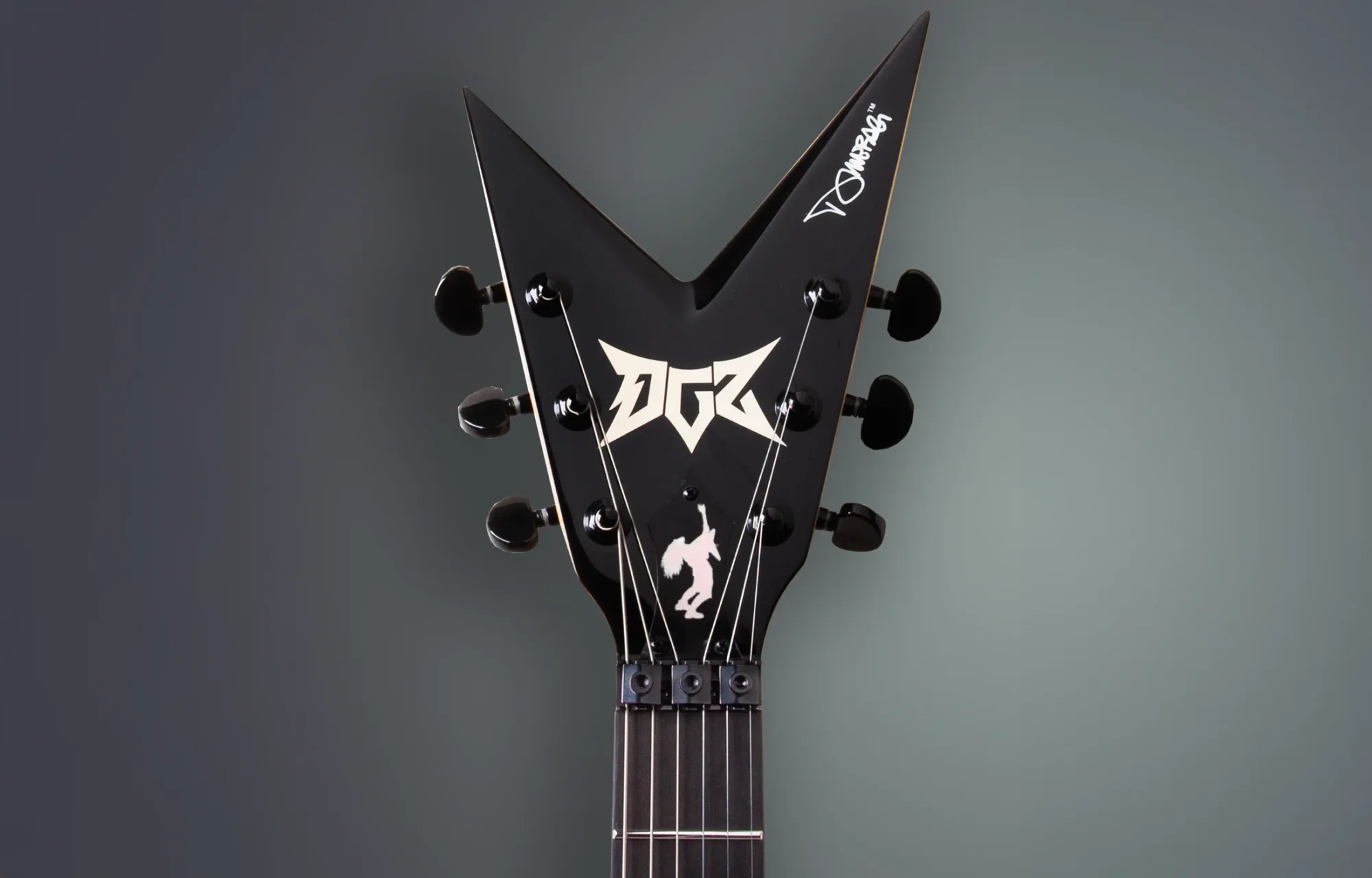

Matching head cap
Dual Action adjustable truss rod

Electronics

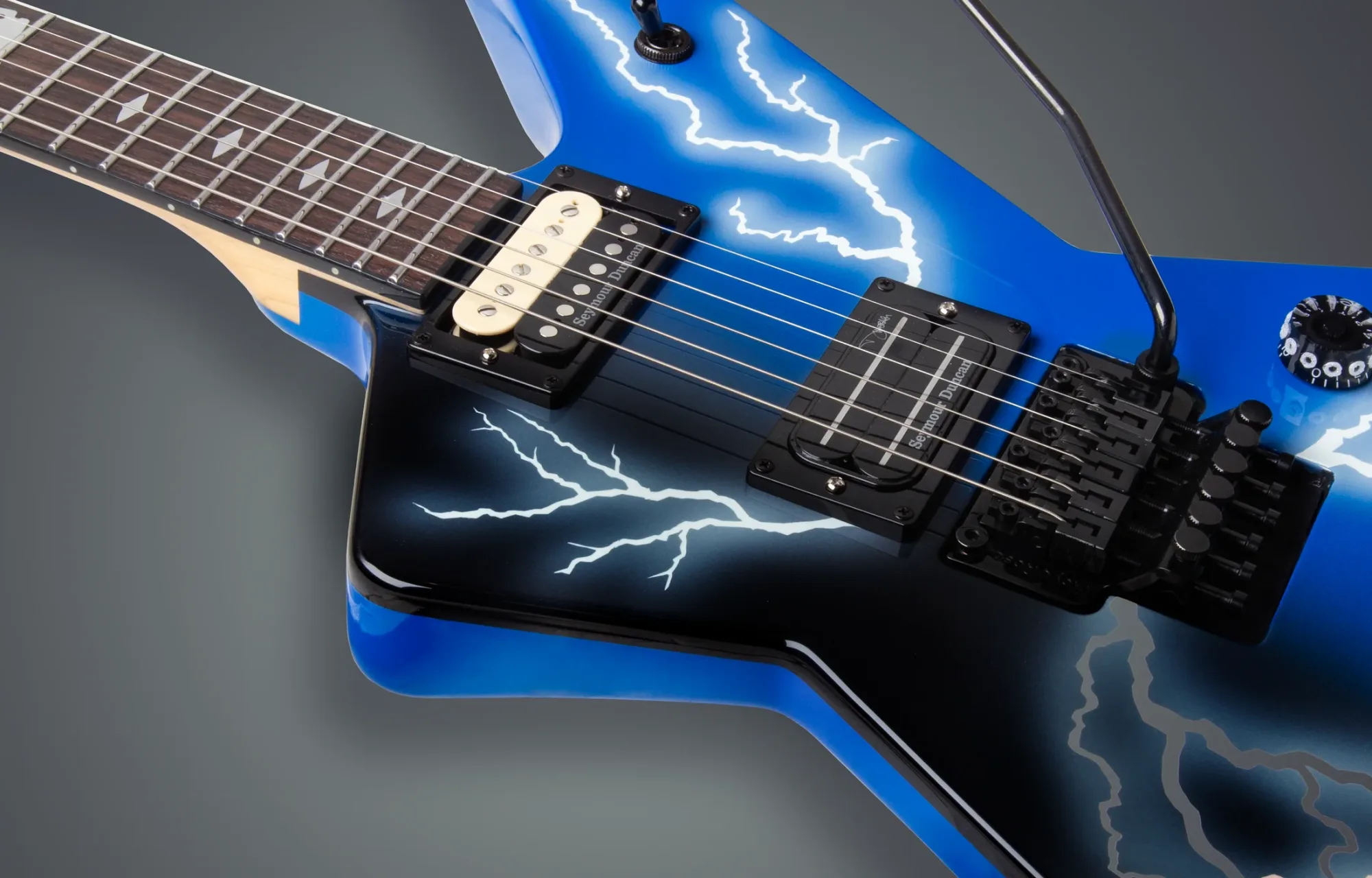

Seymour Duncan SH-13 Dimebucker Model bridge pickup
Seymour Duncan SH-1n ’59 Model neck pickup
Neck Volume with push/pull coil split
Bridge Volume with push/pull coil split
Master Tone with push/pull 15 dB gain boost

Hardware
Floyd Rose® 1000 Series bridge with stable tuning and smooth tremolo action

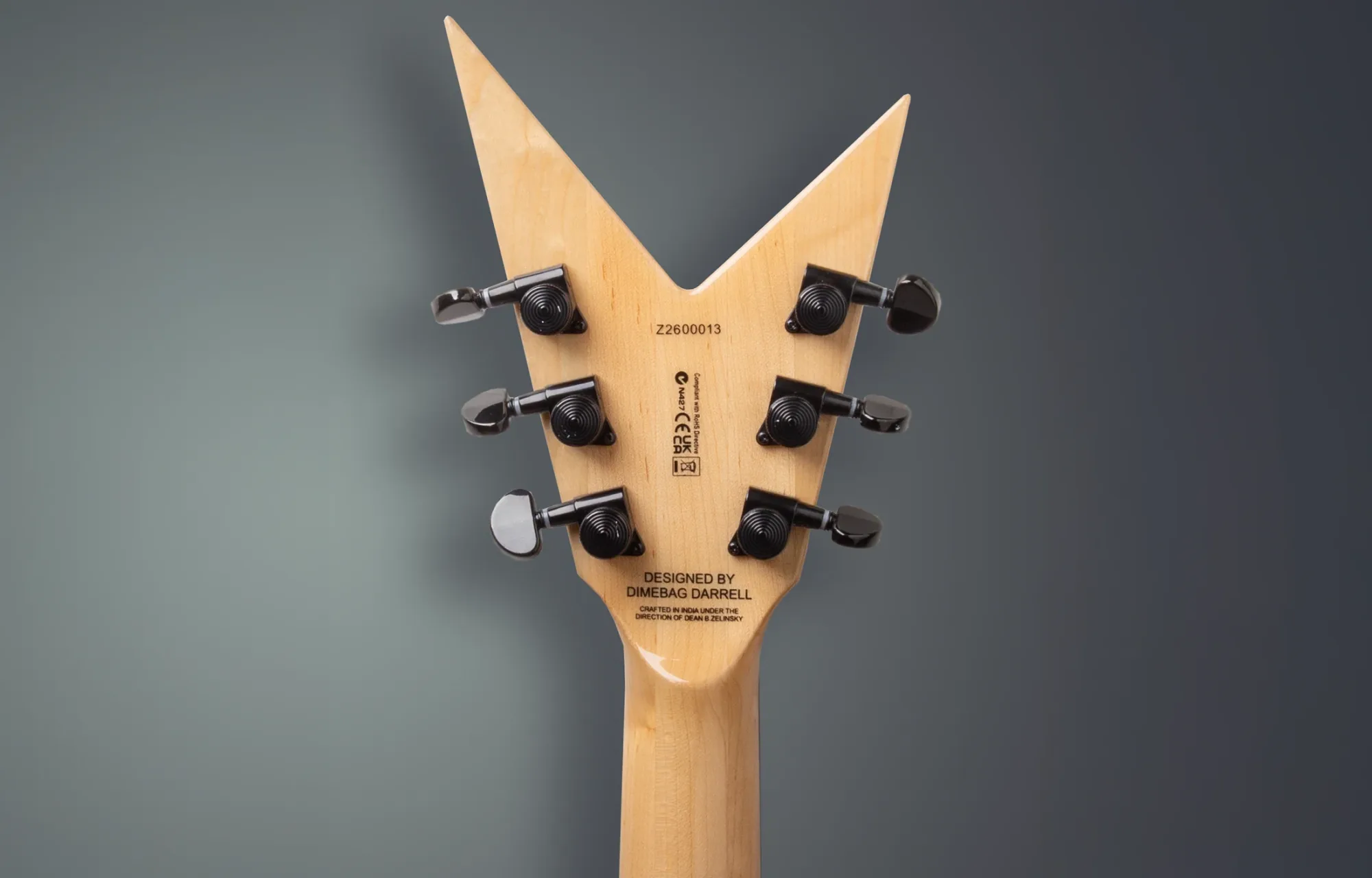

Grover-style locking tuners
Hardware colors: Chrome / Black / Gold

Design
Exclusive Diamond Plate inlays
Dime Razorblade at the 12th fret
Matching head design

Strings and Accessories
D’Addario EXL120 (.009–.042)
Padded gig bag
