DiMarzio ISCV2PK

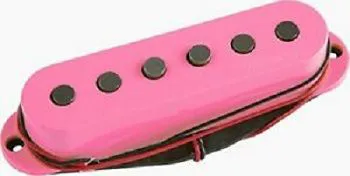

ISCV2PK. Evolution Single, Middle pickup.

The DiMarzio ISCV2 Evolution Single Coil Pickup is specifically designed for use with DiMarzio Evolution Neck and Bridge models in a wiring configuration made popular by Steve Vai. When the 5-way switch is in the 1 or 5 position, you hear the neck or bridge humbucker. When played in the 2 or 4 position, the middle single-coil combines in parallel with one coil of either humbucker and produces a distinctive tone with hum cancellation. The middle (3) position gives a true single coil sound which is not hum canceling and is not like an Evolution humbucker.A schematic of this wiring configuration is included with the ISCV2.

Recommended for Middle position.

Specs. ISCV2PK.
Finish: Pink.
Pole pieces: Nickel.
Magnet: Alnico 5.
Output: 160mv.
DC Resistance: 12.54 K.

Specially designed for Steve Vai's Ibanez JEM models, introduced in 1993.
