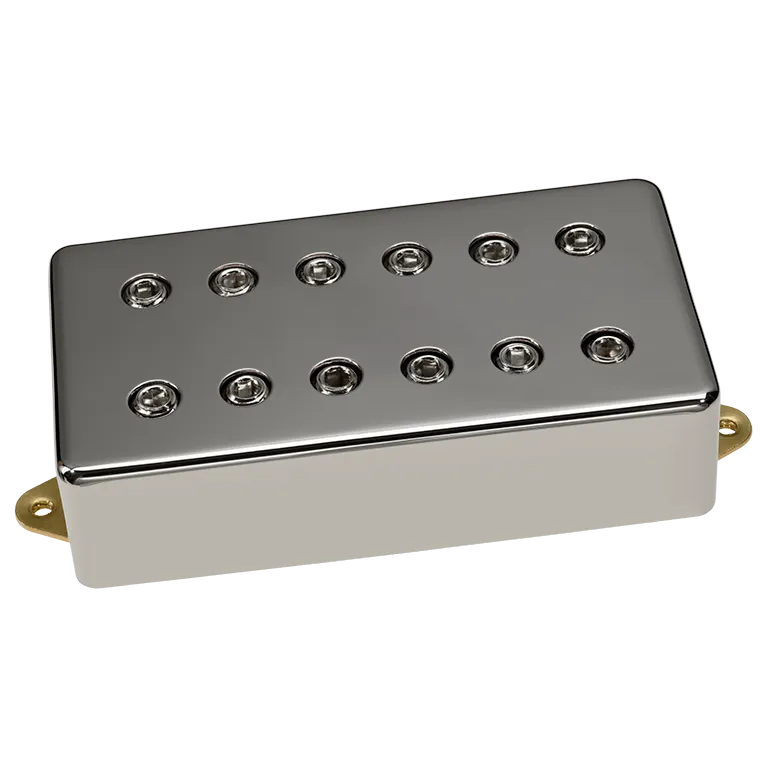

DiMarzio DP100FN

This pickup started a sound revolution. Replacement pickups simply didn’t exist before the invention of the Super Distortion® in the early Seventies. The Super Distortion® (and its original 3-conductor version, the Dual Sound®) was the first pickup specifically designed to kick a tube amp into total overdrive, and is still the standard by which all other high-output pickups are measured. The Super Distortion® has a perfect blend of power and tone: both single-notes and chords jump out of the amp and fill the room (or the track) with a wall of sound. The balance of tones is classic — thick, boosted mids, big lows and fat highs. This is the sound you’ve heard for over three decades on platinum records, from players as varied as Ace Frehley, Al Di Meola, and Paul Gilbert. It’s also versatile: 4-conductor wiring allows instant access to Strat®-like split and series-parallel modes. Discover what thousands of great players know: the Super Distortion® is the best all ’round high-power pickup ever made.

DiMarzio DP100FN Super Distortion Humbucker Pickup F Spacing Pol Nickel - F-spaced pickups measure 2.01" (51 mm) center-to-center from the first polepiece to the sixth. Standard-spaced pickups measure 1.90" (48 mm). Although some players believe that F-spaced pickups are only for the bridge position of tremolo bridge guitars, many guitars with fixed bridges (including post-1998 Gibson® and Epiphone® Les Paul®, SG® and semi-hollow guitars) should have F-spaced pickups in the bridge position. Most tremolo equipped guitars that have a nut width of 1-11/16” (43mm) or more should also use an F-spaced pickup in the neck position. If you’re replacing a bridge-position pickup and you're not sure what your string-spacing is, it's usually better to get an F-spaced model. It is not necessary for the strings to pass exactly over the center of the polepieces for best performance, but it is wise to avoid a situation where the E strings are sitting completely outside of the outer polepieces.

Recommended For
The Super Distortion® is primarily a bridge position pickup, although it can be used in the neck position with a relatively low-gain amp. Specifically designed for solid-bodies: hollow and semi-hollow guitars can be hard to control with warm, high output pickups.
Quick Connect No
Wiring 4 Conductor
Magnet Ceramic
Resistance 13.68 Kohm
Year of Introduction 1974
