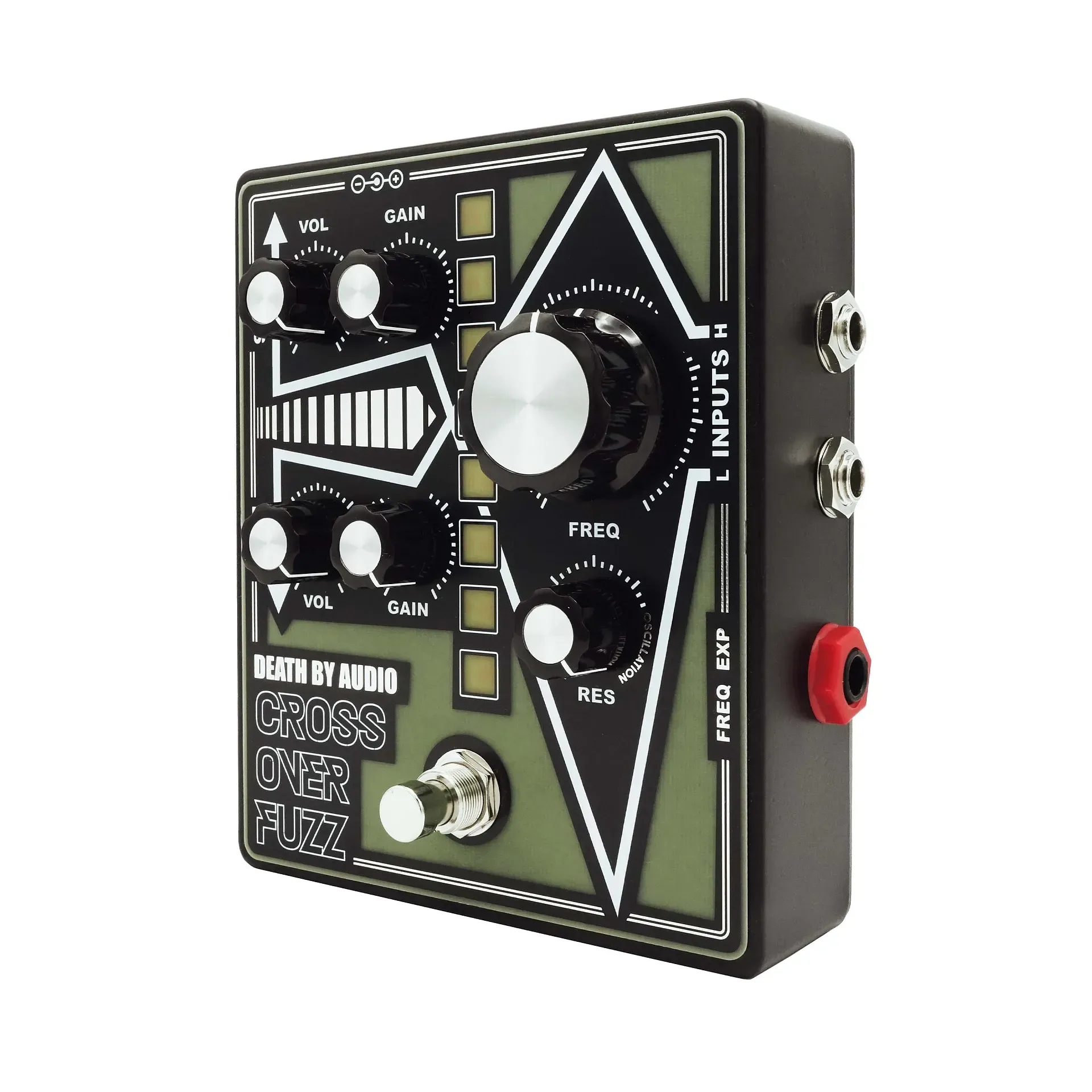

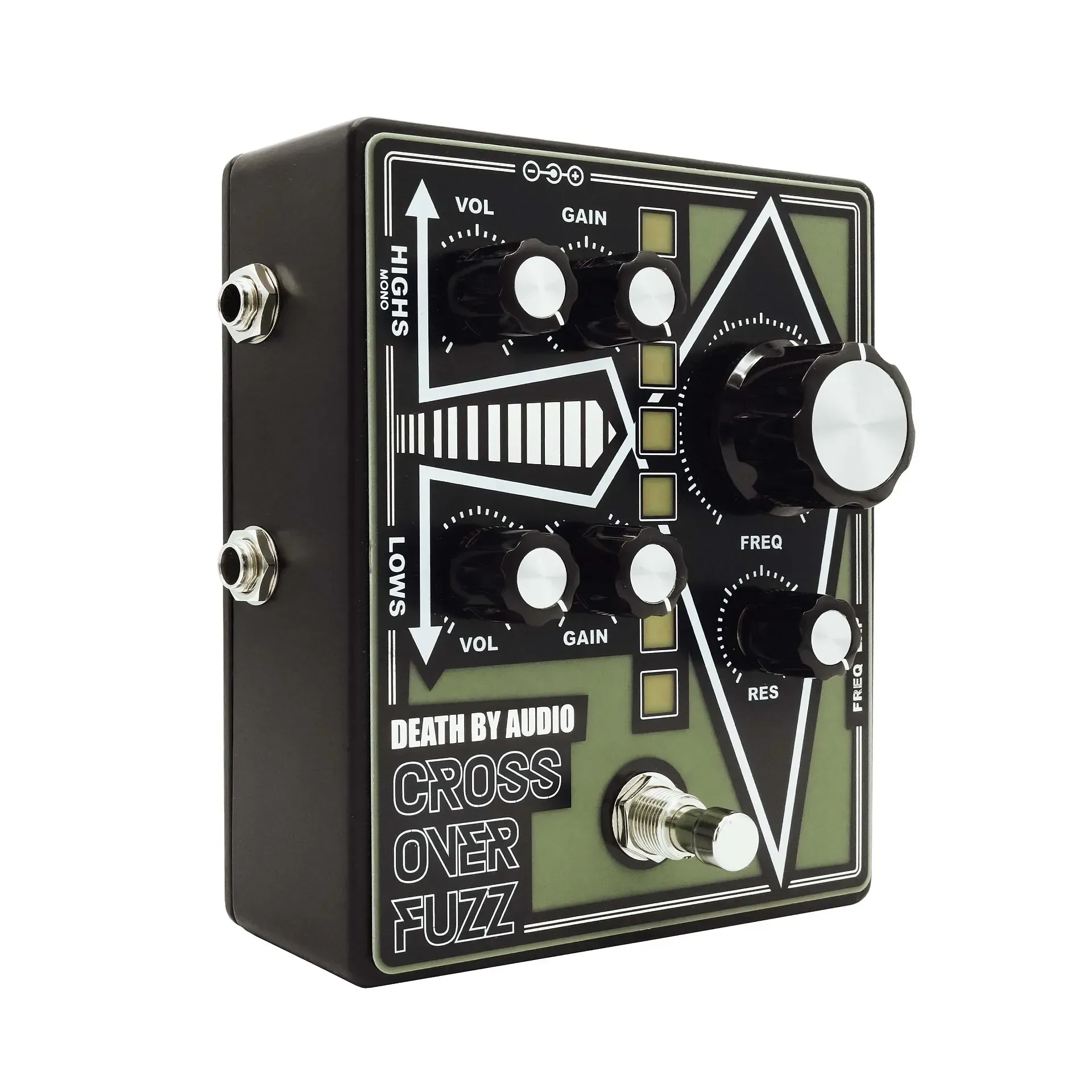

Death By Audio Crossover Fuzz

The Death By Audio Crossover Fuzz is not your average fuzz pedal—it’s a powerful dual-band tone machine that splits your signal into highs and lows, then processes each with aggressive, analog fuzz. Designed for sonic experimentation, it gives you complete control over your tone like never before.

Using a unique crossover circuit, the pedal separates your signal into two frequency bands, each with independent gain and volume controls. This allows you to sculpt everything from tight, focused distortion to chaotic, swirling fuzz textures.

The FREQ control sweeps dual analog resonant filters, letting you precisely define where the crossover sits or push it into wild, oscillating territory. The RES control adds resonance for sharper filtering and more extreme tonal shaping.

With dual inputs and outputs, the Crossover Fuzz opens up creative routing possibilities—split your signal to multiple amps, process frequencies separately, or even create stereo movement across your rig. An expression or CV input allows real-time control of the filter sweep for dynamic performances.

Features
Dual Band Analog Fuzz Pedal
Independent High And Low Frequency Processing
Resonant Analog Filter Sweep Control
Separate Gain And Volume Controls For Each Band
Flexible Dual Input And Output Routing
Expression Or CV Control For Filter Sweep
Reactive LED Frequency Display

Specifications
Effect Type: Dual Band Fuzz
Signal Path: All Analog

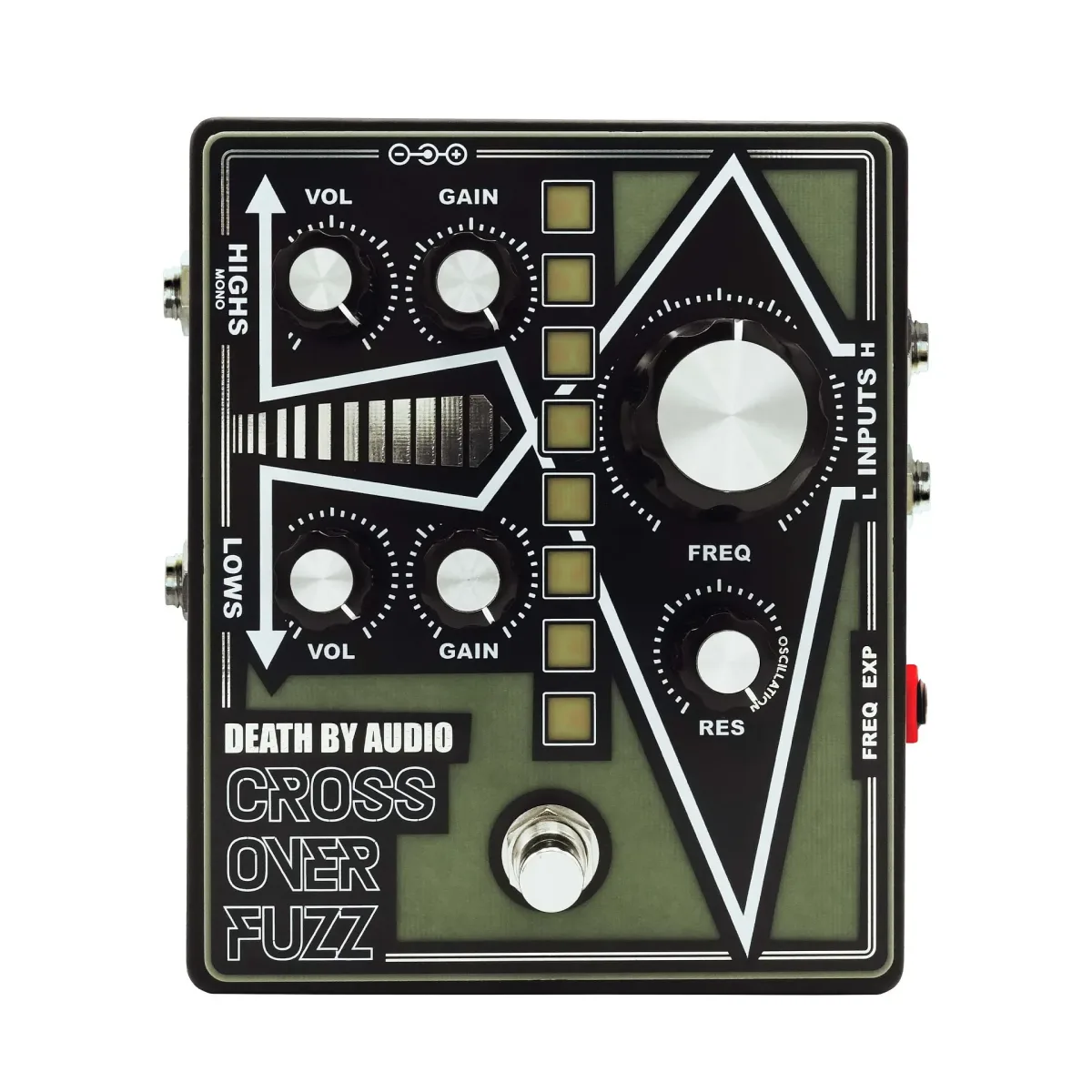

Controls: Volume, Gain High, Gain Low, Frequency, Resonance

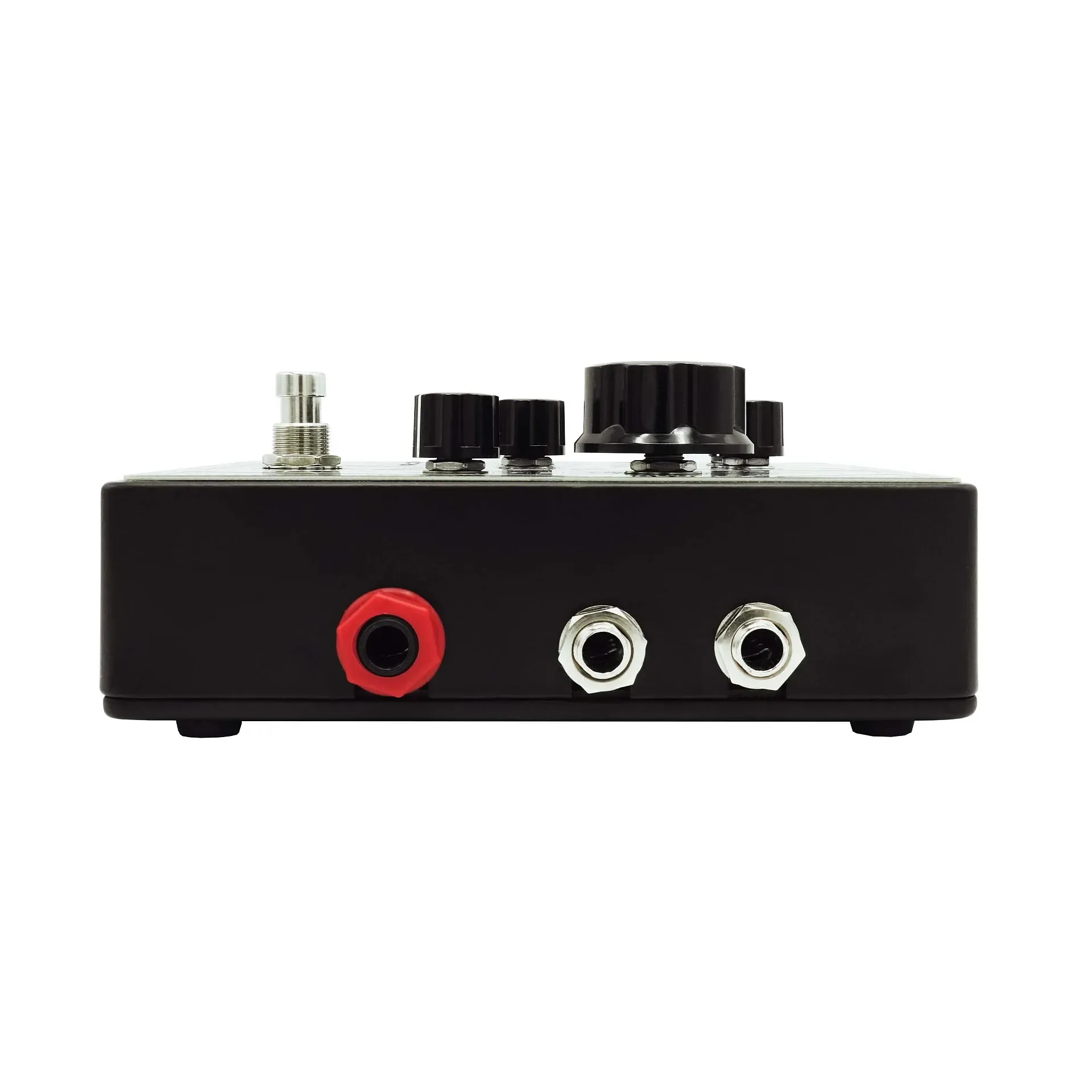

Inputs: 2 x 6.35 mm TS

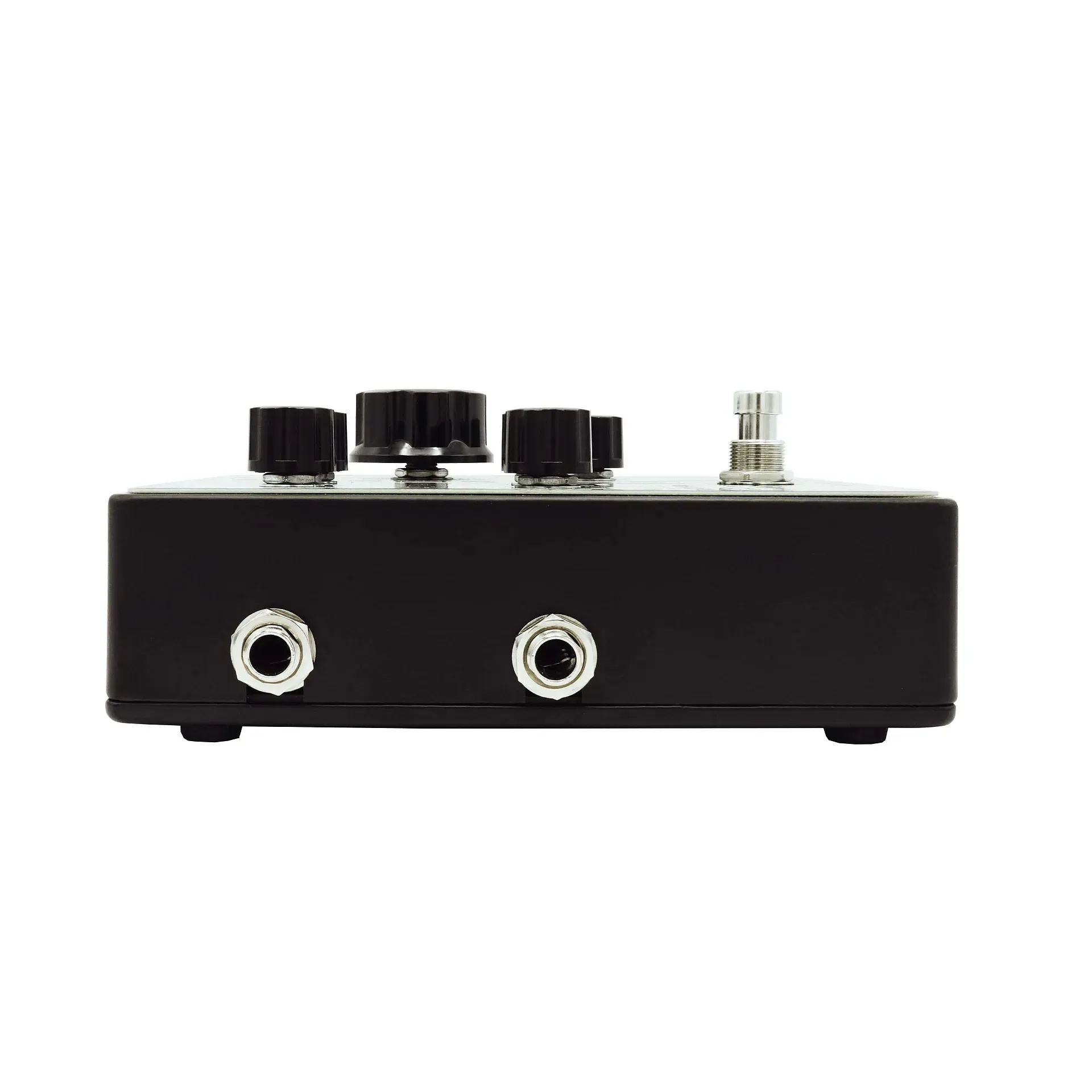

Outputs: 2 x 6.35 mm TS
Expression Input: 6.35 mm (CV Or Expression Pedal)

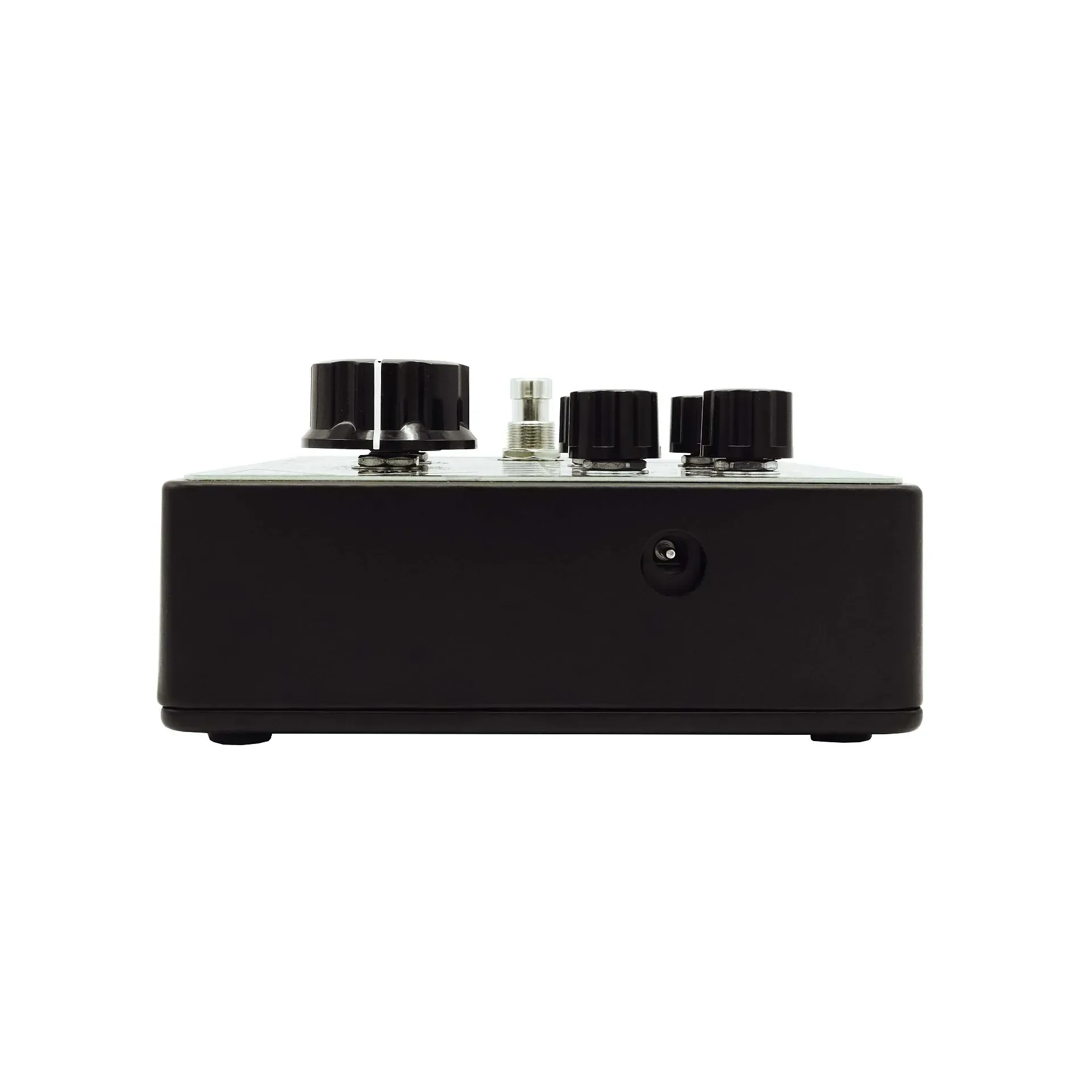

Power Supply: 9 V DC (Center Negative, Not Included)
Current Draw: 120 mA
Housing: Metal
Dimensions: 146 x 132 x 60 mm
Weight: Approx. 520 g

In The Box
Death By Audio Crossover Fuzz Pedal
Power Supply Sold Separately
