Death By Audio Amp Crash

Death by Audio Amp Crash – Amp Pedal

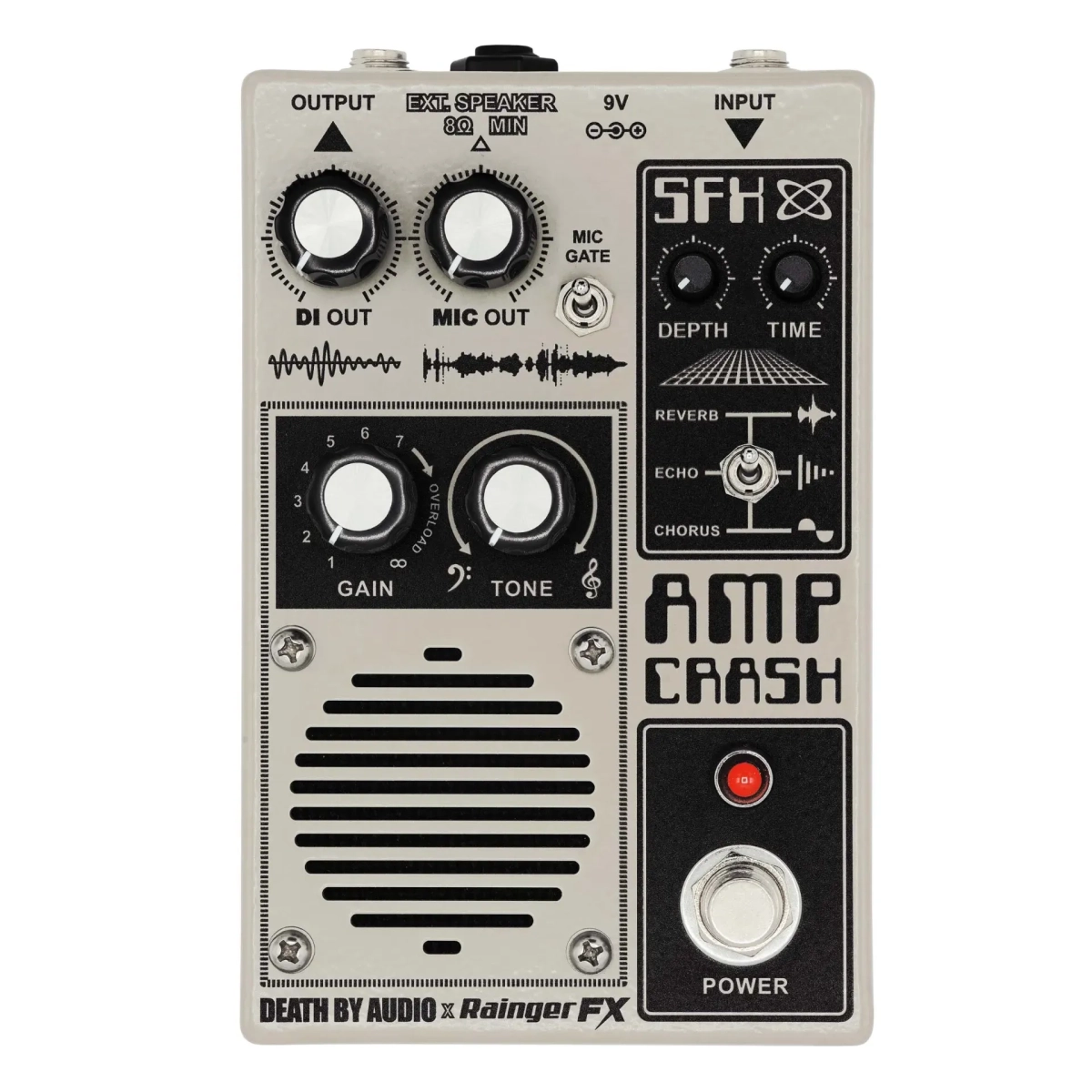

The Death by Audio Amp Crash is an effects pedal with a built-in 3-watt amplifier, 2-inch speaker, and microphone that work together to create the sound of a blown-out amplifier. The pedal produces organic harmonics, natural compression, and authentic feedback as the internal amplifier drives the speaker while the microphone captures the resulting sound. DI OUT and MIC OUT controls allow the direct amplifier signal and miked signal to be blended.

Features
Amplifier, multi-FX, and fuzz pedal
Built-in 3-watt amplifier
Built-in 2-inch speaker
Built-in microphone
Created in collaboration between Death By Audio and Rainger FX
Blend of direct amplifier signal and miked signal
Built-in reverb, echo, and chorus effects
DI OUT and MIC OUT controls
GAIN and TONE controls
DEPTH and TIME controls for the effects section
MIC GATE switch
Effect selection switch for REVERB, ECHO, and CHORUS
On/Off footswitch
Status LED
Buffered bypass
Combined output for the mixed DI and microphone signal
EXT. SPEAKER output for external speaker, minimum 8 ohms and 3 watts or more
Connecting an external speaker automatically deactivates the internal speaker
Battery operation not supported
All connections located on the top of the unit

Connections and Power
6.35 mm (1/4") TS input
6.35 mm (1/4") TS output
6.35 mm (1/4") EXT. SPEAKER output, minimum 8 ohms
9V DC power via separate power adapter
2.1 x 5.5 mm barrel plug
Center-negative polarity
Current draw: 300 mA

Construction and Dimensions
Metal housing
Dimensions (L x W x H): 150.2 x 95 x 72.4 mm / 5.9 x 3.76 x 2.85"
Weight: 542 g
Made in the USA
