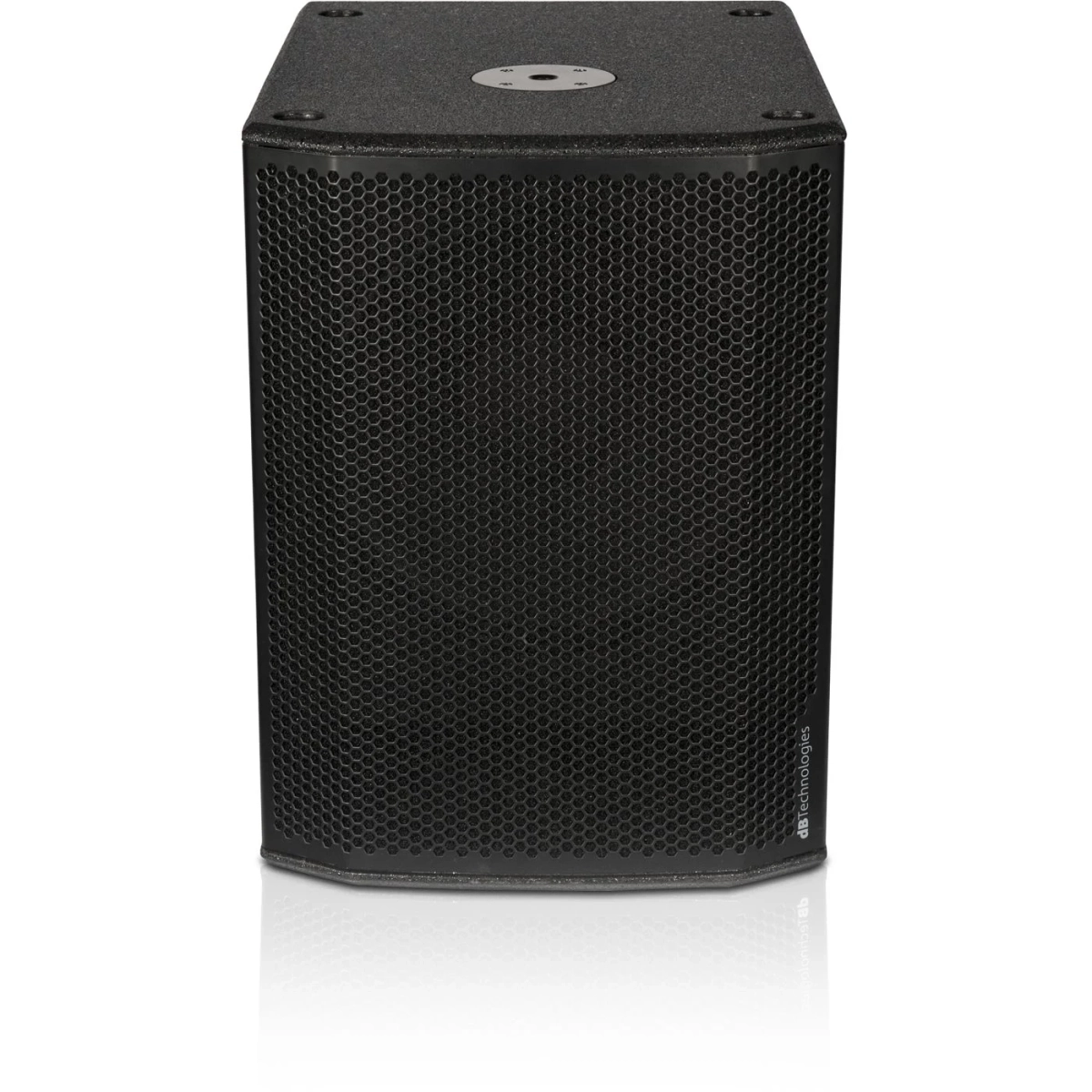

dB Technologies SUB615

dB Technologies SUB615 – Powerful and compact 15” active subwoofer with 600 W RMS
The dB Technologies SUB615 is an active 15” bass-reflex subwoofer that combines high performance, a compact design, and impressive sound pressure. With a 600 W RMS Class-D amplifier featuring SMPS technology, the SUB615 delivers up to 131 dB SPL and offers deep, clean, and precise low-frequency reproduction—ideal for both live rigs and mobile PA systems.

The SUB615 makes it easy to build a complete 2.1 system with just one subwoofer and two tops, thanks to balanced X-Over outputs that eliminate the need for external crossovers. You can choose mono or stereo input, enable polarity reversal, and select between True Bypass or X-Over mode. In addition, the Sub Mode switch provides a low-frequency boost when extra punch is needed.

The lightweight yet rugged plywood construction (25.5 kg) features a full-front metal grille and a scratch-resistant black finish. Integrated side handles simplify transport, and the top panel design facilitates stacking multiple subs for larger installations. An M20 stand mount also makes it easy to mount a top speaker directly on top of the subwoofer.

Features
15” active subwoofer with bass-reflex design
600 W RMS Class-D amplifier (1200 W peak)
Max SPL: 131 dB
Precise DSP-controlled low-frequency reproduction
Balanced crossover outputs for easy PA configuration
Sub Mode (Low Frequency Boost) for extra punch
Mono/stereo selector and polarity switch
Rugged plywood cabinet with full metal grille
M20 stand mount for top speakers

Specifications
Type: Active subwoofer
Frequency response (-10 dB): 42–124 Hz
Max SPL: 131 dB
LF driver: 15”
Voice coil: 2.5”
Amplifier: Class D, 600 W RMS / 1200 W Peak
DSP: 28/56-bit
Limiting: Peak, Thermal, RMS
Controls: Subwoofer level, Output Mode, Polarity, Sub Mode
Inputs: 2 × XLR (balanced)
Outputs: 2 × XLR (balanced)
Cabinet: Plywood
Grille: Full metal grille
Stand mount: M20
Dimensions (W × H × D): 430 × 580 × 600 mm
Weight: 25.5 kg
