dB Technologies Mini Box L 160D

dB Technologies L 160D

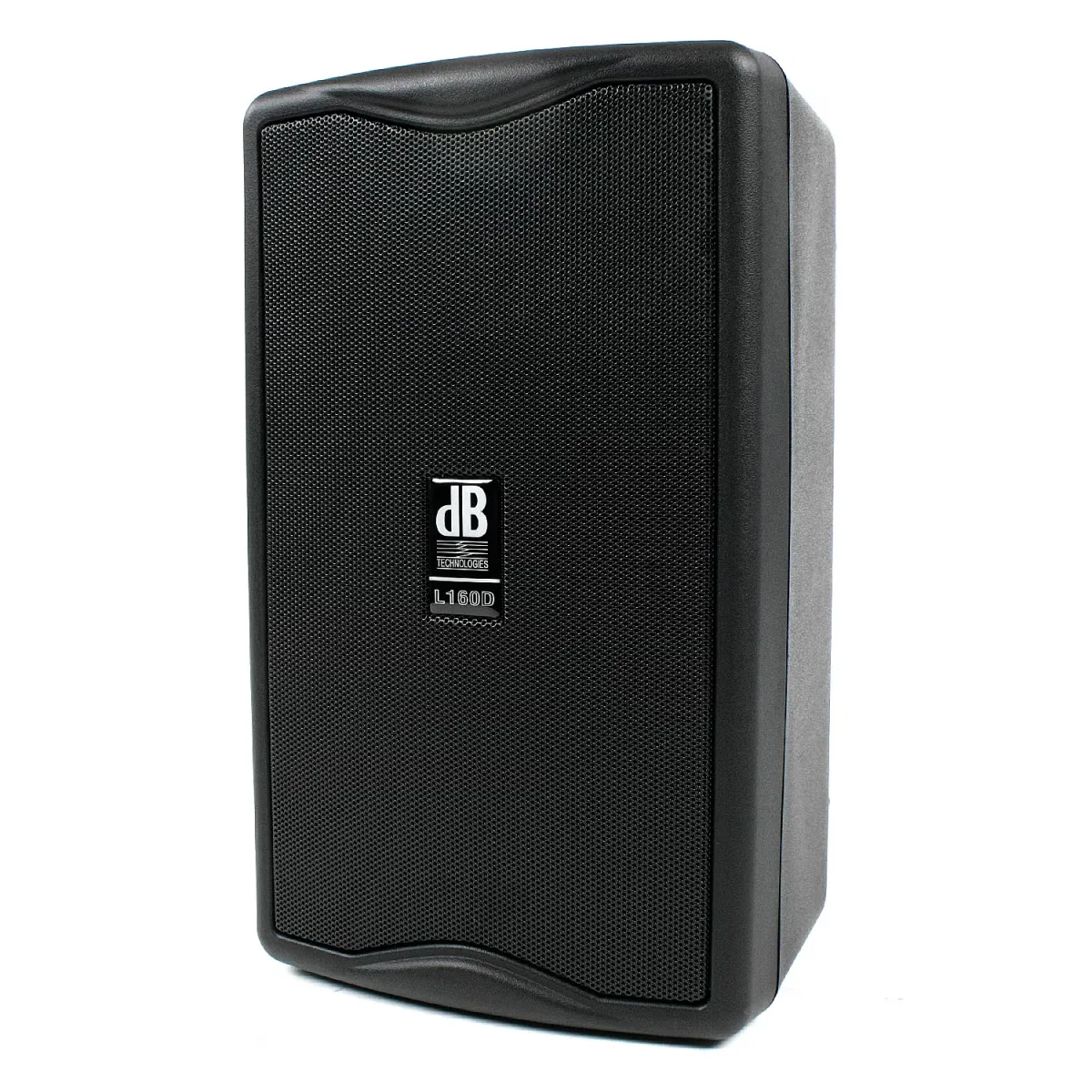

A powerful yet surprisingly light cabinet, the remarkably compact L160D offers a variety of connection options to provide convenient sound reinforcement for multimedia applications.

Paired with a DSP, the two 5“ phase-corrected loudspeakers deliver astonishingly high sound pressure levels for their size and an amazingly transparent and articulate sonic image.

The multifunctional housing offers wall-mount fixing points for permanent installation and a pole mount for portable use.

Technical Data

Speaker Type: 2-Way Active Speaker
Frequency Response: [-10dB] 70 - 20.000 Hz
Max SPL: 116 dB
HF: 1 "
Type HF: Dome Tweeter, coaxial
Directivity: 85 x 75 °
LF: 2x 5 “
Amplifier: Amp Technology digipro®
Amp Class: Class D
Power PRG: 160 W
Cooling: Convection
DSP 24bit/48kHz
System Presets: 8

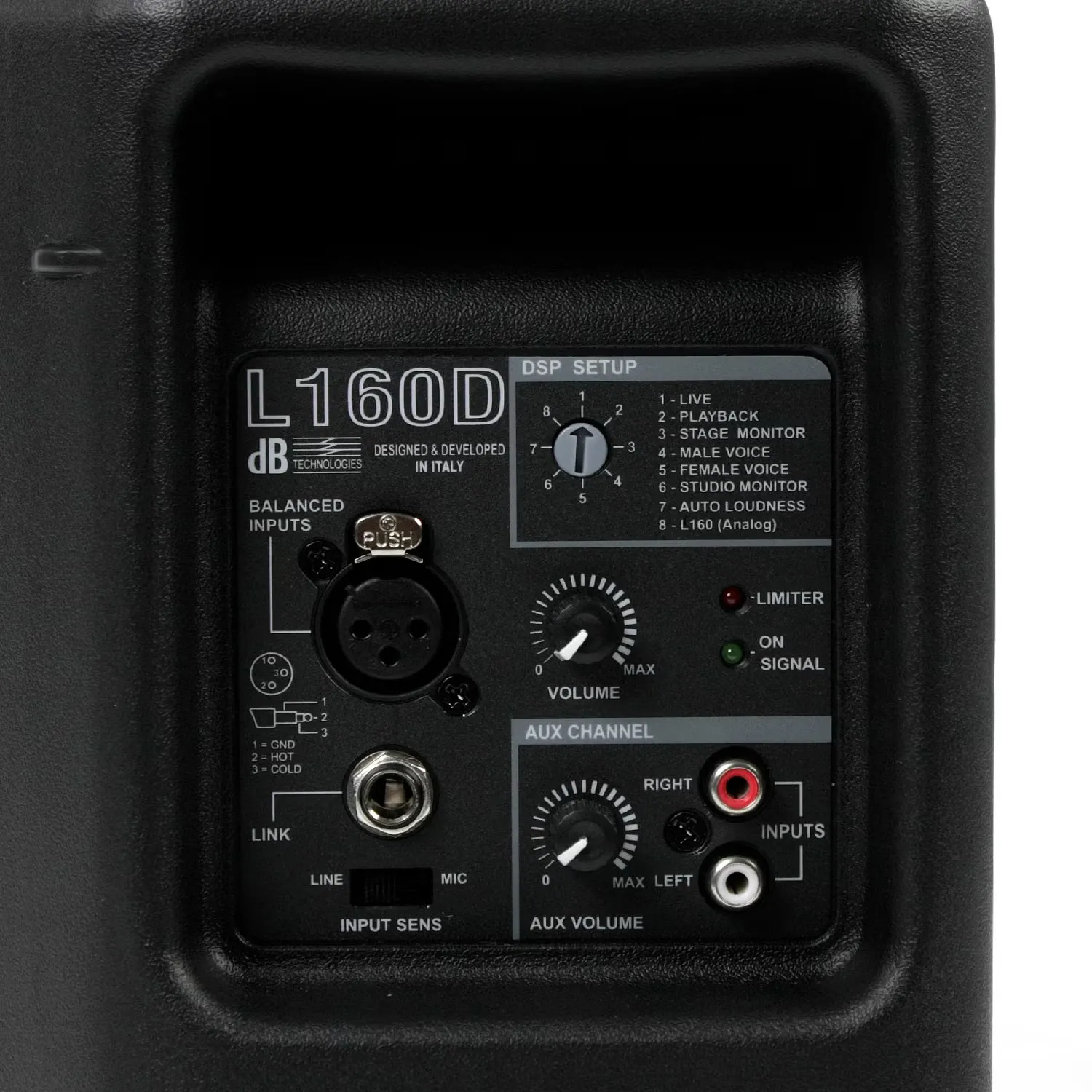

Signal Input: 1x XLR Line In/Mic, 1x 6.3mm phone jack, 1x RCA cinch AUX with volume ctrl
Microphone Input: YES
Signal Output: 1x 6.3mm phone jack
Power Socket: VDE
Housing: Polyporpylen PP
Monitor use 60°
Rigging Points: 2x M5 on side, 2x M5 on bottom for accessories (Accessory WB03, SN120)
Width: 200 mm
Height: 335 mm
Depth: 220 mm
Weight: 5.2 kg
