dB Technologies DVA M2M+DVA M2S

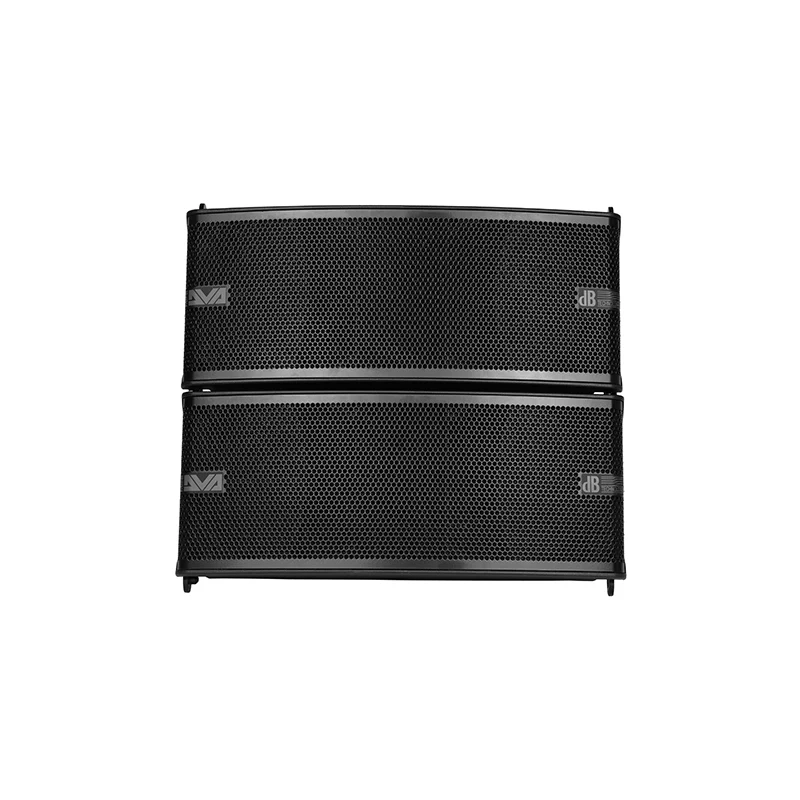

DVA M2M+2MS - Compact Mini Line Array
Offering the same user-friendliness and sound quality of its DVA predecessors, this 2-Way Active Line Array System sets the new benchmark for high-end sound performance thanks to the innovative Master+Slave design which aacks high SPL in incredibly small dimensions and weight. A super versatile system for both portable and permanent installation solutions.

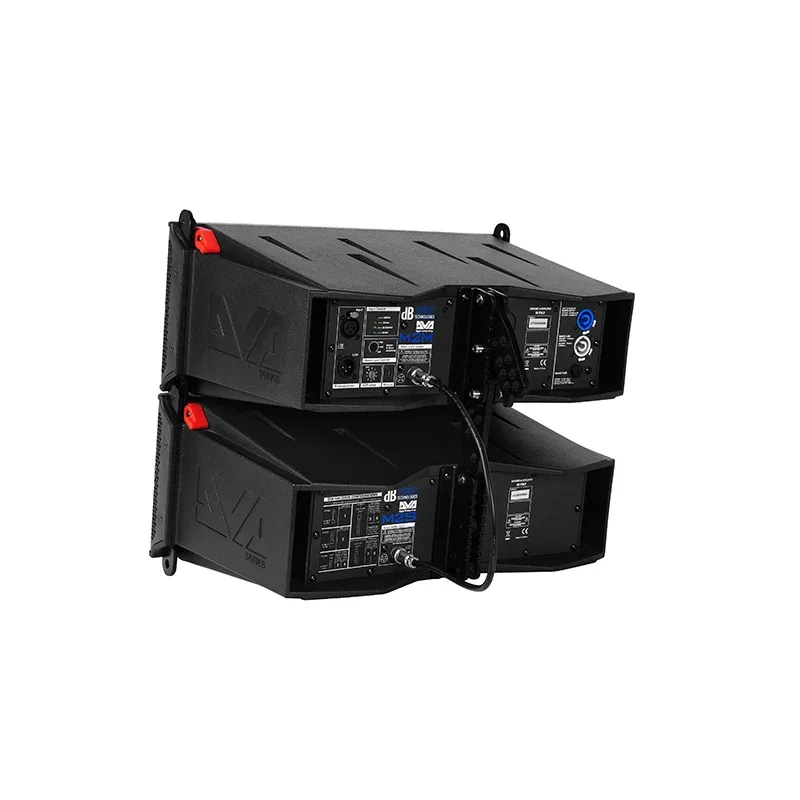

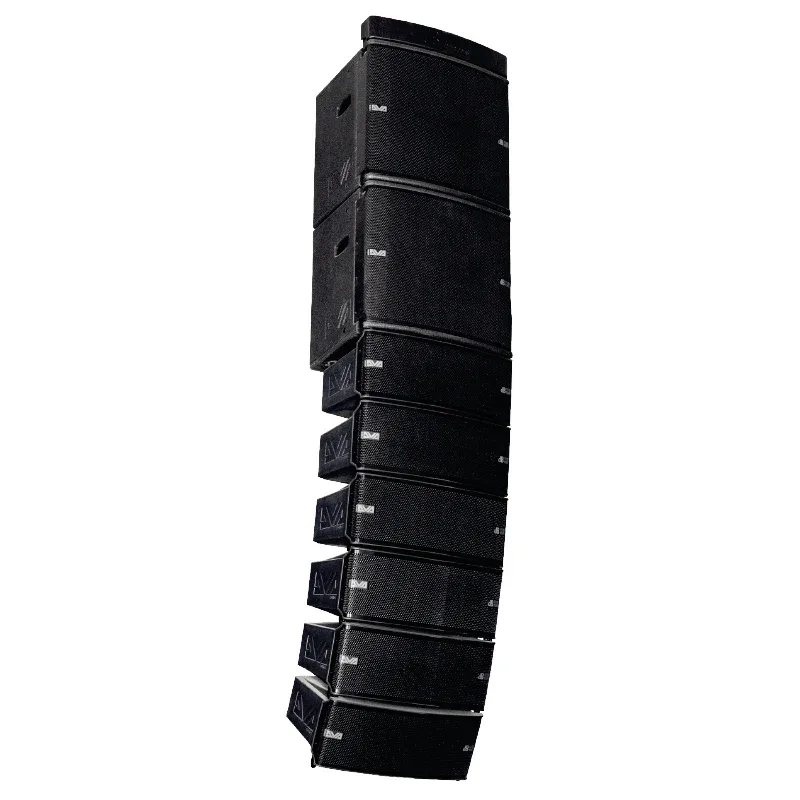

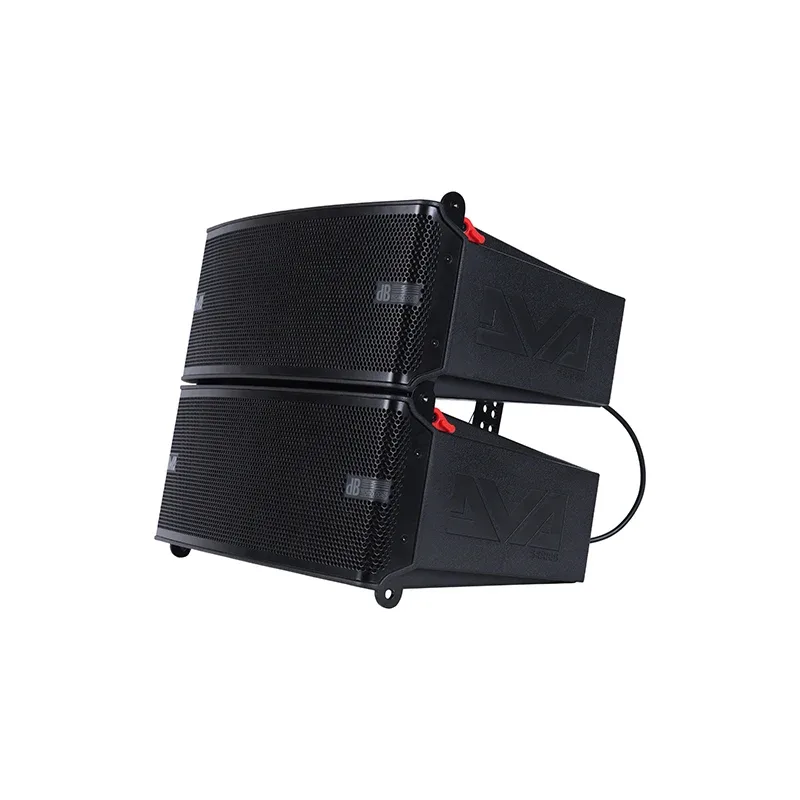

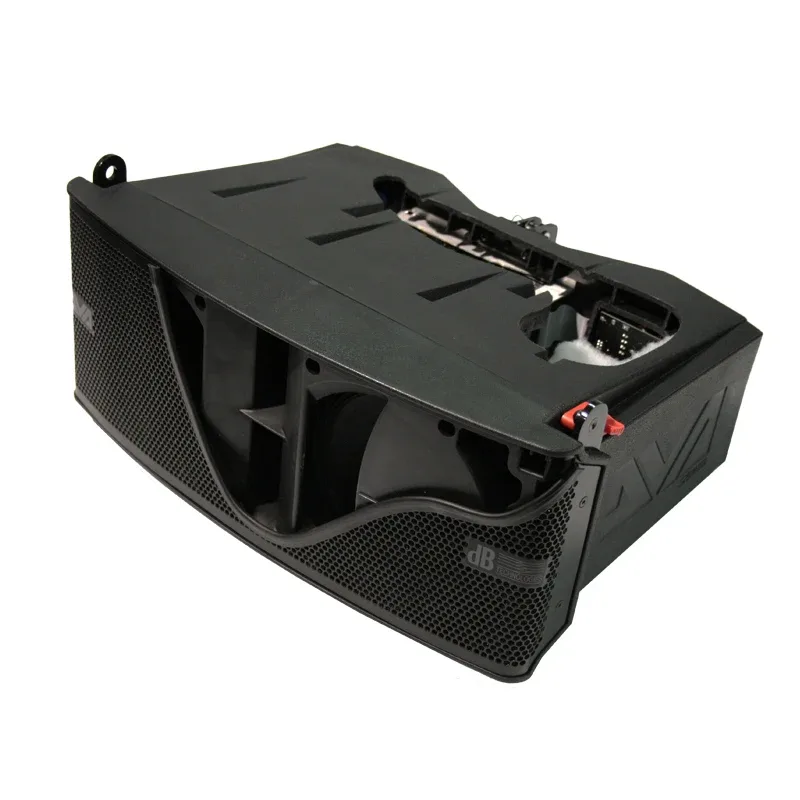

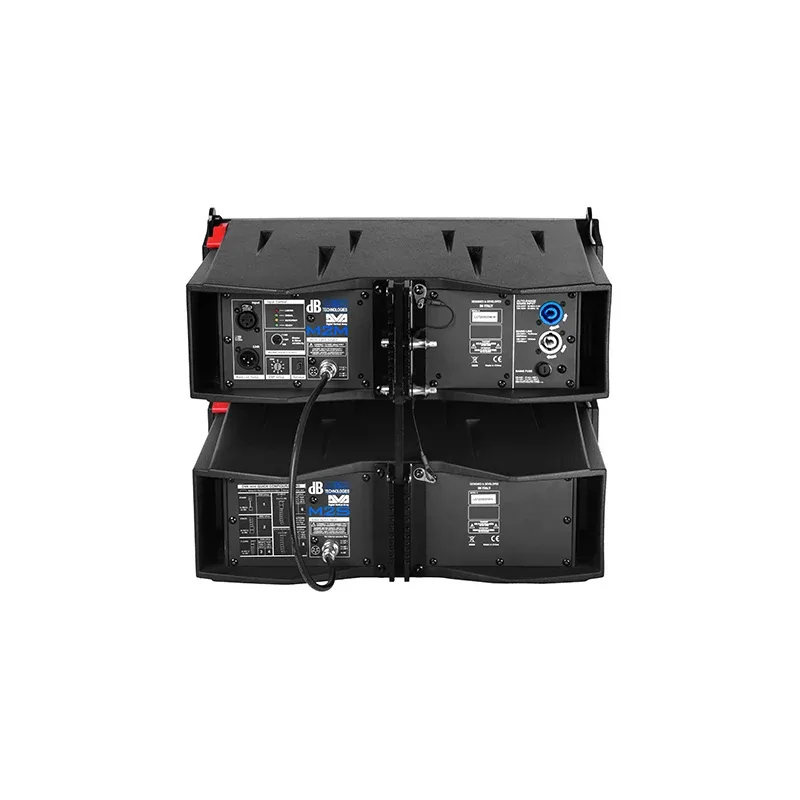

Each unit of DVA MINI system is comprised of two line array modules, each with two 6.5” neodymium woofers and two 1” high-frequency compression drivers. The M2M module is the master module that contains the 400-watt Digipro G3 amplifier that power both the M2M and M2S slave module. The system achieves 126 dB max SPL per unit.  Constructed in solid Polipropilene reinforced with an internal anti-vibration structure, DVA MINI features a new fast-lock mechanic design: users simply place one module below the other and slide it towards one side until it locks in place. Moreover, every DVA MINI module has a back mechanic with incremental steps allowing different line array positioning angles.

Technical Data

Speaker Type: M2M 2-Way Active Master Line Array Module, M2S 2-Way Slave Line Array Module
Frequency Response: [-6dB]78 - 19.000 Hz
Frequency Response: [-10dB]68 - 20.000 Hz
Max SPL: 126 dB per unit
HF: 2x1" Neodymium Voice Coil 1"
LF: 2x6.5" Neodymium Voice Coil 1.5"
Directivity: 90x15°
Amp Technology: Digipro® G3
Class D
RMS Power: HF Amp 200 W (100 W + 100 W)
RMS Power: LF Amp 200 W (100 W + 100 W)
Cooling: Convection
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 kHz
System Presets: 9 presets (8x HF and Low-Mid corrections and 1x for service use)
Limiter: Multiband, RMS/Peak, Thermal
Crossover Frequency: LF-HF1800 Hz
Slope LF-HF: 24 dB/Octave
Signal Input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Power Supply: 400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket: 1x PowerCon In - 1x PowerCon Out
Signal Input: M2S1 Custom connector
Housing: Polypropylen PP
Handles: 2x back side
Fittings: Integrated hardware with fast lock mechanics
Splay Angles: 0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°
Width: 460 mm
Height: 190 mm
Depth: 345 mm
Weight: M2M 7.6 kg
Weight: M2S 7.1 kg
