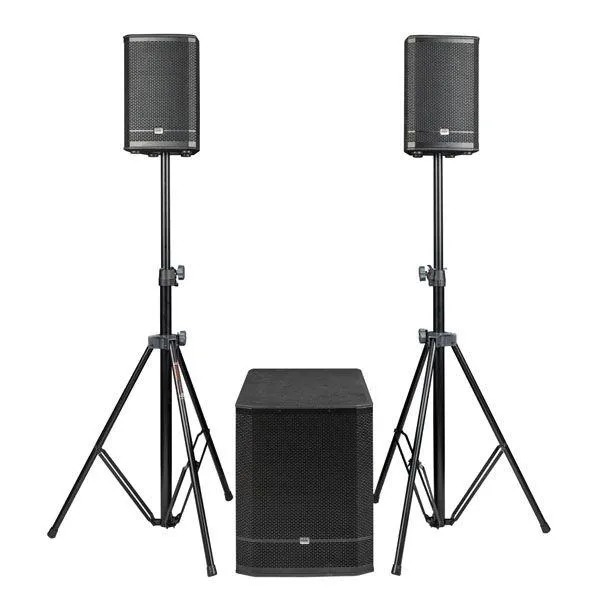

DAP Audio PURE CLUB 15

The bigger brother of the Pure Club 12 with a 15“ subwoofer and two 8"/1“ satellites. The satellites are equipped with neodymium high drivers and a special wave guide for frequencies up to 20Khz. Due to the 8” mid speakers this set has a more detailed natural sound quality. The built-in DSP processor will protect the system and speaker drivers against overload and will give an excellent frequency response at any sound pressure level. The set is finished with scratch resistant paint and stylish metal grills.

Compact & Powerful
24-bit DSP Processor with LCD-display
Natural sound quality
Fully customizalbe EQ

Specifications

Speaker High 8/1” passive vented PA Satellite speaker system
Crossover Frequency 125 Hz, 24 dB/Oct BW
Speaker Low 15" / 2" Voice Coil
Frequency Response (-3dB) 40 - 20000 Hz
Housing Plywood
Protection Short circuit, temperature, overload
S/N Ratio > 103 dBr
Power Amp Low 400W RMS at 8 Ohm
Power Amp High 2x 150W RMS at 8 Ohm
Sensitivity Sub (Half Space) 102 dB / W / m
Sensitivity Sat. (Full Space) 95 dB / W / m
SPL peak Sub @1m 128 dB
SPL peak Sat. @1m 116.8 dB
Dispersion Sub (HxV) 360 x 180 °
Dimensions Sub LxWxH 500 x 600 x 700 mm
Dimensions Sat. LxWxH 265 x 425 x 255 mm
Weight Subwoofer 36 kg
Weight Satellite 7 kg
