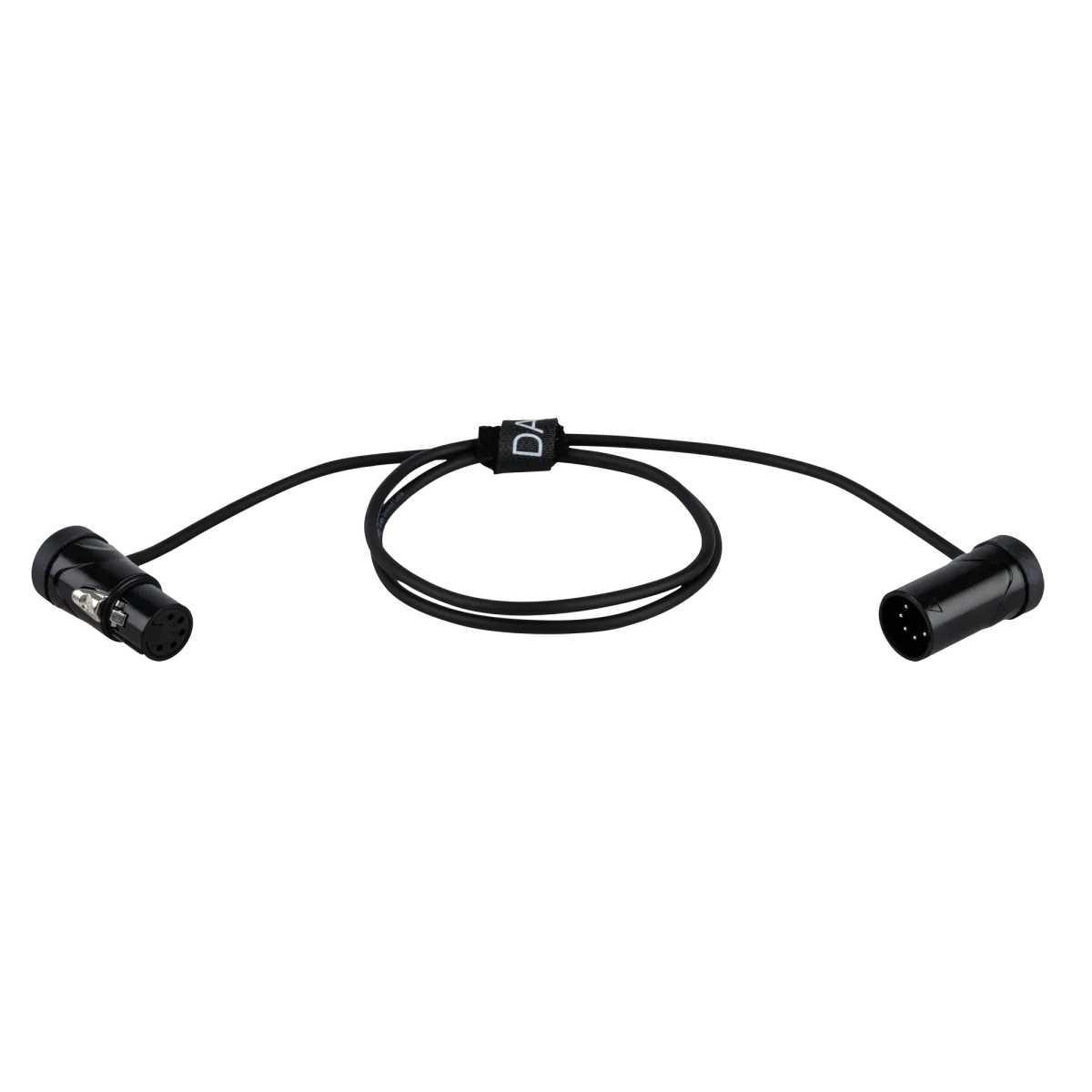

DAP Audio DMX Cable XLR Ma 5-pin > XLR Fe 5-pin 90cm

DAP FLX18 Balanced 5-Pin XLR Patch Cable for DMX

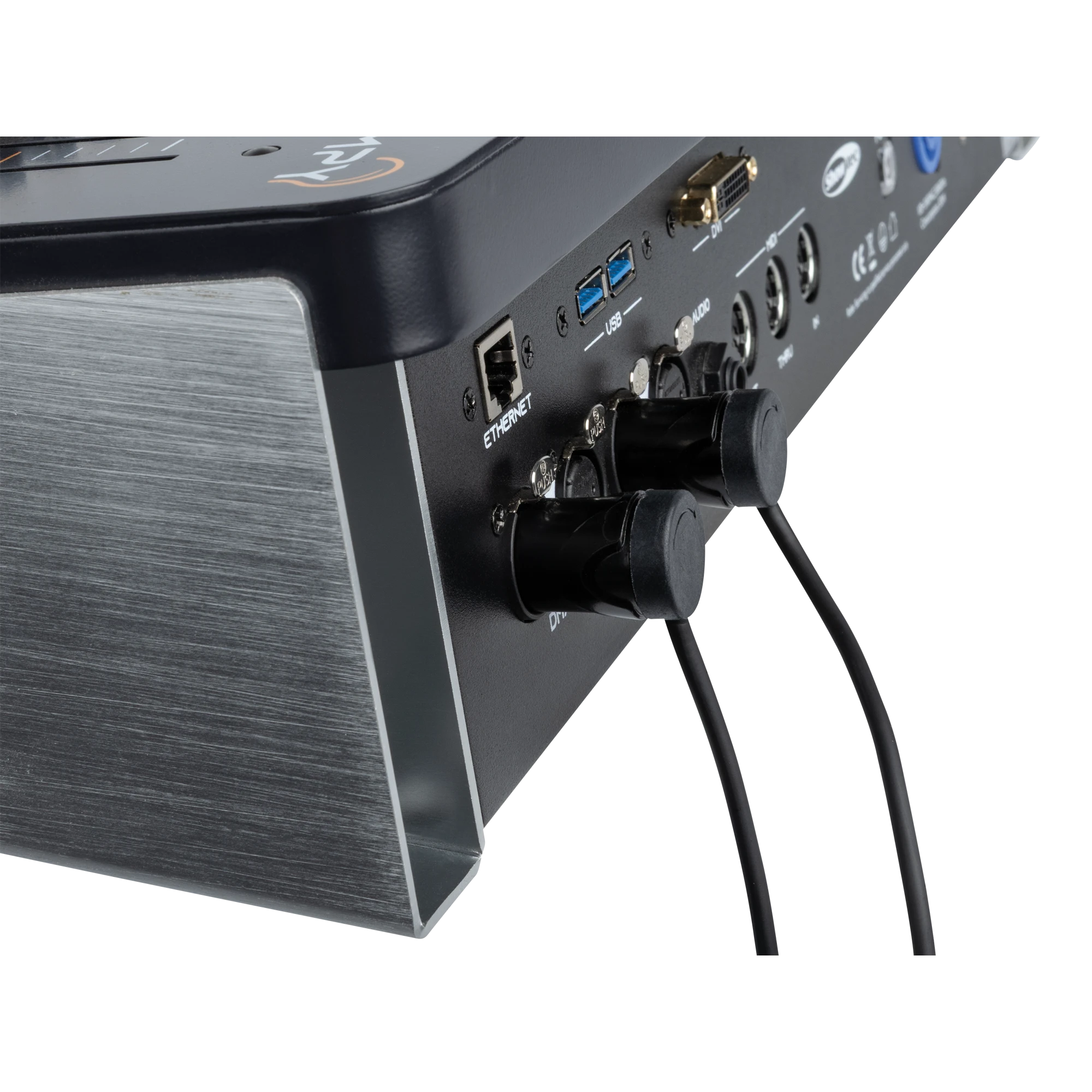

The DAP FLX18 is a balanced signal cable designed for DMX signals and use as a patch cable in racks and patch panels where space is limited. Its ultra-compact right-angle 5-pin XLR connectors are designed for shallow racks and allow patch panel lids to remain closed while the cable is connected. The cable outlet can rotate ±45° for flexible and efficient cable routing. The lightweight, highly flexible cable features durable metal housings and gold-plated contact pins.

Features
Balanced cable for DMX signals

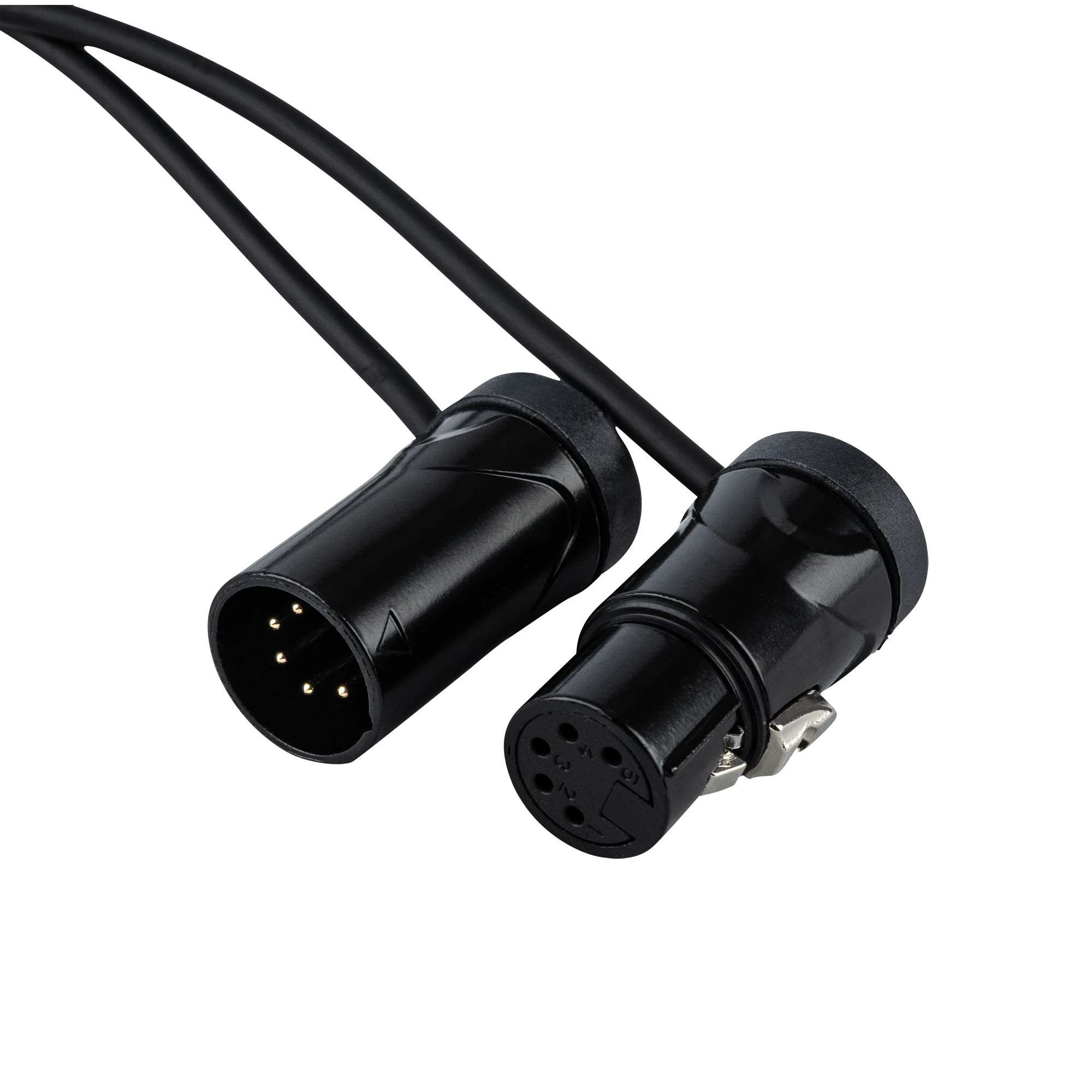

Ultra-compact right-angle 5-pin XLR connectors
XLR 5P male to XLR 5P female
Rotatable cable outlet ±45°
Lightweight and highly flexible cable
Durable metal construction
Gold-plated contact pins
Suitable for shallow racks and patch panels

Specifications
Impedance: 110 Ω
Cable length: 0.90 m
Pins: 5
Conductor resistance: 80 Ω/km
Capacity inner conductor/shield: 47 pF/m
Outer cable diameter: 3.8 mm
Outer isolation type: PVC
IP rating: IP20, indoor use only
Material: Copper
Colour: Black
Contact type: Gold plated
1st shield: Braided tinned copper
2nd shield: Aluminium foil
Shield resistance: 30 Ω/km
Filler material: Cotton
Conductors: 2
Maximum ambient temperature: 70 °C
Minimum ambient temperature: -20 °
