DAP Audio CORE MIX-2 USB

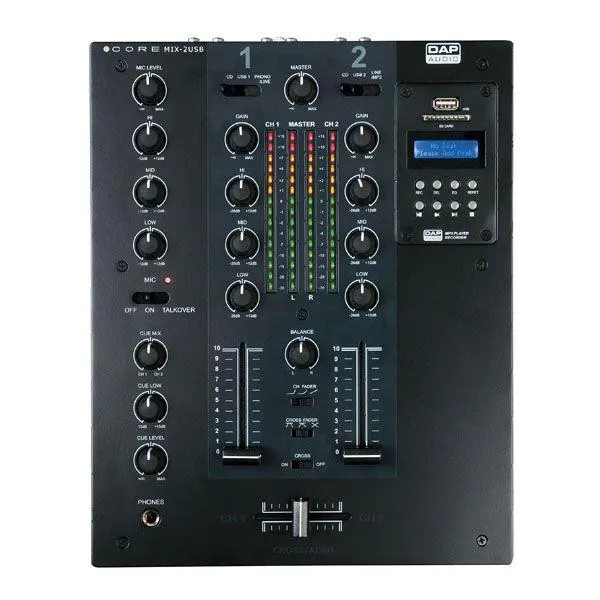

The CORE MIX-2USB is a professional 2 channel analogue DJ mixer. It has 4 analogue inputs and 2 independent USB audio interfaces. This makes it easy to connect your laptop and route the output of your DJ software directly through the MIX-2 USB. The headphone output has a low tone control which makes it possible to adjust your favorite sound. Both channel and cross-faders have fader curve selections. All the pot meters are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It has a MP3 module which can record and playback your life performance directly on an USB or SD device.

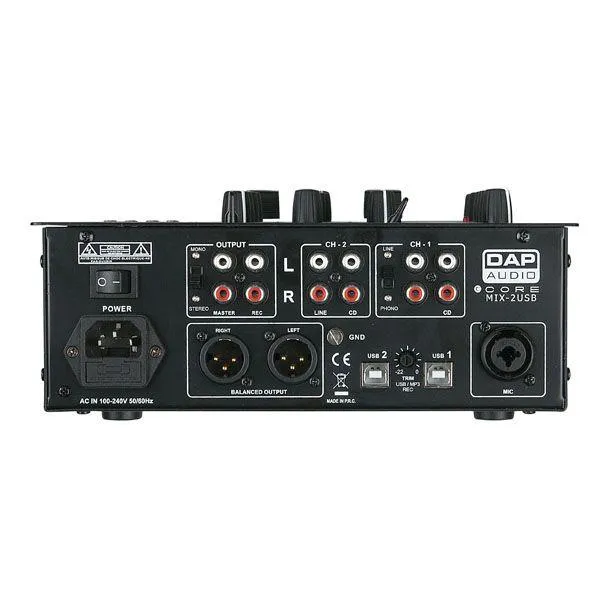

Inputs channels 1 x Microphone, combi XLR/Jack
4x Line, RCA
1x Phono, RCA
2 x USB, type B
Output channels 1 x Record, RCA
1 x Master unbalanced, RCA
1 x Master balanced, XLR
1 x Headphones, 6,3mm Jack
2 x USB, type B
USB Port Audio in- & output interface for PC & Mac, 48 KHz, 16 bit
Channel EQ range -26dB / +12dB
Microphone EQ range -12dB / +12dB
Frequency response 20Hz -20Khz
T.H.D <0.1%
MP3 Module 128Kbit 44.1 Khz, Max 16GB
Dimensions 240 x 300 x 88 (WxDxH)
Power supply 100-240V AC, 50/60Hz
Power consumption 8 Watt
Weight 3.4 Kg
